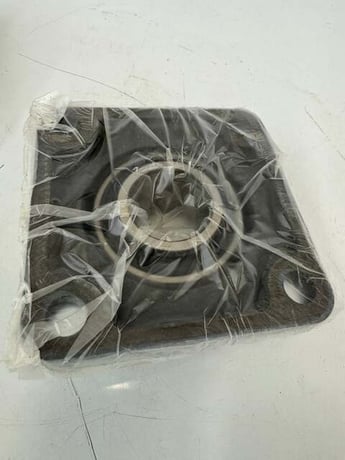

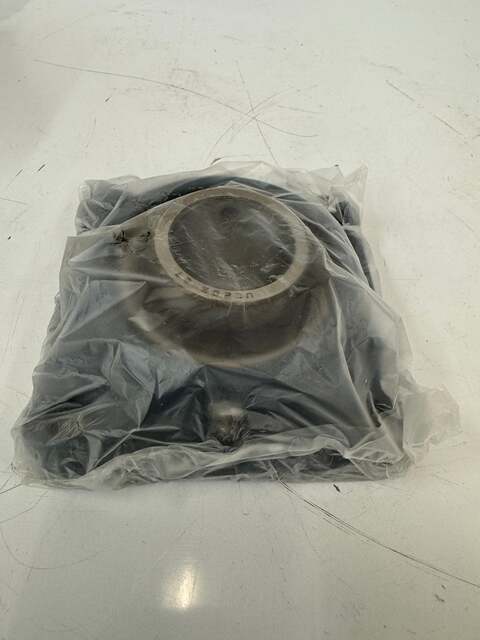

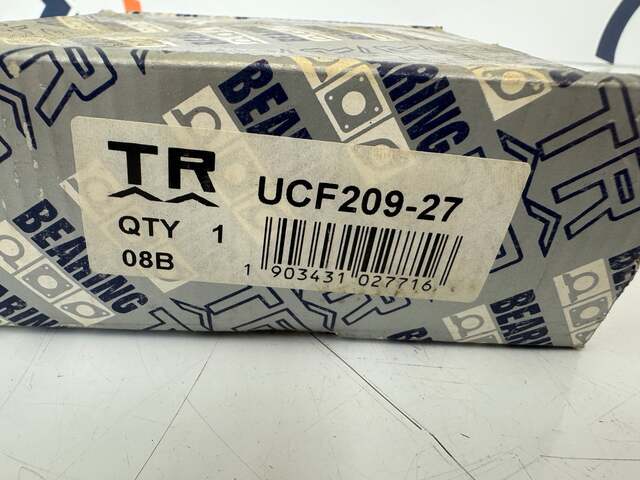

TR Bearing UCF209-27 4-Bolt Flange Mounted Bearing, 1-11/16 in Bore (42.86mm) - New

A four bolt flange mounted ball bearing unit from TR Bearing, part number UCF209 27, featuring a 1-11/16 inch shaft bore. The unit consists of a wide inner ring radial ball bearing insert pre-assembled into a square four bolt cast iron flange housing, designed for direct mounting onto vertical or side surfaces of equipment frames. The insert is secured to the shaft using two set screws located on the extended inner ring, providing a normal duty fixed expansion mount. Bore diameter measures 1-11/16 inch (42.8625 mm), with a bolt center to center spacing of 4-1/8 inch and an overall height of approximately 5-13/32 inch. The cast iron housing includes a grease zerk fitting for relubrication during service. The UCF209-27 designation follows the standard UCF200 series interchange, cross referencing to AMI UCF209-27, NSK UCF209-27S, NTN UCF209-111T, Browning VF4S-227, Dodge F4B-SC-111, Sealmaster SF-1-11/16, SKF FY-1-11/16-TM, Link-Belt F3-U227N, and Peer FHSFJ209-27G. Typical applications include conveyor and transfer systems, packaging and automation equipment, agricultural machinery, and general light to medium duty material handling shafts where a four bolt square flange mount is required. Supplied in the original TR Bearing labeled retail box marked QTY 1, with barcode 1903431027716.

Stock # 0226-165
