Manufacturer: Awea
Model: BM1200
Year: 2006
Automatic Tool Changer: 24
Longitudinal" X: 51.2
Cross" Y: 25.6
Vertical" Z: 24.0
RPM: 6000
Stock # 3760105
1 / 5
Click to zoom in
1 / 5
For Sale by Machinery Marketing International
Surplus Record Dealer Since 2013
Location: Chicago, IL
Contact Victoria
Phone Number: 312...> Show Phone Number 312-226-4150
Let the seller know you found their listing on Surplus Record!
Description

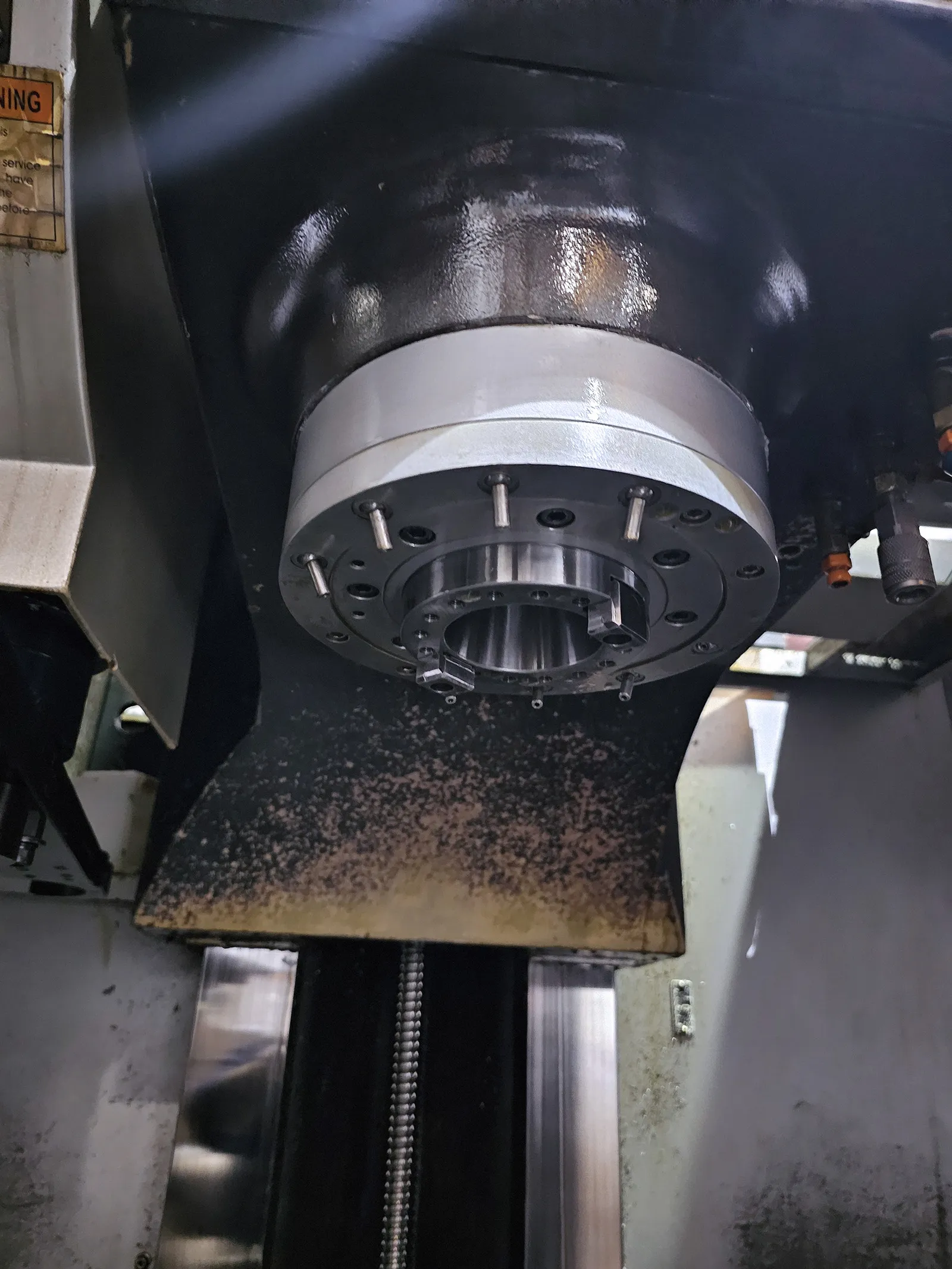

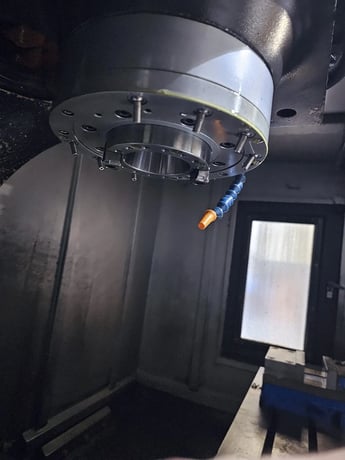

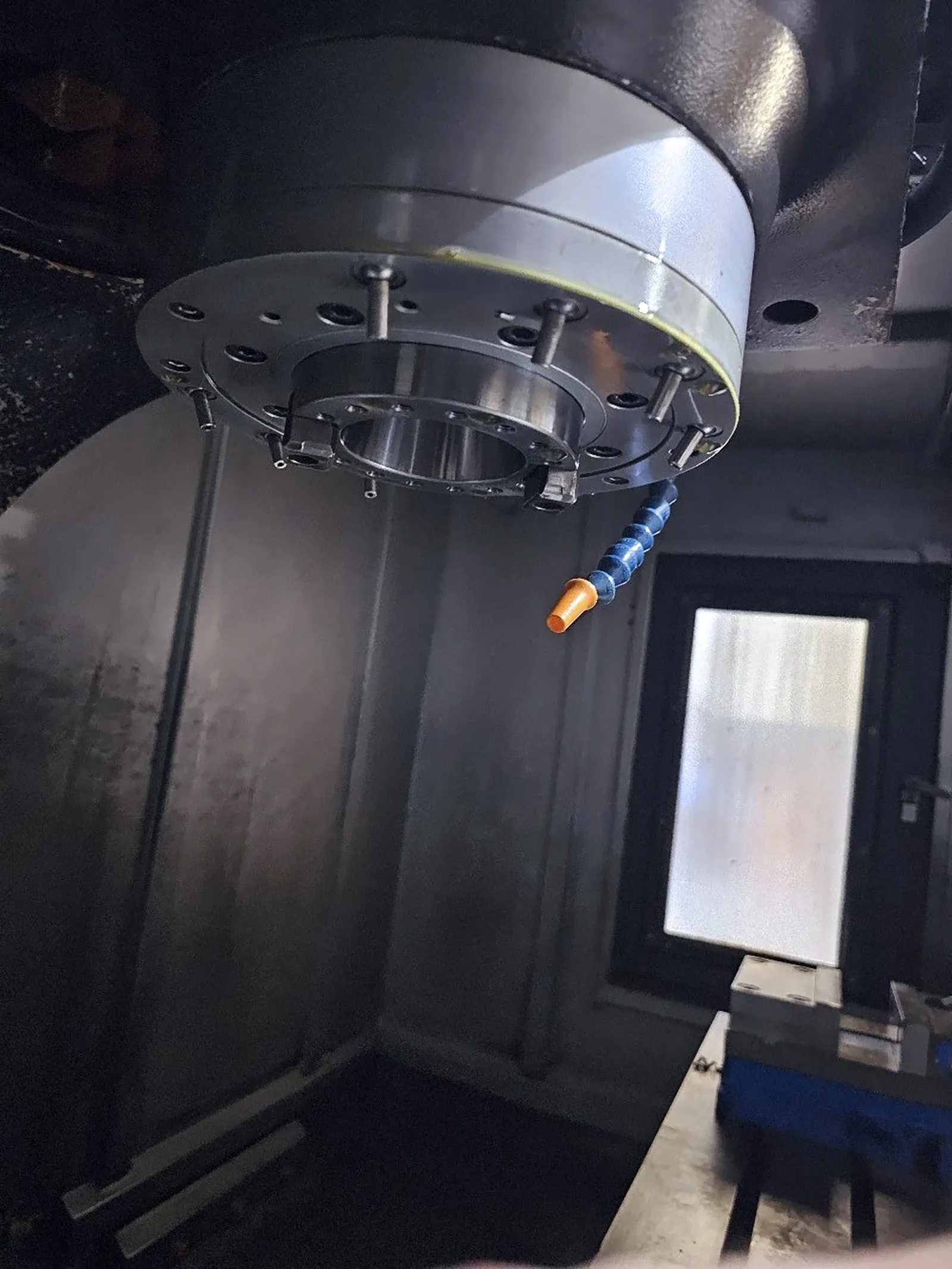

New spindle in 2018, Cat 50, 1,000 PSI TSC

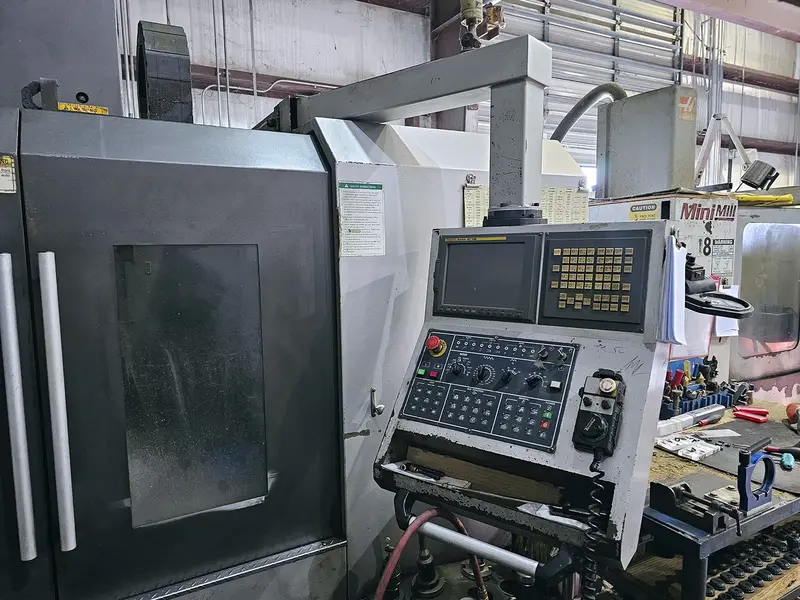

The 2006 Toyoda Awea BM1200 CNC Vertical Machining Center with Fanuc control is engineered for heavy-duty milling, drilling, and tapping of large workpieces. Featuring rigid box-way construction, a high-torque spindle, and two-speed gearbox, it excels in aerospace, automotive, die & mold, and precision manufacturing applications requiring aggressive metal removal and exceptional accuracy.
Table Size: 51.22" x 25.61"
Table Load Capacity: 2,640 lbs
X-Axis Travel: 51.22"
Y-Axis Travel: 25.61
Z-Axis Travel: 24.03
Spindle Taper: CAT 50
Spindle Speed: 60 - 6,000 RPM
Spindle motor (2 speed geared): 15 HP
Spindle Center to Column: 27.97"
Distance Spindle Nose to Table Top: 4.925" - 28.96"
Tool magazine capacity - side mount: 24 Position ATC
Tool change time (chip-to-chip): 7 seconds
Maximum Tool Diameter/Length/Weight: 5.91"/9.856"/15.4 lbs.
Rapid Traverse Rates X, Y / Z: 1182 IPM / 945 IPM
Cutting Feedrates: 591 IPM
The 2006 Toyoda Awea BM1200 CNC Vertical Machining Center with Fanuc control is engineered for heavy-duty milling, drilling, and tapping of large workpieces. Featuring rigid box-way construction, a high-torque spindle, and two-speed gearbox, it excels in aerospace, automotive, die & mold, and precision manufacturing applications requiring aggressive metal removal and exceptional accuracy.
Table Size: 51.22" x 25.61"
Table Load Capacity: 2,640 lbs
X-Axis Travel: 51.22"
Y-Axis Travel: 25.61
Z-Axis Travel: 24.03
Spindle Taper: CAT 50
Spindle Speed: 60 - 6,000 RPM
Spindle motor (2 speed geared): 15 HP
Spindle Center to Column: 27.97"
Distance Spindle Nose to Table Top: 4.925" - 28.96"
Tool magazine capacity - side mount: 24 Position ATC
Tool change time (chip-to-chip): 7 seconds
Maximum Tool Diameter/Length/Weight: 5.91"/9.856"/15.4 lbs.
Rapid Traverse Rates X, Y / Z: 1182 IPM / 945 IPM
Cutting Feedrates: 591 IPM
Get Your Price from Machinery Marketing International!
