Description
Inventory number 191457
Machine type W 100 A
Producer TOS Varnsdorf
Diameter of working spindle 100 mm
Travel X-axis 1600 mm
Travel Y-axis 1120 mm
Spindle speed 7 - 1120 /min.
Cooling through spindle NO
Spindle travel - W axis 900 mm
Travel Z-axis 1250 mm
Tool magazine NO
Spindle taper ISO 50 .
Max. load of table 3000 kg
Machine dimensions l x w x h 6710 x 3450 x 3000 mm
Machine weight 14000 kg
Main motor power 11 kW
Total input 17 kVA
Clamping area of table 1250 x 1250 mm
Face plate diameter 600 mm
Max. diameter of face turning 900 mm
Subject to change of technical parameters.
Description
Machine is overhauled.

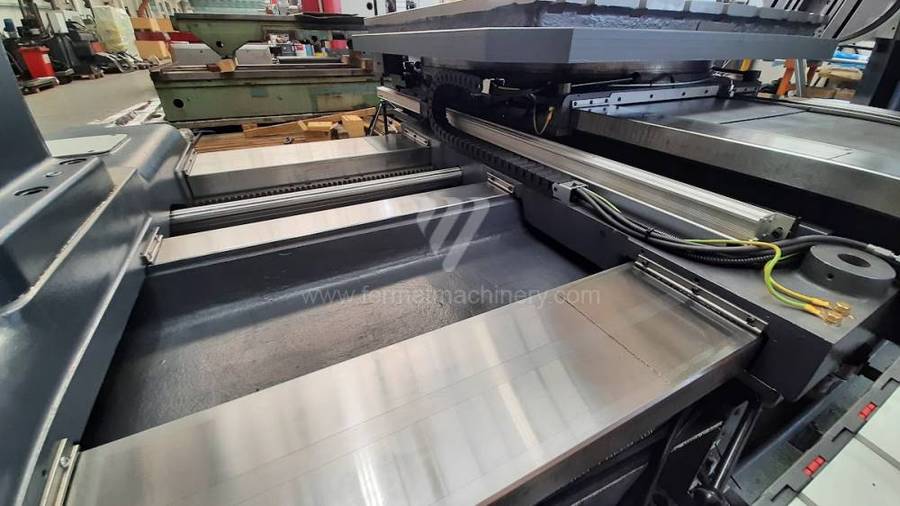

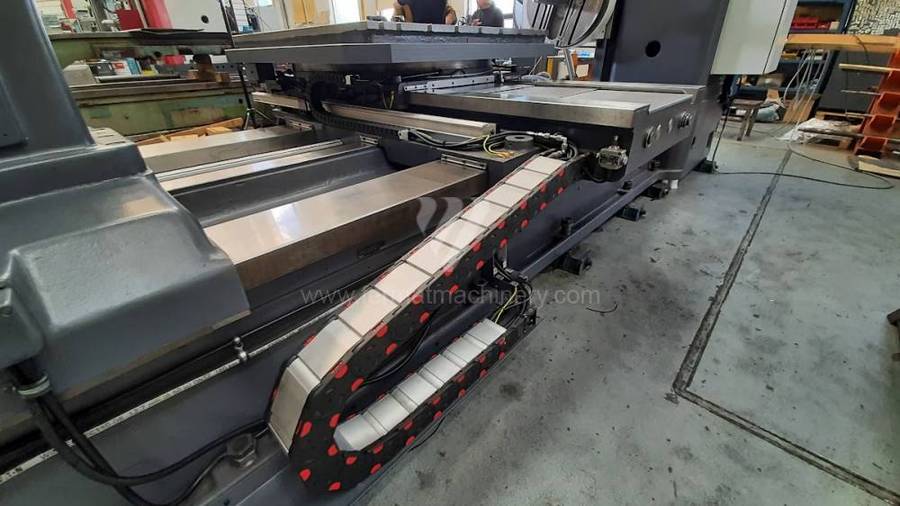

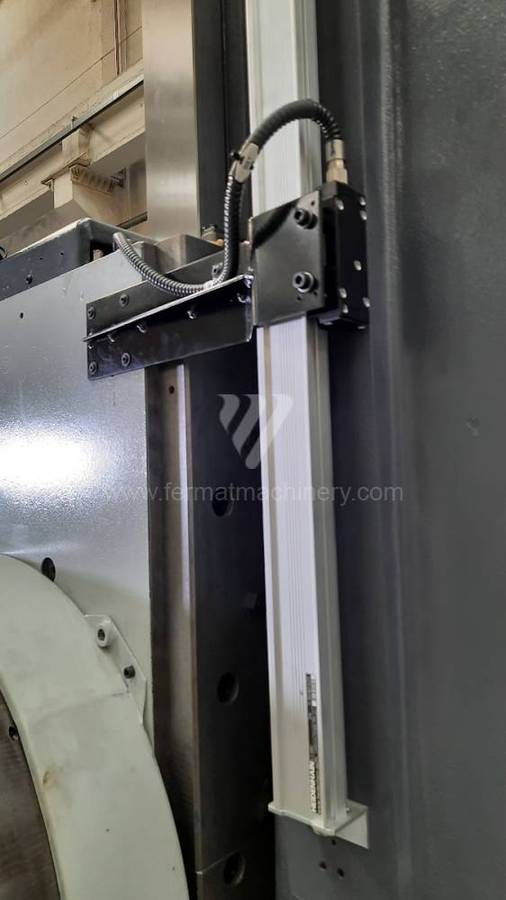

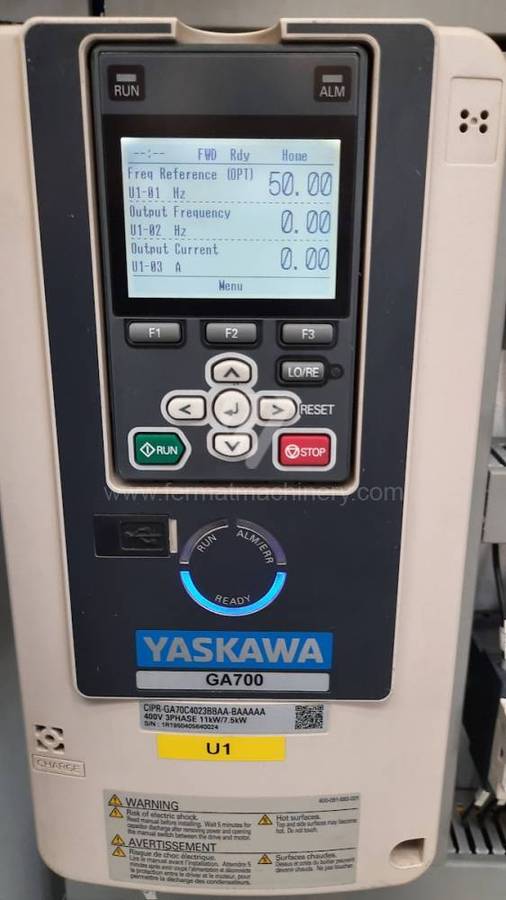

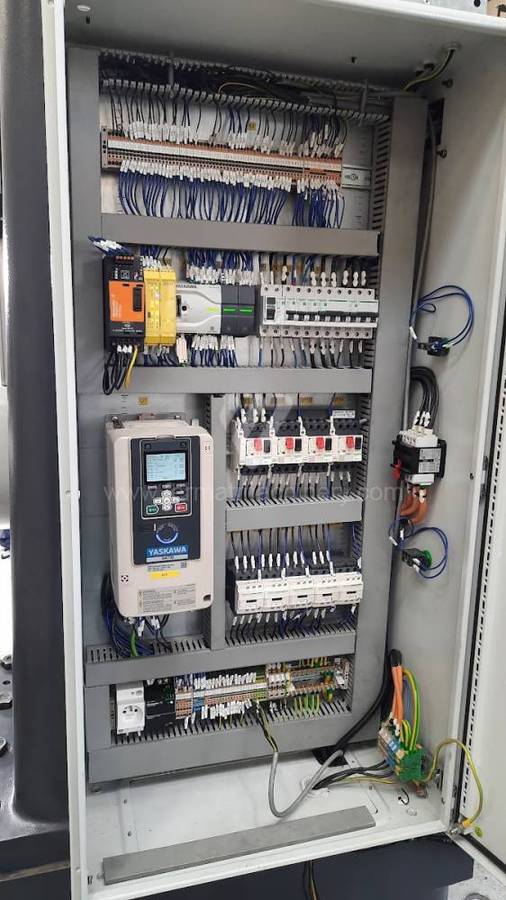

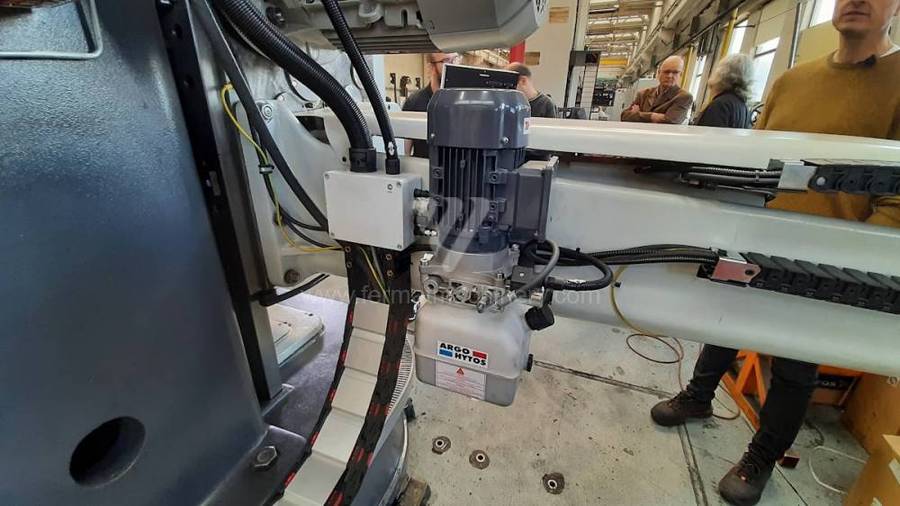

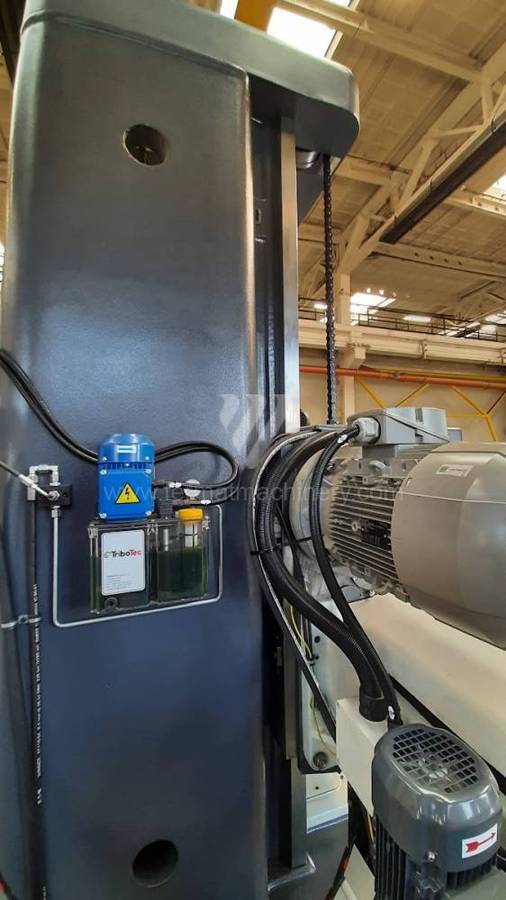

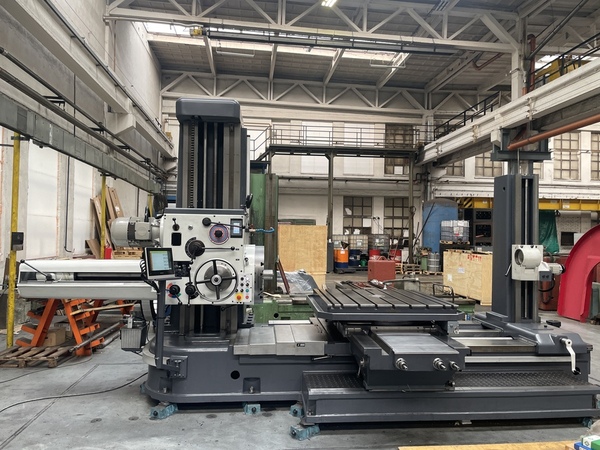

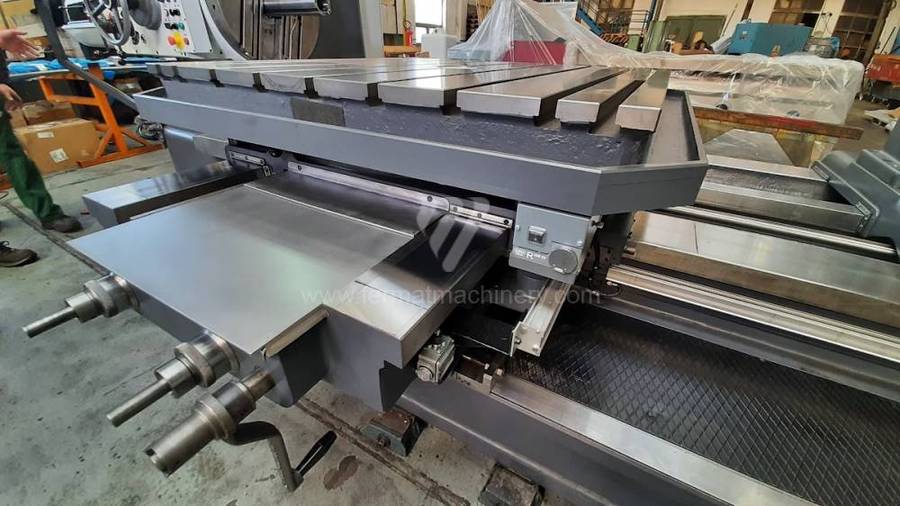

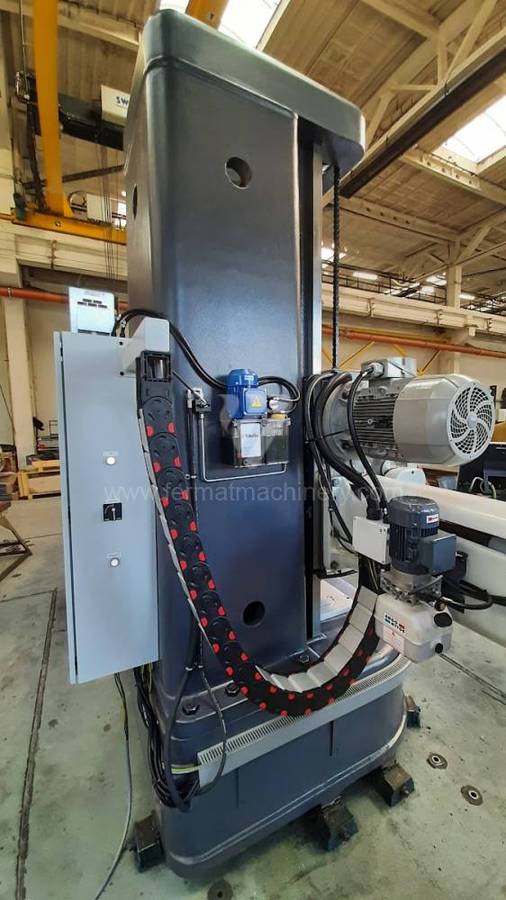

Hand-controlling horizontal borer machine with fixed stand and cross-adjustable table. The machine is in the following version: X, Z, Y ground, traverse milled and undercut, more precisely glued with special material with sliding properties (Turcite, GS-super fluid, etc.), wedges ground and scraped. The worktable surface is grinded and scraped (reinovation of grooves as required). The X and Y axes are equipped with trapezoidal screws with nuts - placed in bearing housings. Headstock - Gearwheel bearings from reputable manufacturers, main place as well as main spindle manufacturing by Fermat, hydraulic tool clamping. Automatic lubrication is controlled centrally through the dispensers - the manufacturer Hytos. The machine has a telescopic covering of X- and Z axes. Machine surface adjustment - varnish according to RAL 5010 (blue depending on customers wish). Electrical switchboard with programmable controller, control panel on headstock. CE cable lines are installed throughout the machine and between the machine and the electrical cabinets. The machine is equipped with digital measuring with linear rulers with accuracy of positioning indication 0.01mm for axes (X, Y, Z, W) including measuring of the round table by rotary sensor (in the center of the table). Optical reading of the angle after complete overhaul.
Machine type W 100 A
Producer TOS Varnsdorf
Diameter of working spindle 100 mm
Travel X-axis 1600 mm
Travel Y-axis 1120 mm
Spindle speed 7 - 1120 /min.
Cooling through spindle NO
Spindle travel - W axis 900 mm
Travel Z-axis 1250 mm
Tool magazine NO
Spindle taper ISO 50 .
Max. load of table 3000 kg
Machine dimensions l x w x h 6710 x 3450 x 3000 mm
Machine weight 14000 kg
Main motor power 11 kW
Total input 17 kVA
Clamping area of table 1250 x 1250 mm
Face plate diameter 600 mm
Max. diameter of face turning 900 mm
Subject to change of technical parameters.
Description
Machine is overhauled.
Hand-controlling horizontal borer machine with fixed stand and cross-adjustable table. The machine is in the following version: X, Z, Y ground, traverse milled and undercut, more precisely glued with special material with sliding properties (Turcite, GS-super fluid, etc.), wedges ground and scraped. The worktable surface is grinded and scraped (reinovation of grooves as required). The X and Y axes are equipped with trapezoidal screws with nuts - placed in bearing housings. Headstock - Gearwheel bearings from reputable manufacturers, main place as well as main spindle manufacturing by Fermat, hydraulic tool clamping. Automatic lubrication is controlled centrally through the dispensers - the manufacturer Hytos. The machine has a telescopic covering of X- and Z axes. Machine surface adjustment - varnish according to RAL 5010 (blue depending on customers wish). Electrical switchboard with programmable controller, control panel on headstock. CE cable lines are installed throughout the machine and between the machine and the electrical cabinets. The machine is equipped with digital measuring with linear rulers with accuracy of positioning indication 0.01mm for axes (X, Y, Z, W) including measuring of the round table by rotary sensor (in the center of the table). Optical reading of the angle after complete overhaul.
Get Your Price from Lucas Precision LLC!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
4" TOS #W100A, Table Type Horizontal Boring Mill, 63" X, 44" Y, 49.2" x 49.2" table, 35.43" spindle travel, 15 HP, 1120 RPM, 4-axis Accu-Rite digital read out, 2001
Category: Boring Mills, Horizontal, Table Type
Seller: Olympia Technical Services
Location: Whitby, ON
Mfr: Tos
Model: W100A
Year: 2001
JUST ADDED!

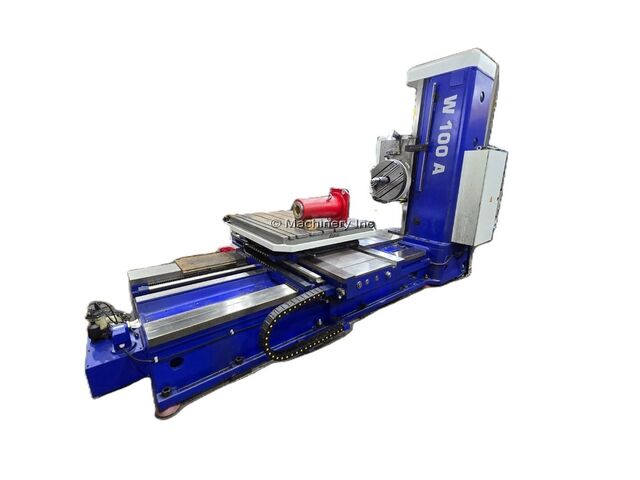

4" TOS #W100A, Table Type Horizontal Boring Mill, 63" X, 44" Y, 49.2" x 49.2" table, 15 HP, 1120 RPM, 2022
