Tin Knocker #TK-16, Pittsburgh Roll Former, 16-20 gauge capacity, 1/2" Depth of Pocket, 40-45 FPM, 3 HP, 230/220 V, new

Description

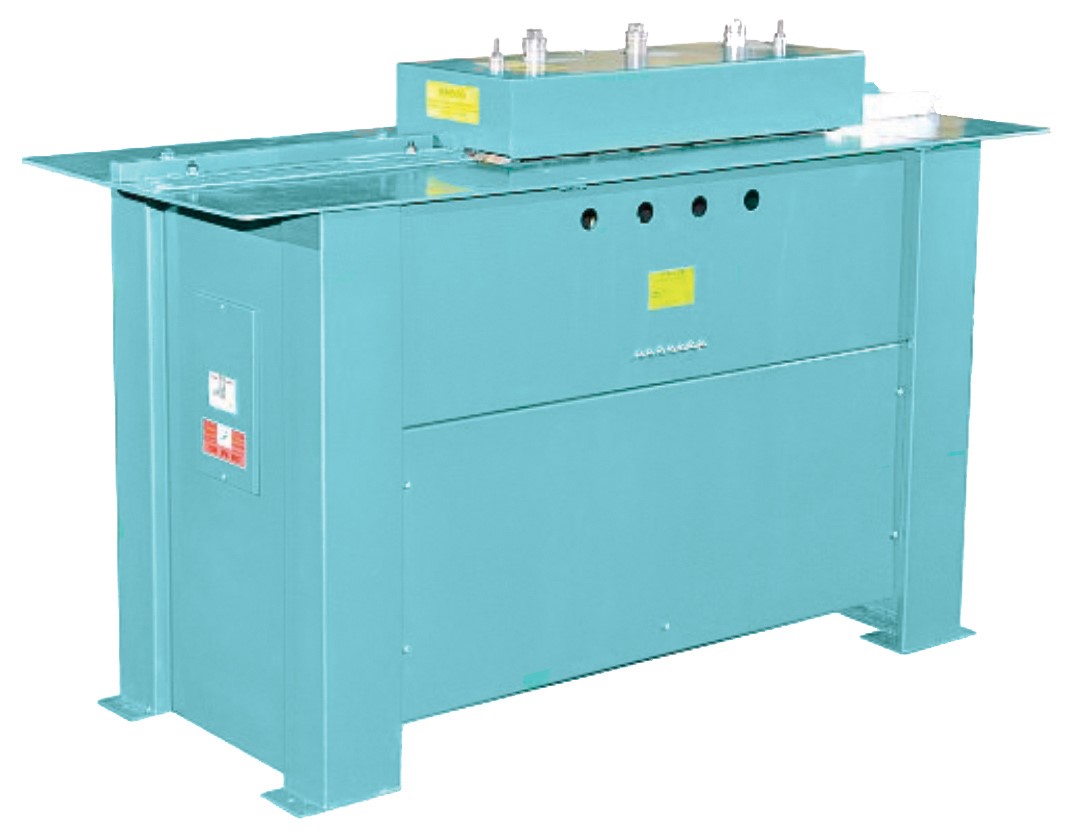

Tin Knocker 16 Gauge Pittsburgh Roll Former, TK 16

Inventory # 6450

Model: TK 16

Description:

One position forms the Pittsburgh lock while the outboard position has the ability of forming several other profiles, including Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection). You don’t pay extra for the choice of opposing rolls, either; you get your choice of rolls opposite the Pittsburgh rolls at no charge.

Specifications:

Capacity: 16 – 20 Gauge

Depth of Pocket: 1/2″ Width of Hammer over Edge Adjustable up to 3/8″

Speed: 40 – 45 FPM

Motor: 3 HP / 230v / 3ph OR 220v / 1ph (Single Phase is an Additional Cost – Please Request Quote for Current Pricing)

Rolls to Choose From:

Acme Rolls (Type “L”): 16 – 22 Gauge

Drive Cleat Rolls: 20 – 26 Gauge

4-in-1 Rolls: 16 – 24 Gauge

Right-Angled Flange: 22 – 26 Gauge

Standing Seam: 22 – 26 Gauge

T-Connection: 22 – 26 Gauge

Mechanical Specifications:

Dimensions: 59″ x 24″ x 41″ H

Weight: approx. 650 lbs.

Contact us for special pricing and availability

FOB Factory
