Timken TRD-3244 Thrust Roller Bearing - 2.000" ID x 2.750" OD x 0.078" Width - New

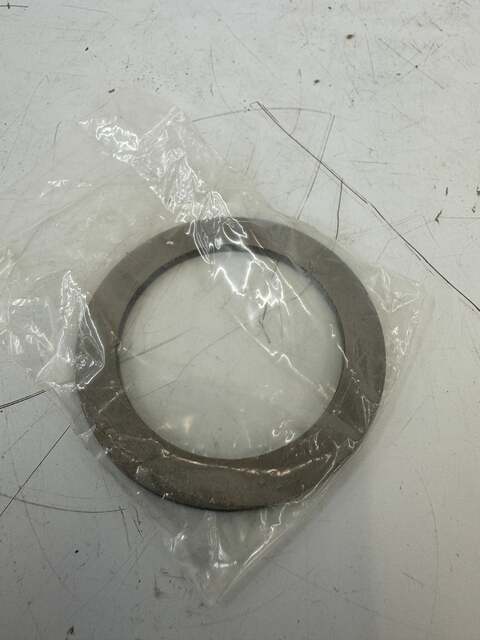

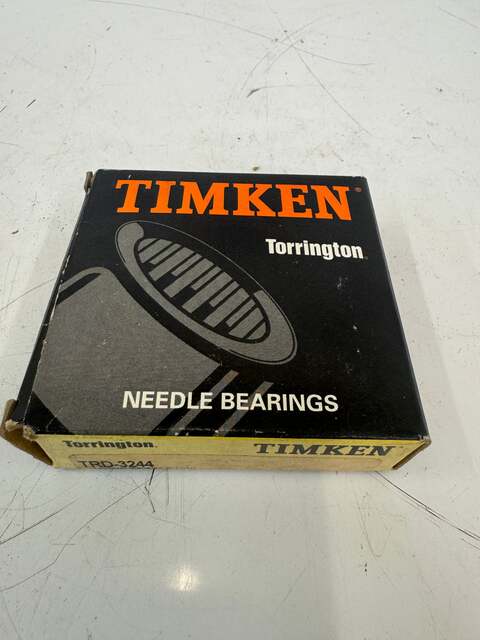

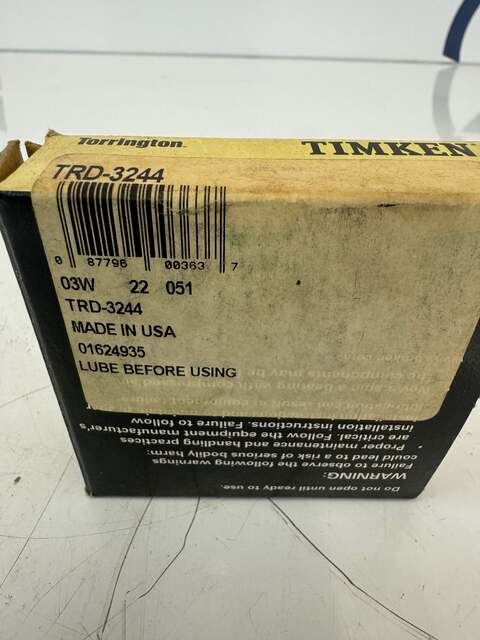

The Timken Torrington TRD-3244 is a thrust roller bearing washer with a 2 inch inside diameter, 2-3/4 inch outside diameter, and 1/8 inch width. Manufactured in the USA, this washer is supplied as new old stock in the original Timken Torrington retail box with part number TRD-3244 and barcode 087796003637. Date code markings on the box label read 03W 22 051 with internal reference 01624935. The TR series washer is designed to function as a raceway surface in thrust needle roller bearing assemblies where adjacent shaft or housing components cannot serve as raceways. It can be configured as a shaft washer with bore piloting or as a housing washer with outside diameter piloting. Both faces are flush ground to support use as raceways on either side. The washer is produced from through hardened chromium bearing steel for dimensional stability under axial loading. Typical applications include machine tool drive shafts, automotive transmissions, steering gear assemblies, clutch packs, rotary tables, outboard propeller shafts, and industrial gearboxes. The TRD-3244 is the heavier section TR series washer in the 3244 dimensional family, with cross reference to Koyo TRD-3244 and INA TWD3244. Box label includes the manufacturer notation to lubricate before installation. Item shipped in original retail packaging.

Stock # 0226-228
