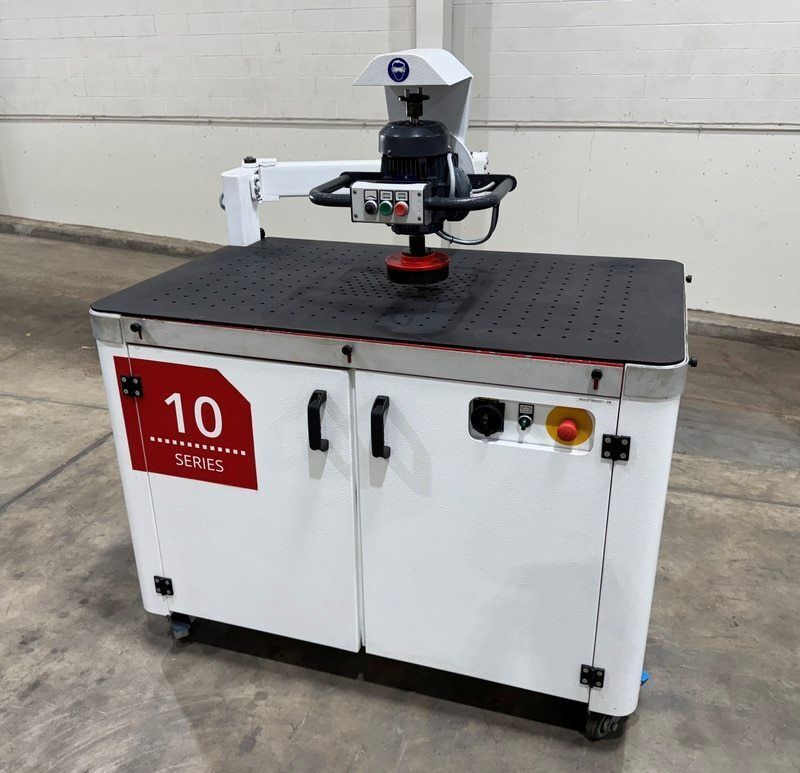

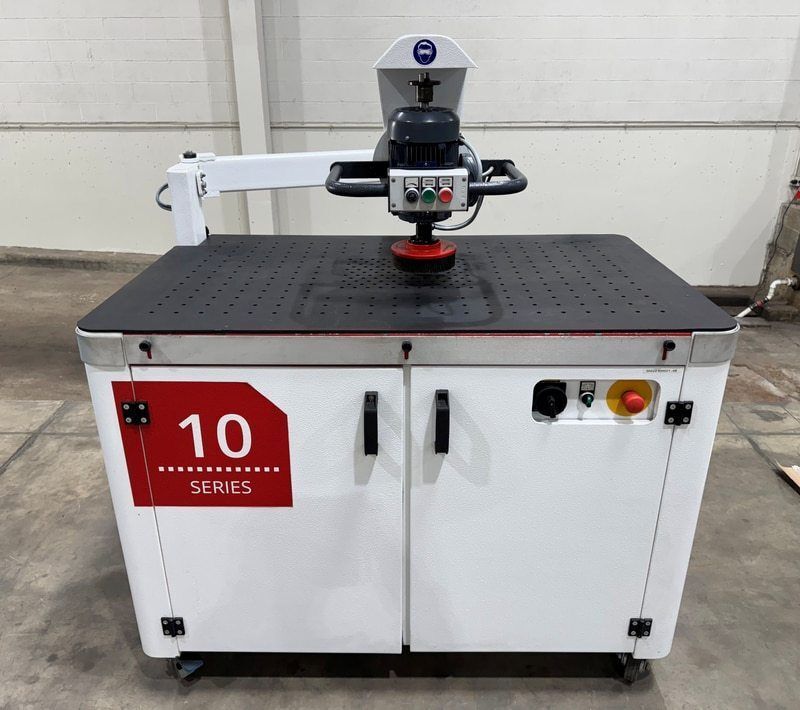

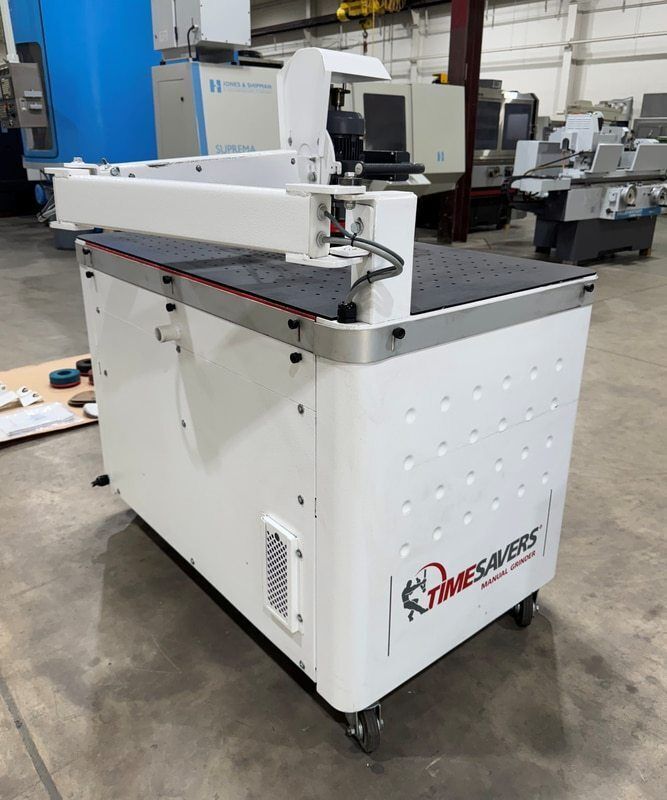

Timesavers #10-Series, 51" x 31" table, 10.2" x 12.25" vacuum, 5.9" disc, 1 HP, 2022

"The 10 series" is Timesavers’ versatile starter model slag removal machine and the cost saving alternative for manual deburring, edge rounding and/or finishing of metal. This versatile machine has two heads, an easy to change grinding pad and a brush. The different kind of brushes can take care of deburring, edge rounding, finishing, laser oxide removal and heavy slag removal. Also, mirror finish can be created if required. With the 180 degrees rotating shaft it is easy to rapidly switch between different consumables. The machine has a special tabletop with a high friction surface to fix the parts during processing. Smaller parts are kept fixed in their place through the integrated vacuum"
~ From Timesavers Catalog Literature
Year Built - 2022
Serial No. 3022-113
SPECIFICATIONS:
Table:
- Size............51.2" x 31.5"
- Working Height............37.8"
- Vacuum Area............10.2" x 12.2"
Number of Heads............2

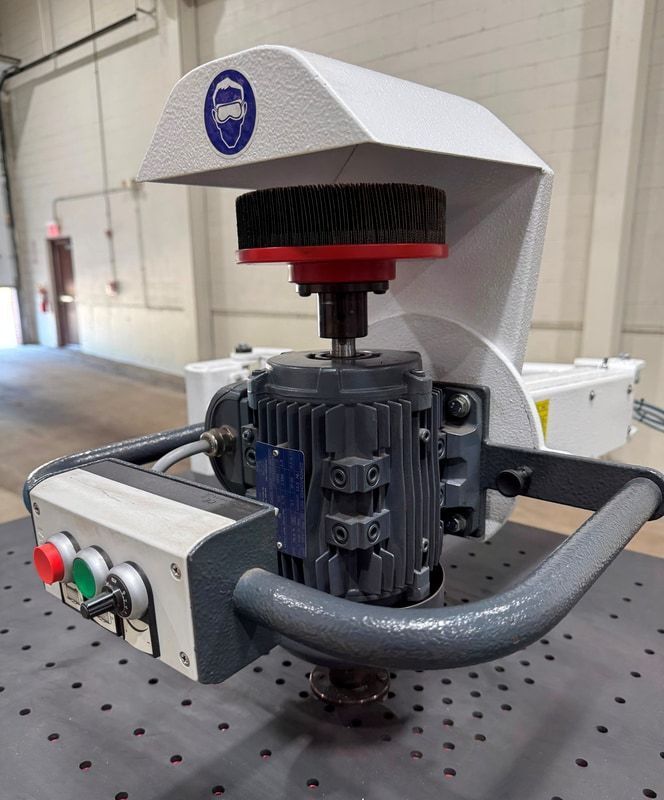

Head Types............Disc & Brush
Disc/Brush Diameter............5.9"
Thickness fo Part - Maximum............3.94"
Rotating Grinding Heads............180°
Motor Speed - Maximum (Continuously Variable)............1500 RPM
Main Motor............1 HP
Electrics............230V/3Ph/60Hz
Applications............Deburring, Edge Rounding, Laser Oxide Removal, Slag Removal, Finishing
Dimensions - Approximate............54"L x 34"W x 61"H
Weight - Approximate............595 Lbs.
EQUIPPED WITH:

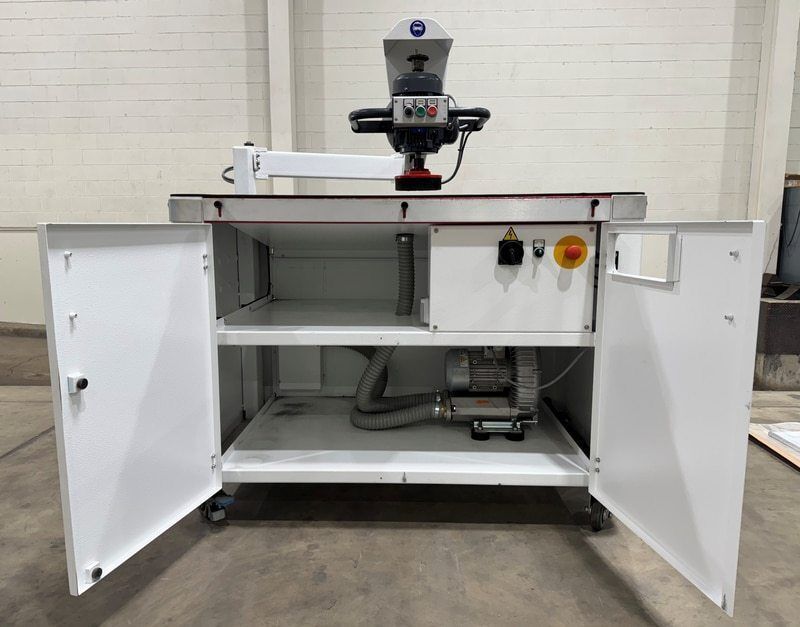

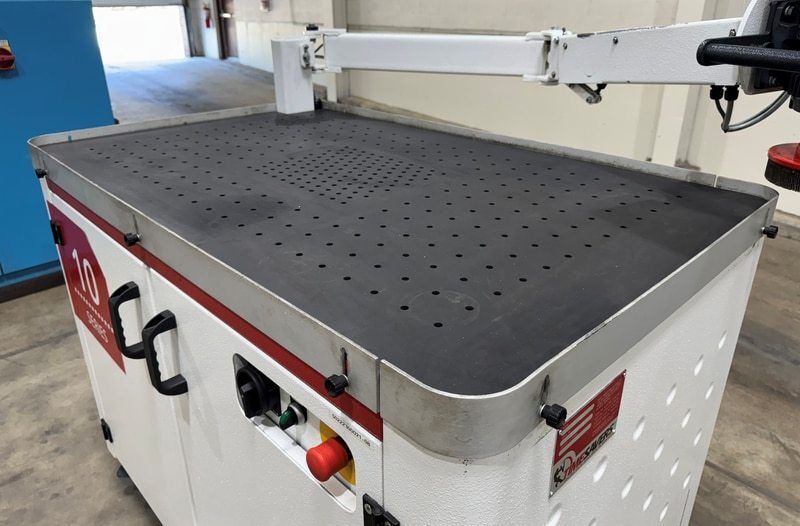

Vacuum Table w/Internal Vacuum System & High Friction Mat

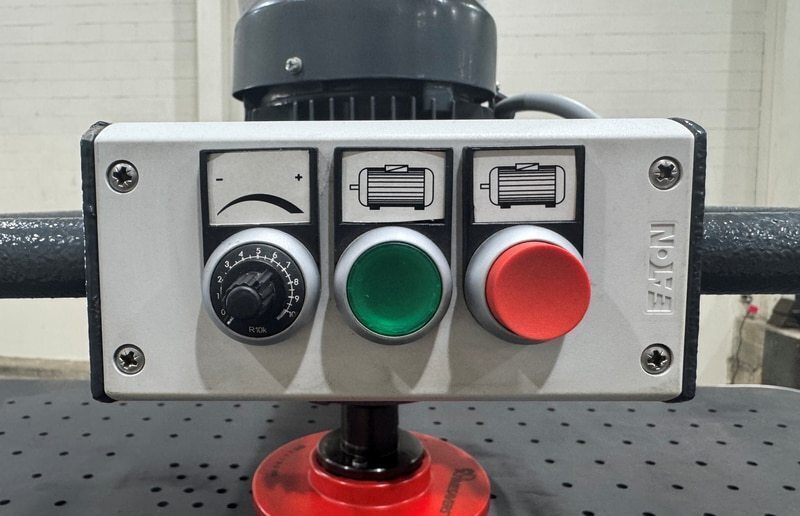

Frequency Controlled Drive

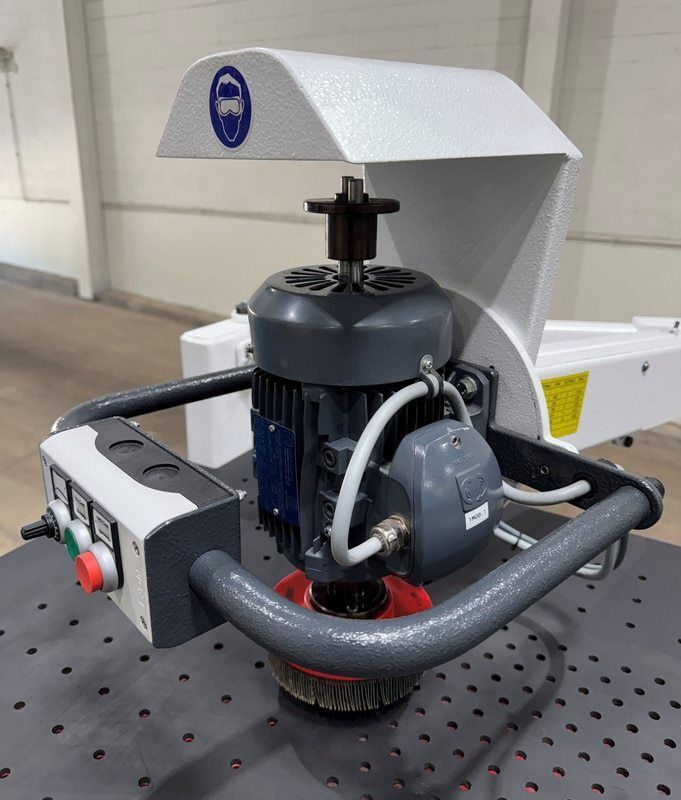

2-Position movable Arm w/Weight Compensation
Height Adjustable Side Guards

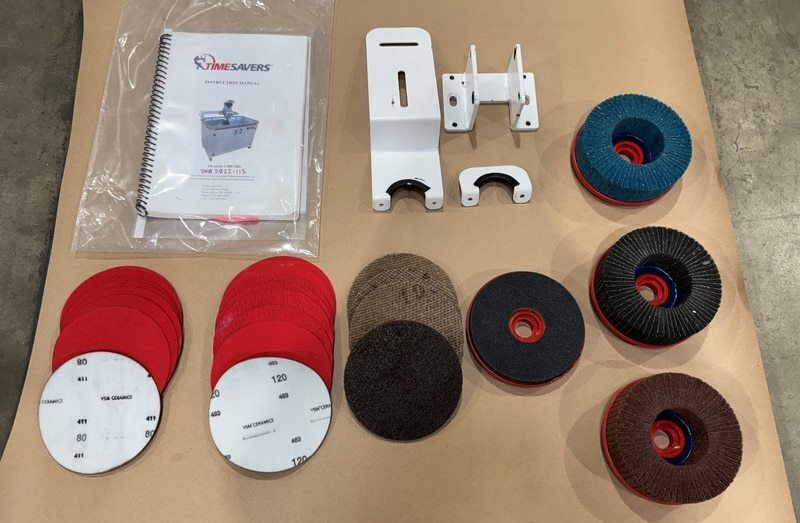

Machine Instruction Manual
K80/BROWN K00810100 Deburring Disc 150-155mm (80 Grit)
ZK80/BLUE K00809700 Deburring Disc 150-155mm (80 Grit)
CK80/GREY K00809800 Deburring Disc 150-155mm (80 Grit)
ZK80 K00809800 Deburring Disc 150-155mm (80 Grit)
K80 K00809500 HERO Deburring Disc 150-155mm
Timesavers K00809001 Pad/Media Holder Disc
(7) VSM Ceramics 80 Grit Grinding Pads
(9) VSM Ceramics 120 Grit Grinding Pads
(4) Scotch Brite Pads
*Preliminary Specifications, Pending Confirmation
