Tilt & Rotate Welding Positioner, 48" diameter faceplate, variable speed rotation, powered geared tilt, Blue Chip II control, 3PH

$3,050 USD

Request Formal Quote

48-Inch Faceplate Variable Speed Welding Positioner, 5,000-6,000 lb Cap.
SPECIFICATIONS
TYPE: Motorized Tilt & Rotate Welding Positioner

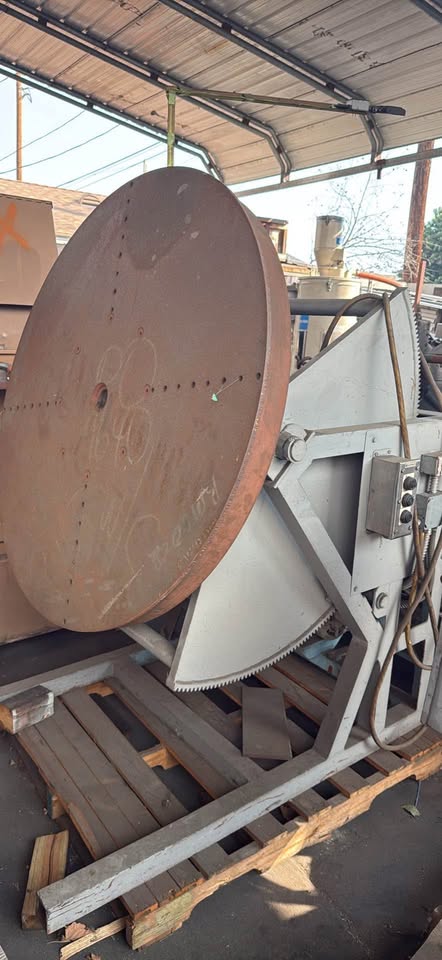

FACEPLATE SIZE: 48-Inch Diameter (Heavy steel with multiple concentric fixture mounting holes)

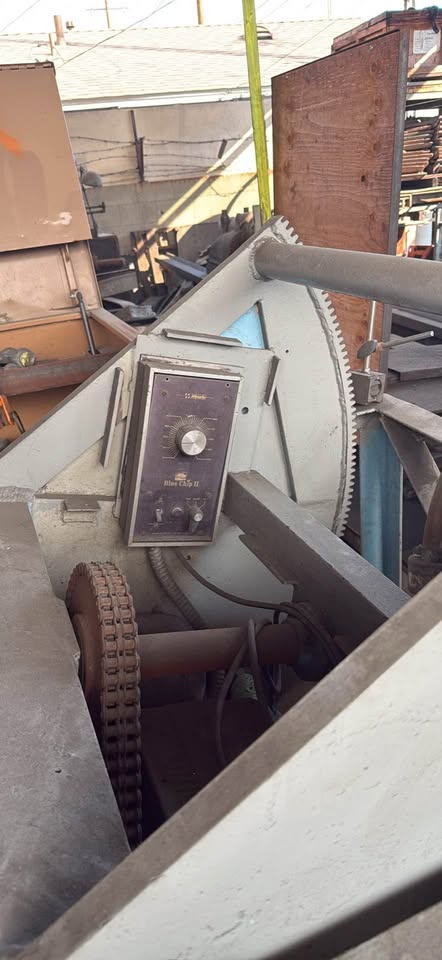

ROTATION DRIVE: Infinitely Variable Speed via the frame-mounted Blue Chip II control panel
TILT DRIVE: Powered mechanical geared sector

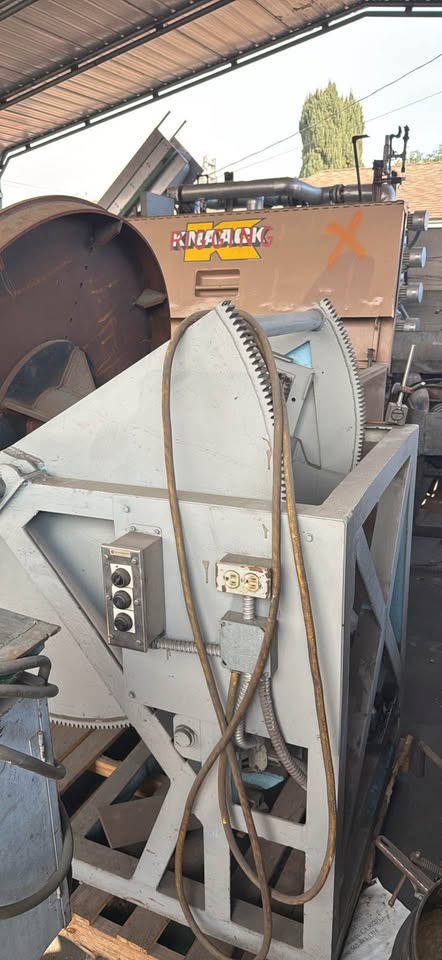

POWER SUPPLY LAYOUT: Driven by an industrial 3-Phase motor configuration, while featuring a convenient step-down or auxiliary 115V duplex outlet box split on the frame to run local tools or hand pendants
ESTIMATED WEIGHT CAPACITY: A 48-inch faceplate on an integrated boxed frame configuration of this thickness typically maps to a 5,000 lb to 6,000 lb industrial capacity rating
RIGGING WEIGHT: The entire structural assembly weighs approximately 3,200 lbs to 4,000 lbs, requiring a heavy forklift or crane to clear the skid
PHYSICAL FOOTPRINT:
WEIGHT: Approximately 3,200 lbs to 4,000 lbs
DESCRIPTION
Overview
A robust motorized welding positioner featuring a 48-inch faceplate and variable speed rotation. This unit is engineered for precision and heavy-duty industrial welding tasks.
Key Highlights
48-inch diameter heavy steel faceplate with versatile mounting holes.
Infinitely variable rotation speed via Blue Chip II control panel.
Powered mechanical geared sector for tilt functionality.
Industrial 3-Phase motor configuration.
Convenient 115V auxiliary duplex outlet on the frame.
Estimated capacity of 5,000 to 6,000 lbs.
Condition & Location
This machine is offered FOB.
