Description

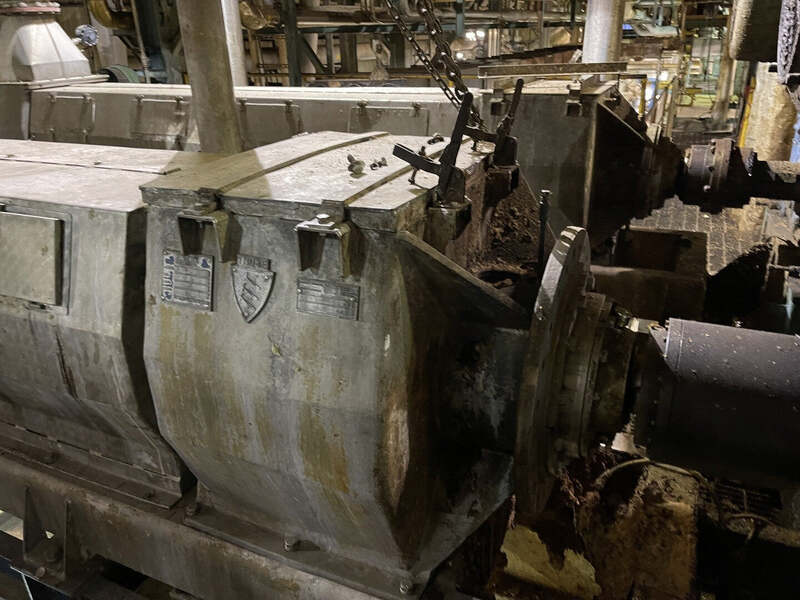

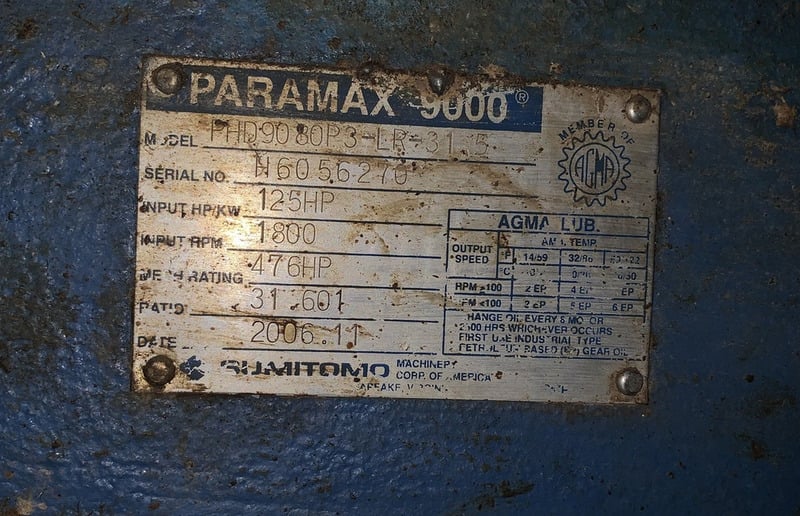

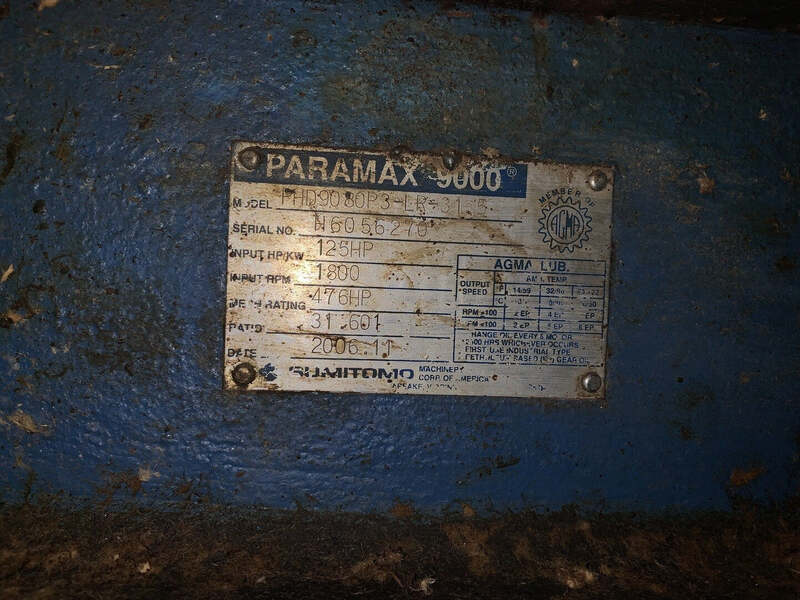

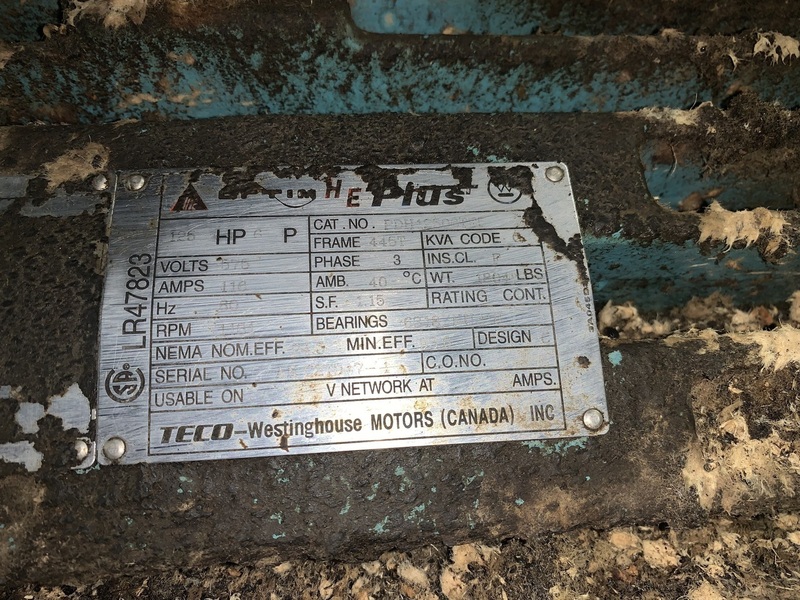

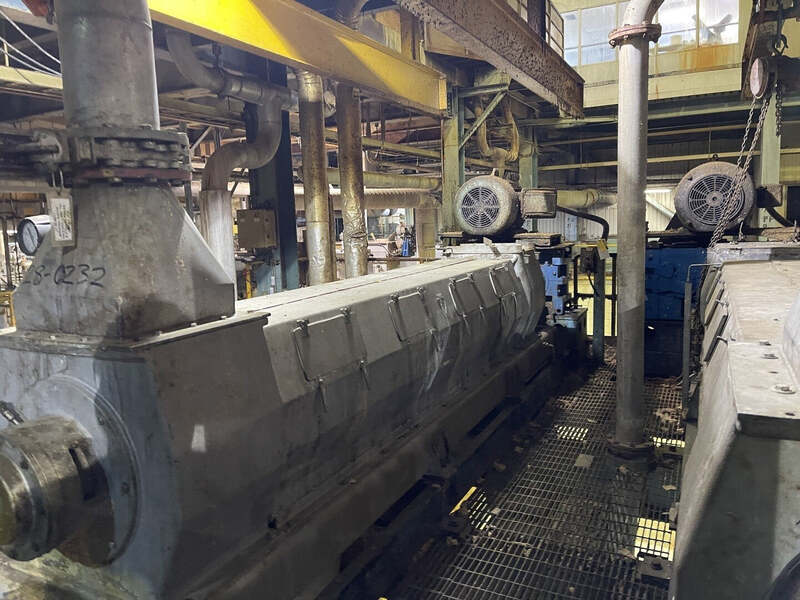

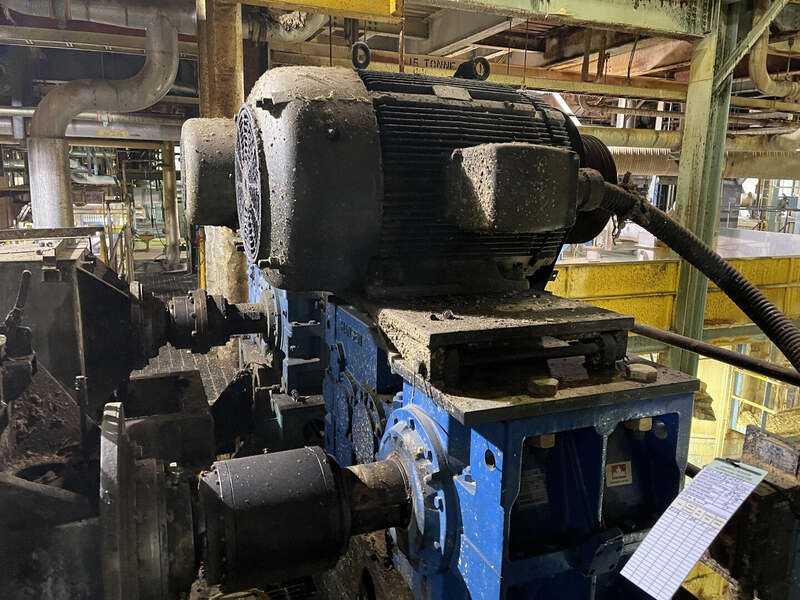

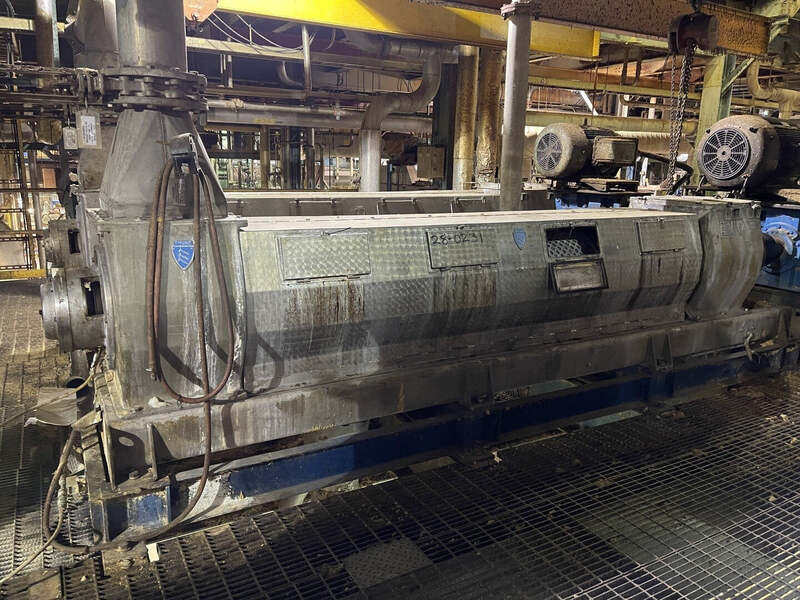

SKU: 112215 Model: SP45SL Condition: Used Additional Description: Applications Include: - Removing DCM extractives - Washing DIP - Washing high kappa kraft pulp - Dewatering rejects - Fiber sludge dewatering Features: - All wetted parts of high-grade stainless steel - The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency - The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking. - Improved hard facing on the screw flight in the high compression zone significantly reduces wear. - The split screen in the high compression zone enables easy screw flight inspection and maintenance. - The shaft screen in the high compression zone increases and evens out the discharge consistency. Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height Net Weight (Just the screw): 3700 kg Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D Screen Cylinder Diameter: 45 cm Screen Sections: 4 Motor Ratings: 125 hp, 3-ph, 575V, 116 A, 1181 rpm Gearbox Input: 125 hp Gearbox Ratio: 31.601 Gearbox Mechanical Rating: 476 hp
Used Thune Kvaerner SP32L screw press for pulp dewatering. Stainless steel covers with 3 window design, no back pressure paddles., Serial # NF8105101/238, THUNE SP32L.
1U7684 One (1) used and rebuilt Model SP70L Thune Eureka horizontal screw press. T-316 stainless steel construction. Rated for approximately 300 TPD at 30% - 35% outlet consistency. Capacity and performance will vary according to the specific application. Perforation sizes 1.5 mm for inlet screen, pre-dewatering ...more
Rietz continuous horizontal screw press frame only, Model RSP 16-K2. Previously a 25 HP U.S. variable speed main drive through heavy duty gear box, 7.5 HP variable speed drive on the rotating cone. Last running apples. Frame only., Basis: AIWI.
used vincent cp-6 horizontal screw press 6" diameter dewatering press with 5 hp drive, refurbished available. approximately 6'' diameter x 32'' long screw. approximate capacity 300-1000 pounds per hour, 20 rpm screw. driven by a 5 hp, 3/60/230/460v nord motor. fed through reducer, ratio 68.63:1. with ...more
