Description

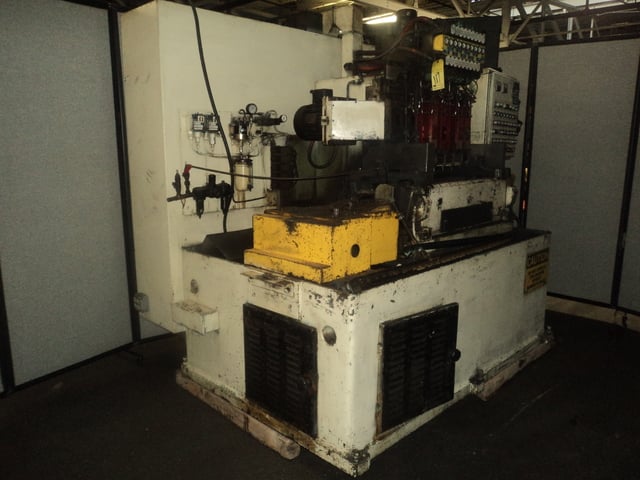

Thielenhaus #SF125 Super Finisher, 0.118"-3.14" work diameter, 42.9" drive roll length, set up for 20mm chrome rods
THIELENHAUS SF125 SUPER FINISHER
S/N T92003
STANDARD SPECIFICATIONS
Working diameter…………………………………… 0.118” – 3.14”
Drive roll speed…………………………………… 0 – 720 RPM
Drive roll length………………………………… 42.9”
Number of toll carriers………………… 8
Tool oscillation frequency (double str./min)………… 75 – 1500
Horizontal oscillation stroke of the tool ……………… 0 – 0.23”
Vertical oscillation stroke of the tool …………………… 1.96”
Total power required………………………………………………………………………… 12 HP
Minimum compressed air pressure (bar)…………………………… 4,5
Flushing oil system – flowrate……………………………………………… 80 I/min
Operating voltage……………………………………… 3x380 ±5% Volt
Operating frequency…………………………………… 50 ±3 Hz
Control voltage……………………………………………… 24 Volt DC
Specifications are deemed accurate, however, subject to verification or prior sale.
THIELENHAUS SF125 SUPER FINISHER
S/N T92003
STANDARD SPECIFICATIONS
Working diameter…………………………………… 0.118” – 3.14”
Drive roll speed…………………………………… 0 – 720 RPM
Drive roll length………………………………… 42.9”
Number of toll carriers………………… 8
Tool oscillation frequency (double str./min)………… 75 – 1500
Horizontal oscillation stroke of the tool ……………… 0 – 0.23”
Vertical oscillation stroke of the tool …………………… 1.96”
Total power required………………………………………………………………………… 12 HP
Minimum compressed air pressure (bar)…………………………… 4,5
Flushing oil system – flowrate……………………………………………… 80 I/min
Operating voltage……………………………………… 3x380 ±5% Volt
Operating frequency…………………………………… 50 ±3 Hz
Control voltage……………………………………………… 24 Volt DC
Specifications are deemed accurate, however, subject to verification or prior sale.
