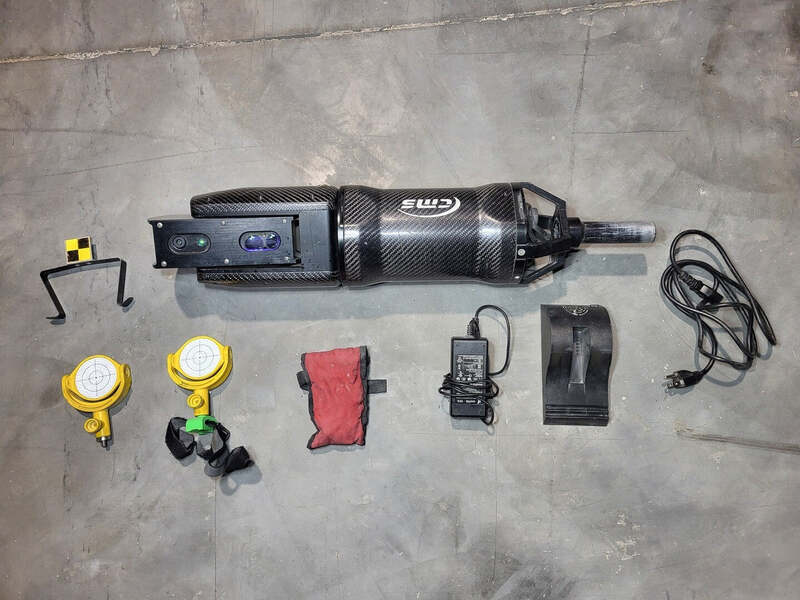

Teledyne #CMS-V500-23, Cavity Monitoring System, 20" min. Range, 5.75" Scanner diameter, 360° x 360° Field of View, 2017

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 139185

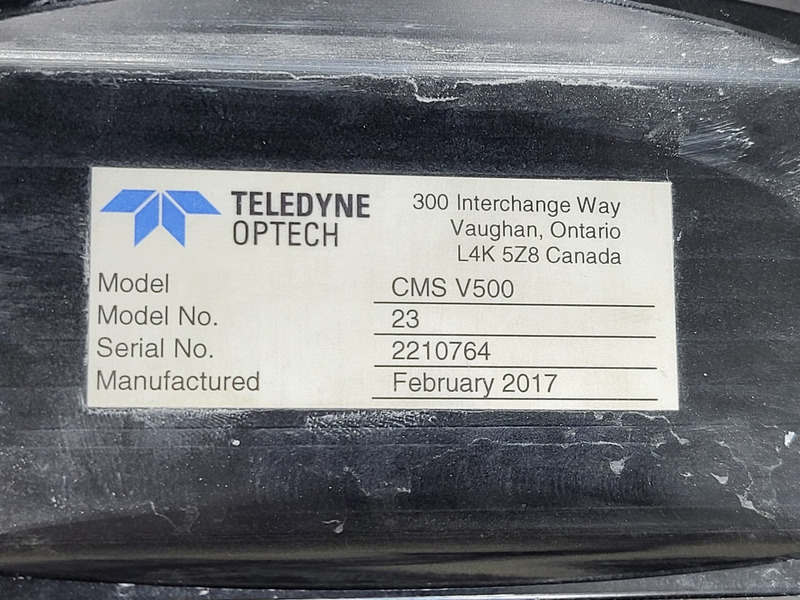

Model: CMS V500
Year: 2017
Condition: Used - Like New
S/N: 2210764
Made In: CANADA
Dimensions: 18.00 (H) x 10.00 (W) x 48.00 (L) inches
Additional Description:
Overview:
- System Type: Portable underground cavity monitoring and laser scanning system
- Technology: Laser-based LiDAR scanning
- Application: 3D monitoring of underground cavities and inaccessible voids
- Horizontal Field of View: 360
- Vertical Field of View: Approx. 320
- Points per Scan: Approx. 57,600
- Scan Time (Full Scan): Approx. 6 minutes
- Maximum Range (High Reflectivity): Up to approx. 500 m
- Maximum Range (Low Reflectivity): Up to approx. 200 m
- Minimum Measuring Range: Approx. 0.5 m
- Range Accuracy: 2 cm (typical)
- Range Resolution: Approx. 1 cm
- Angular Accuracy: Approx. 0.1
- Angular Resolution: Approx. 0.022
- Integrated Camera: Yes, built-in visual inspection camera
- Data Visualization: Real-time 3D visualization during scanning
- Control Method: Wireless remote control via PC or tablet
- Data Output: Point cloud data compatible with CAD and mining software

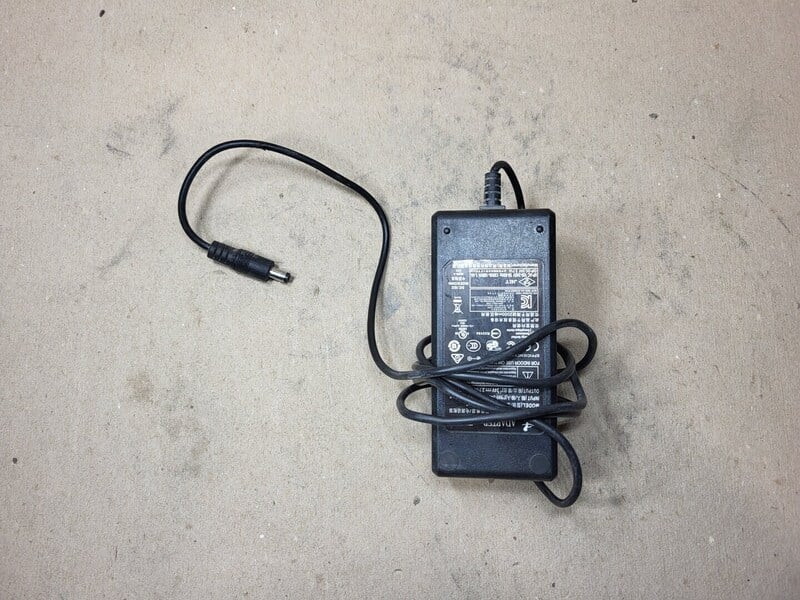

- Power Supply: Internal rechargeable battery
- Operating Voltage: Approx. 15 V DC
- Scanner Weight: Approx. 7 kg (15 lb.)
- Protection Rating: IP65 (dust and water resistant)
- Operating Temperature: -20 C to +60 C
- Typical Uses: Mining cavity scanning, void monitoring, volume calculation, stability analysis
