Description

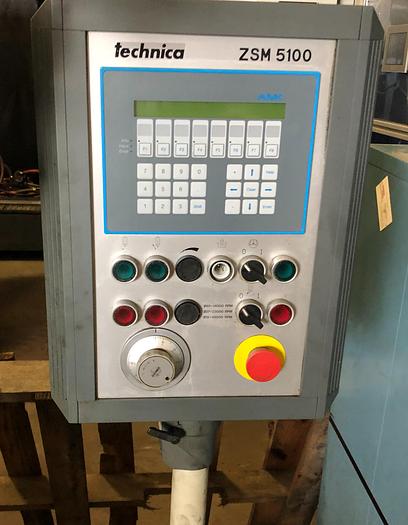

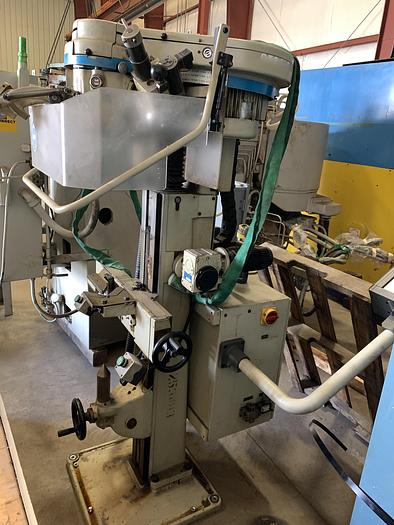

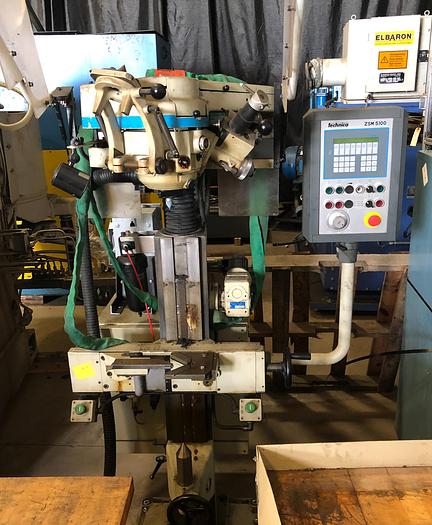

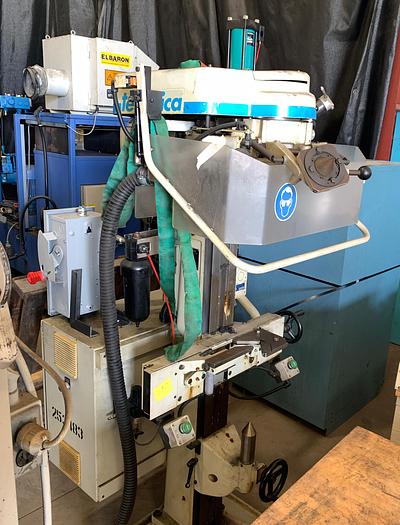

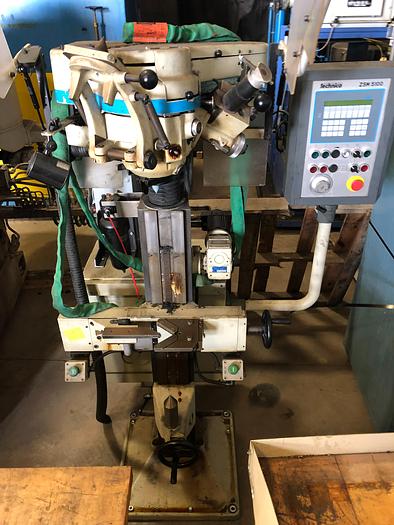

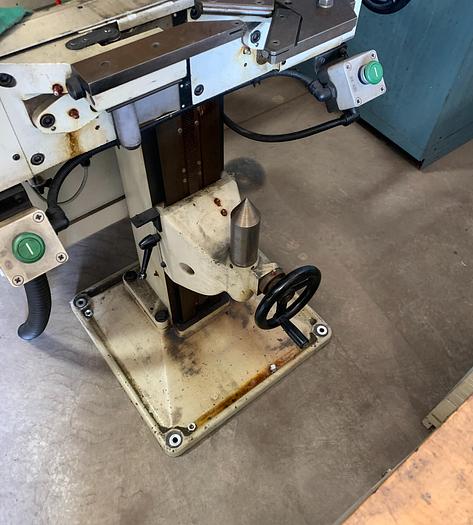

The 1999 Technica Zsm 5100-815 is a CNC center hole grinder designed for precision machining. This unit handles workpieces ranging from 2 to 43 inches in length with diameters between 0.315 and 4.92 inches, supporting a maximum workpiece weight of 264 lbs. The machine generates a 60-degree cone angle for ground center holes with diameters ranging from 0.079 to 1.97 inches. The grinding spindle operates at three distinct speeds of 4,500, 13,000, and 22,500 RPM, while the planetary axis hollow quill speed reaches 400 RPM. The grinding cone features a travel range of 0.030 to 0.197 inches. Controlled via a flat panel interface, the machine has approximate physical dimensions of 22 inches by 22 inches by 73 inches and weighs approximately 1,300 lbs.
KENT USA MODEL JHG-1510 CENTER HOLE GRINDER - NEWOutstanding s:, The machine is suitable for cuting tool, spindle, tool holder, gear shafts and tempered transmission shafts and the workpiece requests high accuracy from cylindrical grinding. The quality of cylindrical grinding will depend on the center holes circular ...more
CONE ANGLE TO GROUND CENTER HOLES: 60°, MAXIMUM DIAMETER OF GROUND CENTER HOLES: 2", MAXIMUM DIAMETER OF WORKPIECE: 5", MAXIMUM WORKPIECE LENGTH: 43", HEADSTOCK AXIS TO COLUMN FACE: 6", GRINDING SPINDLE SPEEDS (3): 45,000/22,500/13,000 RPM, QUILL SPEEDS (2): 800/400 RPM, FEED OF CONE ALONG ...more

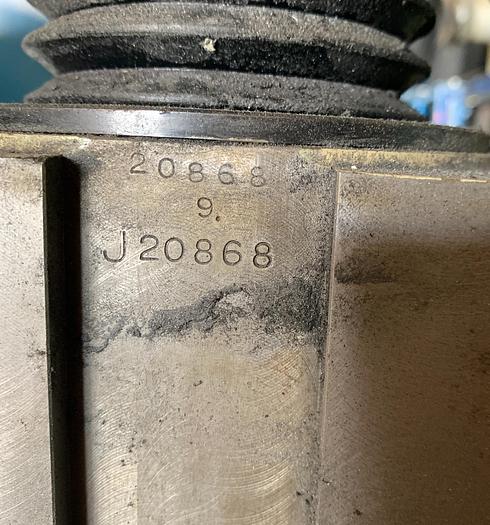

This used Technica 5100-815 (1999) is a grinder available from R.A.B. Industries. It is the nan controller.1-TECHNICA ZSM 5100-815 CNC CENTER HOLE GRINDERSERIAL NUMBER J20868DATE OF MFG. 1999STK#104107================================ WHILE OBTAINED FROM SOURCES DEEMEDRELIABLE ARE SUBJECT CHANGE WITHOUT NOTICEAND TO ...more
HENNINGER ZS 201 / 2000 CENTER GRINDER, New 2016 - Never Used, Center Hole Grinding Range: Ø 2-90 mm, Tailstock, Dressing Angle Range: 45° - 120°, Grinding Wheel Head Stroke: 150 mm, Digital Display, Workpiece Length: 20-2000 mm, Pneumatic Quick Lift, Dust Extraction.
