(1) Team Vibration Bi-Axial IEEE Test System

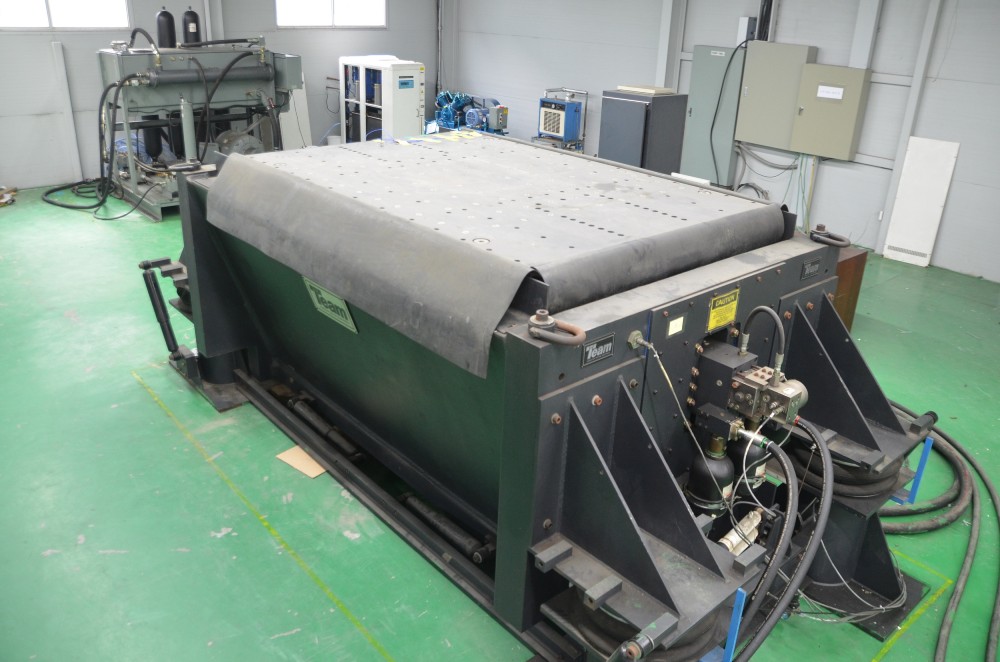

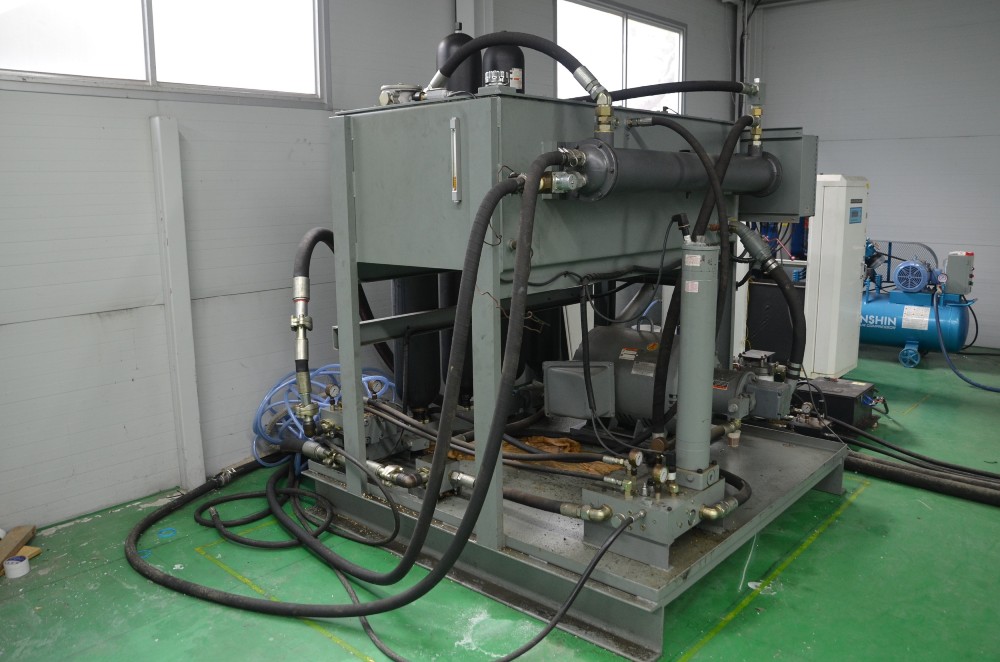

Team Vibration Bi-Axial IEEE Test System
SPECIFICATIONS:
Actuator Force (Sine) – Horizontal | 18,000 lbf (80 kN) |
*Actuator Force (Sine) – Vertical | 18,000 lbf (80 kN) |
Actuator Force (Random) – Horizontal | 9,000 lbf (80 kN) |
Actuator Force (Random) – Vertical | 9,000 lbf (80 kN) |
Static Displacement - All Axes | 7.0 in (+/- 3.5 in) 178 mm (+/-89 mm) |
Dynamic Displacement – All Axes | 6.5 in (+/- 3.25 in) 165 mm (+/-81 mm) |
Bare Table Acceleration (Sine) - Vertical | 4.5 g |
Bare Table Acceleration (Sine) - Horizontal | 5.5 g |
Bare Table Acceleration (Random) - Vertical | 2.4 grms |
Bare Table Acceleration (Random) - Horizontal | 2.8 grms |
Frequency Range | 0.1 - 200 Hz |
Mounting Surface | 60 in x 60 in (1.5 M x 1.5 M) |
Footprint (L X W X H) | 179 x 84 x 72 in (4.5 x 2.1 x 1.8M) |
Table Mass | 3030 lbs (1374 kgs) |
Moving Mass | 3250 lbs (1474 kgs) |
*2 Actuators Combined
Overview
Teams Bi-Axial test systems are specially designed to reproduce the exacting requirements of IEEE 344 test standards. Using Teams unique high performance servovalve-actuator combination, Team's innovative engineers have successfully created a high frequency, simultaneous dual-axis system with bandwidth capability of 3-500Hz. All IEEE-344 Test systems are fully integrated and assembled with a welded steel, air isolated reaction mass.
Features
- Reliable Hi-Frequency Servohydraulic Actuator
- Team Patented Pad Bearings
- Dual Axis Simultaneous Motion
- Integrated Seismic Base
- Air Isolated to 2Hz
Applications
- IEEE-344 Qualification TestingLarge test surface area
- Maintenance free*
- Ease of using multiple fixtures

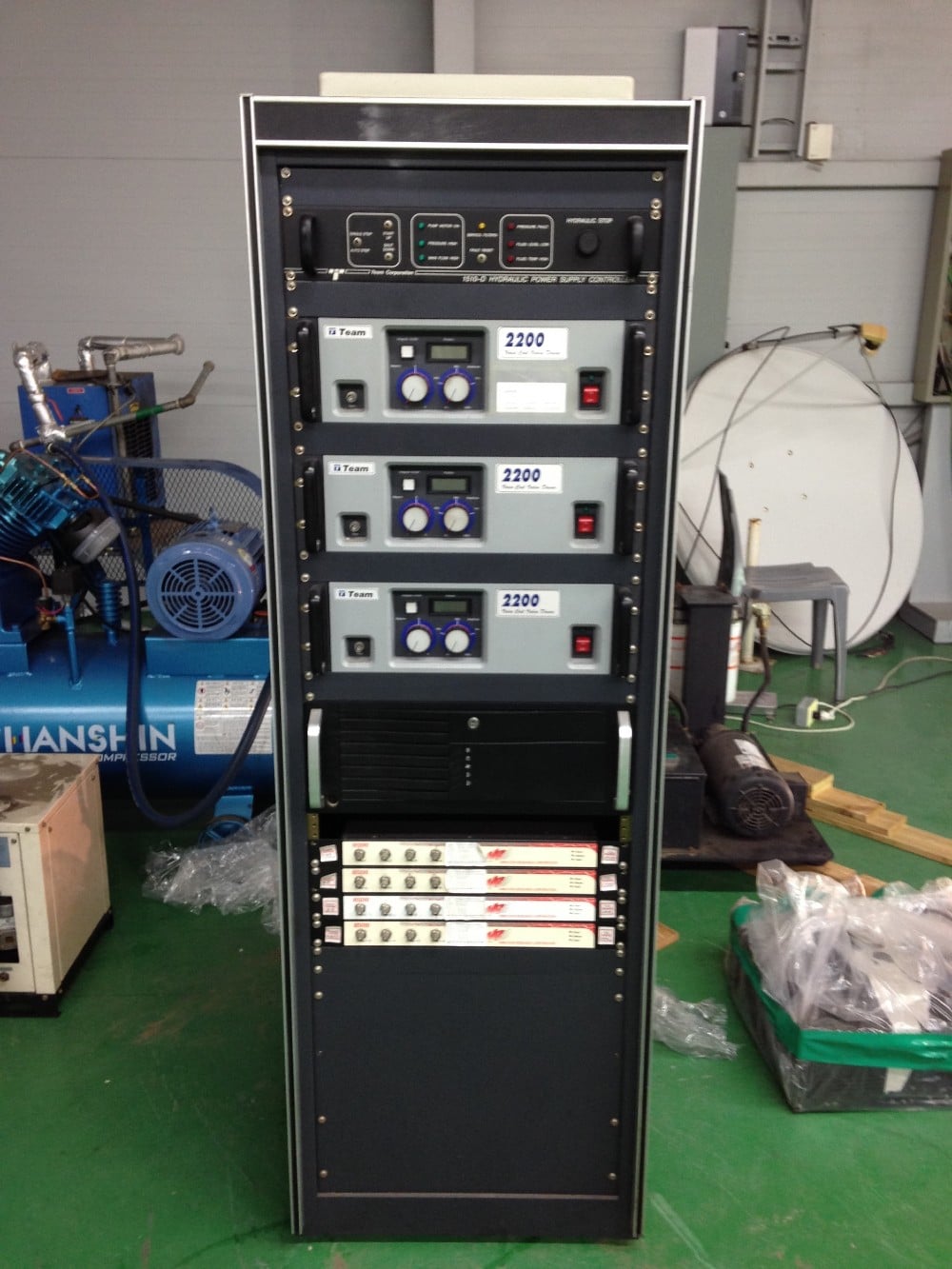

- Built to interface with Team electronics
- IEEE test compliant**
- Single axis component testing
FOB Warren, MI
