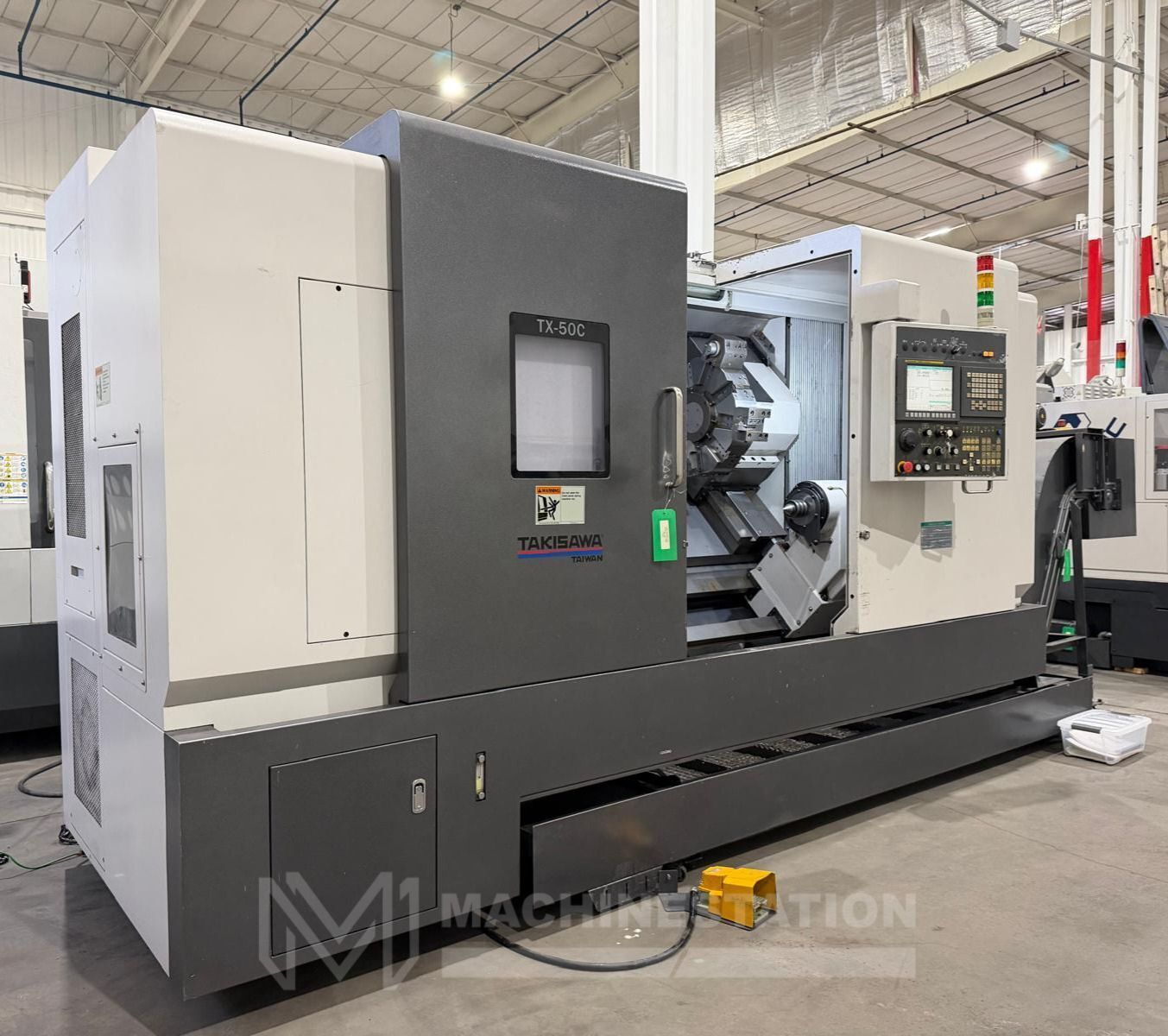

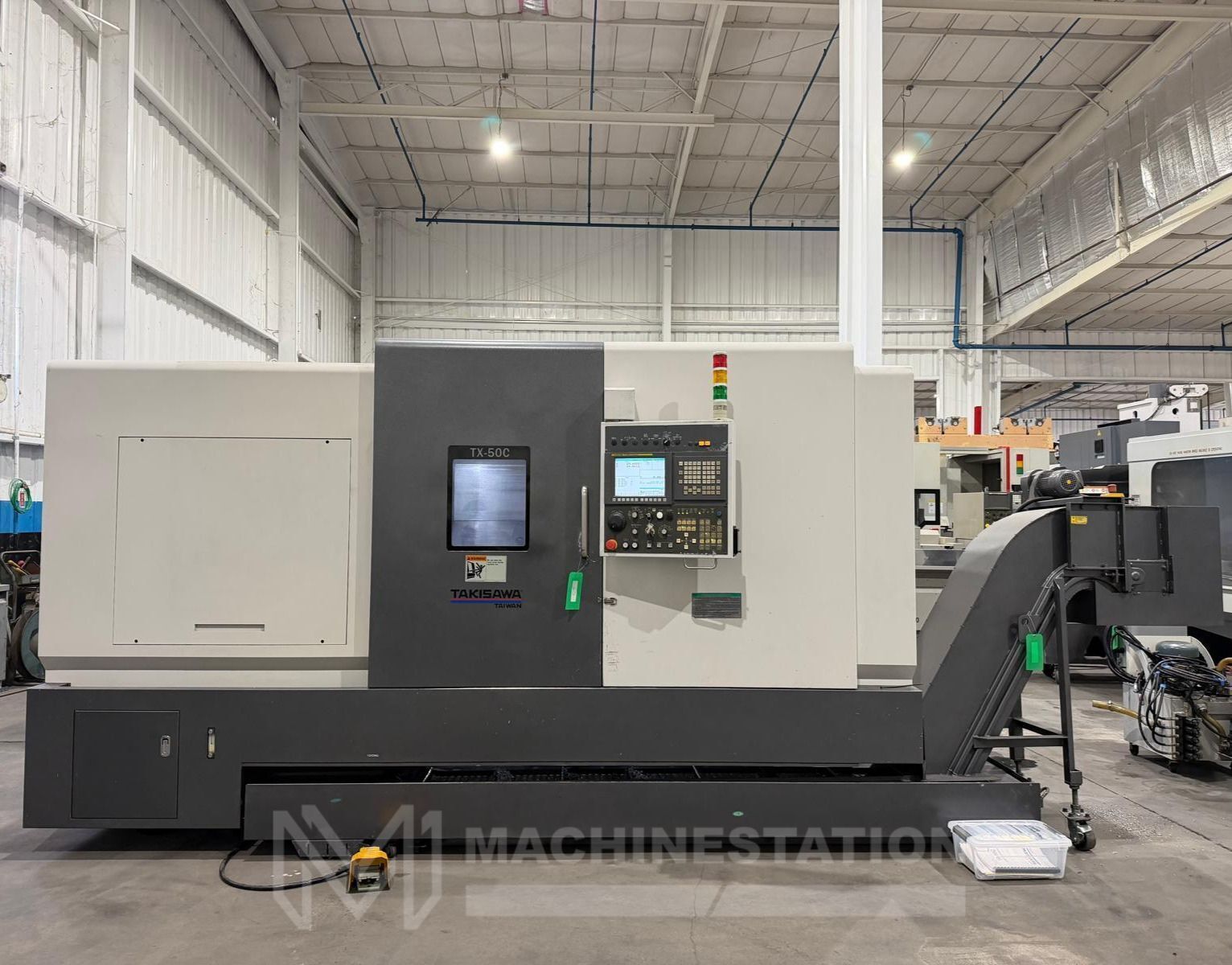

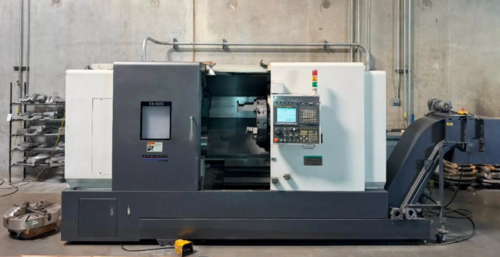

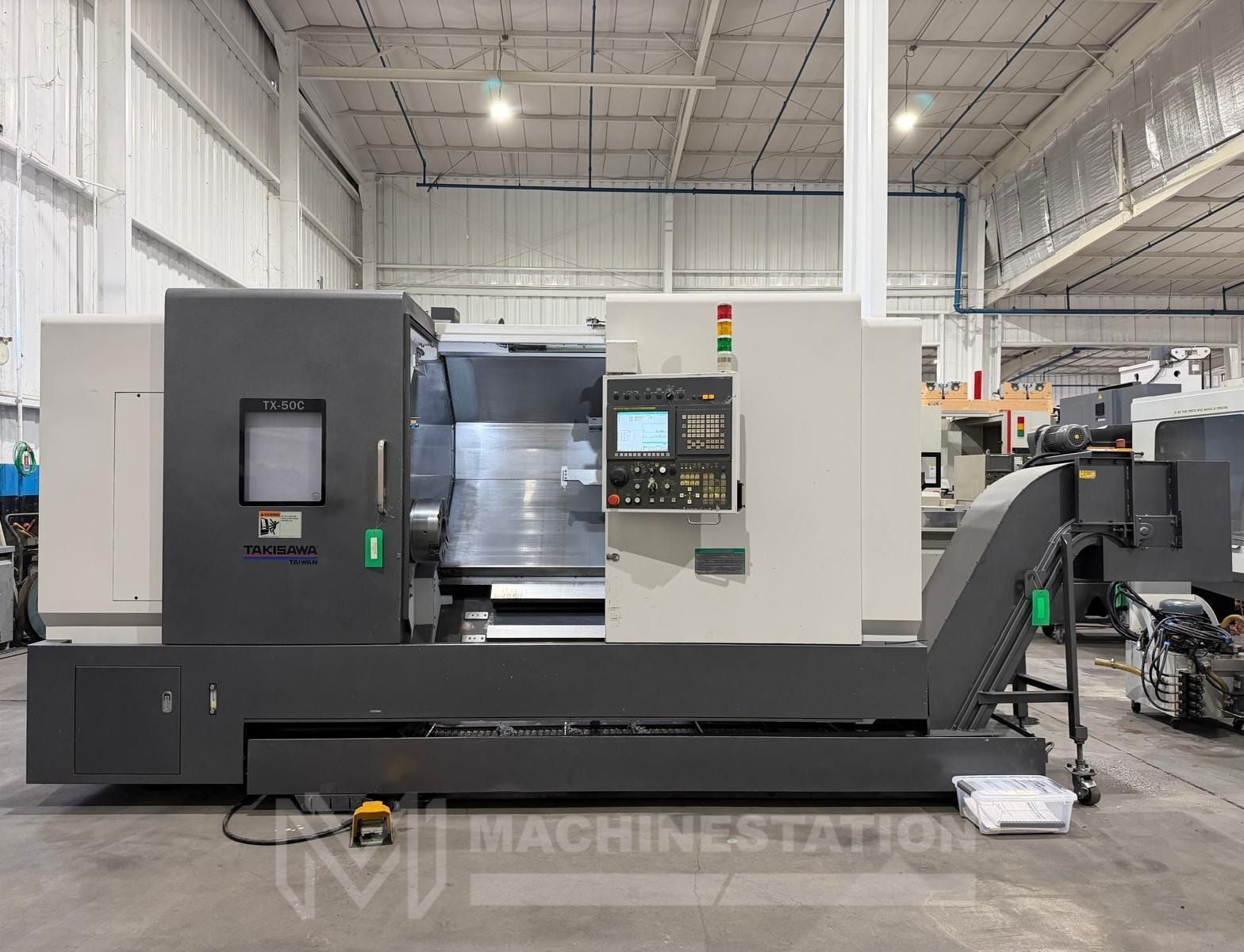

Takisawa #TX-50C, CNC lathe, 12" chuck, 3-jaw, 5" bore, 21.7" dia., 27.6" lgth, 10 turret, 2000 RPM, 35 HP, Fanuc, chip conveyor, tailstock, 2014

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

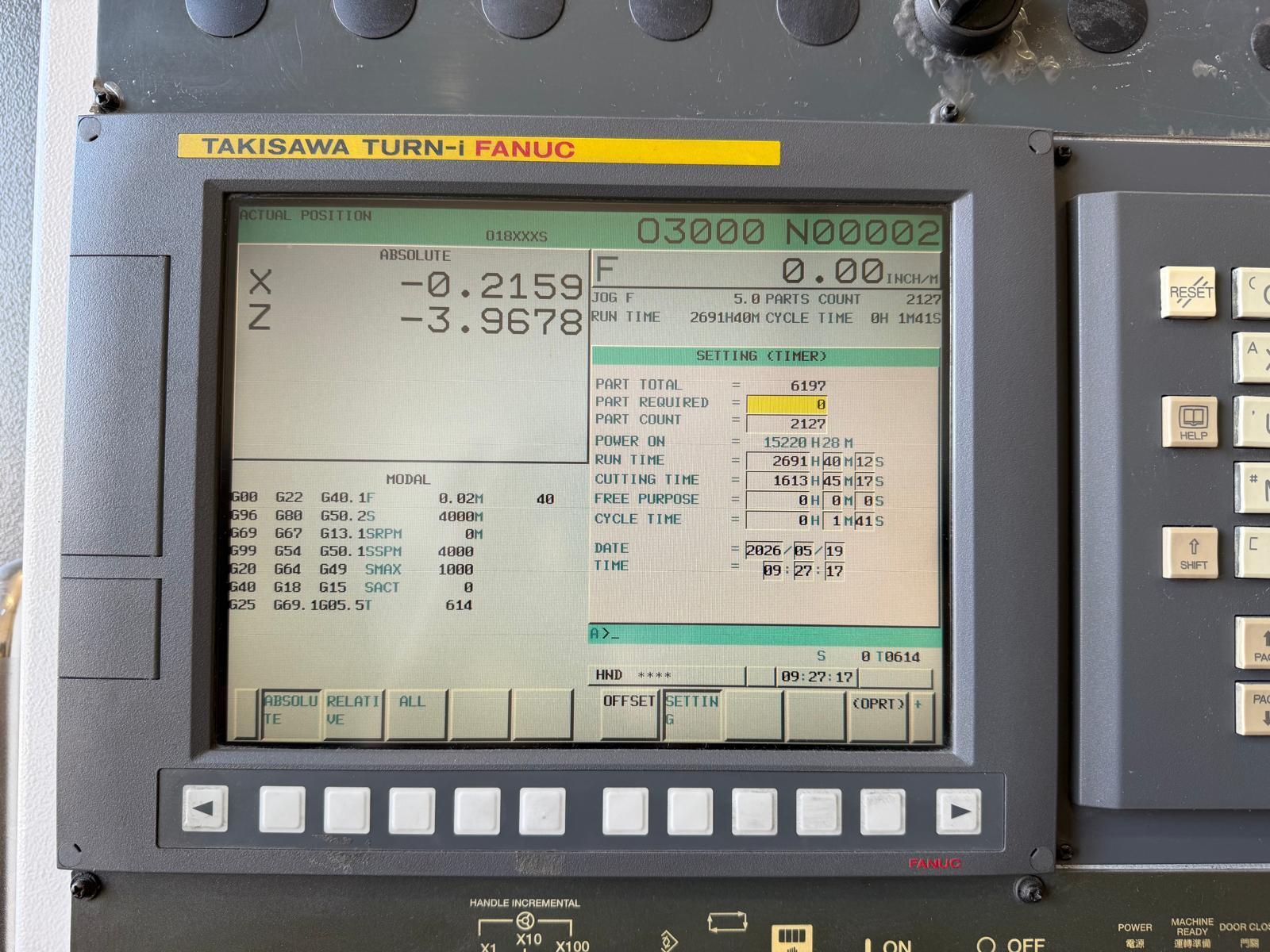

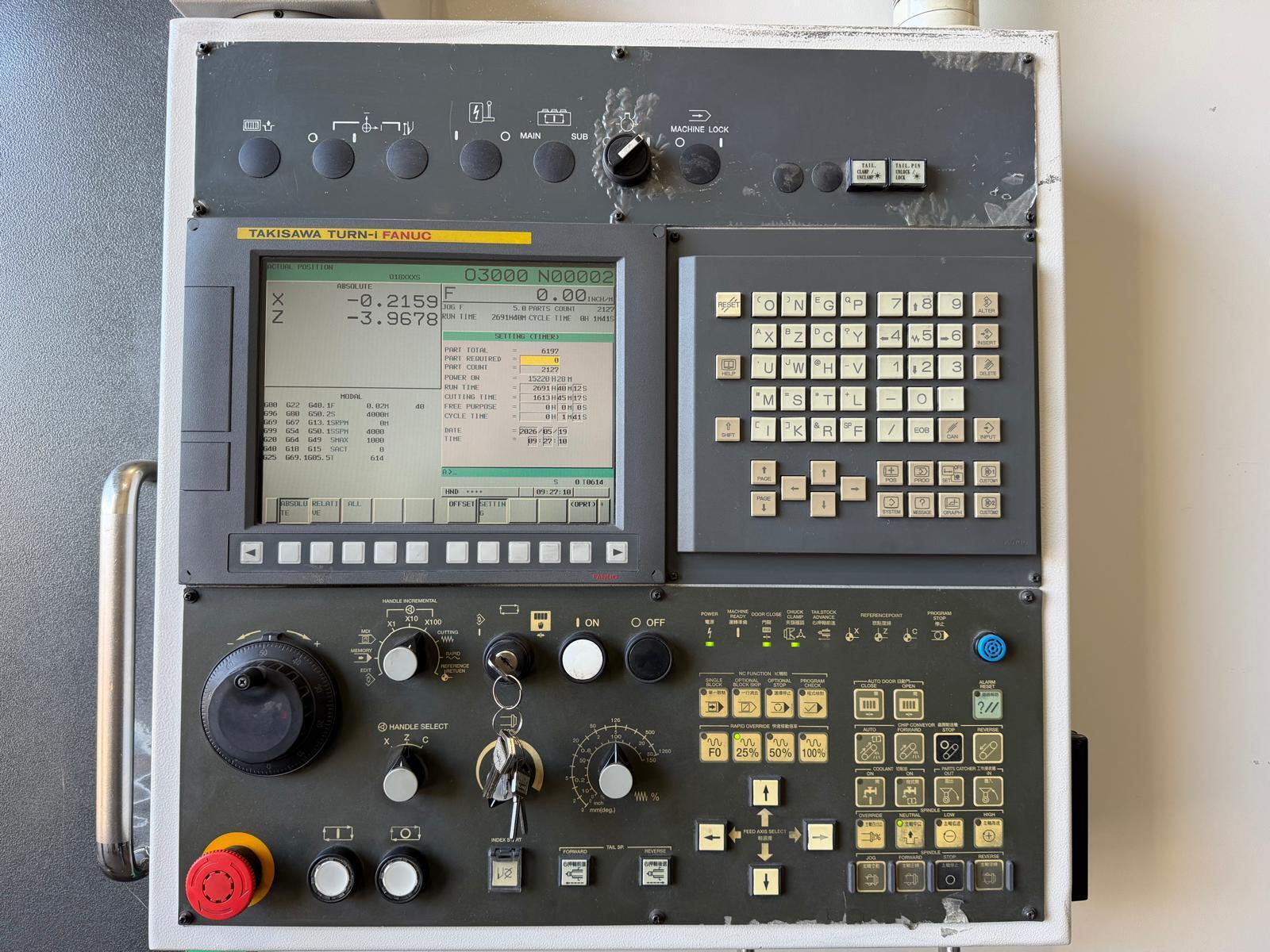

Takisawa Turn-i Fanuc CNC Control
PCMCIA Card Interface

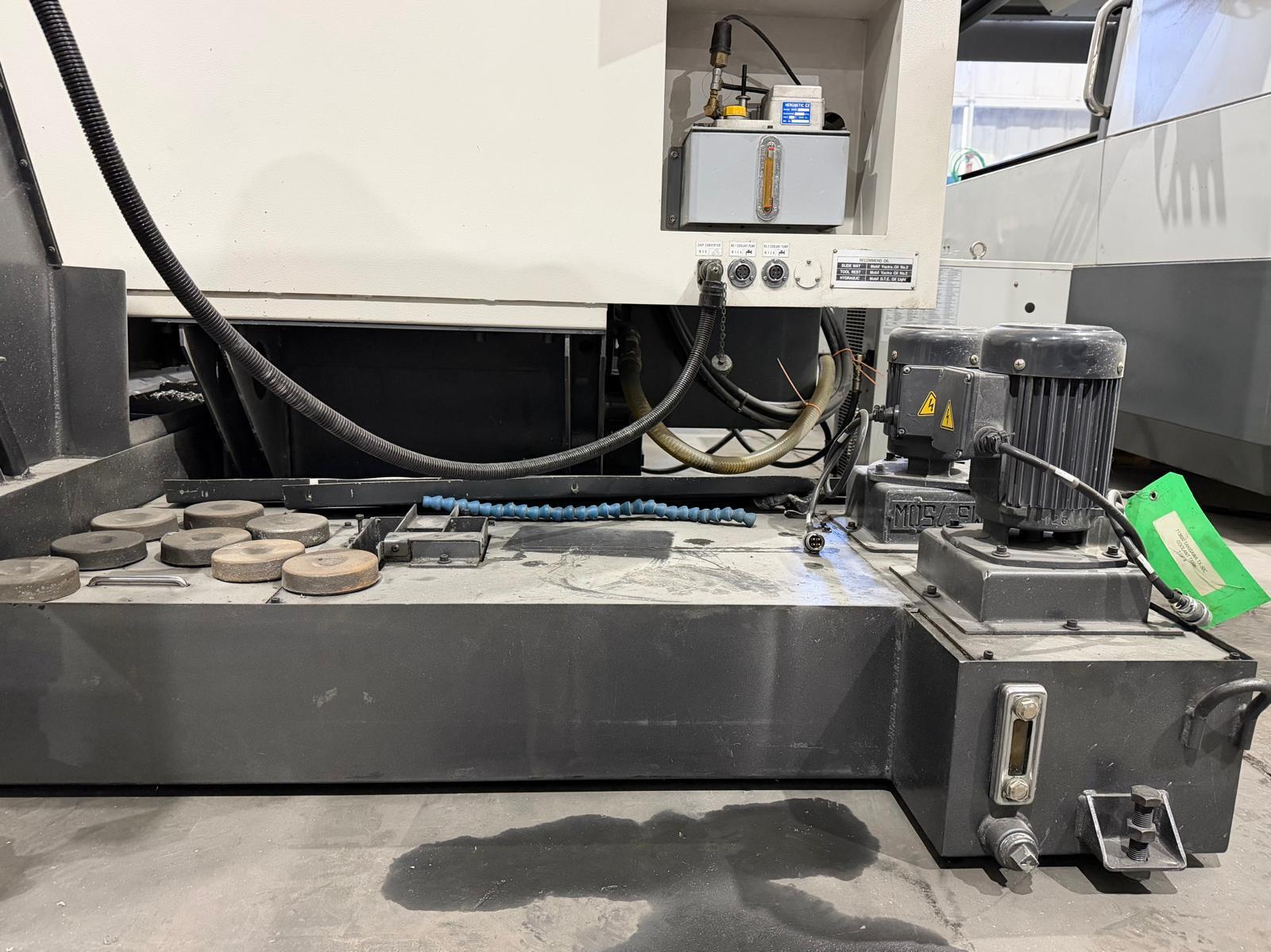

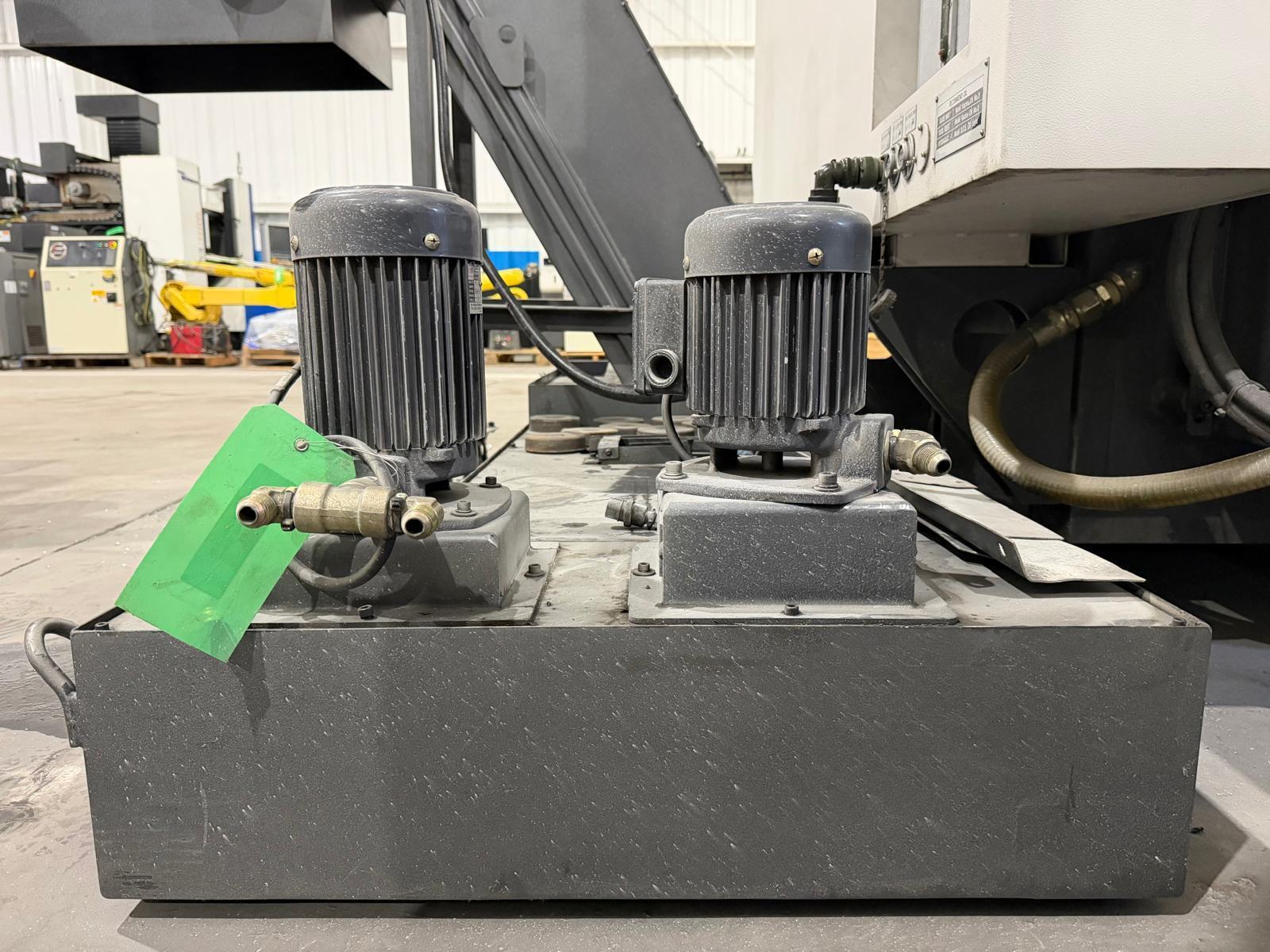

Coolant Tank
Capacity:
Max Turning Diameter: 21.65"
Max Turning Length: 29.90"
Max Swing Over Bed: 30.31"
Max Swing Over Saddle: 25.19"
Spindle Bore: 5.0"
Travels:
X-Axis Travel: 11.41"
Z-Axis Travel: 31.49"
X-Axis Rapid Travese Rate: 630 IPM
Z-Axis Rapid Travese Rate: 787 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.0"
Spindle Speed: 2000 RPM
Spindle Motor: 35 HP

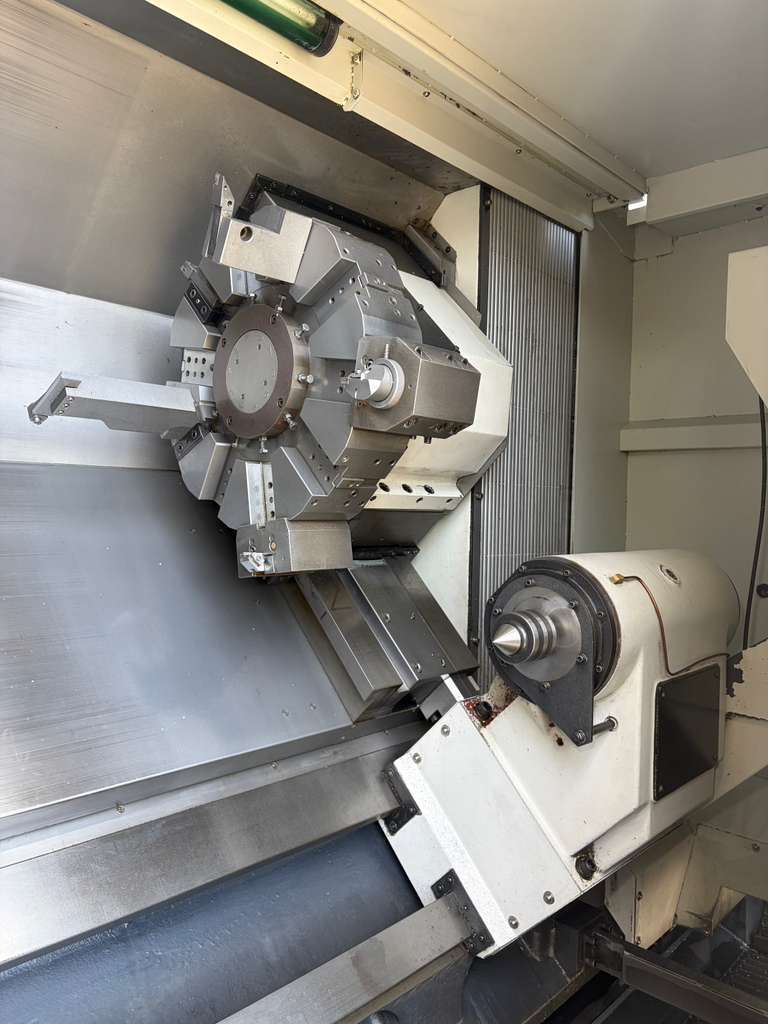

Turret:
Capacity: 10 Stations
Turning Tool Size: 1.26"
Boring Tool Diameter: 1.96"
Tailstock:
Tailstock Travel: 31.49"
Tailstock Taper: MT-5
Tailstock Spindle Diameter: 7.08"
Tailstock Spindle Travel: 5.90"
General:
Power Source: 220v / 50/60 Hz / 3-Phase
Overall Dimensions: 157" X 82" X 85" High Approx.
Weight: 19,840 lbs. Approx.
