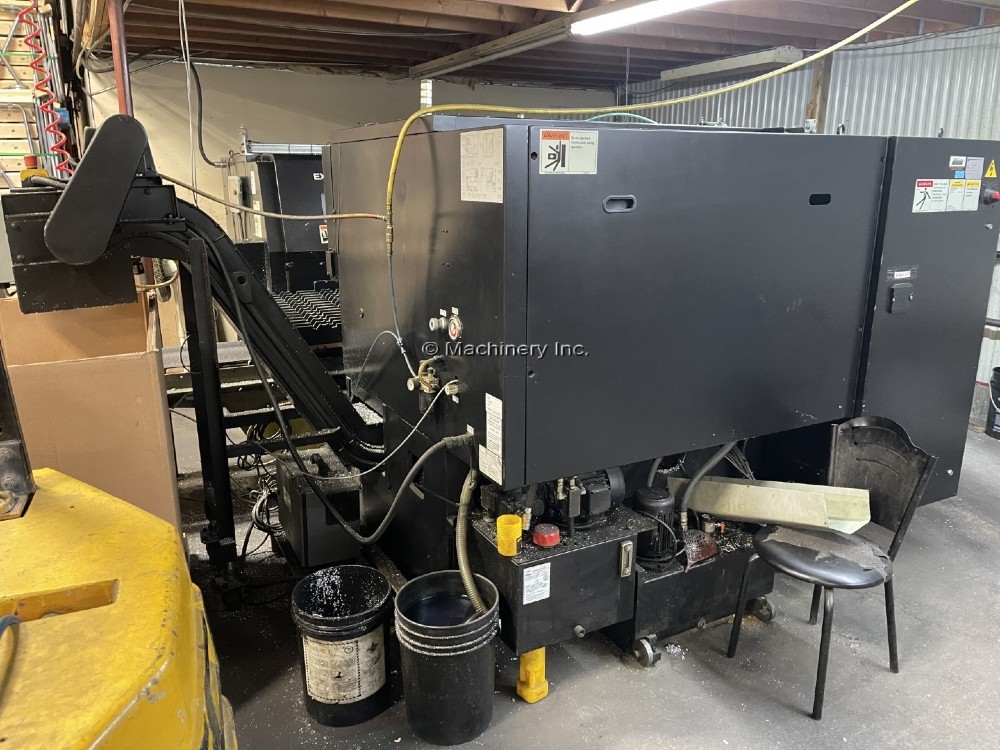

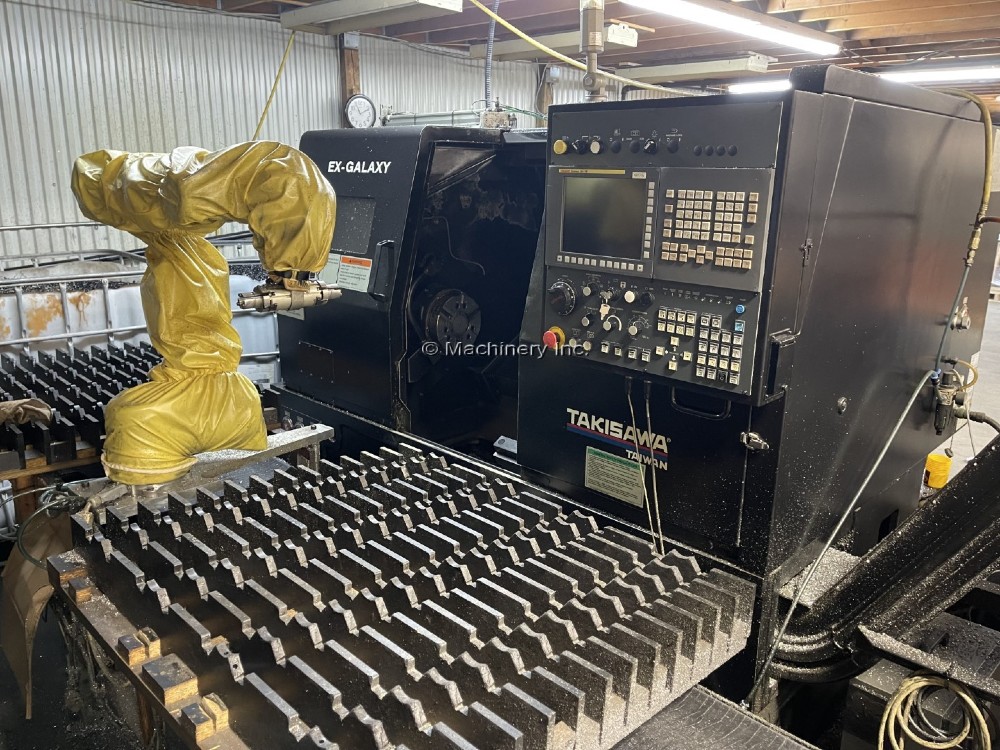

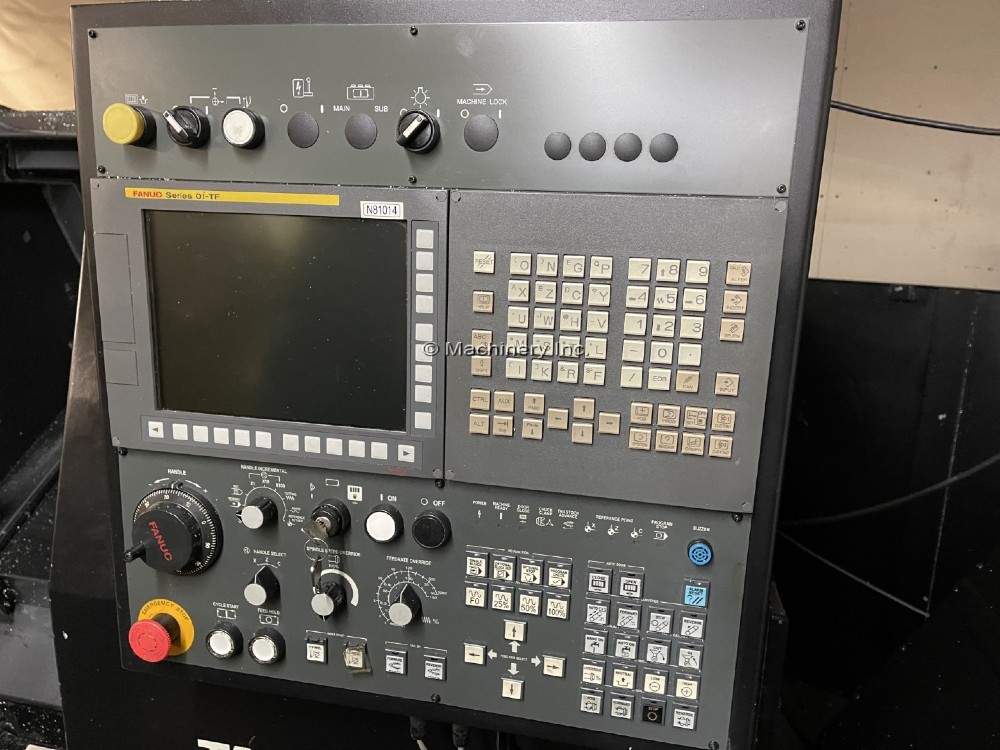

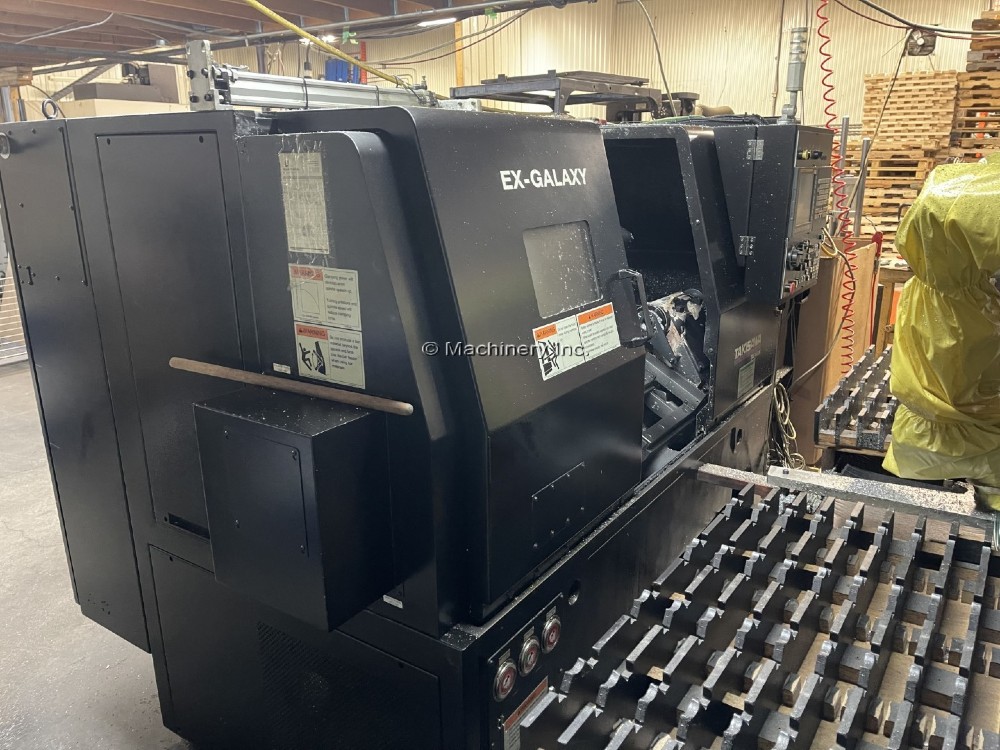

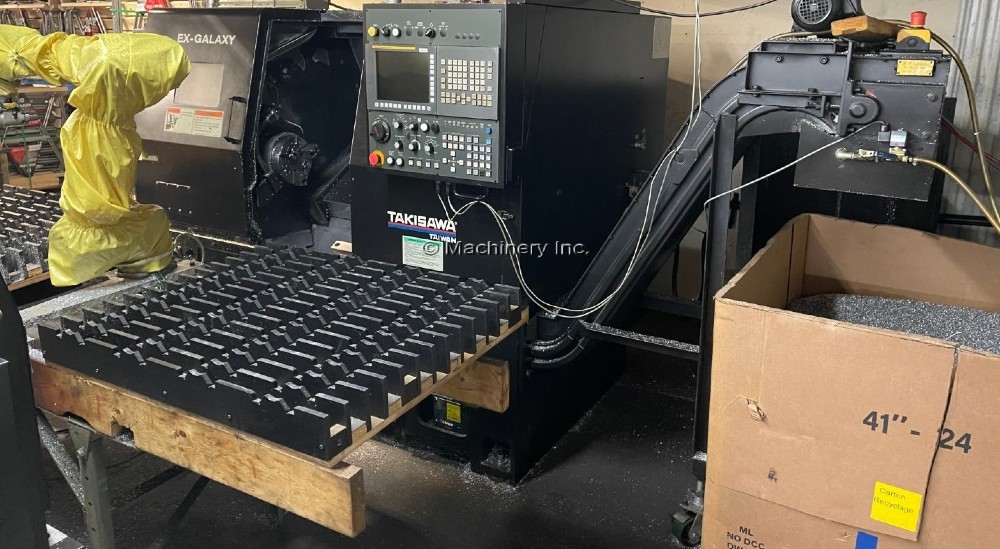

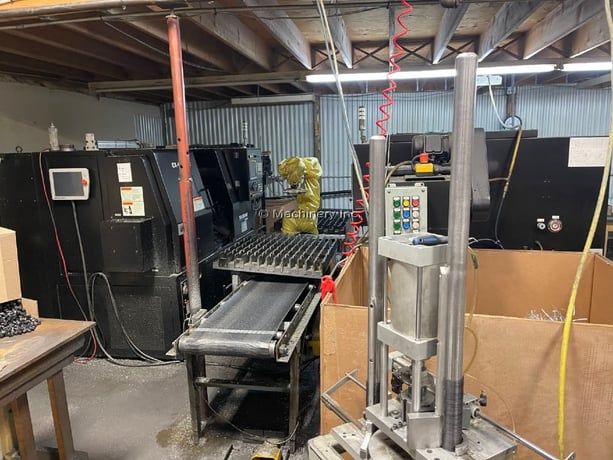

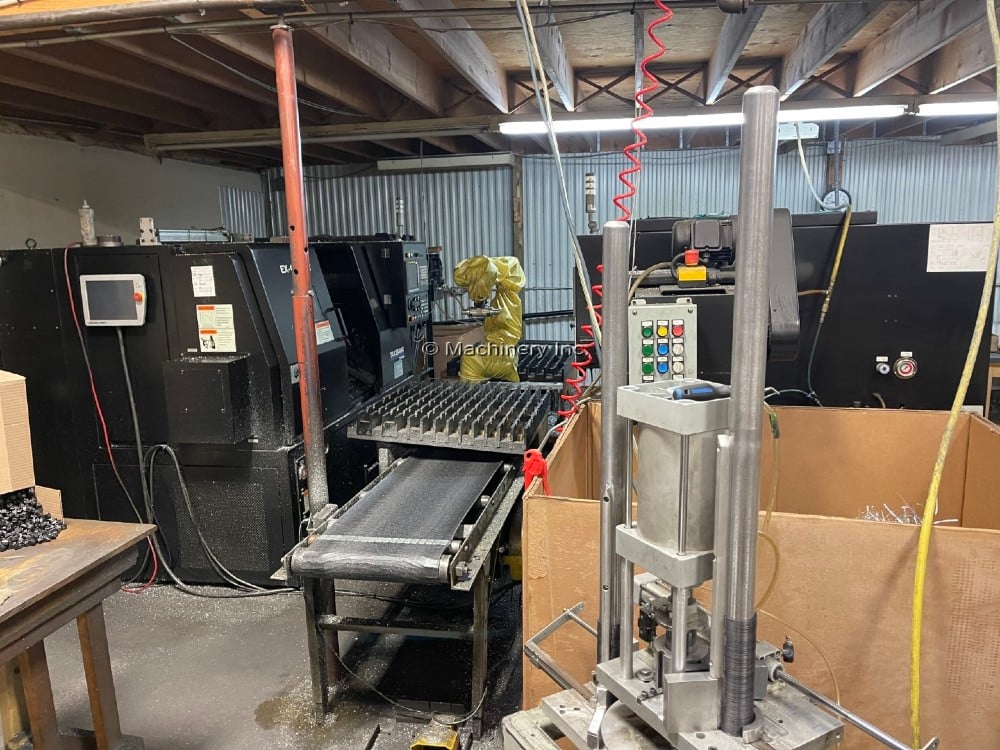

Takisawa #EX-Galaxy, CNC turning center, 18.9" swing, 8" chuck, 2.5" bar, 18.7" centers, 12.6" diameter, 18.74" length, A2-6, Fanuc OI-TF, 2019 (2 available)

TAKISAWA EX-GALAXY CNC TURNING LATHES, 2019
Swing Over Bed 480 mm 18.90 in
Swing Over Saddle 315 mm 12.40 in
Standard Turning Diameter 216 mm 8.50 in
Max Turning Diameter 320 mm 12.60 in
Max Turning Length 476 mm 18.74 in
Bar Capacity 65 mm 2.56 in
X-Axis Travel 180 mm 7.09 in
Z-Axis Travel 530 mm 20.87 in
Spindle Speed 4,000 rpm 4,000 rpm

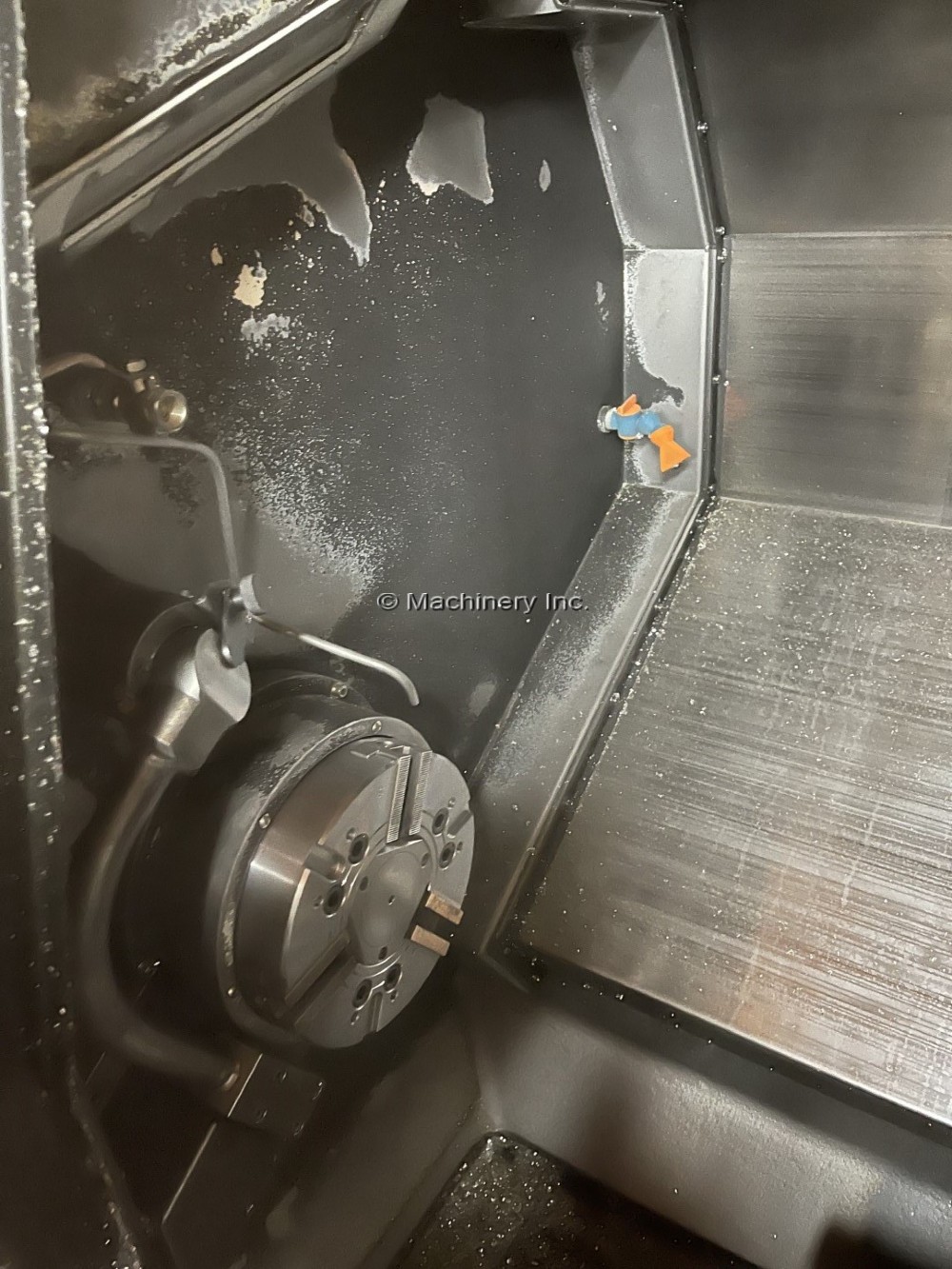

Chuck Size 8 in 8 in
Spindle Nose A2-6 A2-6
Spindle Through Hole Diameter 76 mm 2.99 in
Spindle Bearing Diameter 110 mm 4.33 in

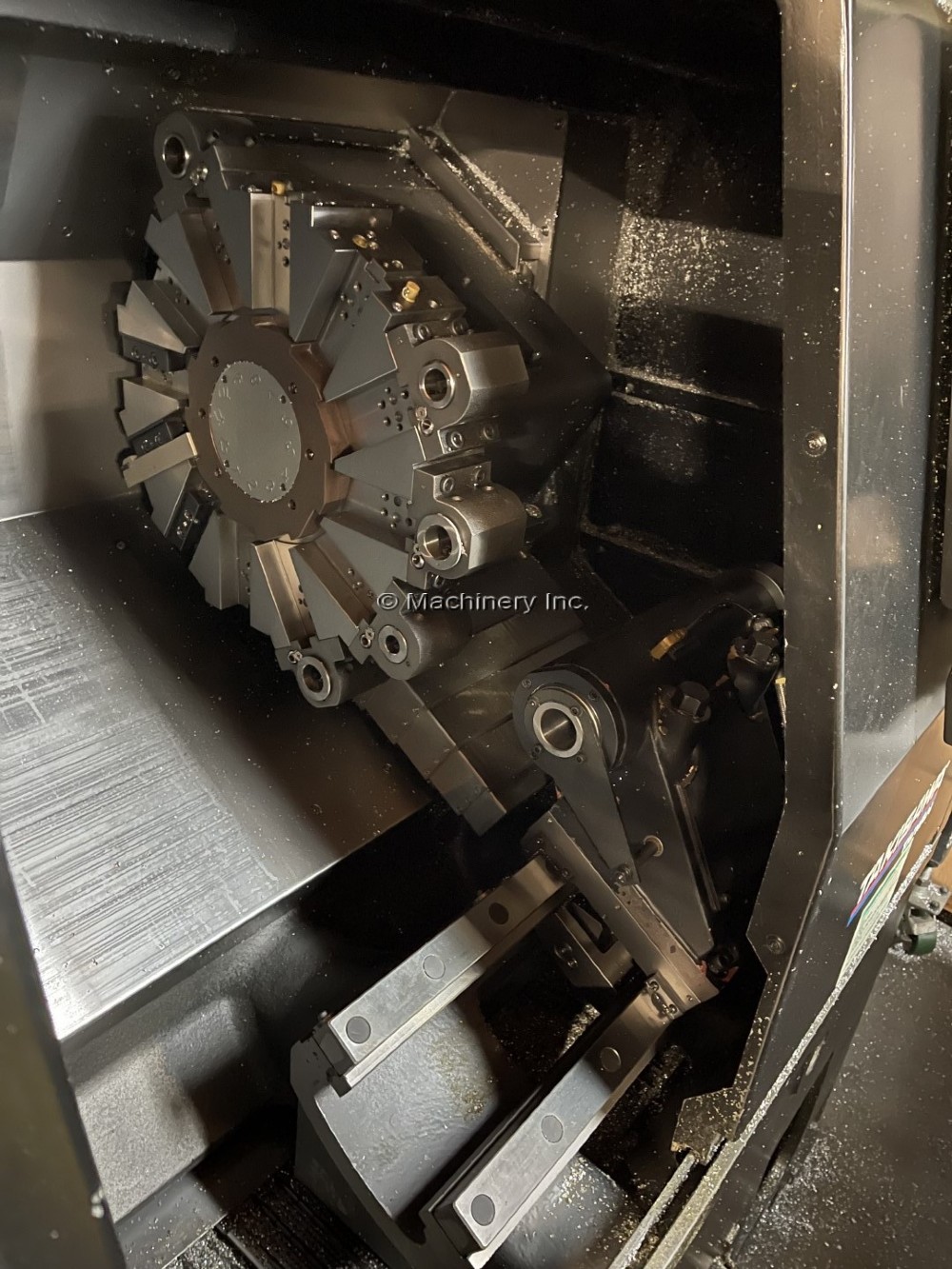

Number of Tools T12 T12
Turning Tool Shank 25 mm 0.98 in
Boring Bar Shank Diameter 40 mm 1.57 in
Stroke of Tailstock 450 mm 17.72 in
Tailstock Spindle Diameter 90 mm 3.54 in
Taper Hole of Tailstock Spindle MT4 (MT5 Optional) MT4 (MT5 Optional)
Tailstock Spindle Travel 100 mm 3.94 in
X-Axis Rapid Traverse Rate 20 m/min 787 ipm
Z-Axis Rapid Traverse Rate 24 m/min 945 ipm
Spindle Drive Motor 7.5/11 kW (11/15 hp) 11/15 hp
X-Axis Drive Motor 1.2 kW 1.61 hp
Z-Axis Drive Motor 2.5 kW 3.35 hp
Turret Index Motor 1.2 kW 1.61 hp
Height 1770 mm 69.69 in
Width 2240 mm 88.19 in
Length 1645 mm 64.76 in
Weight 4300 kg 9,480 lb

ELECTRICS: 220/3PH/60HZ
FULL LOAD CURRENT: 30A


(2) IDENTICAL MACHINES AVAILABLE

VERY LOW HOURS!!!

HOURS MACHINE #14:
POWER ON: 9534 HOURS
RUN TIME: 5950 HOURS
CUTTING: 4203 HOURS

HOURS MACHINE #15:

POWER ON: 9139 HOURS
RUN TIME: 5647 HOURS
CUTTING: 3974 HOURS

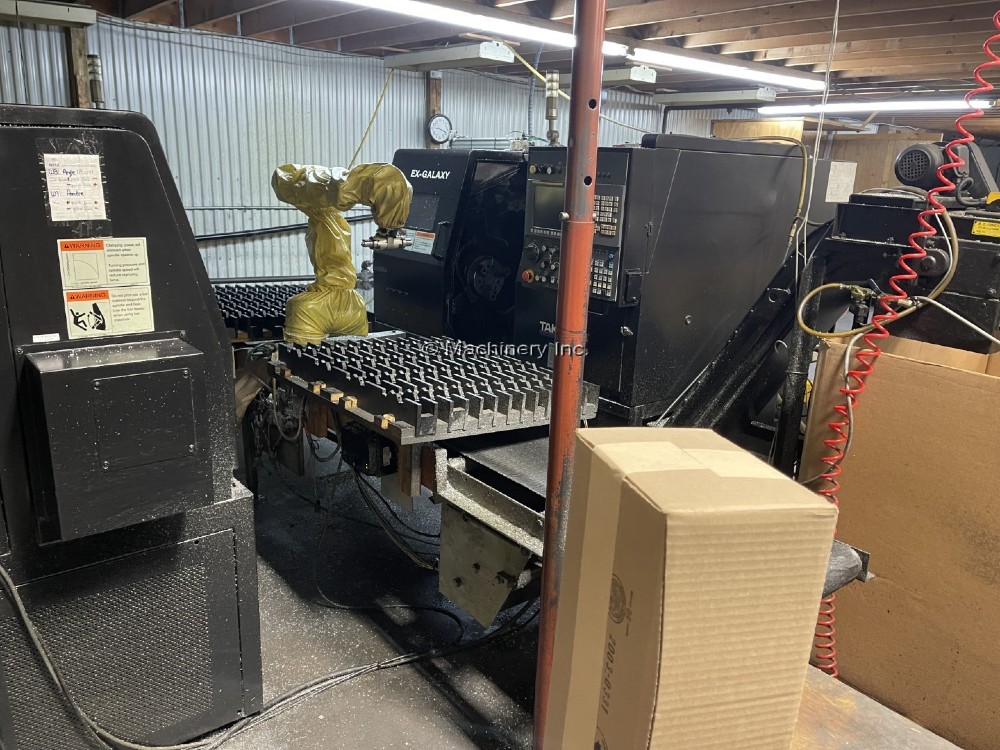

NOTE: ROBOT IS NOT FOR SALE!
