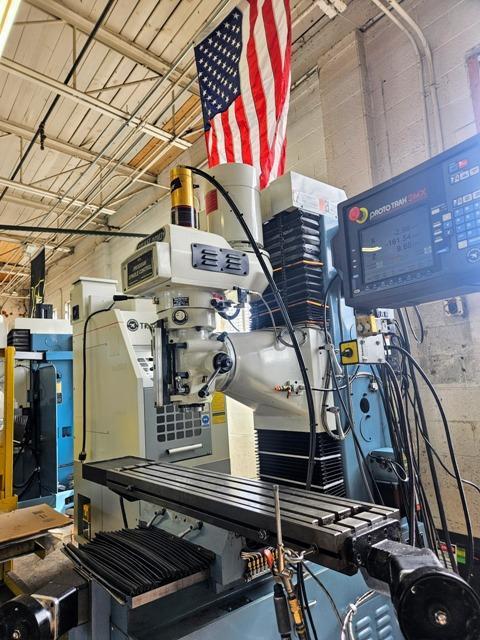

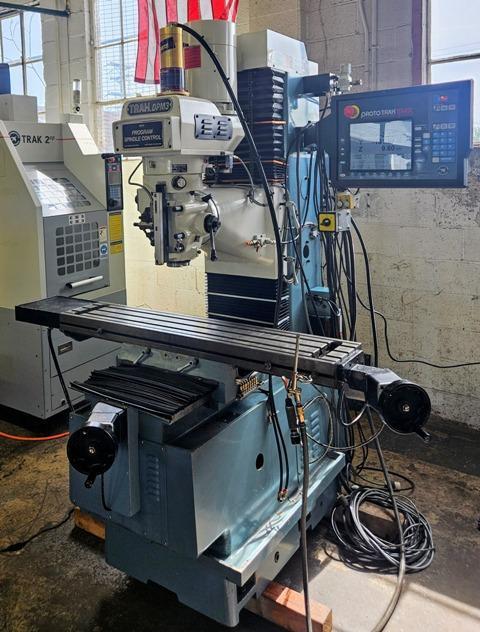

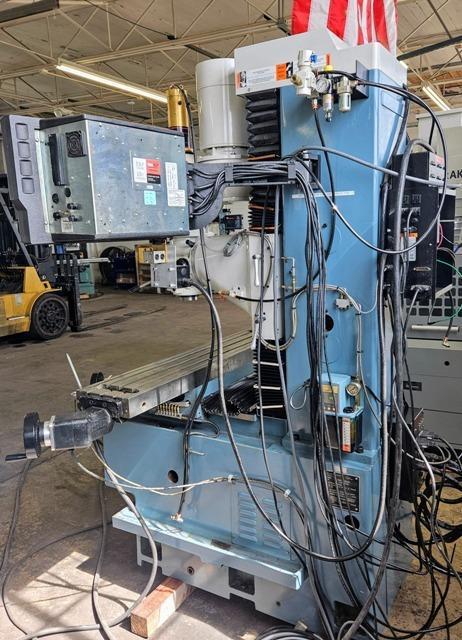

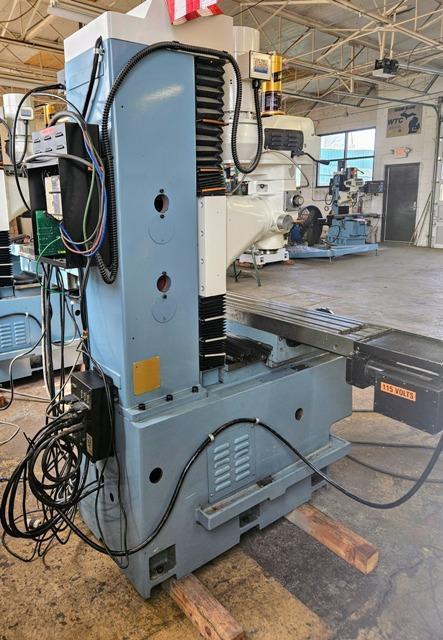

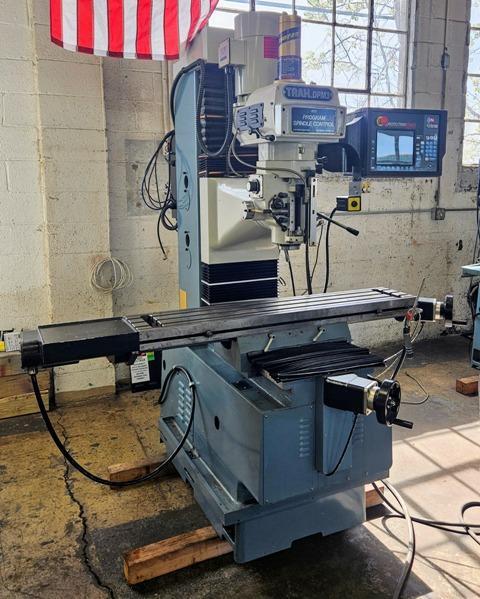

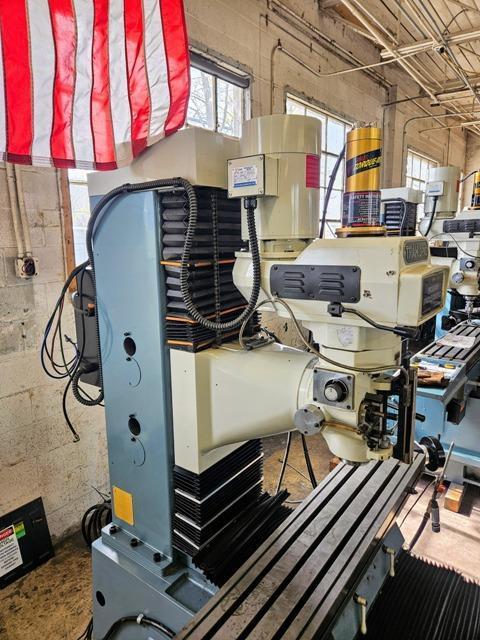

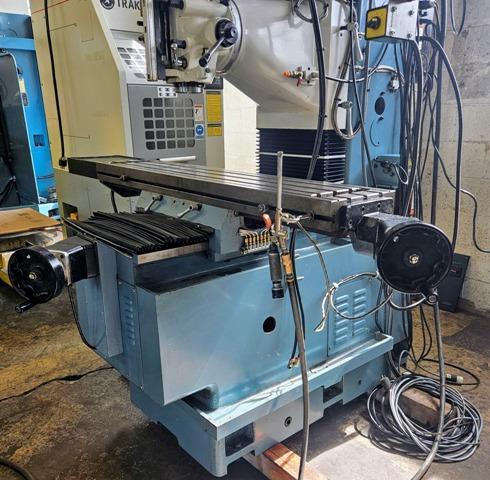

Manufacturer: Southwestern Industries
Model: TRAK-DPM-SX3P
Year: 2013
Table: 10.00 - 50.00
HP: 5.0
Stock # 104306
1 / 10
Click to zoom in
1 / 10
For Sale by R & J Machinery Sales
Surplus Record Dealer Since 1997
Location: Milford, MI
Contact Jeff Bruce
Phone Number: 248...> Show Phone Number 248-685-7879
Let the seller know you found their listing on Surplus Record!
Description
https://youtu.be/qUjJQx7DfnI?si=TR1qMtLiUrL3Do55

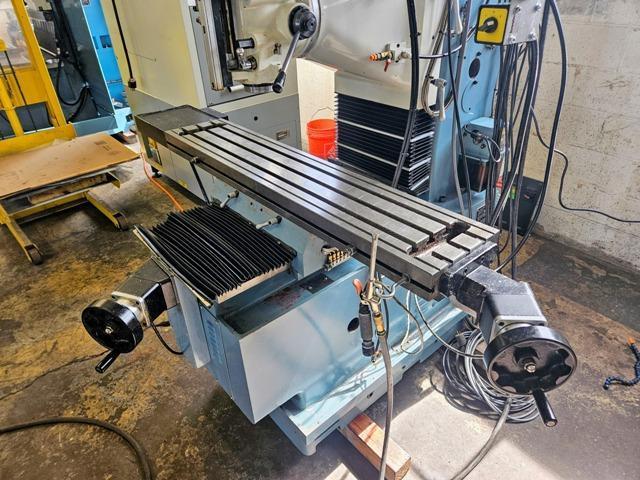

Machine Specifications•Table Size – 50” x 10”
•T-Slots (number x width x pitch) - 3 x .63" x 2.48"
•Travel (X, Y, Z axis) - 31 x 17 x 23.5"
•Quill Diameter - 3 15/16"
•Maximum Quill Travel - 5”
•Spindle Taper - NMTB 40
•Spindle Speed Range - 40-600, 300-5000
•Spindle Center to Column Face - 19”
•Spindle Motor Power – 5 HP
•Power requirements, control - 110V; 1P; 10A
•Power requirements - 220V;3P; 17.5A
•Maximum Weight of Workpiece - 1320 lbs.
•Height of table from bottom of bed - 38”
•Max spindle nose to table – 23.5”
•Min height - 85”
•Max height - 95”
•Width of machine including table - 73”
•Length with electric box door closed - 66”
•Overall width incl full table traverse - 108”
•Overall length with electrical door open - 76”
•Footprint of Machine - 24” x 44”
•Weight net / shipping lbs. - 4100 / 4400
•Rapid traverse X, Y, Z - 150 IPM Machine shown with
•Auto Lube Pump additional options
•Precision ground ballscrews in the table, saddle and ram
•Chrome hardened and ground quill
•Meehanite castings
•Slide ways are Turcite coated
•Wide way surfaces are hardened and ground
•Drilling max capacity - 1”
•Milling max capacity - 5 inch³/min
•Tapping max capacity – 1 - 8
Equipped With:

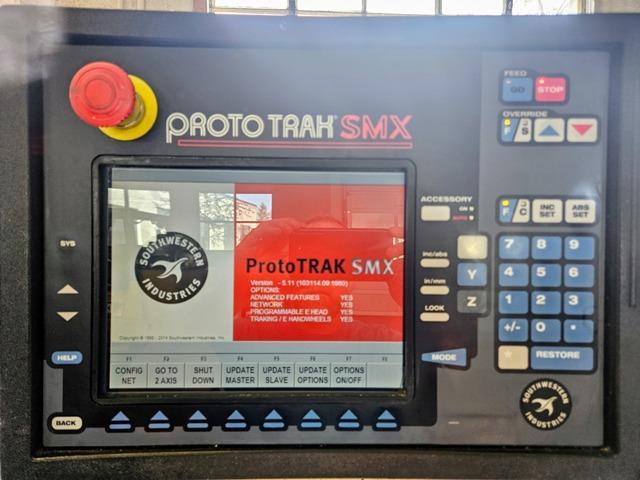

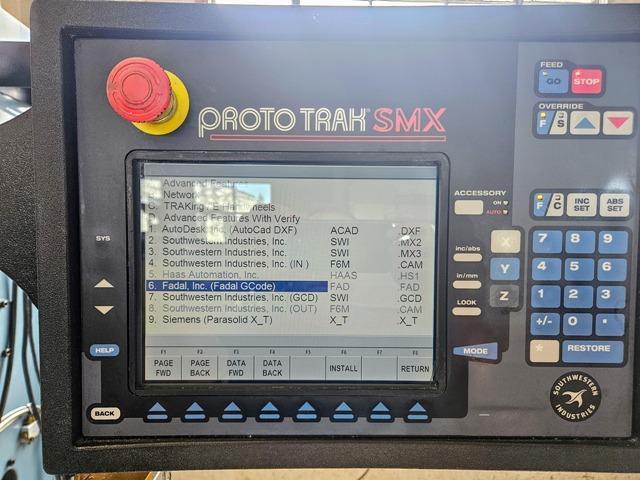

ProtoTRAK SMX CNC Control
Power Draw Bar
Programmable E Head
Networking
Advance features with Verify
Traking/E handwheels
DXF Files
Parasolid X_T
ProtoTRAK SMX CNC Control
Power Draw Bar
Programmable E Head
Networking
Advance features with Verify
Traking/E handwheels
DXF Files
Parasolid X_T
