For Sale by G-2000
Surplus Record Dealer Since 2011
Location: Toledo, OH
Contact Evan Yoder
Phone Number: 419...> Show Phone Number 419-597-5495
Let the seller know you found their listing on Surplus Record!

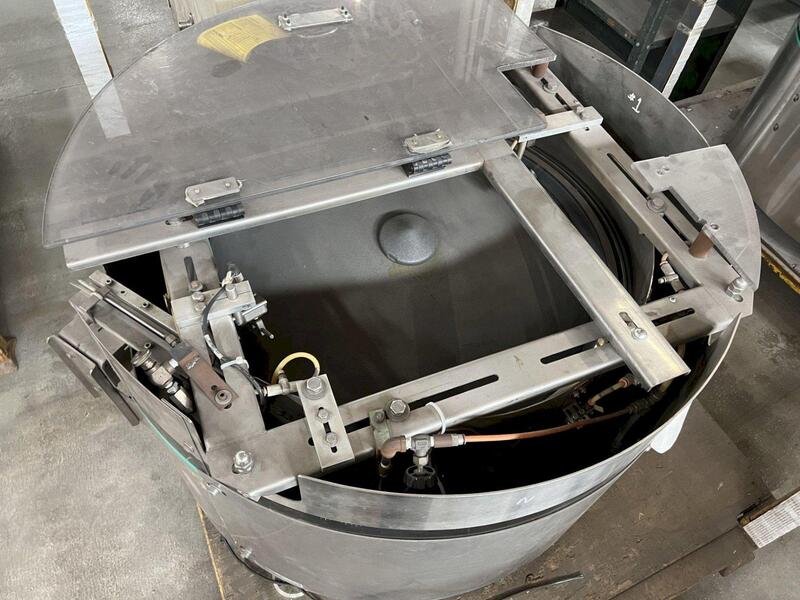

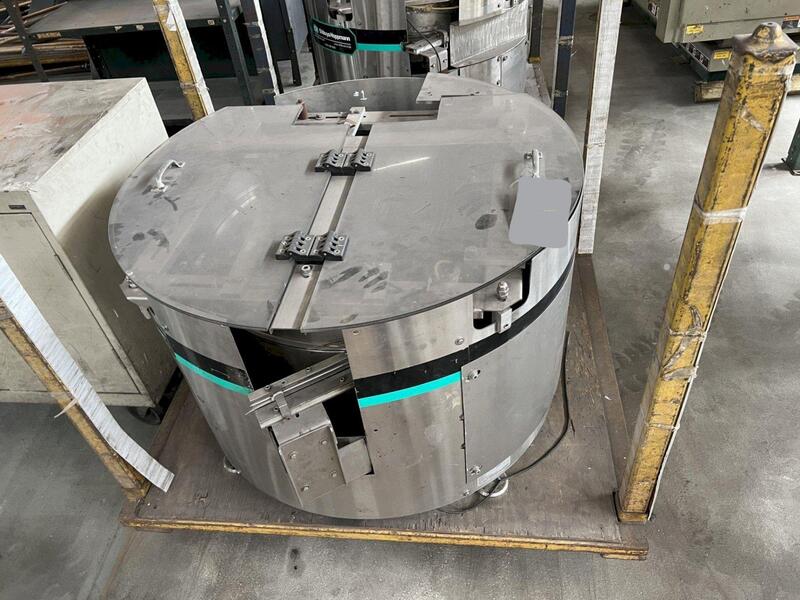

Description
Performance Specifications -------------------- ANSI ---- Metric
Maximum Bowl Linear Speed (@ Rim ID)------------300 feet/min --- 91 meters/min
Vertical Bowl Runout (Maximum)------------------ 0.010" --- 0.254mm
Vertical Disc Runout (Maximum)------------------ 0.125" --- 3.175mm
Electrical Specifications----------------- DC --- AC
Motor Size------------------------------ 1/3hp--- 1/3hp
Motor Frame Size------------------------ NEMA 56C--- 56C
Supply Voltage ------------------------- 90 Volts --- 230/460 3
RPM ------------------------------------ 1750 --- 1725
Power Usage ---------------------------- 5 Amps --- 3 Amps
Dimension Specifications------------------ ANSI --- Metric
Outer Wall Diameter--------------------- 40.10" --- 1018.5mm
Overall Frame Height ------------------- 27.13" --- 689.1mm
Bowl Discharge Height ------------------ 17.88" --- 454.2mm
Bowl Outside Diameter ------------------ 36.13" --- 918mm
Bowl Inside Diameter ------------------- 28.80" --- 731.5mm
Rim Width ------------------------------- 3.67" --- 93mm
Bowl Depth ------------------------------ 4.50" --- 114.3mm
Level Foot Adjustment ----------------- ± 2.75" --- ±69.9mm
Disc Diameter --------------------------- 28.50 --- 724mm
Disc–Bowl Gap ---------------------------0.015" --- 0.38mm
Overall Weight (Untooled)------------ ≈ 350 lbs --- ≈ 159 kg
Maximum Bowl Linear Speed (@ Rim ID)------------300 feet/min --- 91 meters/min
Vertical Bowl Runout (Maximum)------------------ 0.010" --- 0.254mm
Vertical Disc Runout (Maximum)------------------ 0.125" --- 3.175mm
Electrical Specifications----------------- DC --- AC
Motor Size------------------------------ 1/3hp--- 1/3hp
Motor Frame Size------------------------ NEMA 56C--- 56C
Supply Voltage ------------------------- 90 Volts --- 230/460 3
RPM ------------------------------------ 1750 --- 1725
Power Usage ---------------------------- 5 Amps --- 3 Amps
Dimension Specifications------------------ ANSI --- Metric
Outer Wall Diameter--------------------- 40.10" --- 1018.5mm
Overall Frame Height ------------------- 27.13" --- 689.1mm
Bowl Discharge Height ------------------ 17.88" --- 454.2mm
Bowl Outside Diameter ------------------ 36.13" --- 918mm
Bowl Inside Diameter ------------------- 28.80" --- 731.5mm
Rim Width ------------------------------- 3.67" --- 93mm
Bowl Depth ------------------------------ 4.50" --- 114.3mm
Level Foot Adjustment ----------------- ± 2.75" --- ±69.9mm
Disc Diameter --------------------------- 28.50 --- 724mm
Disc–Bowl Gap ---------------------------0.015" --- 0.38mm
Overall Weight (Untooled)------------ ≈ 350 lbs --- ≈ 159 kg
| Specifications | |
| Machine Type... | ...Feeders, Bowl |

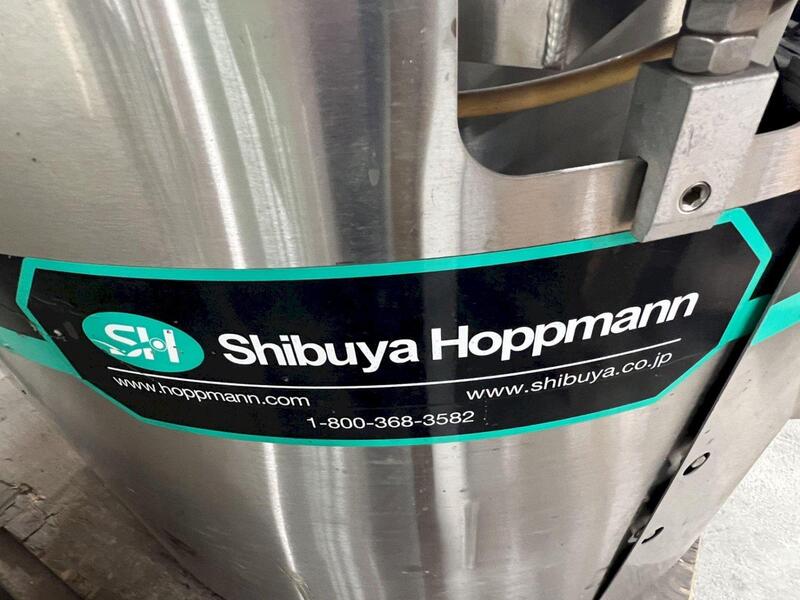

| Manufacturer... | ...HOPPMANN |
| Model... | ...FEEEDER FT-30 GE |
| Year... | ...2011 |
| Condition... | ...Used |
Get Your Price from G-2000!
