Description
SERIAL .................................. 30577

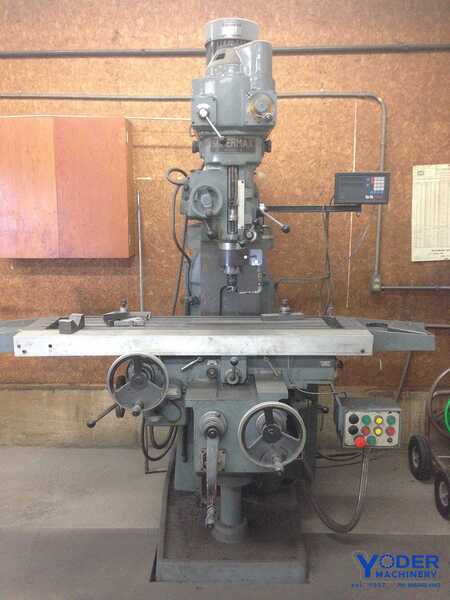

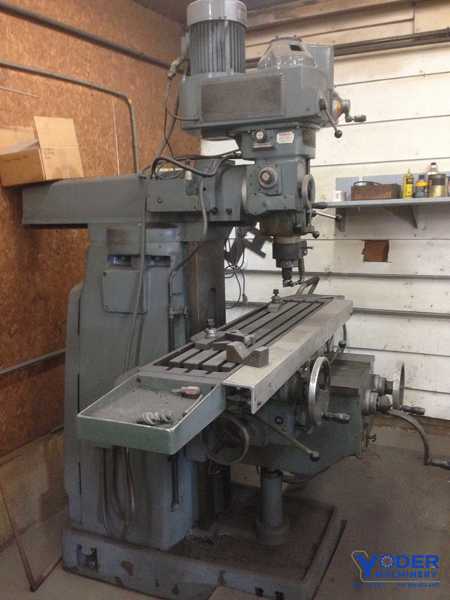

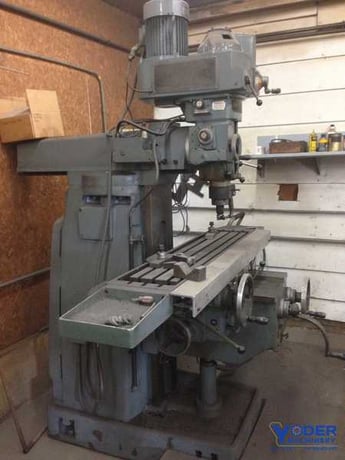

MODEL ................................... SUPERMAX SERIES 2
YEAR .................................... 1985
TABLE WORK SURFACE ...................... 51" X 11"
LONGITUDINAL TABLE TRAVEL ............... 39-3/8"
CROSS TABLE TRAVEL ...................... 12"
VERTICAL TABLE TRAVEL ................... 18"
LONGITUDINAL & CROSS FEEDS .............. (12) 1/2 - 23-3/4 IPM
LONGITUDINAL & CROSS RAPID FEEDS ........ 118 IPM
VERTICAL RAPID FEED ..................... 31-1/2 IPM
SPINDLE SPEEDS, VARIABLE ................ 75-4220 RPM
SPINDLE TAPER ........................... 30 MM QUICK CHANGE
QUILL STROKE ............................ 5-1/2"
SPINDLE FEEDS ........................... .0015, .003 & .005 IPR
HEAD INCLINE ANGLE, LEFT & RIGHT ........ 45 DEGREES
SPINDLE NOSE TO TABLE, MAXIMUM .......... 22-3/4"
COOLANT ................................. YES

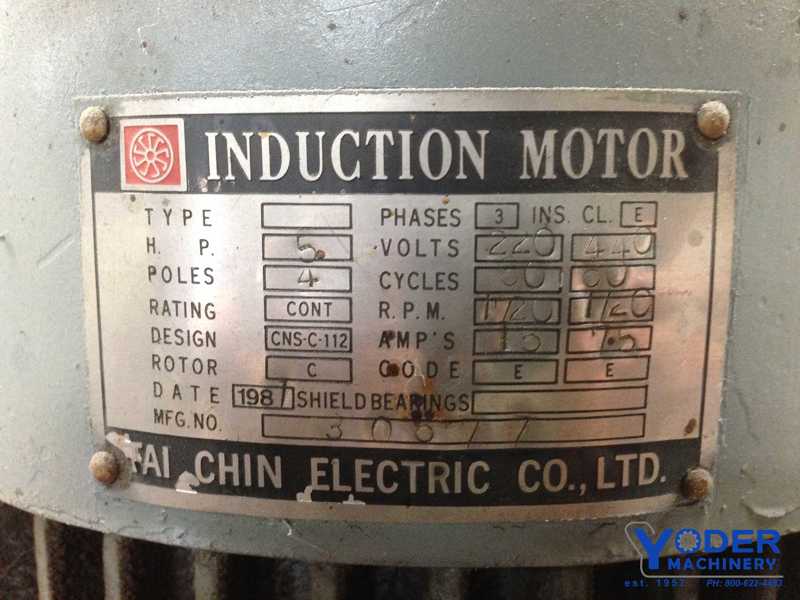

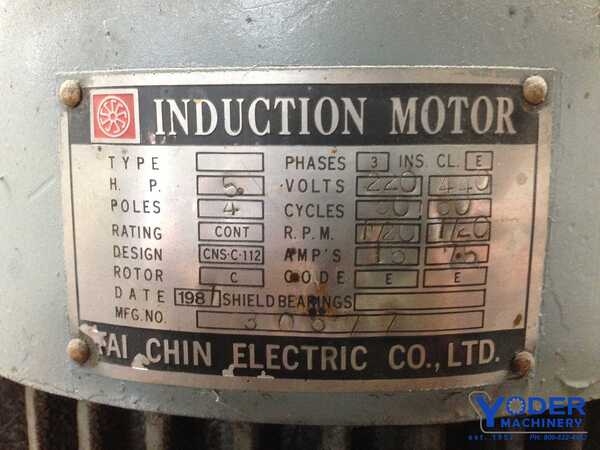

SPINDLE MOTOR ........................... 5HP
2-AXIS NEWALL DIGITAL READOUT
(5) 30 MM QUICK CHANGE TAPER CUTTER HOLDERS
MODEL ................................... SUPERMAX SERIES 2
YEAR .................................... 1985
TABLE WORK SURFACE ...................... 51" X 11"
LONGITUDINAL TABLE TRAVEL ............... 39-3/8"
CROSS TABLE TRAVEL ...................... 12"
VERTICAL TABLE TRAVEL ................... 18"
LONGITUDINAL & CROSS FEEDS .............. (12) 1/2 - 23-3/4 IPM
LONGITUDINAL & CROSS RAPID FEEDS ........ 118 IPM
VERTICAL RAPID FEED ..................... 31-1/2 IPM
SPINDLE SPEEDS, VARIABLE ................ 75-4220 RPM
SPINDLE TAPER ........................... 30 MM QUICK CHANGE
QUILL STROKE ............................ 5-1/2"
SPINDLE FEEDS ........................... .0015, .003 & .005 IPR
HEAD INCLINE ANGLE, LEFT & RIGHT ........ 45 DEGREES
SPINDLE NOSE TO TABLE, MAXIMUM .......... 22-3/4"
COOLANT ................................. YES
SPINDLE MOTOR ........................... 5HP
2-AXIS NEWALL DIGITAL READOUT
(5) 30 MM QUICK CHANGE TAPER CUTTER HOLDERS
