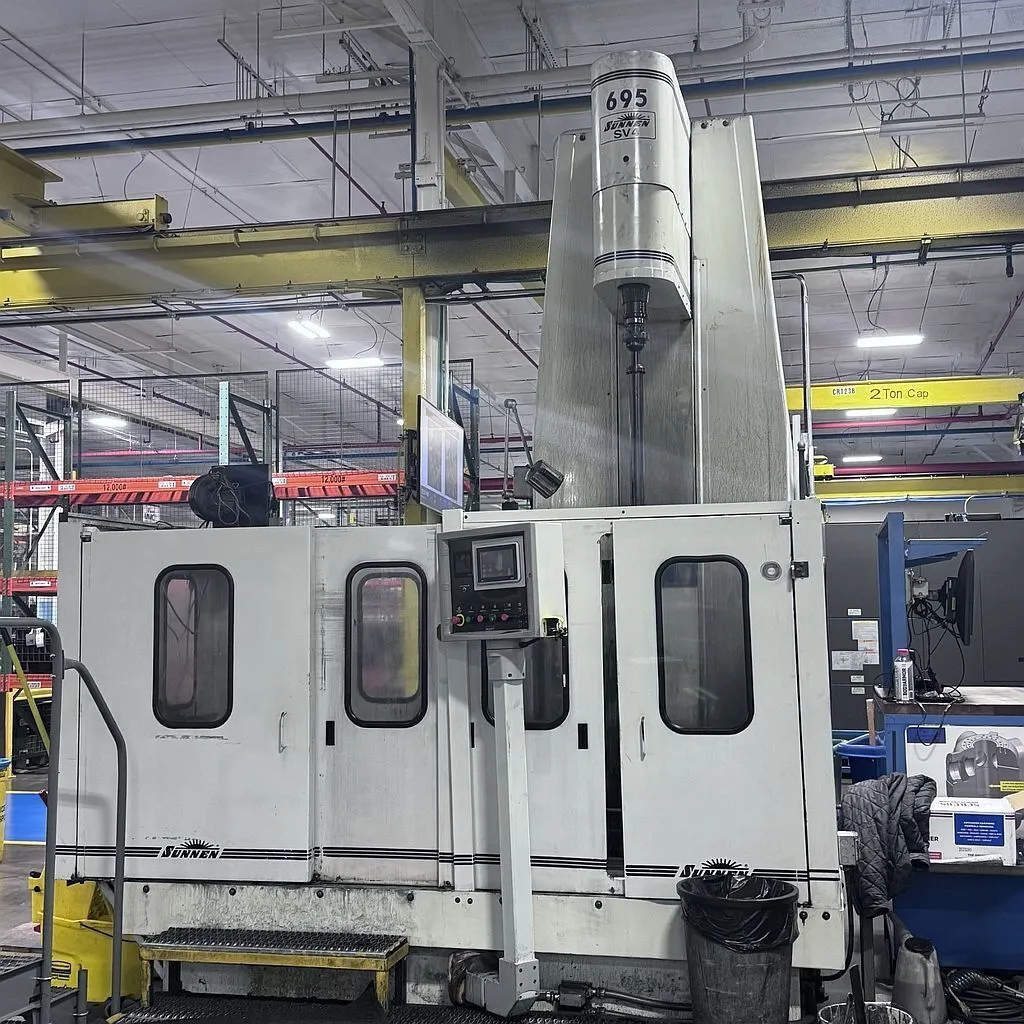

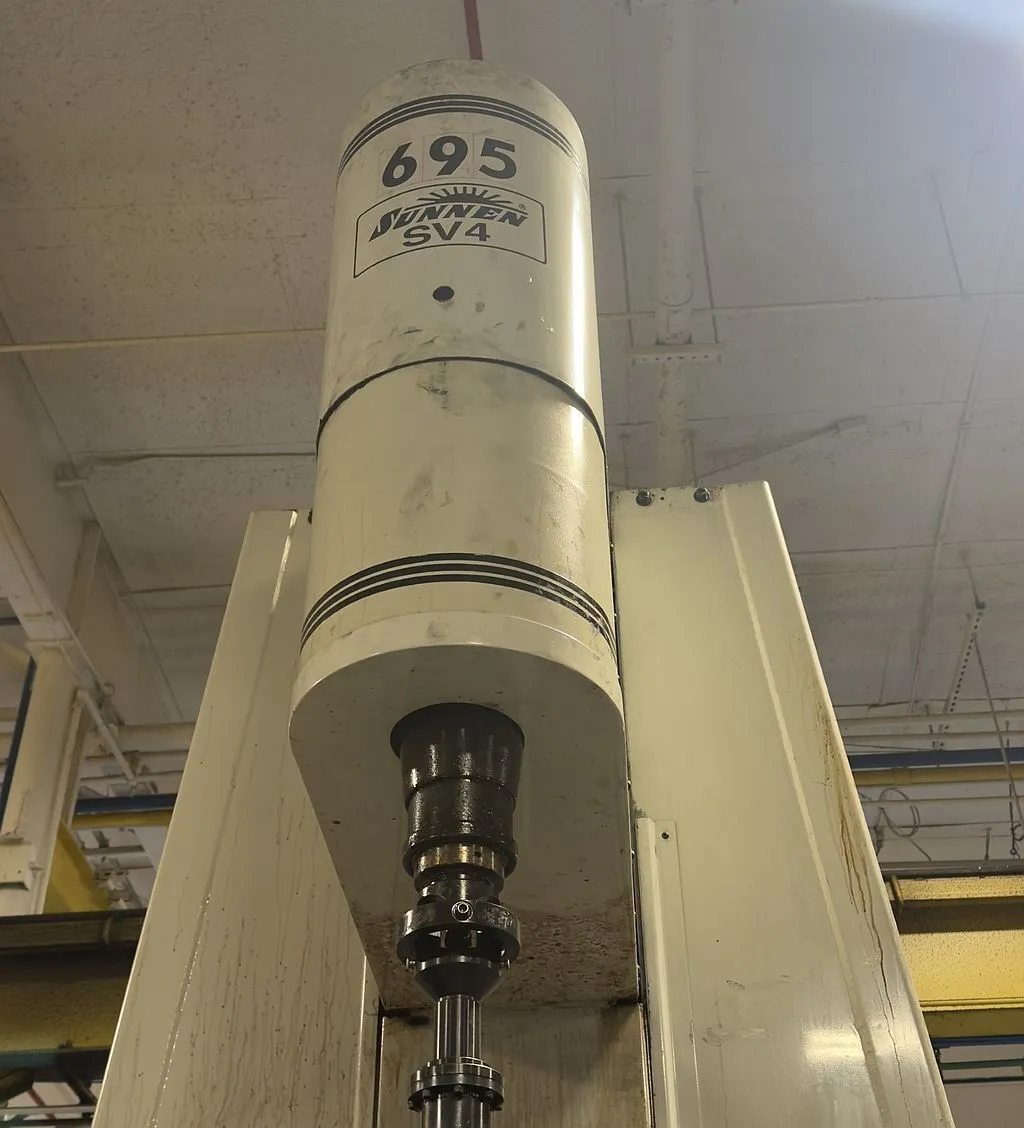

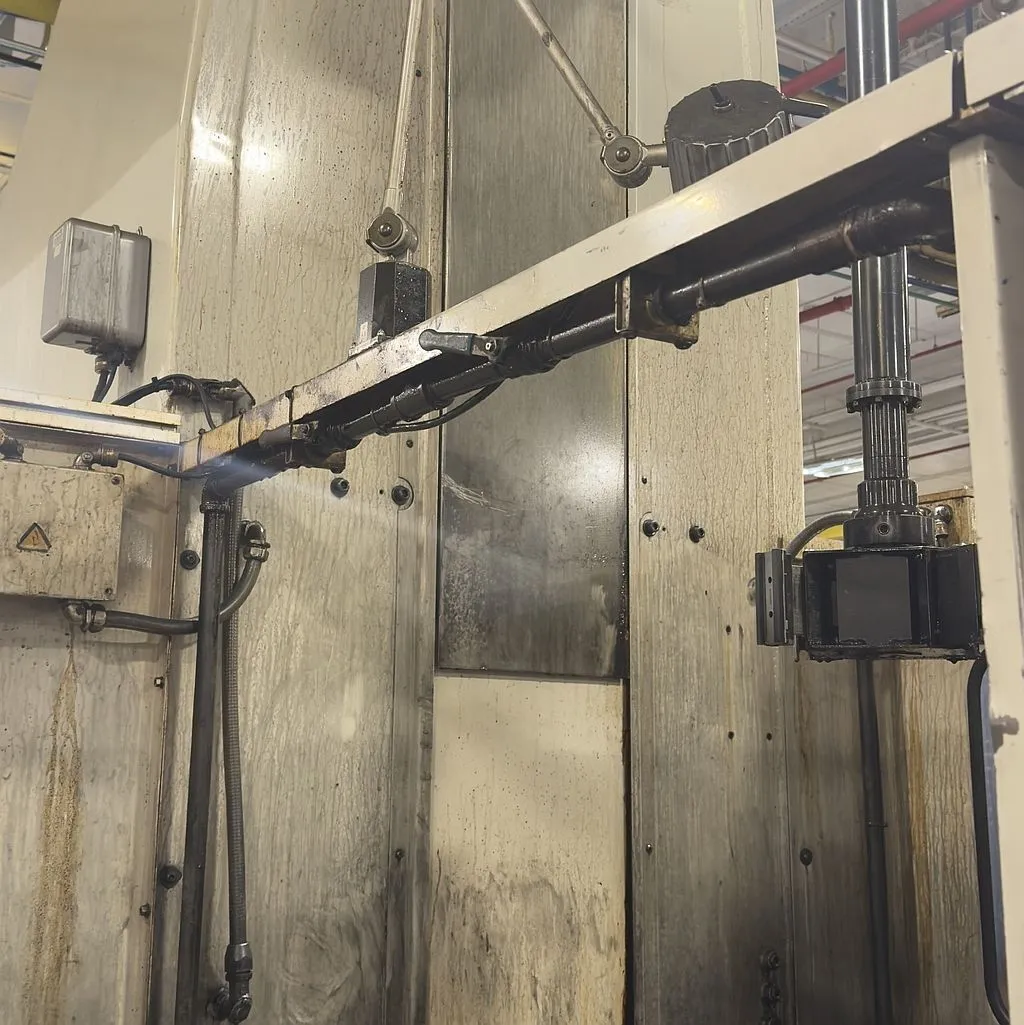

Sunnen #SV4, vertical hone, 20" max. bore diameter, 40" max. part length, 48" stroke, 32" swing, 30" x50" tbl., 3000 lb. part weight, 15 HP, 10-500 RPM variable speed

Specifications:
Bore diameter range*.....½″–20″
Maximum part length*.....Approximately 39″–40″
Full stroke*.....48″
Swing.....32″

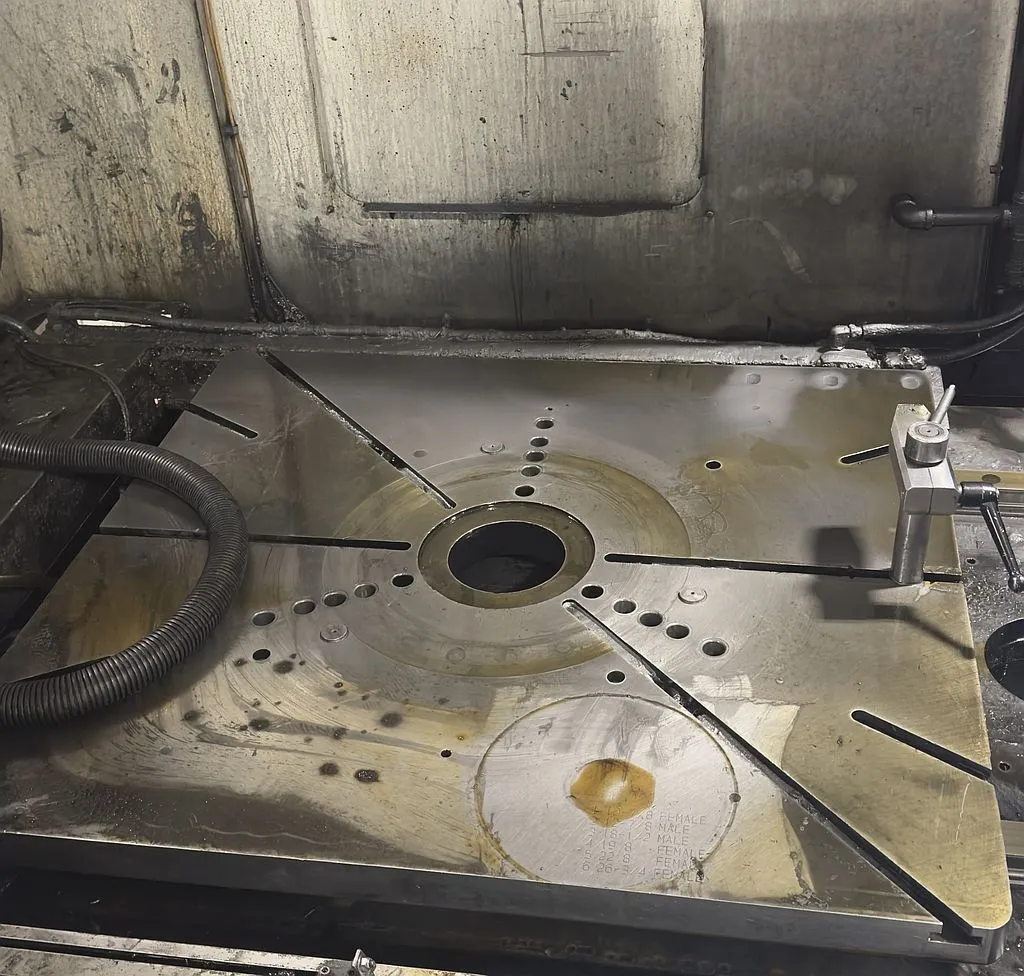

Standard table / work area.....30″ × 50″, T-slotted
Maximum part weight*.....3,000 lbs
Spindle motor.....15 HP
Spindle speed.....10–500 RPM, variable

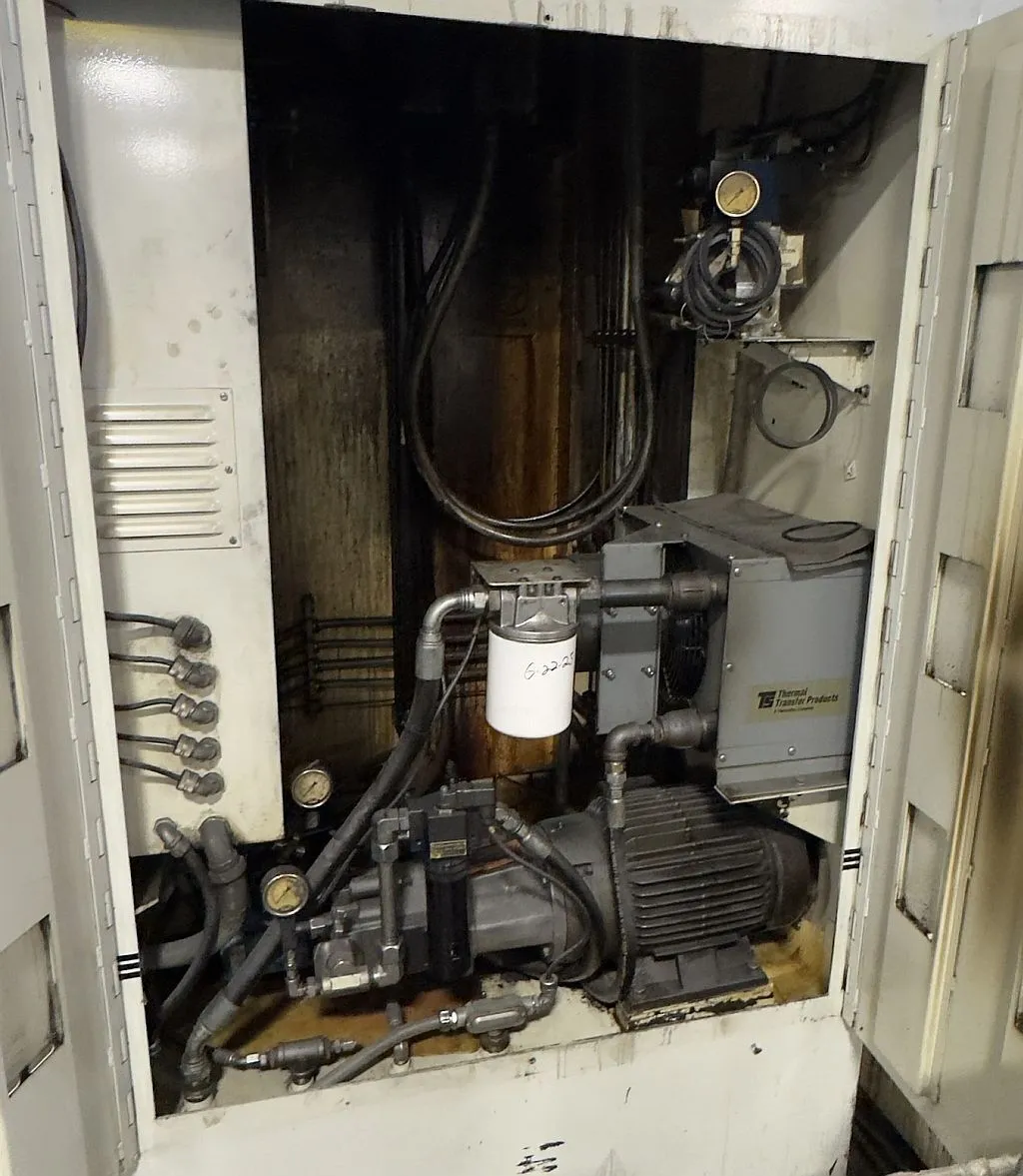

Hydraulic stroking drive.....15 HP
Stroking speed.....0–90 ft/min, adjustable
Maximum stroking thrust.....2,500 lbf
Rotary-feed option.....20 ft-lb maximum torque
Push / two-stage feed options.....2,100 lbf maximum force
Feed functions.....Adjustable pulse feed and spark-out

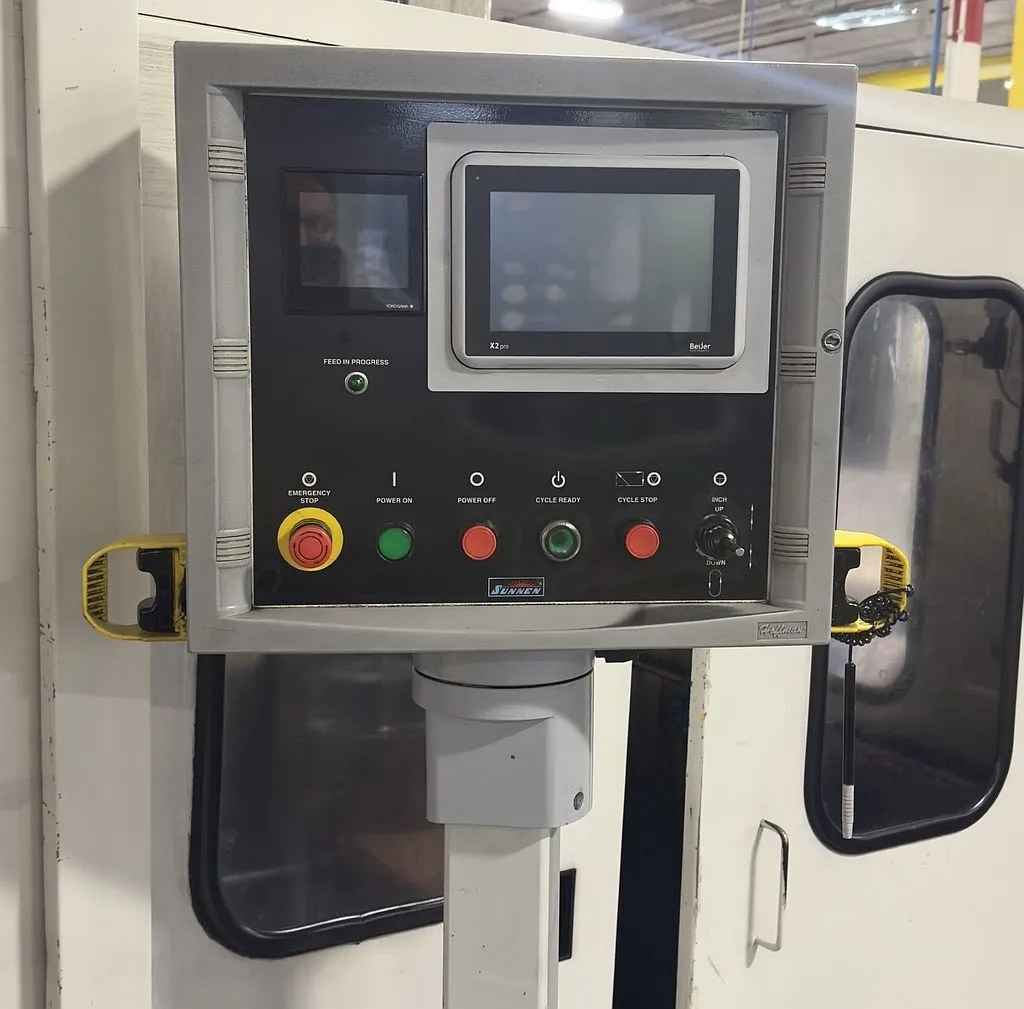

Original control.....PLC; storage for 99 setups
Standard honing-fluid reservoir.....50 gallons
Standard supply pump.....¼ HP; 10 GPM
Fluid controls.....Manual flow adjustment; automatic/manual start
Catalog dimensions, W × D × H.....85″ × 82″ × 154¾″
Catalog shipping weight.....7,000 lbs

Can be seen under power in Northeast Ohio by appointment only
