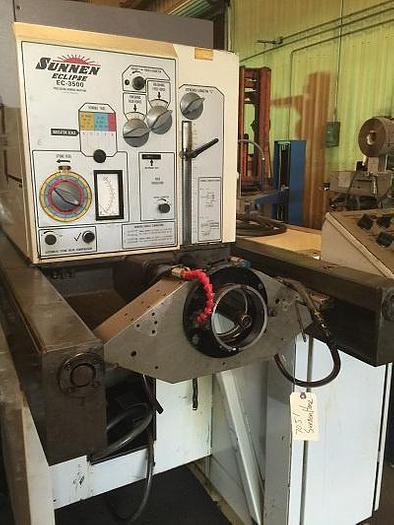

Sunnen #EC-3500D, Horizontal Honning Machine, 1994

Estimated monthly payment valid upon approved credit.

Request Formal Quote

Description
Model: EC 3500D S/N: 1X1-1964 Year: 1964 INTERNAL WORK DIAMETER RANGE: MANUAL ---------------------------------- .060" TO 6.5" WITH POWER STROKING --------------------- .060" TO 4" AUTOMATIC SIZING -------------------------- .125" TO 2" STROKE LENGTH ----------------------------- .24" TO 6.7" SPINDLE SPEEDS, VARIABLE IN FINE INCREMENTS 200 TO 3,000 RPM STROKE RATE, VARIABLE IN FINE INCREMENTS -- 60 TO 500 SPM PNEUMATIC REQUIREMENTS -------------------- 80 PSI COOLANT PUMP MOTOR ------------------------ 1/4 HP POWER STROKE MOTOR ------------------------ 1-1/2 HP SPINDLE DRIVE MOTOR ----------------------- 5-1/2 HP APPROXIMATE MACHINE WEIGHT ---------------- 1,875 LBS APPROXIMATE MACHINE DIMENSIONS ------------ 47"(LR) X 71"(FB) X 65"(H) EQUIPPED WITH --- ELECTRONIC CONTROL SYSTEM ( MAGNATEK GPD-515 DRIVE ) TWO-STAGE FEED FORCE ( ROUGHING & FINISHING IN 1 CYCLE) VARIABLE MAXIMUM FEED RATE REGULATOR AUTOMATIC STONEWEAR COMPENSATOR SIZE CONTROL SYSTEM WITH SELECTOR SWITCH FOR ZERO SHUT-OFF OR AUTOMATIC SIZE CONTROL MODE OF OPERATION UNIVERSAL WORKHOLDING FIXTURE DETACHABLE COOLANT CART *See attached Warranty, Terms, Machine Use and Safety. *These specifications are subject to verification upon inspection
Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
Specifications

Manufacturer	Sunnen
Model	EC 3500D Horizontal Honning Machine
Year	1994
Condition	Used
Serial Number	1X1-1964
Stock Number	9512
Subcategory 2	HONES, HORIZONTAL
