For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Sales Dept.
713-46...> Show Seller's Phone Number 713-462-5800 Let the seller know you found their listing on Surplus Record!

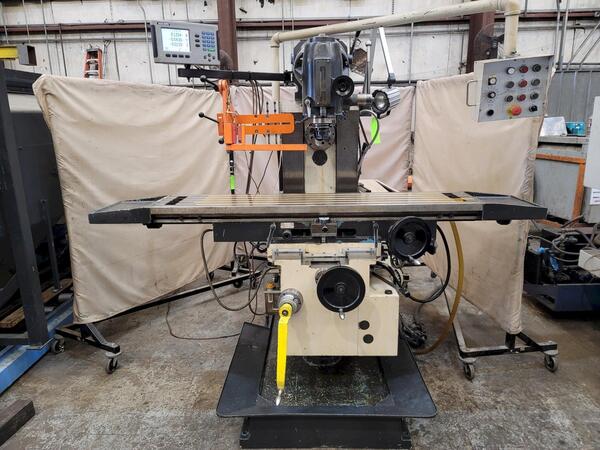

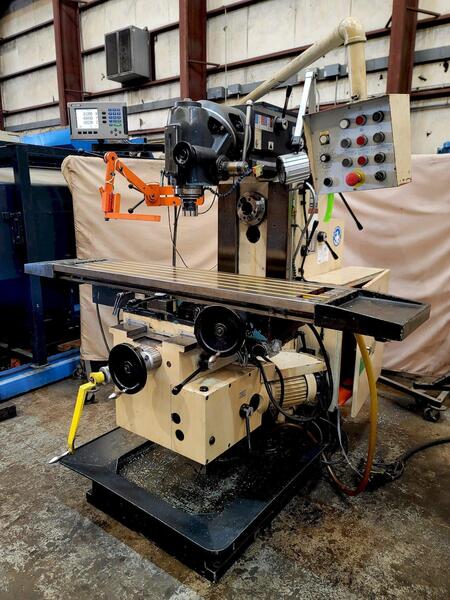

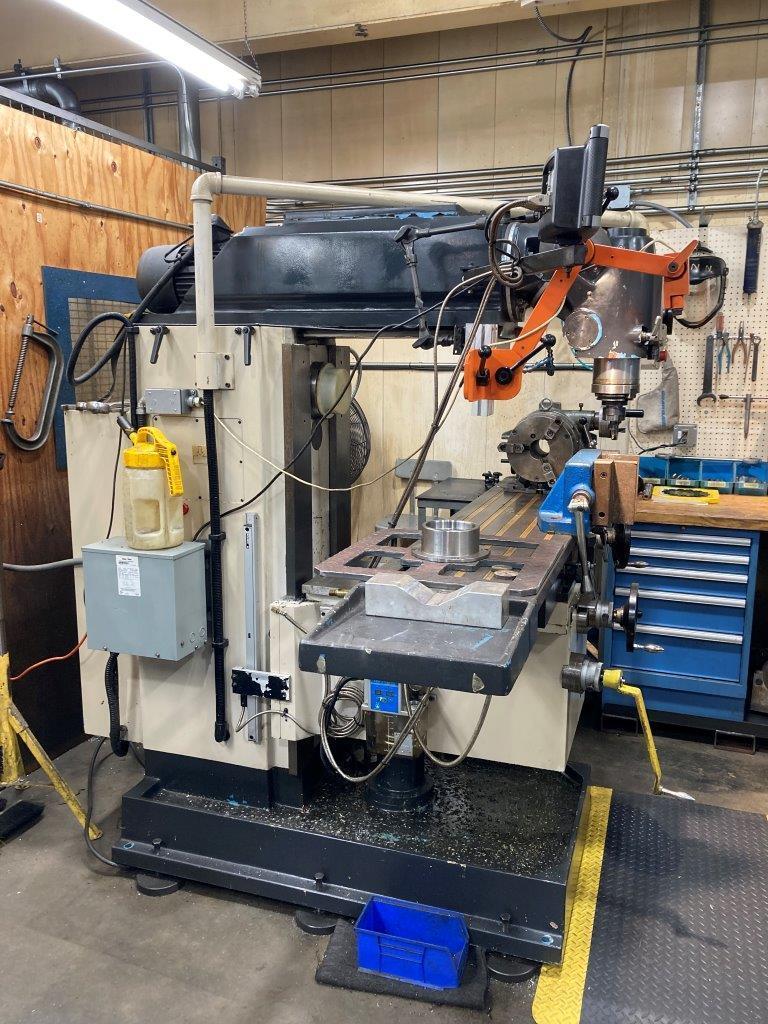

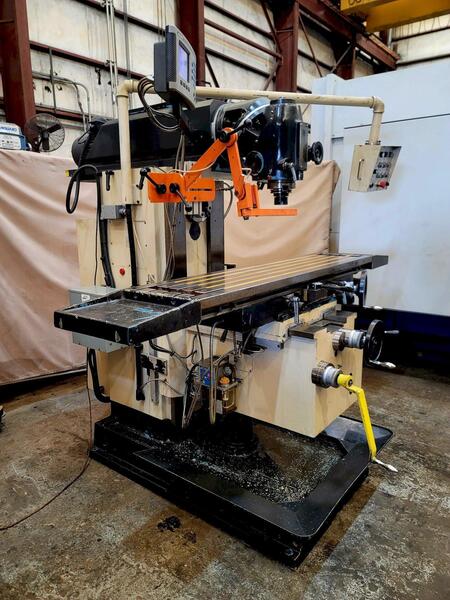

Description
Table Size: 13.7" x 59"
Table Swivel: +/- 45 °
Table Longitudinal Travel: 46"
Table Cross Travel: 15.75"

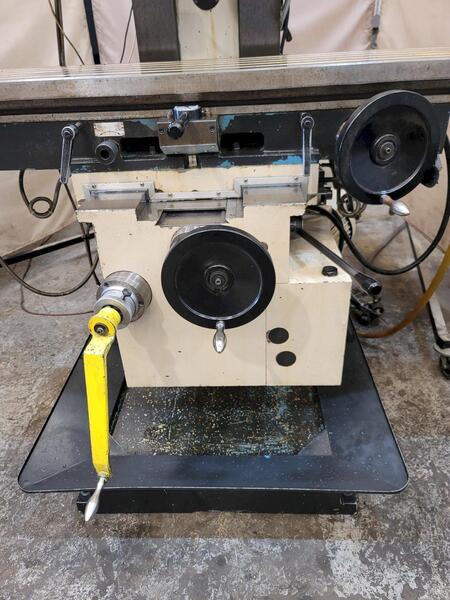

Knee Vertical Travel: 20"
Ram Travel:
Column to Table Center: 7" - 22.75"
Horizontal Spindle Speeds: (12) 48 -2160 RPM
Horizontal Spindle Taper: #50
Vertical Spindle Speeds: (12) 45 - 1960 RPM
Vertical Spindle Taper: #50
Longitudinal Feeds: 0.4 - 47 IPM (Inf. Var.)
Cross Feeds: 0.4 - 47 IPM (Inf. Var.)
Vertical Feeds: 0.2 - 23 IPM (Inf. Var.)
Rapid Traverse: 47 IPM
Main Motor: 10 HP
Over Arm Motor: 5.5 HP
Feed Motor: 3 HP
Coolant Pump Motor: 0.1 HP
Electrics: 440V/3Ph/60Hz
Weight (Approximate): 7040 Lbs.
Equipped with:

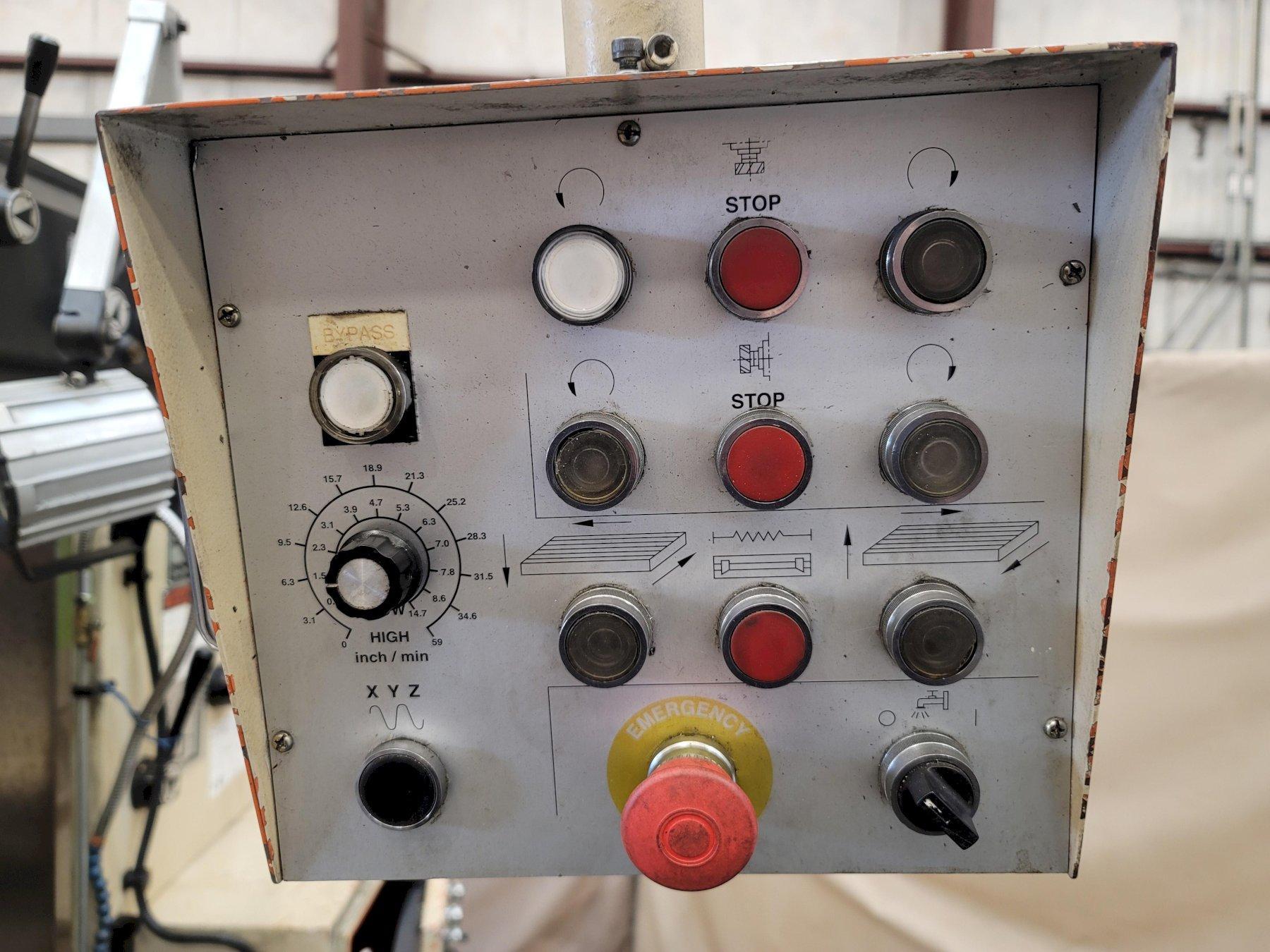

Pendant Control

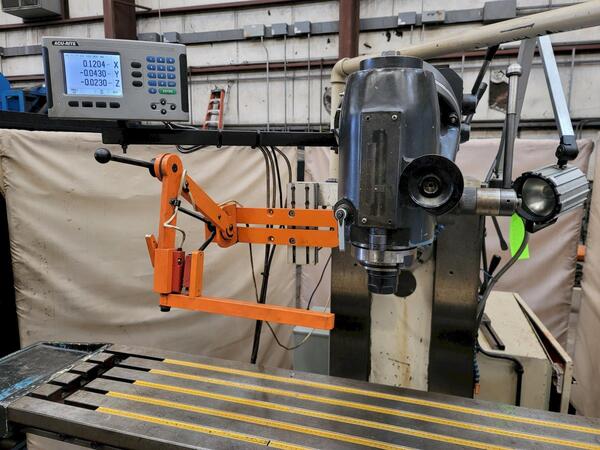

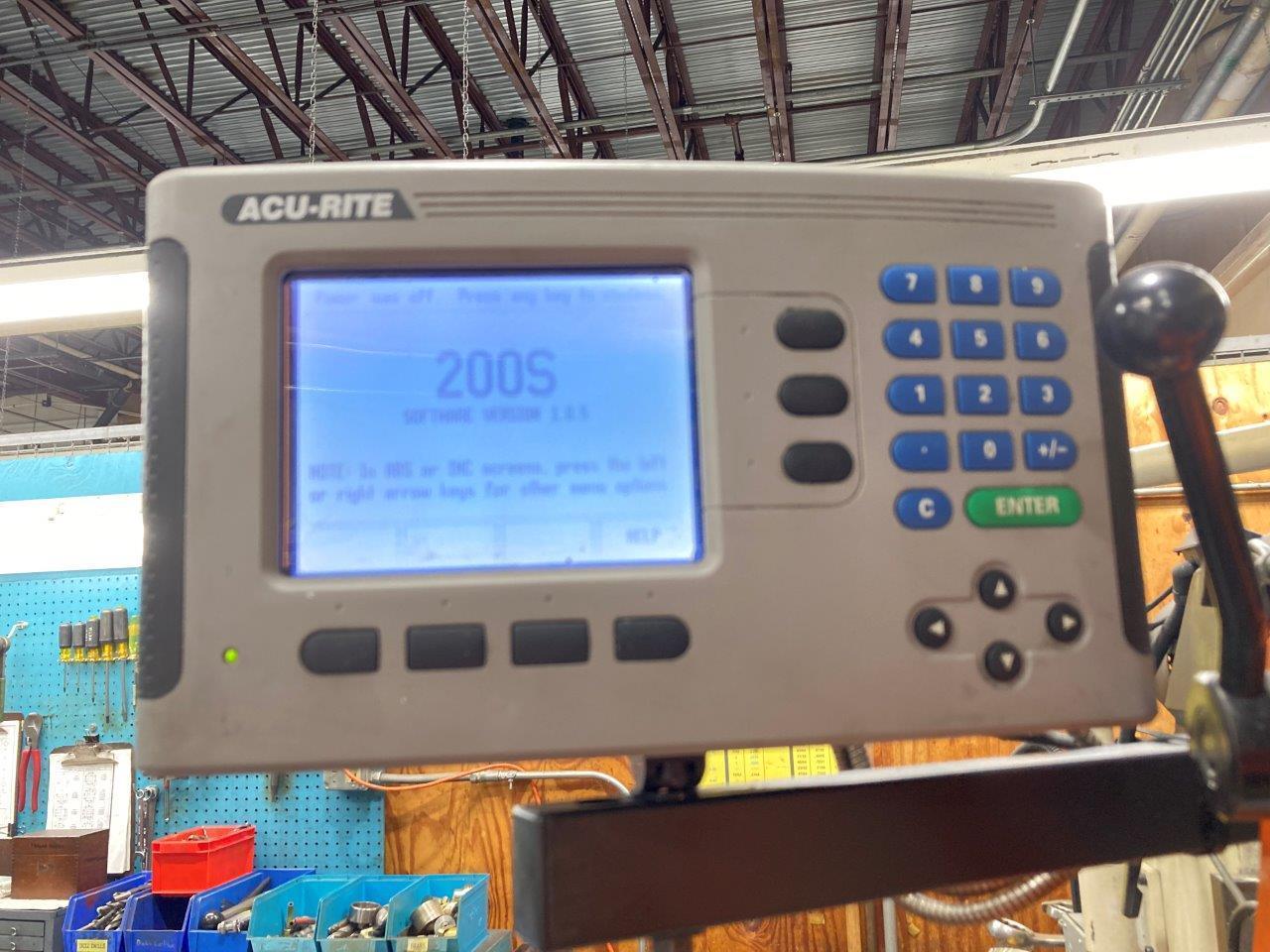

Acu-Rite 3-Axis DRO
Compound Vertical Head Swivel
Dividing Head
Machine Vise
Work Light
Note: All Specifications Subject to Verification
Table Swivel: +/- 45 °
Table Longitudinal Travel: 46"
Table Cross Travel: 15.75"
Knee Vertical Travel: 20"
Ram Travel:
Column to Table Center: 7" - 22.75"
Horizontal Spindle Speeds: (12) 48 -2160 RPM
Horizontal Spindle Taper: #50
Vertical Spindle Speeds: (12) 45 - 1960 RPM
Vertical Spindle Taper: #50
Longitudinal Feeds: 0.4 - 47 IPM (Inf. Var.)
Cross Feeds: 0.4 - 47 IPM (Inf. Var.)
Vertical Feeds: 0.2 - 23 IPM (Inf. Var.)
Rapid Traverse: 47 IPM
Main Motor: 10 HP
Over Arm Motor: 5.5 HP
Feed Motor: 3 HP
Coolant Pump Motor: 0.1 HP
Electrics: 440V/3Ph/60Hz
Weight (Approximate): 7040 Lbs.
Equipped with:
Pendant Control
Acu-Rite 3-Axis DRO
Compound Vertical Head Swivel
Dividing Head
Machine Vise
Work Light
Note: All Specifications Subject to Verification
Get Your Price from Harris Machine Tools, Inc.!
