Summit #SmartCut-EVS-550B, 11" x52" tbl., 5 HP, variable speed, 70-3800 RPM, #40, 3-Axis, Fagor 8055MC, power draw bar, box ways, coolant

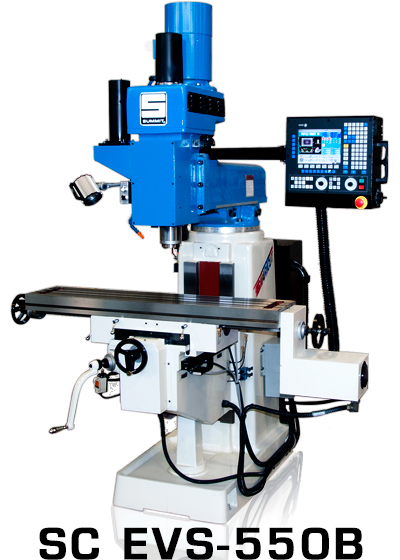

(NEW) SUMMIT CNC VERTICAL MILLING MACHINE

MODEL: SmartCut EVS-550B

FACTORY SPECIFICATIONS

Heavy Meehanite Cast Iron Construction
Heavy Box Saddle
Table Size: 11" x 52"
Longitudinal Table Travel: 32"
Cross Table Travel: 14"
Table Capacity: 1025 Lbs.
Spindle Speeds, Infinitely Variable: 70 - 3800 RPM
Spindle Taper: #40
Spindle Travel: 5-1/2"
Spindle Feed Range: 0 - 200 IPM
Rapid Traverse: 0 - 300 IPM
Rotation Of Overarm: 360 Degrees
Overarm Adjustment: 24"
Spindle Nose To Table: 3" - 20"

EQUIPPED WITH

5 HP Spindle Motor
Fagor 8055MC CNC Control
Compact AC Inverter Spindle Drive
Immediate Response Speed Control
Electronic Inverter Controlled Braking
Fan Cooled Electrical Enclosure
Double Table Locks
Box Type Ways On Knee
Wipers On Saddle and Column
Rack and Pinion Ram Movement
Turcite B Lined Guideways
Built-In Coolant System
Automatic Lubrication
Precision Ground Ballscrews
Adjustable Cross Slide Stops
Halogen Work
Full Electrics With Low Voltage Controls
Cogged Drive Belt
Included Accessories: Oil Gun, Clamping Kit, Screwdrivers, Anchor Bolts, Power Draw Bar, Open End Wrench Set, Box End Wrench Set, Hex Key Wrench Set, Way Covers, halogen Work Light

Approximate Weight: 3740 Lbs.

F.O.B. Oklahoma City, OK

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
