For Sale by Smith Machinery Co

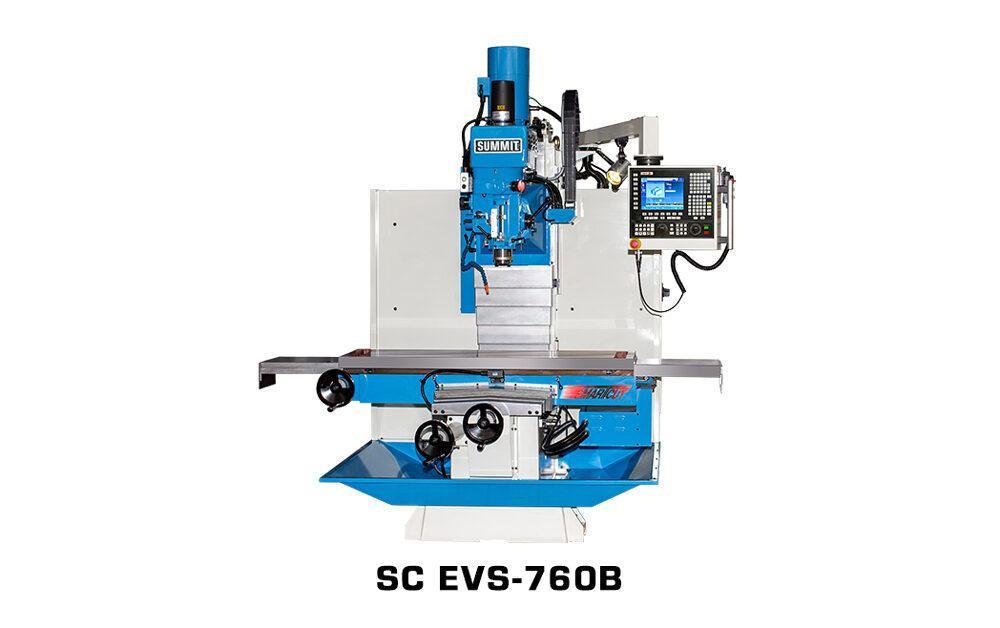

Description
Equipped With
Equipped With
Specifications:

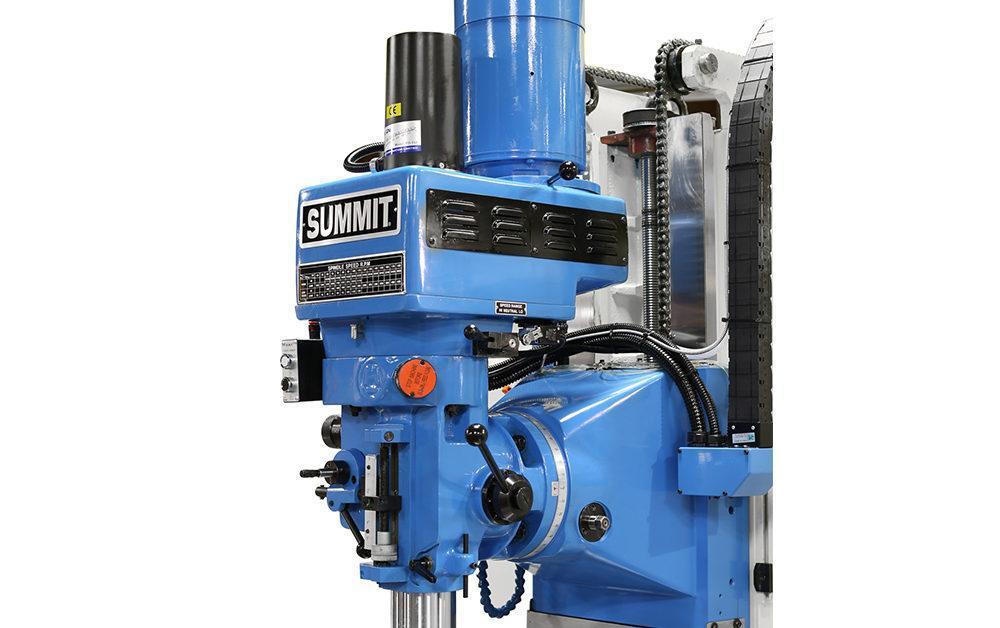

Vertical Head:
Motor Size 7.5 HP
Number of Spindle Speeds Inf. Variable
Speed Range (RPM) 70 – 3800
Vertical Travel (Z Axis) 23.6”
Feed Range Infinitely Variable
Feed Rate 0 – 200 IPM
Rapid Traverse 0 – 300 IPM
Head Movement Side to Side +/- 90 Degrees
Spindle Nose to Table 2.5” – 30”
Spindle Nose to Column 23.62”
Spindle Taper #40
Quill Traverse (Manual) 5 1/2”
Table:

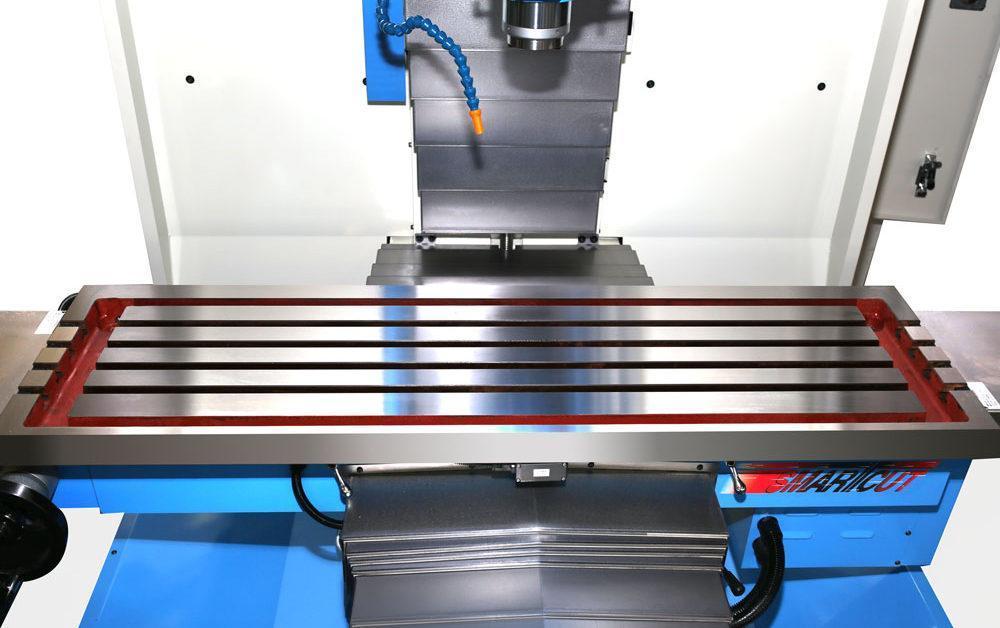

Table Size 16.9”x60”x3 1/8”
Capacity 2,200 lbs.
Table Longitudinal Feed(X Axis) 51.1”
Saddle Cross Feed (Y Axis) 23.62”
Feed Rate 0 – 200 IPM
Rapid Traverse 0 – 400 IPM
Axis Motors 30 In lbs.
Miscellaneous:
Weight 6500 lbs.
Electrics:
220/440/3/60
Standard Features:
Heavy Meehanite Cast Iron Construction
Heavy Box Saddle
Huge Box Ways on Bed
“Turcite – B” Inserted Guideways
Double Table Locks
Wipers on Saddle and Column
Head Swivels Left and Right
Built in Coolant System
Automatic Lubrication
Precision ground ball- screws Double-nut design

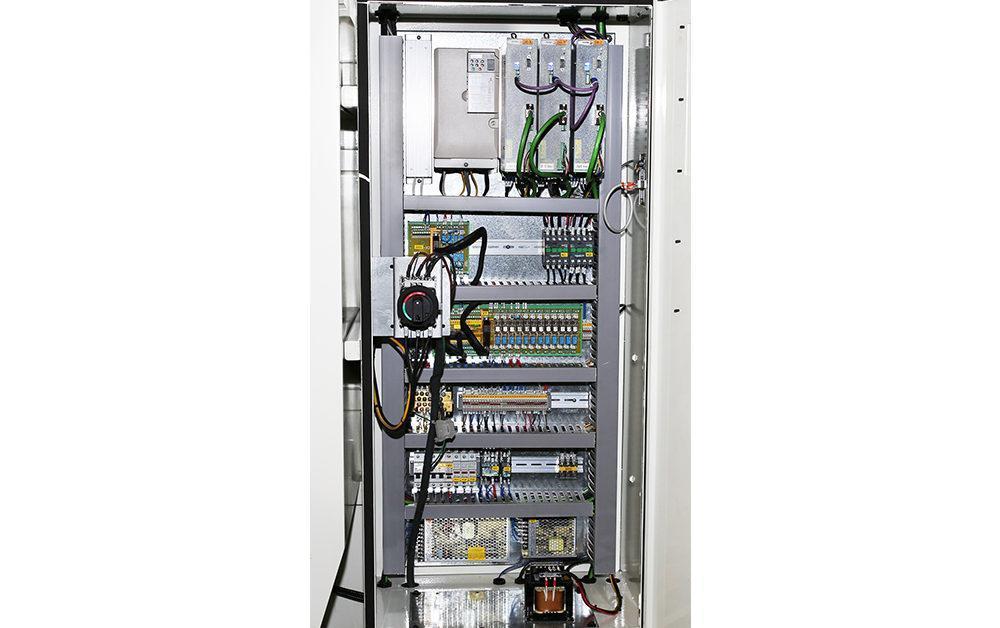

Complete Electrics with Low Voltage Controls
Power Cogged Drive Belt
Inverter Duty, High Energy – High Efficiency Motors
Compact AC Inverter Spindle Drive
AC Servos and Drives
Electronic Inverter Controlled Braking
Fan Cooled Electrical Enclosure
Fagor Glass Scale Feed Back
Included Accessories:
Oil Gun
Clamping Kit
Screwdrivers
Anchor Bolts
Power Draw Bar
Open End Wrench Set
Box End Wrench Set
Hex Key Wrench Set
Way Covers
Halogen Work Light
Air Operated Power Draw Bar
Standard Control Features:
General:
2 USB Ports
3 Ethernet Ports
CFast Card
Remote Diagnostics via Team Viewer laser calibrated lead screw compensation HD graphic simulation in cycle Dry Run simulation
Basic Operations:
DRO mode
Jog Mode
Axis position
Feed rate & Spindle control
Tool Selection
Home Search
Semi-Auto Operations
Axis Feed Rate Setting (0%-120%)
Continuous Jog
Increment Jog
Tool Compensation
Linear, Circular, and Helical Interpolation
Look Ahead
Calculator
Free Simulator for PC
4th Axis upgradeable
Auxiliary Functions:
Inch/Metric
Feed in Inches (mm)/min
Tool Calibration
Cycle Finish Pass
PLC Analyzer
Oscilloscope function
Circle Geometry Test
Remote Connectivity via TeamViewer
Spindle:
RPM controlled
Speed Range Change
Clockwise/Counter Clockwise Rotation
Spindle Stop
Over-ride (50%-120%)
Automatic Operations:
User Defined Cycles
Positioning
Slot, Surface, and Profile Milling
Rectangular and Circular Boss Machining
Rectangular, Circular Pocket, and Pocket with profile Machining
Safety Distance
Conversational Programming
ISO Programs (G-Code)
Drilling (3)
Boring (2)
Reaming
Center Drill
Tapping
Point to Point, In-Line
Rectangular, Grid Pattern
Arc Machining (2)
Profiles:
Point Storage
Profile in Automatic Mode
Profile Definition
Profile Editor
Part Programs:
Store Up to 5,000,000 parts program and 25,000 subroutines (3GB)
Subroutine repeatable up to 9,999 times
Part Program Selection
Part Program Editing
Part Program Execution
Part Program Modification
Part Program Deletion
DXF Convertor
Display:
10.41” Color LCD
Texts in Spanish, English, German, French, Portuguese, Taiwanese and Italian
HD Graphics
Tool path graphics
Option:
**Installation Assistance $2,500 4 th Axis Ready $1,500
Troyke DL-9-A-RH-PC-S-180 Horizontal/Vertical 9” Rotary Table $8,000
Troyke TS-9 Manual Tailstock $2,000
Unist Coolant Mist System programmable $875
Remote Pulse Regulator X,Y,Z $1,000
Rear Splash Guard $1,000
Get Your Price from Smith Machinery Co!
