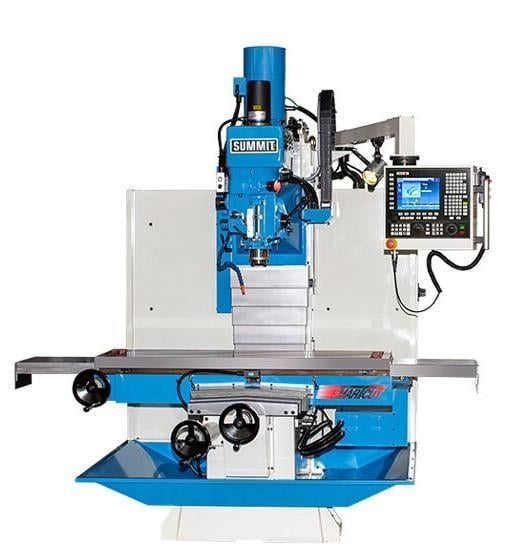

Summit #EVS-760B, vertical bed mill, 16.9" x60" table, 7.5 HP, 0-3650 RPM, NEW

Specifications:

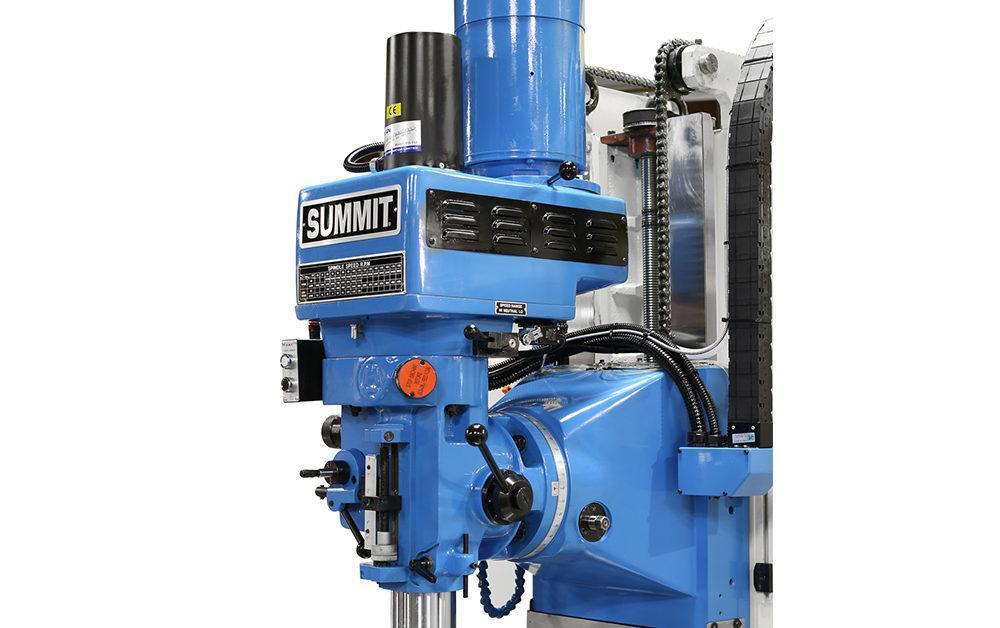

Vertical Head:
Motor Size: 7.5 HP
Number of Spindle Speeds: Inf. Variable
Speed Range (RPM): 0 – 3650
Vertical Travel (Z Axis): 23.6”
Feed Range: Infinitely Variable
Feed Rate: 0 – 43.7 IPM
Head Movement Side to Side: +/- 90°
Spindle Nose to Table: 2.5” – 30”
Spindle Nose to Column: 23.62”
Spindle Taper: #40
Quill Traverse: 5 1/2”
Quill Feed: .0016 - .0031 - .0059 IPR

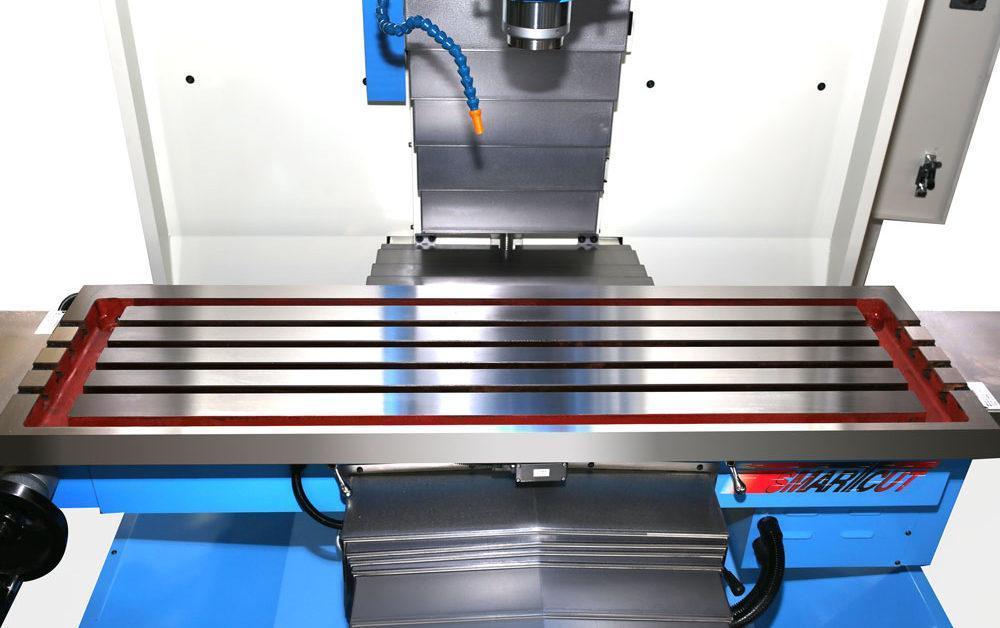

Table:
Table Size: 16.9”x60”x3 1/8”
Maximum Weight of Workpiece: 2,200 lbs.
Table Longitudinal Feed (X Axis): 51.1”
Saddle Cross Feed (Y Axis): 23.62”
Feed Rate: 0 – 43.7 IPM
Miscellaneous:
Weight: 6,500 lbs.
Electrics: 220/3/60
Standard Features:
Heavy Meehanite Cast Iron Construction
Huge Box Ways on Bed
“Turcite – B” Inserted Guideways
Double Table Locks
Wipers on Saddle and Column
Head Swivels Left and Right
Built in Coolant Syste
Automatic Lubrication
Precision ground ball- screws X, Y and Z Axis
Complete Electrics with Low Voltage Controls
Inverter Duty, High Energy – High Efficiency Motors
Compact AC Inverter Spindle Drive
AC Servos and Drives
Electronic Inverter Controlled Braking

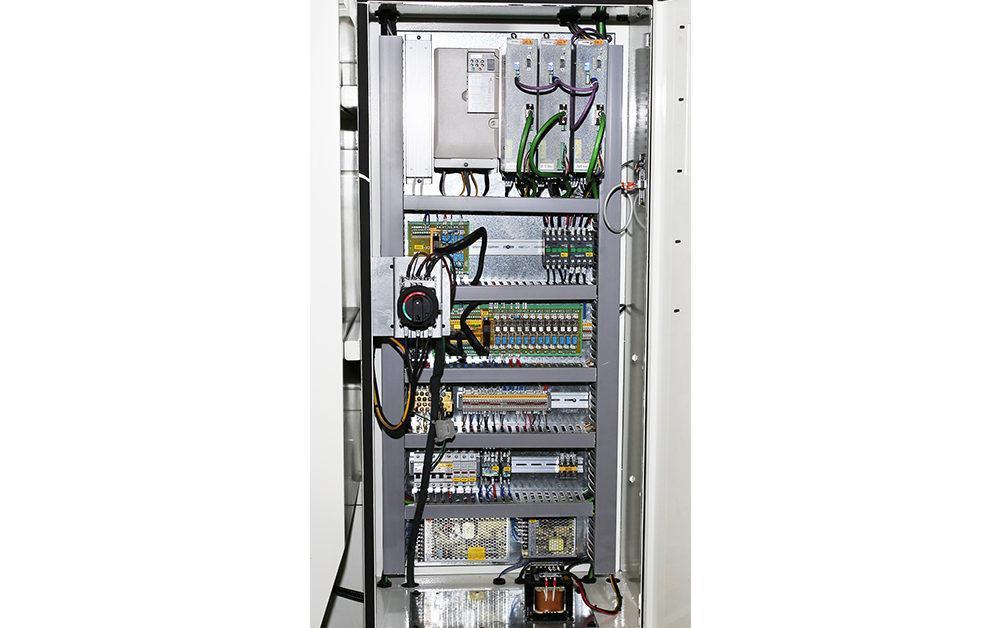

Fan Cooled Electrical Enclosure
Included Accessories:
Oil Gun
Clamping Kit
Anchor Bolts
Power Draw Bar
Open End Wrench Set
Box End Wrench Set
Hex Key Wrench Set
Way Covers
Halogen Work Light
Air Operated Power Draw Bar
Option:
Newall 3 Axis Digital Readout Installed $6,500.00
440 Volt Electrics $1,000.00
