Description

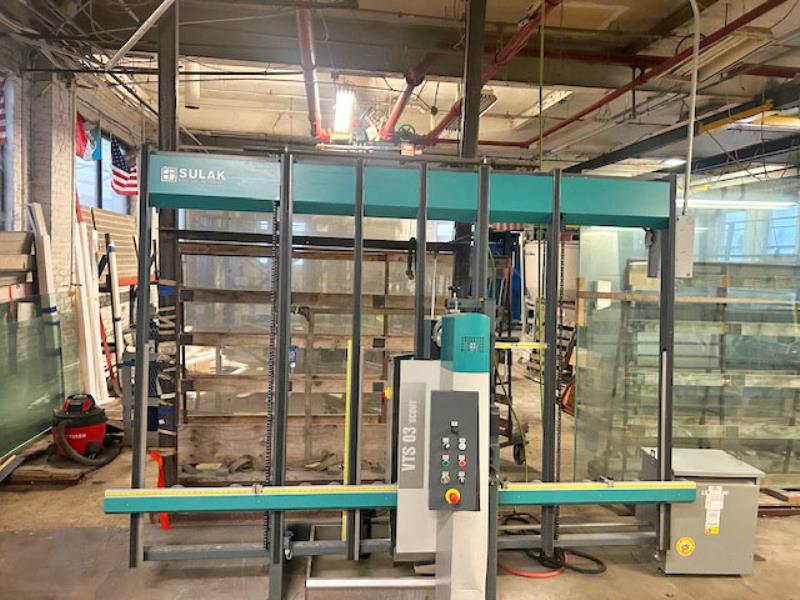

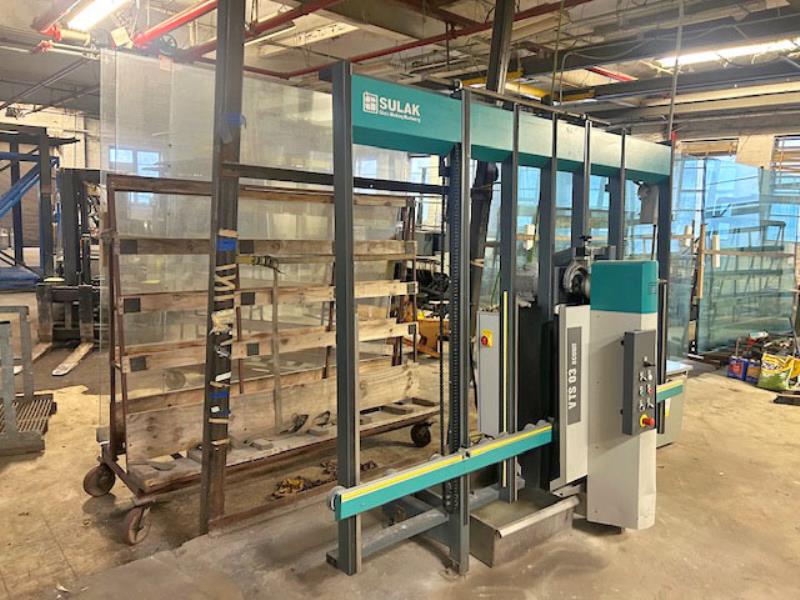

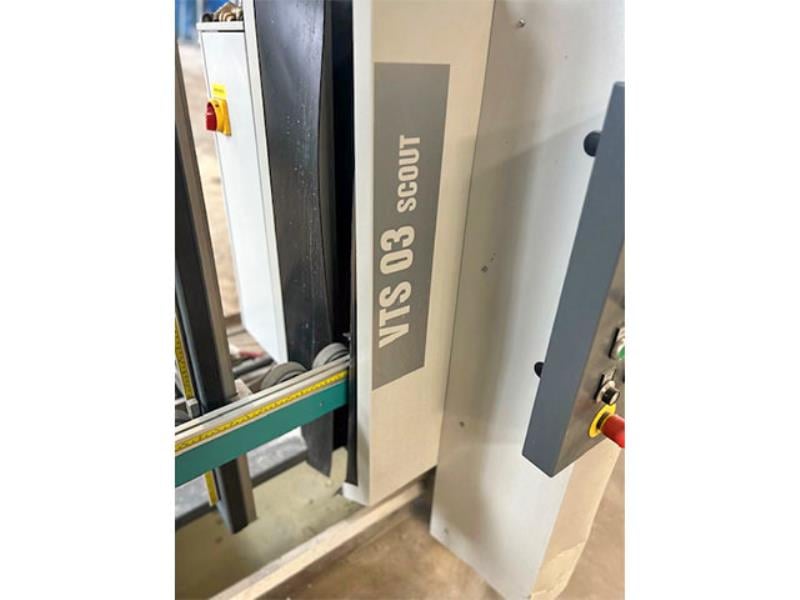

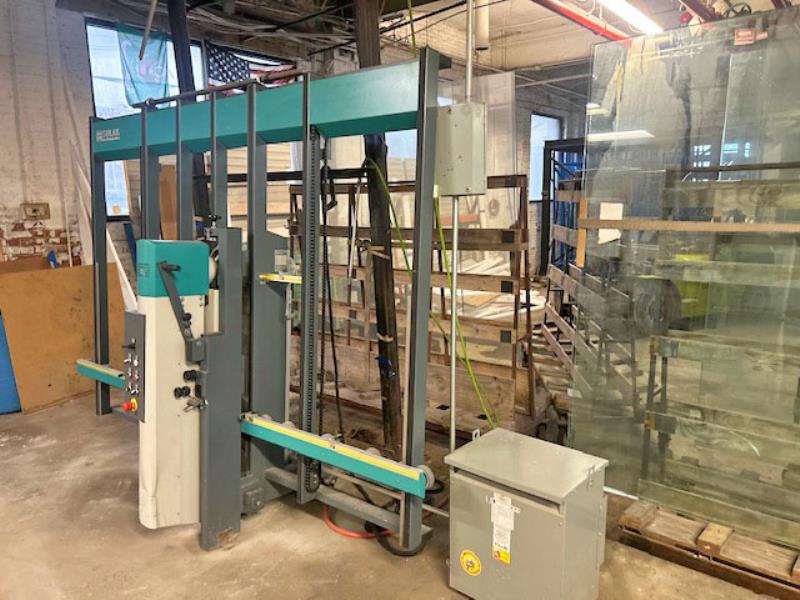

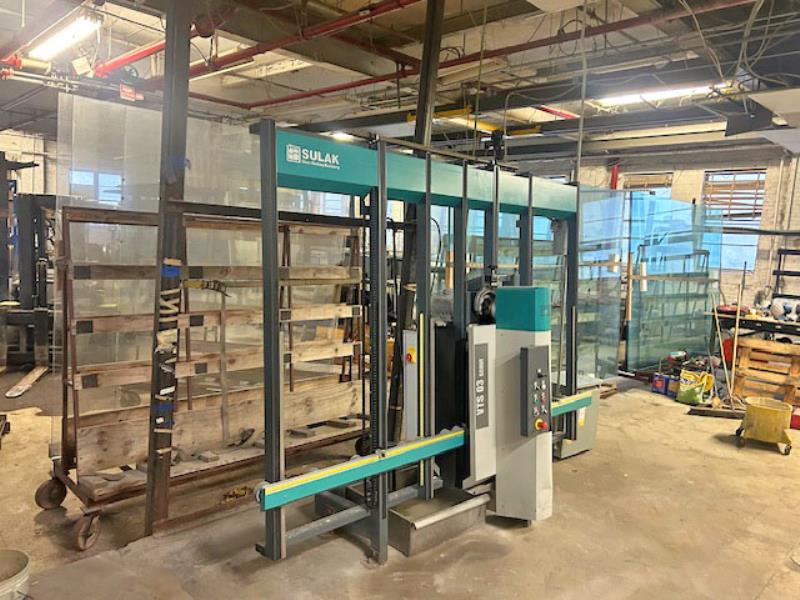

SULAK - VTS 03 SCOUT: Double-Sided Vertical Drilling MachineDrilling Machine designed for: Drilling of holes in the sheet glass.Machine allows Drilling of holes from: 5 to 100 mm; Motors: Regulated by an electronic inverter.System of (2) Drilling Heads: Drills holes that are clean & free of any burrs. Motorized vertical travel: Guarantees easy handling of the glass. Well-developed system of backstops: Significantly increases the working productivity..Specifications ● Max. glass size: 1,200 x 2,500 mm (47" x 98") ● Min. glass size: 120 × 50 mm (5“ x 2“) ● Glass thickness: 3 - 20 mm ● Drill bit Dia.: 5 – 100 mm (1/4“ - 4“) ● Max. drill depth: 900 mm ● Max. spindle rotation: 3,600 RPM ● Power: 4 kW Dimensions: 3,000 x 1,100 x 2,300 mm (118“ x 44“ x 91“).Weight: 465 kG (1,025 Lbs)Features1-Handed ergonomic operation.Motorized vertical adjustment: 2 Speeds (3 second changeover). Compact design; affordable system; saves floor space.Exact & easy control of coordinates (precise location of the hole center). NOTE: Machine is in excellent operating condition & is ready for immediate shipment.NOTE: EX-FACTORY’s Logistics Department is experienced and setup to provide “Full Service Logistics"; from our Suppliers to your Door. …Packaging, Rigging, Loading, Freight, Insurance (door to door), US or Canadian Customs and Duty. Turnkey shipping to your Plant Door.
