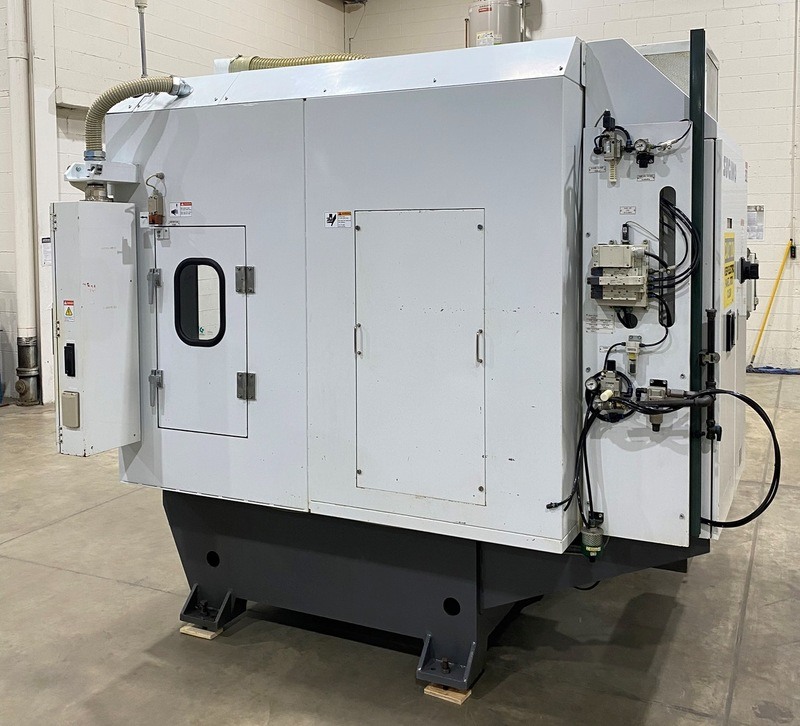

Sugino #JCC-6535E Jet Flex Center II, 6-station turret, 44 lb. part capaity, 2003

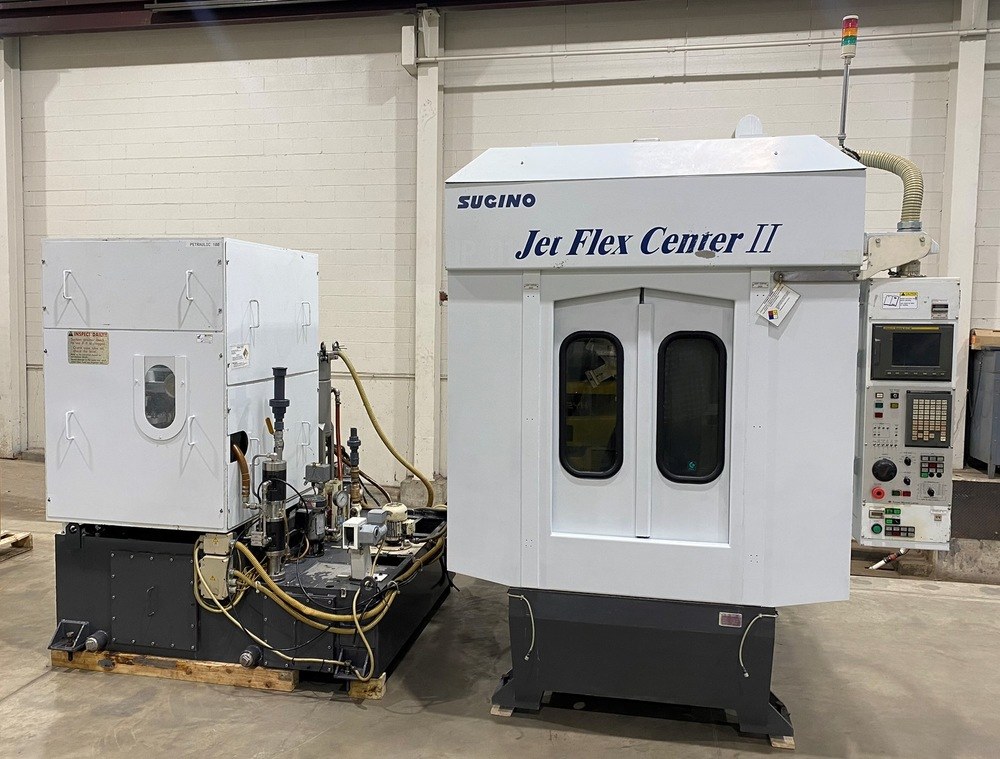

Sugino Jet Clean Flex Center II Model JCC-6535E High Pressure Deburring, Washing, and Cutting System. The Jet Clean Flex Center II combines a Sugino CNC-based deburring station to remove all types of burrs from complex shaped parts made of many different materials--aluminum, cast iron, stainless steel, plastics and exotics--from a workpiece. It is also used to dislodge and remove compacted chips and debris from blind and tapped holes as well as cross holes and passages. Conventional brush and special deburring tool operations can also be performed on the Sugino Jet Clean Flex Center II.
New - 2003
Serial No. JM303022
SPECIFICATIONS:
Pressure…………5000 PSI, 35 MPA
Flow Rate…………7.7 GPM, 29 L/Min.
Stroke:
- X-axis…………19.68”
- Y-axis…………11.81”
- Z-axis…………11.81”
Main Spindle:
- Cutting Speed (Hard Tooling)............1 - 600 RPM
- Washing Speed (w/High Pressure nozzle application)............1 - 150 RPM
- Power AC Spindle............0.67 HP
Rapid Traverse XYZ - Maximum…………98.4 FT/Min.
Working Feed XYZ - Maximum…………32.8 FT/Min.
Stepping Feed (incremental)............0.0039": 0.00039": 0.000039"
Smallest Programmable unit............0.000039"
Full Stroke Positioning Accuracy............0.0031"
Repeatability............+/-0.00191"
Indexing Time............1 second (Random shortest path)

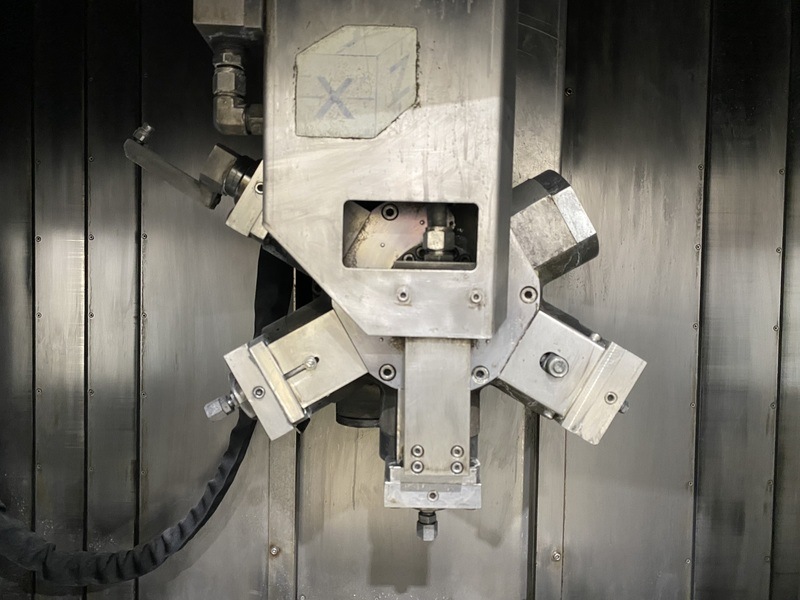

Number of Tools/Nozzles - Maximum............6

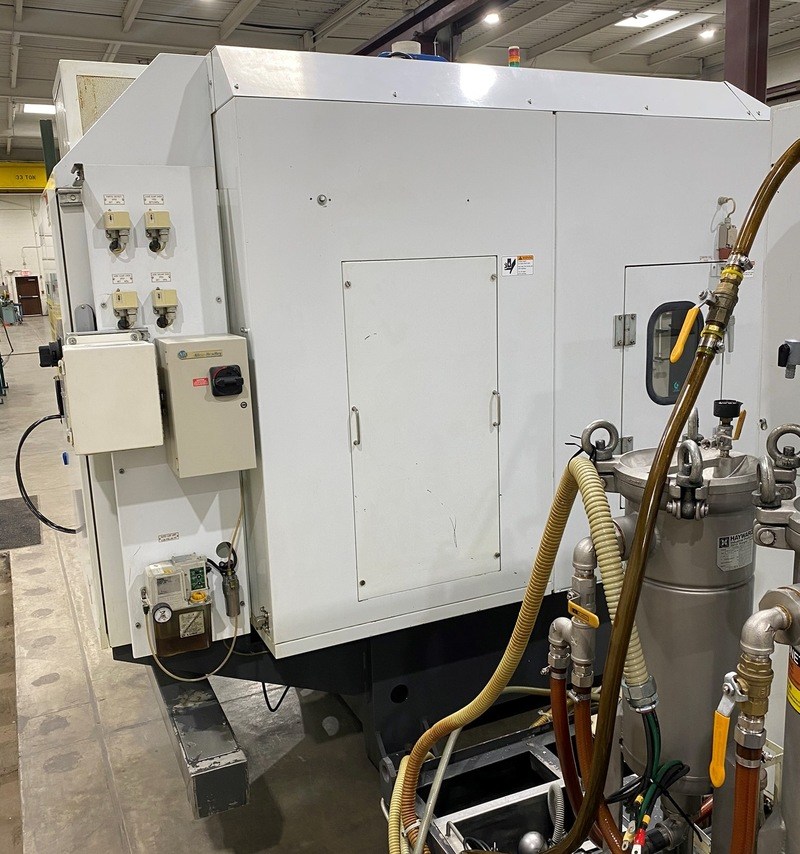

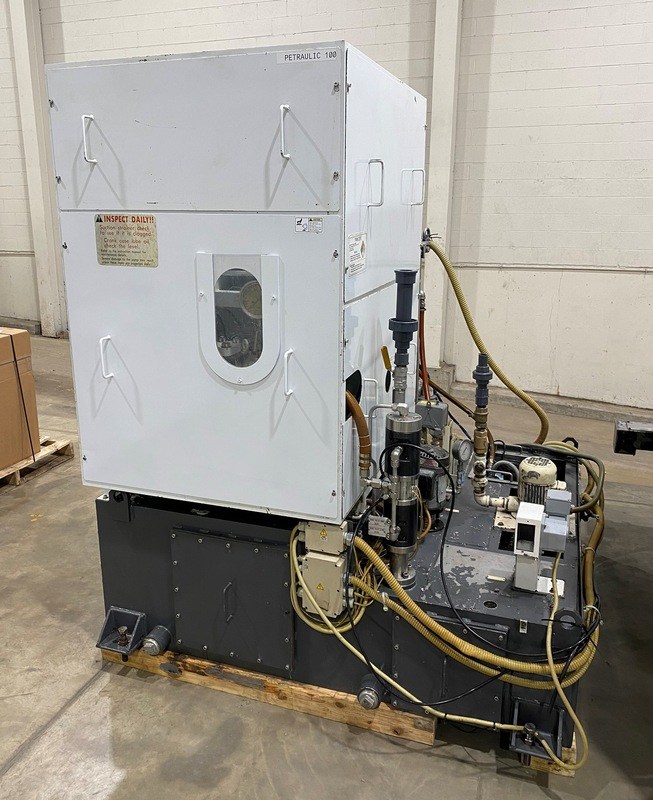

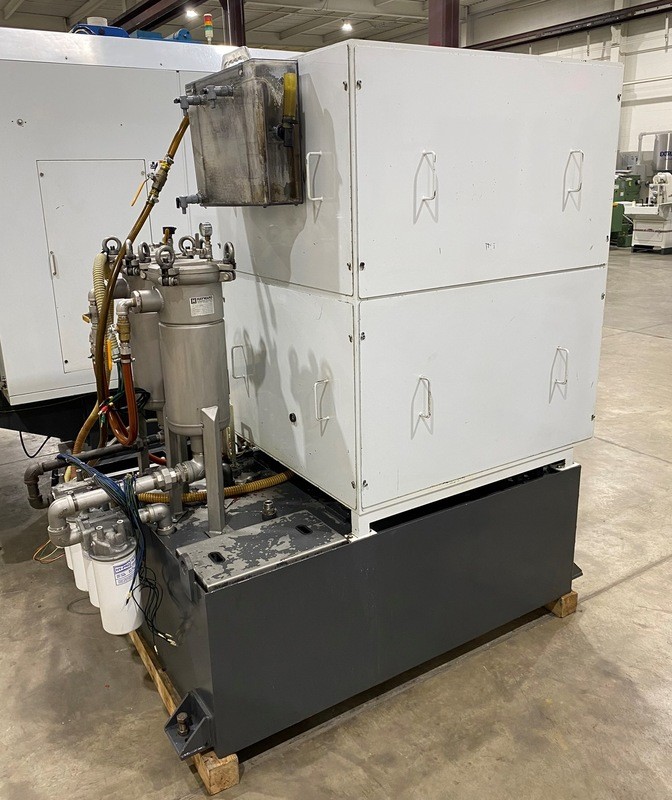

Jet Cleaner Pumping Station:
- Capacity of clean water tank............145 Gallons
- Capacity of dirty tank............52.8 Gallons
Energy Requirements:
- Electrics............208+/- 10% V 3P, 400+/- 10% V 3P, 50/60Hz, 40kVa
- Air Pressure............58 psi
- Compressed Air Consumption............3.53 CFM
Machine Dimensions - Catalog............159"L x 71"W x 106"H
Weight - Catalog............8,600 Lbs.
EQUIPPED WITH:

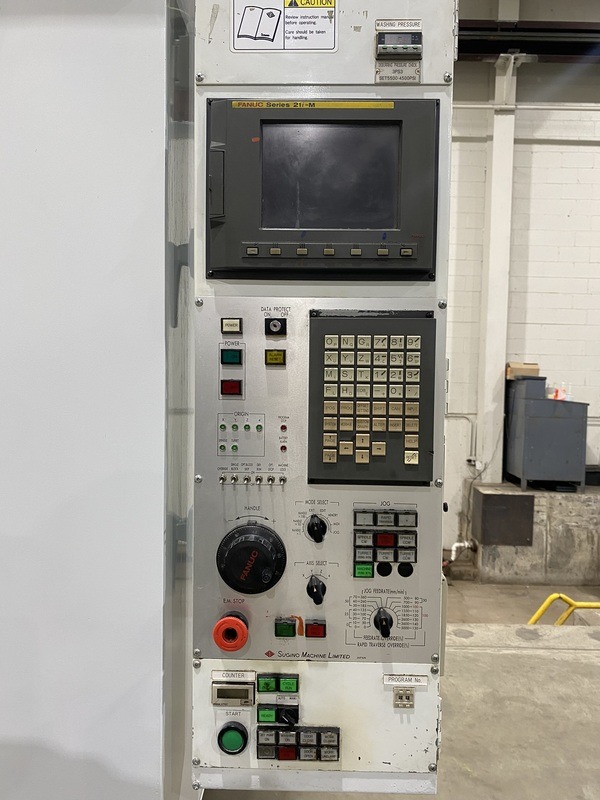

- Fanuc 21i-MB

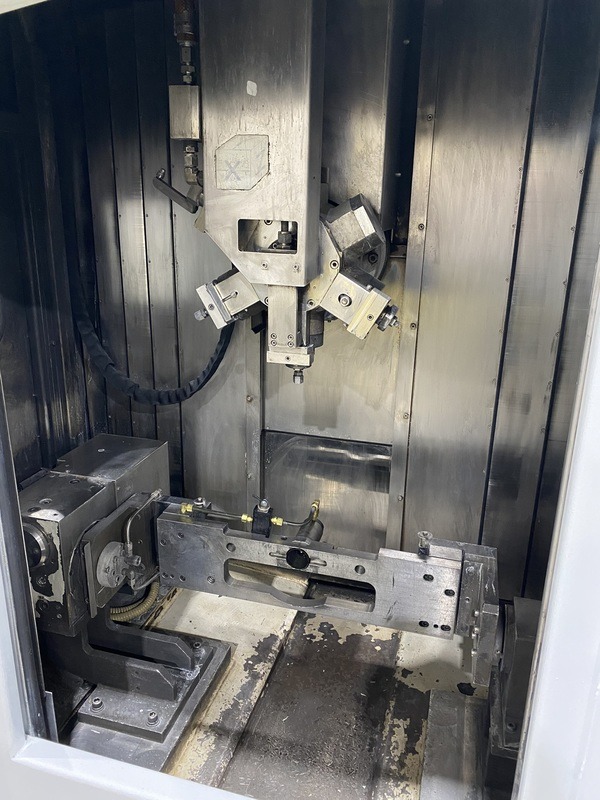

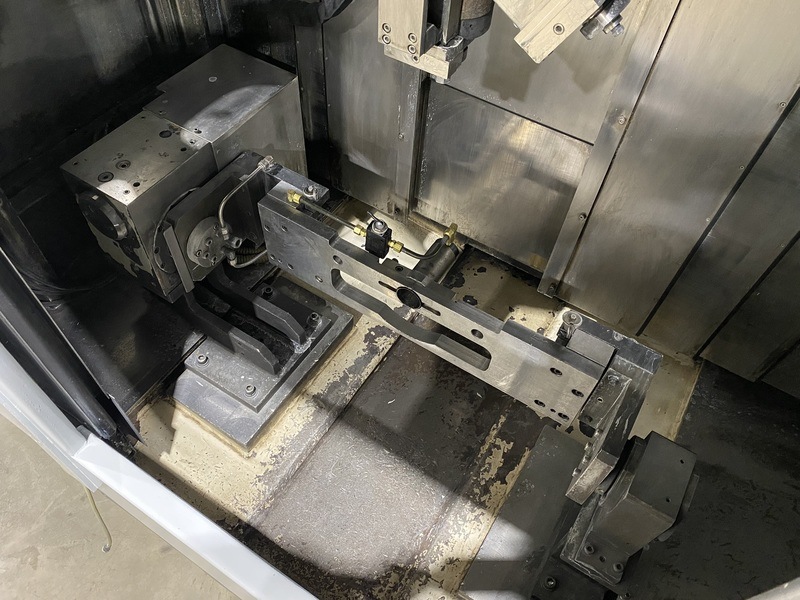

- Standard table w/Tsudakoma A-Axis
- Jet Cleaner Pumping Station
- Showa Mistresa mist collector
- Spare JPFM-38032 pump
*Preliminary specifications, pending confirmation.
