$2,250 USD
Description
Description

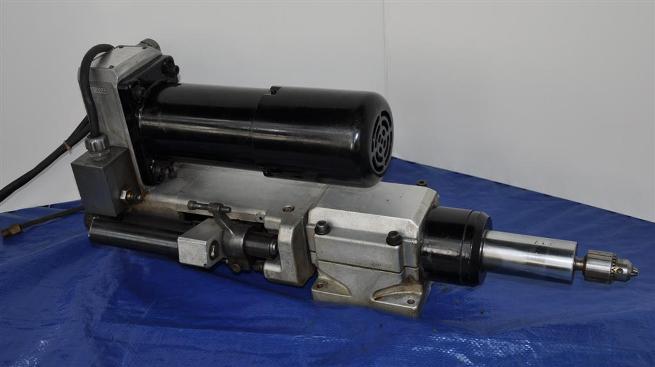

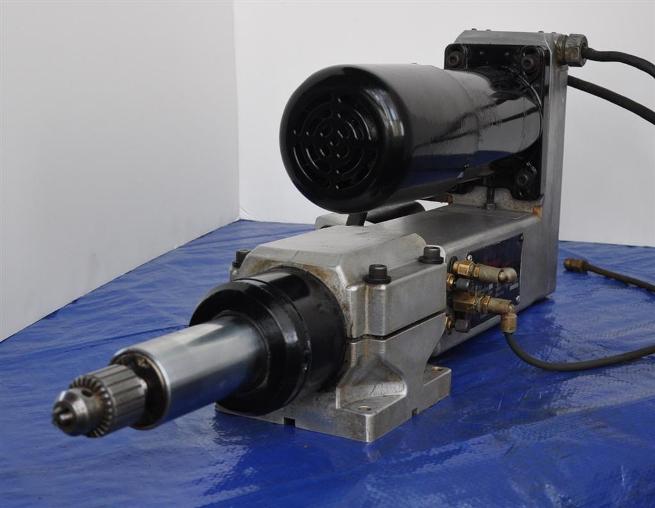

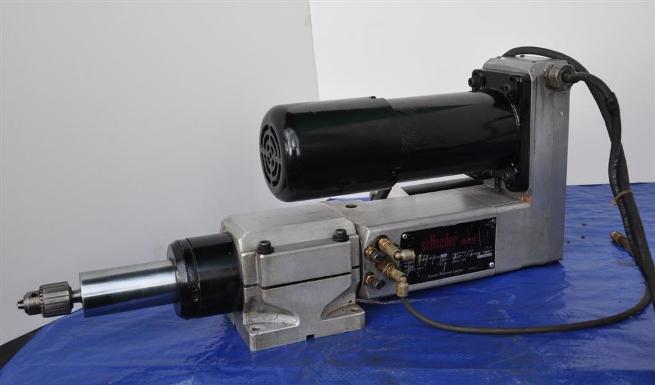

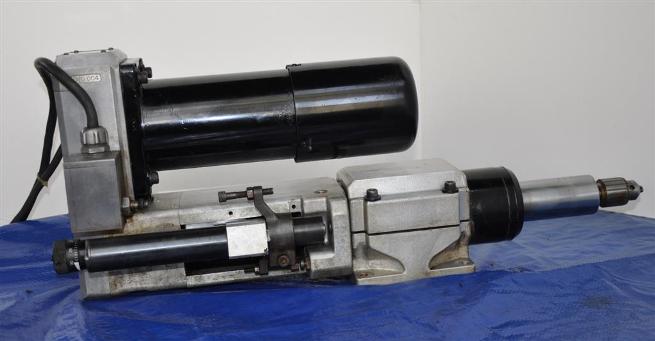

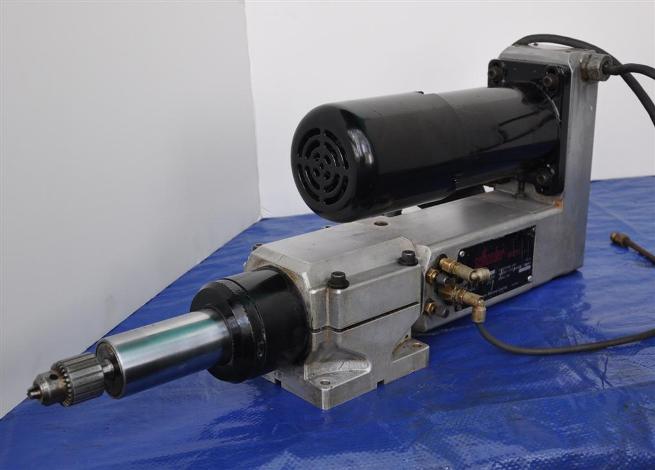

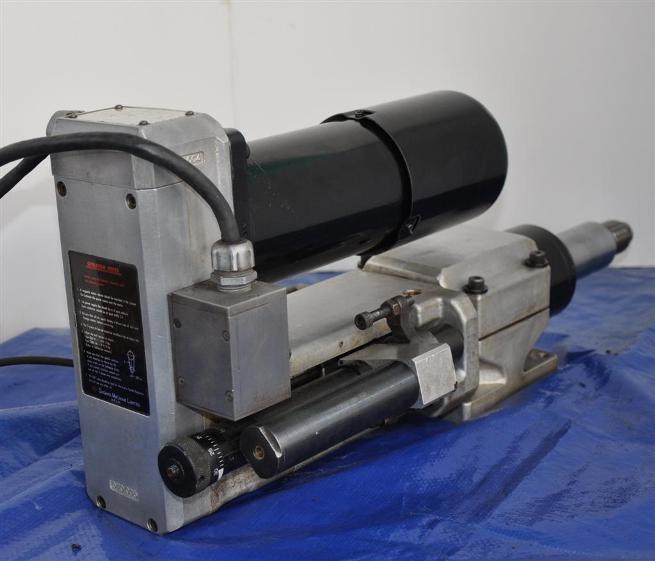

SUGINO 1/2” ELECTRIC SELFEEDER DRILLING UNIT
INVENTORY # 4725
MODEL: ESEBP-W1B10U
S/N 230013
MADE IN JAPAN
FEATURES:
AIR THRUST FEED
AIR-RETURN TYPE
ADJUSTABLE DEPTH CONTROL
HYDRO-SPEED REGULATOR MODEL: R31-82A:
CONTROLS DRILL FEED SPEED (3.15”)
SPECIFICATIONS:
DRILL CHUCK CAPACITY: 1/2″
SPINDLE TAPER: JT 33
STROKE MAX.: 3.94″
AIR CONSUMPTION: 1.4 (ft/min)
THRUST: 460 LBS. (100 PSIG)
MOTOR: 1/4 HP/3 PHASE/1,200 RPM
DEPTH CONTROL REPEATABILITY:
(+/-) 0.0008” WITH MECHANICAL FRONT LIMIT STOP
INCLUDES:
JACOBS 3/8” DRILL CHUCK
WEIGHT: 77 LBS
GOOD CONDITION
PRICE: $ 2,250.00
FOB OUR BALTIMORE, MD WAREHOUSE
