Description
Make: Sterling
Model: SL-3
Year: 1900
Machine Location: Canada
Model: SL-3
Year: 1900
Machine Location: Canada

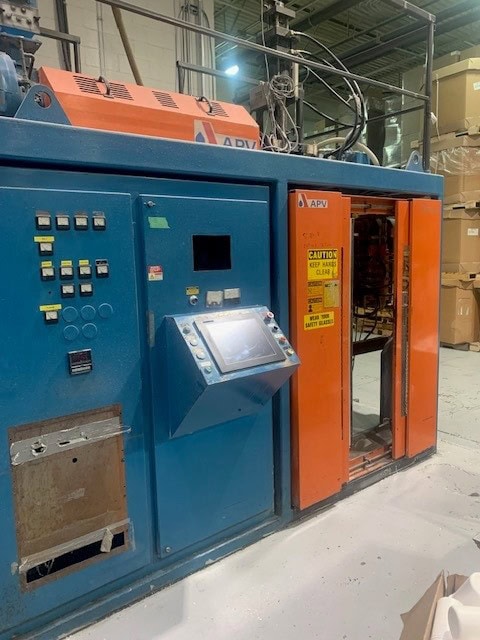

Used Sterling LS-3 Extrusion Blow Molding Machine:
Previously used for making HDPE 4 gallon, 18.9 Liter, and 20 liter jugs with the same mould and inserts added.
This machine is an intermittent type of unit with bottom blow

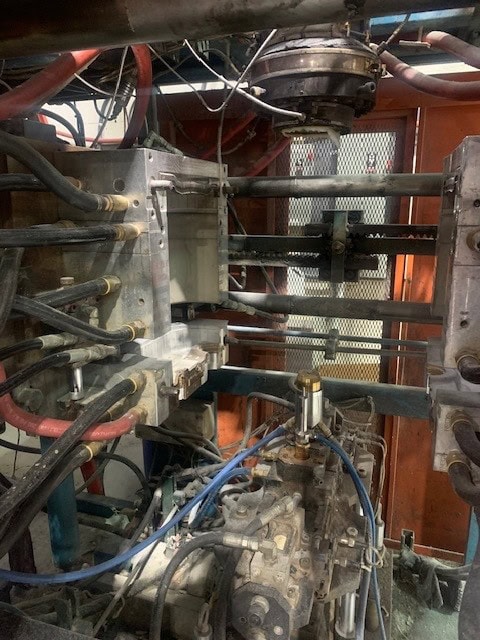

Currently the mould in machine is 20” tall x 17.5” wide with a thickness of 15.75”

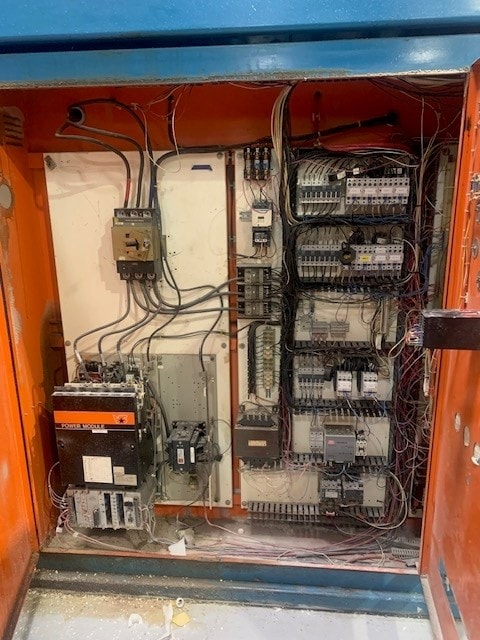

– Electrical requirements: 480V, 60Hz, 3Ph
– HP: 65
– FLA: 106A

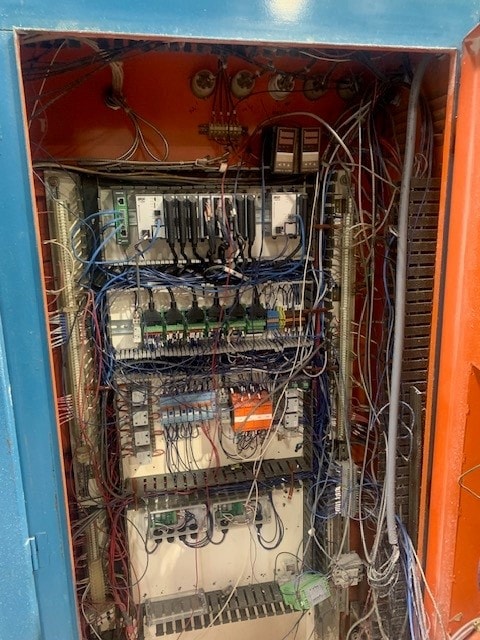

– Control voltages: 24VDC & 115 VAC
– Short circuit rating: 10KA

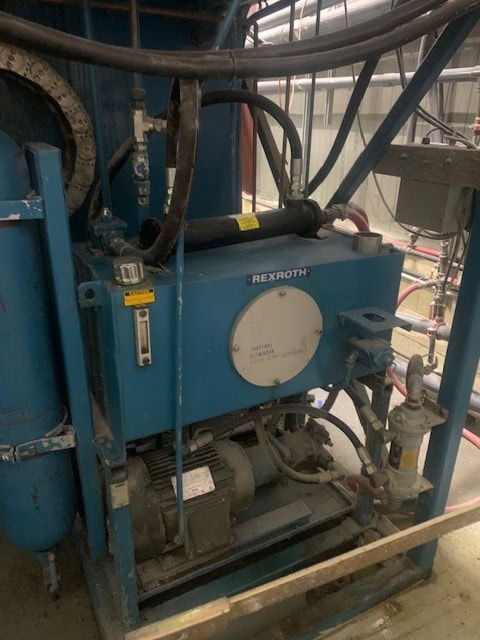

– Rexroth HPU (Hydraulic power unit)

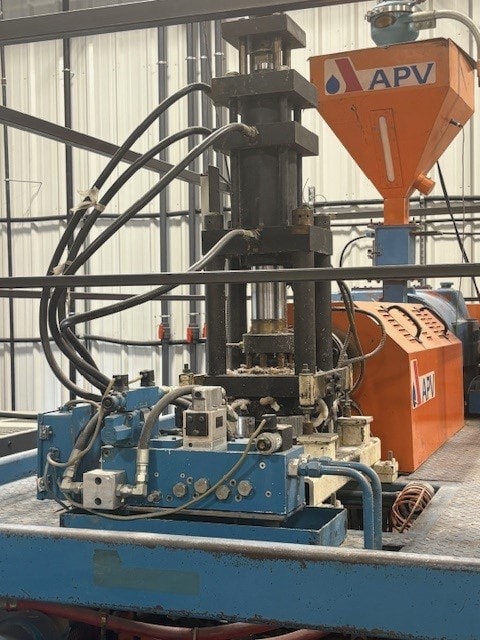

– APV Extruder with 4 zones
Platon drawing available upon request
