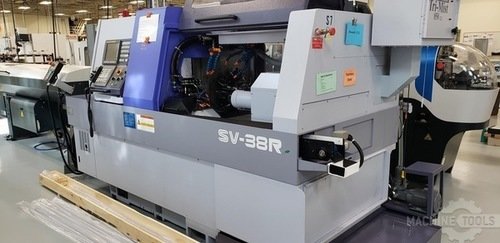

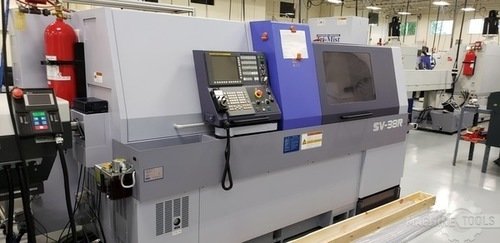

Star #SV-38R, Swiss Type CNC Lathe

STAR SV-38R Type B Swiss Type CNC Lathe w/B AXIS! (used) New 2018 - LOADED, low hours, ran oil. See specs. Heavily discounted.
STAR SV-38R Type B CNC Swiss Type Automatic Lathe with
Fanuc Series 31i-B5 Controller and Standard Accessories
SV-38R Type B STANDARD ACCESSORIES:
CNC Unit (Fanuc series 31i-B5) Stand-alone type coolant tank
Operation panel & 10.4" color LCD display Coolant Level Detector (lower limit)
Automatic Centralized Lubrication Device (with level detector) Revolving guide bush drive unit
Drive system for power driven tools (turret tool post) Coolant Flow Detector [1A459]
Drive system for power driven tools (back 8-spindle unit) Electronic Handwheel
High-pressure coolant unit interface Broken Cut Off Tool Detector
Spindle clamp unit (main/sub spindle) Automatic barfeeder interface
Air purge unit for revolving guide bush RS232C interface
Work Lights (cutting & headstock room) Non Guide Bush Version [1A407]
Earth leakage breaker (rated sensitivity current: 30mA) Parts Ejection Detector [1A409]
4-Spindle milling unit (gang tool post) - tools included Leveling Bolts & Leveling Pads
Cs contour control (main/sub spindle) Expanded I/O Module Unit [0R449]
Synchronized Revolving Guide Bush F'48 [1A301] Hydraulic unit
Beacon Interface (1A428) Pneumatic unit
Main collet [1A351] Back Attachment
Sub collet [1A371] Back 8-spindle unit
Spindle cooling unit Door Interlock System
Sub spindle air purge unit Tool Kit (1 set)
Revolving guide bush unit Parts Conveyor
Wedge type 5-station tool holder: 20mm = 1 tool; 16mm = 4 tools Chip Conveyor Interface (1A444)
31i-B5 FANUC CONTROLLER STANDARD OPTIONS:
Number of control axes (total 12 - 4 simultaneous on Path 1, 4 simultaneous on Path 2, 1 axis on Path 2, and 3 simultaneous on Path 3)
Synchronous/Superposition control (X1-X3, Y1-Y3, Z1-Z2 axes) Timer function
Tool wear offset (60 pairs each for Paths 1, 2, & 3) Parts counter
Synchronous rotation/phase control of main & sub spindles Circular arc radius specification
Operation panel (10.4" color LCD display) Alarm help function
Feed rate override (0-150% - rotary switch with 16-step) Manual handle retrace
Rapid traverse override (0, 1, 5, 25, 100% - 5-step) Override cancel
Tool selection (T-code command) Error detect
Number of registerable programs (1,000 programs total for Paths 1, 2, & 3) Feed command method
Servo torque limiter and servo monitor function Memory protect function
Coolant Unit 0.7MPa [1A458] Background editing
Coolant Piping for Gang Tool [1A463] Threading function
Coolant Piping for Turret [1A466] Motion Control
Coolant Piping Back 8-Spindle Unit [1A467] Clock display
Coolant Piping for Guide Bush [1A468] 3D Handle Feed
Coolant Unit Signal Cable 32 Contacts Ver [1A486] Absolute position detector
Rotary Parts Ejector with Spring [1A481] Cut-off process function
Rotary Parts Ejector with Spring for Sub Collet [1A481A] Position display function
High Pressure Coolant Unit Interface 93285005 Spare M Codes (2 pairs)
Automatic coordinate system setting function 93285102 Constant surface speed control
Automatic erase display function 93285103 Spindle Speed Fluctuation Detection
Machining data display function 93285104 Multiple canned cycle
Program list display function 93285105 Chamfering Corner R
Keep relay conversational function 93285106 Tool nose radius compensation
Tool geometry offset function 93285107 Canned Cycle for Drilling
Tool life management by tool number counter 93285108 Variable Lead Threading
Collet automatic adjusting function 93285110 Threading Retract
Guide Bush/Non Guide Bush change function 93285112 Continuous threading
Program Storage (6 MB in total for Paths 1, 2, & 3) 93285114 Programmable data input
Spare M code (4 pairs) 93285118 Direct Drawing Dim.Programming
Circular Threading 93285124 Cylindrical Interpolation
Program check function 93285125 Polar Coordinate Interpolation
3D Coordinate Conversion 93285126 Rapid tapping
Multi-path program editing function 93285128 Increment system 1/10
Auto power shut-off function 93285132 Polygon Machining Unit
Offset display function 93285134 Helical Interpolation
Alarm message history 93285137 Cs Contouring Control
Coordinate command system 93285201 Inch/metric conversion
Decimal point input 93285202 Run Hour Parts Number Display
Diametric direction command 93285209 Add'l custom macro common variables
Interpolation function (Linear/Circular) 93285210 Extended Part Program Editing
Chamfering 93285310 Star Run Hour Display
Equipped with:
Presetter
3 [431-09] Wedge Type 2 Station Tool Holder 16mm
2 [581-12] Triple Sleeve Holder Main/Back 32mm
6 [421-26] Counter Face Drill Sleeve ER-20 (Applicable Sleeve Holders: 431-
11, 581-12)
3 [191-01] Tilting Head 2-Spindle Drilling Unit - ER16
2 [201-50] Cross Drilling Unit ER16
1 [431-51] 2 Spindle Cross Drilling Unit ER-16
2
[431-52] High Speed 2 Spindle Cross Drilling Unit ER-11 (MAX 9,500
RPM)
2 [571-55] Milling Unit ER-16
2 [581-52] Cross Drilling Unit ER-16
2 [10101] Drill Sleeve ER20
2 [581-79] Boring Sleeve 3/8"
1 [1A341/1A438] Synchronized Rotary Magic Guide Bushing Unit
1 [NJ2000E] High Pressure Pump (OIL ONLY) 480 Volt Electrical
Package

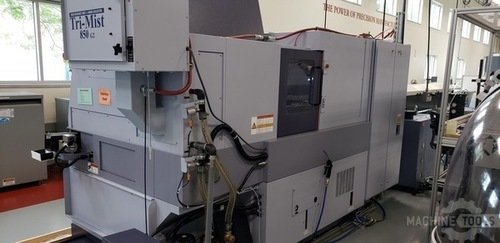

1 [NJMIST] Tri-Mist Collector
1 [NJCHILLERE] NE15OIL Chiller System 480 Volt Electrical Package

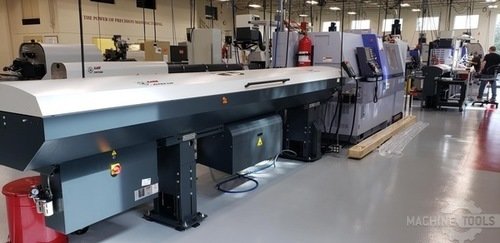

LNS ALPHA 538 Performance Package - 1-1/2" (38 mm) 3 Guiding
Channel Set with Pusher, Rotating Sleeves, Remnant Retract, Compact
Telescopic Swiss Safety Connection, Custom Electrical Cable Package
with Plugs, 2 T-Tube Liner and Support Bushing, Two Position Hydrostatic
Front Stabilizer, 1 Bushing Set for Hydrostatic Front Stabilizer, 1 Remnant
Retract Collet/Cone and Collet Adapters, 18.5" (470 mm) "Z" Axis
Retraction System, Patented 3-S Electronic Headstock Synchronization.
[NOTE: A collet and front stabilizer bushing are required for each bar diameter. As the bar
diameter
1 Additional Bushing For Hydrostatic Front Stabilizer (one set required per
stock size)
3 Spindle Liner for non-guide bushing (required for each channel size)
1 Two Z-axis barfeed positions with safety switches for non-guide bushing
machining capabilities
1 Outboard stabilizer for non-guide bushing
1 Remnant Collet From .250" to 1.338" (1 Collet Required For Each Size Bar)
1 Two position retract mechanism due to deeply recessed spindle
(Required for SR-38 & SV-38R)
