Description

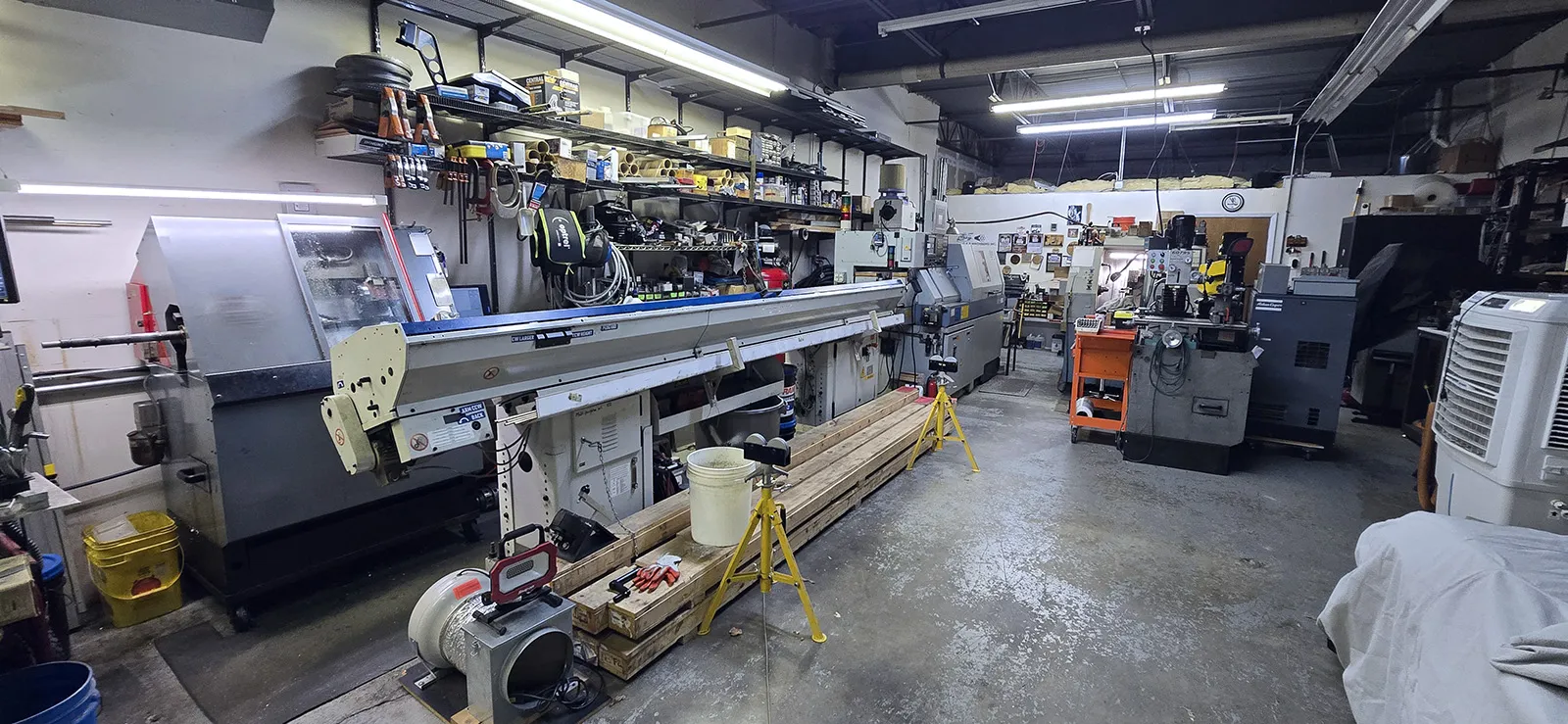

3 Spindle adjustable live too attachment| Imeca barloader

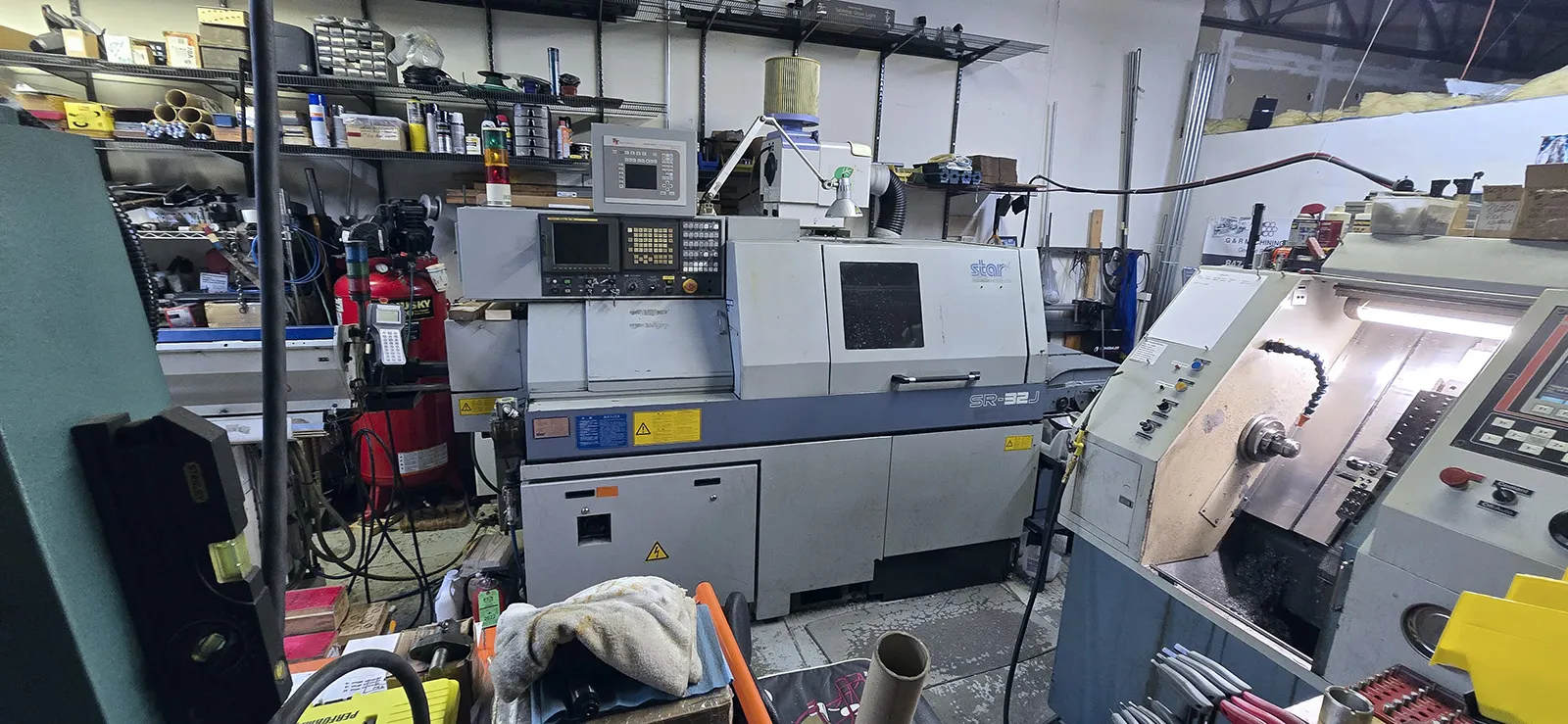

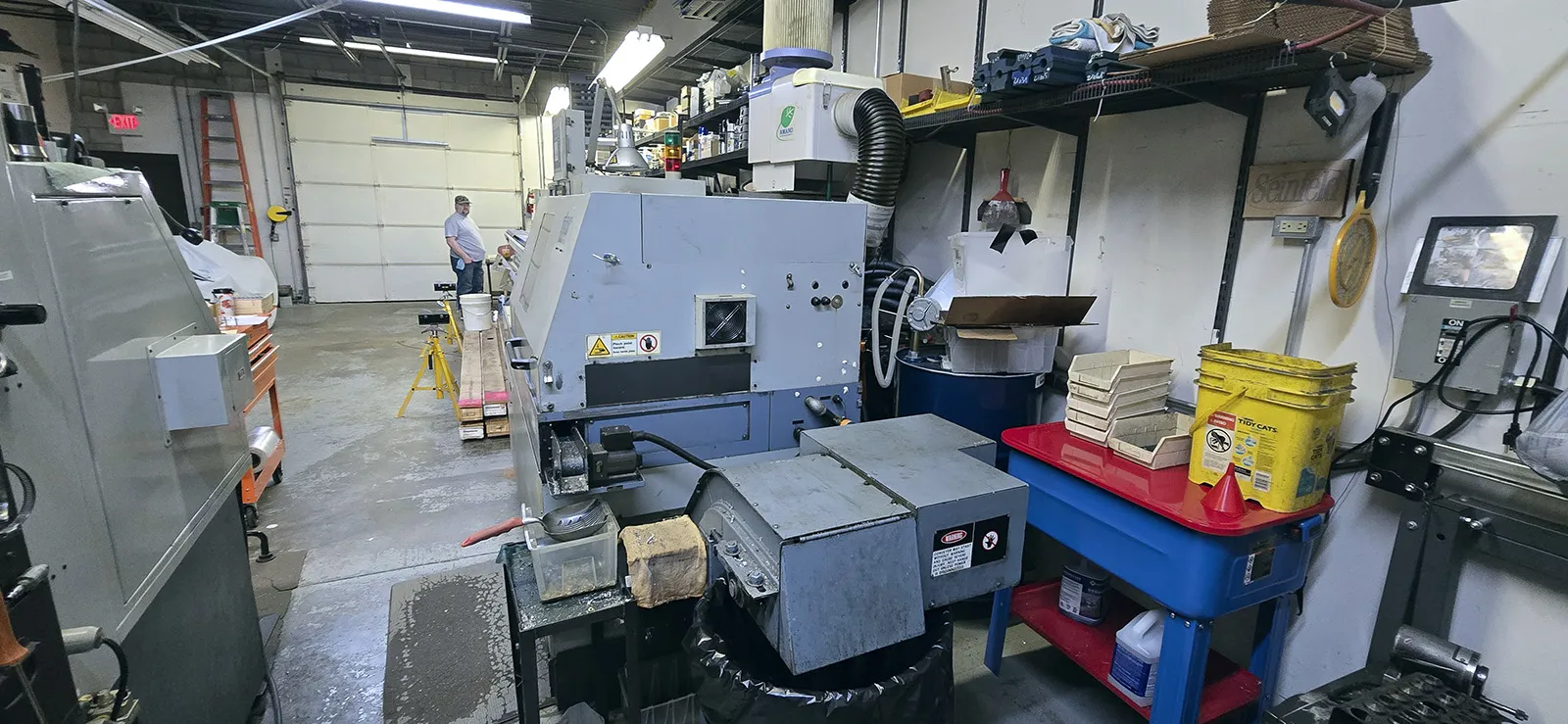

Used 2005 Star SR-32J Swiss CNC lathe with Fanuc 18iTB a rugged, high-precision 7-axis sliding-head machine. 32 mm bar capacity, 7,000 rpm main & sub spindle, C-axis indexing, ideal for complex small-part production.
Max. Machining Diameter: 32mm (1-1/4in)
Standard: 310mm(12-13/64in)
with RMGB unit: 280mm(11-1/32in)
Tool Shank: 16mm x 95-155mm
Sleeve Holder Max. Drilling Capability: 13mm(1/2in)
Sleeve holder Max. tapping capability: M12xP1.75
Sleeve holder Max. die cutting capability: M10xP1.5
Power Driven attachment - Max. drilling capability: 8mm(5/16in)
Power Driven attachment - Max. tapping capability: M6xP1.0
Power Driven attachment - Max. milling capability: 10mm(25/64in)
Main Spindle Speed: Max.7,000min-1
Main spindle motor(continuous/30min): .. 5.5kw/7.5kw
Power-driven att. spindle speed: Max.5,000min-1
Power-driven att. drive motor: 1.0kw
Max. Chucking Diameter: 32mm (1-1/4in)
Max. lenght for front ejection: 125mm(4-59/64in)
Max. parts prcjection length: 45mm(1-49/64in)
Max. drilling capability - Stationary tool: 13mm(1/2in)
Max. tapping capability - Stationary tool: M10xP1.5
Sub Spindle Speed: Max.7,000min-1
Sub spindle motor(continuous/15min): ... 2.2kw/3.7kw
Dimension (L x W x H, Approx): 9' x 4' x 5'6"
Weight (approx):: 8300 lbs
Machine: 106" x 51" x 69" 8,300 lbs
Coolant Pan: 51" x 32" x 21" 155 lbs
Used 2005 Star SR-32J Swiss CNC lathe with Fanuc 18iTB a rugged, high-precision 7-axis sliding-head machine. 32 mm bar capacity, 7,000 rpm main & sub spindle, C-axis indexing, ideal for complex small-part production.
Max. Machining Diameter: 32mm (1-1/4in)
Standard: 310mm(12-13/64in)
with RMGB unit: 280mm(11-1/32in)
Tool Shank: 16mm x 95-155mm
Sleeve Holder Max. Drilling Capability: 13mm(1/2in)
Sleeve holder Max. tapping capability: M12xP1.75
Sleeve holder Max. die cutting capability: M10xP1.5
Power Driven attachment - Max. drilling capability: 8mm(5/16in)
Power Driven attachment - Max. tapping capability: M6xP1.0
Power Driven attachment - Max. milling capability: 10mm(25/64in)
Main Spindle Speed: Max.7,000min-1
Main spindle motor(continuous/30min): .. 5.5kw/7.5kw
Power-driven att. spindle speed: Max.5,000min-1
Power-driven att. drive motor: 1.0kw
Max. Chucking Diameter: 32mm (1-1/4in)
Max. lenght for front ejection: 125mm(4-59/64in)
Max. parts prcjection length: 45mm(1-49/64in)
Max. drilling capability - Stationary tool: 13mm(1/2in)
Max. tapping capability - Stationary tool: M10xP1.5
Sub Spindle Speed: Max.7,000min-1
Sub spindle motor(continuous/15min): ... 2.2kw/3.7kw
Dimension (L x W x H, Approx): 9' x 4' x 5'6"
Weight (approx):: 8300 lbs
Machine: 106" x 51" x 69" 8,300 lbs
Coolant Pan: 51" x 32" x 21" 155 lbs
Get Your Price from Machinery Marketing International!
