For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

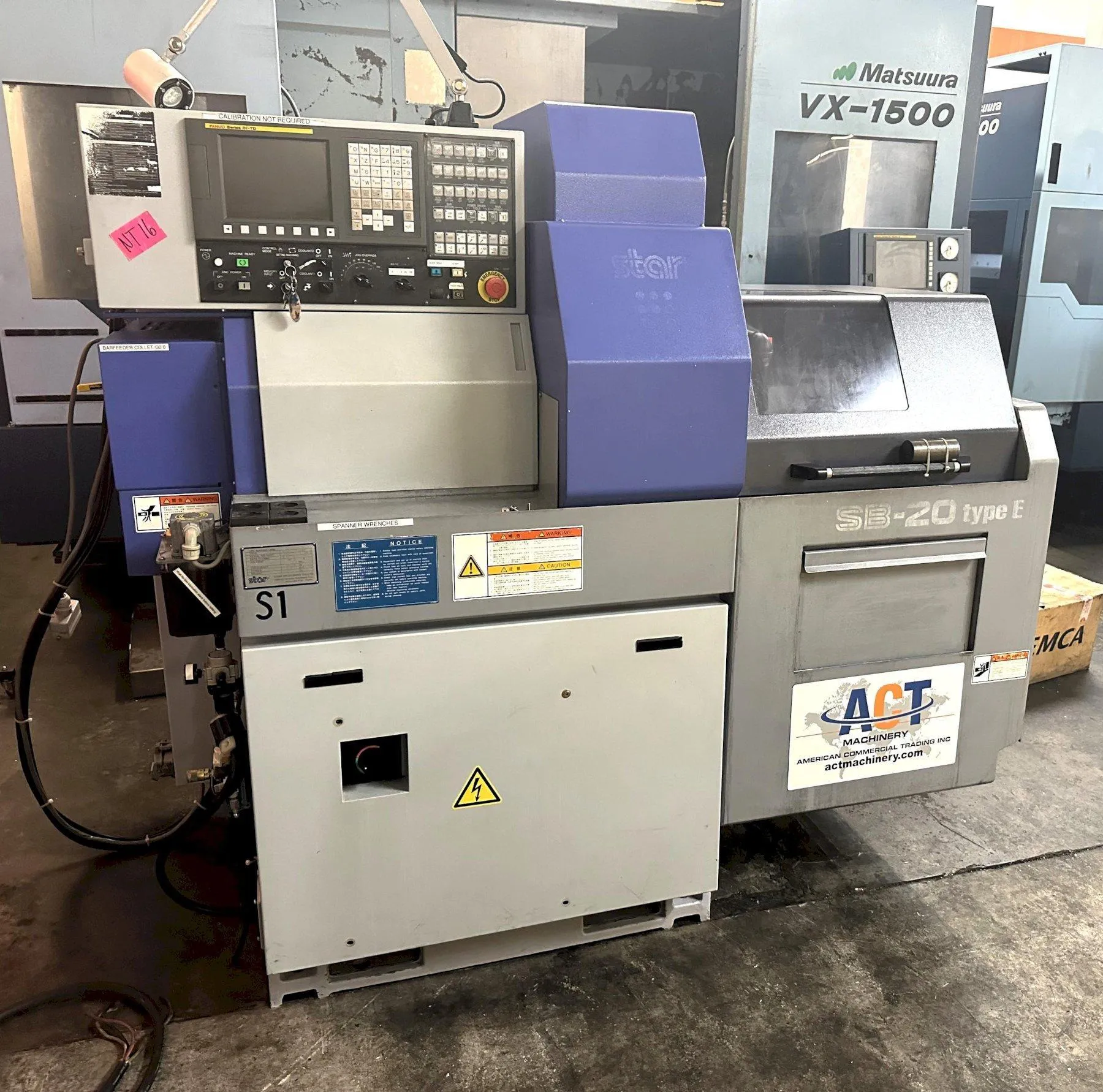

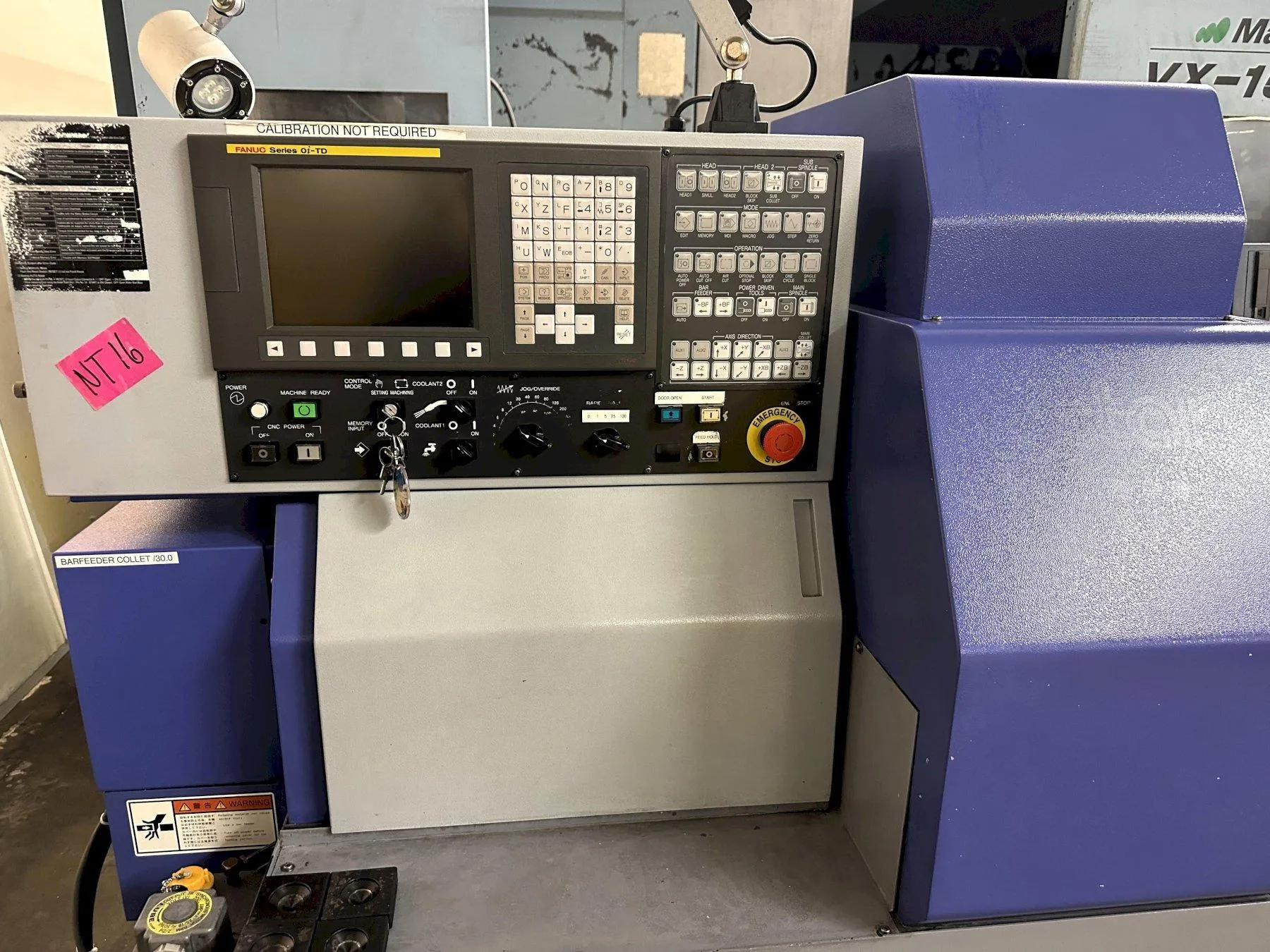

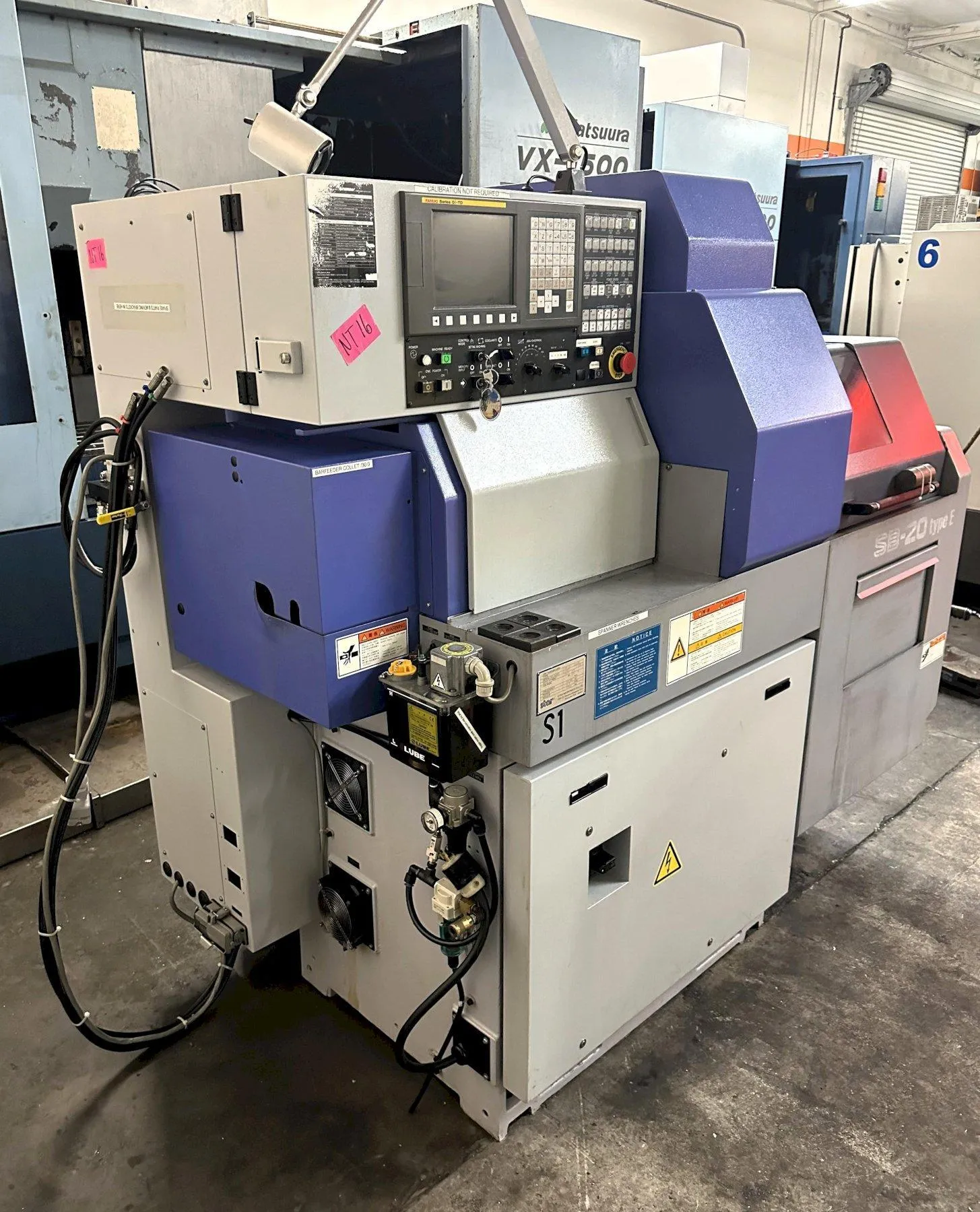

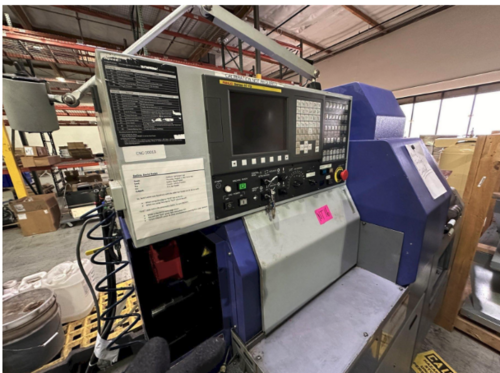

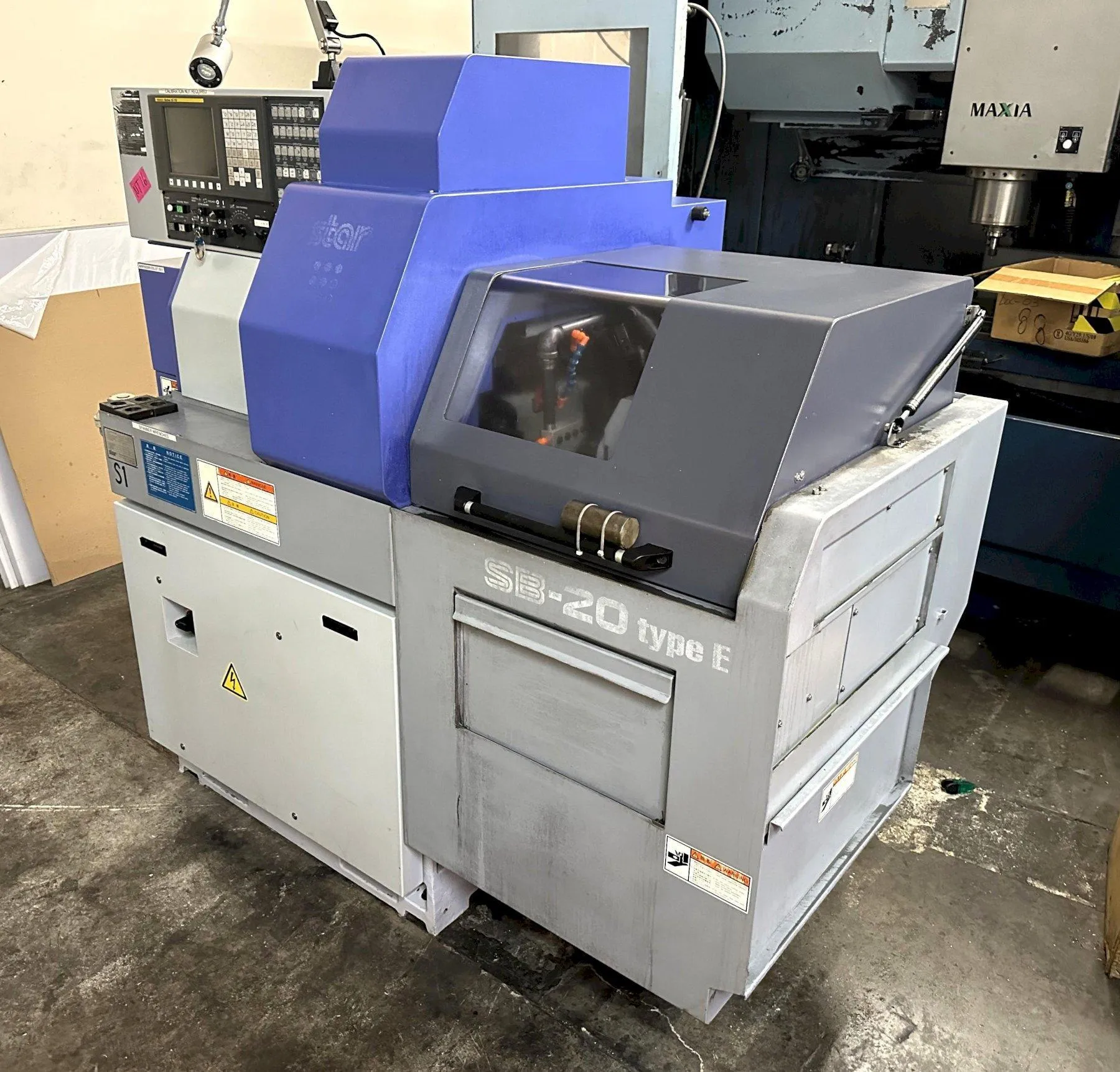

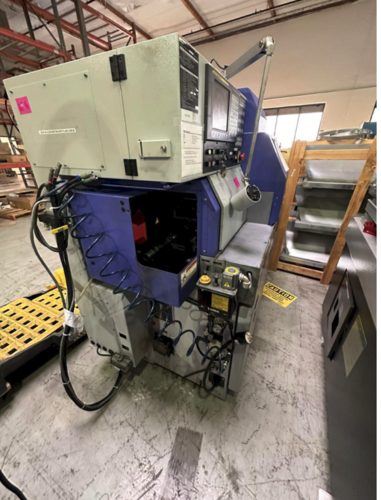

Swiss Type Automatic Screw Machine, used, features a 20 mm spindle hole, 10,000 RPM, and 3.7 kW power. Equipped with Fanuc Oi-TD Control, coolant tank, chip conveyor.
Max. Machining Diameter: 25/32in
Max. Headstock Stroke: Stationary GB (7-13/64in) | Revolving GB (6-3/32in)
Number of Tools: 6 Tools (12mm)
4-Spindle Sleeve Holder: Front (2) Tools | Rear (2) Tools [Max. 4 Tools]
Max. Drilling Capability: 25/64in
Max. Tapping Capability: M6xP1.0 (ER16) / M5xP0.8 (ER11)
Main Spindle Indexing Angle: C-Axis Control
Main Spindle Speed: Max. 10,000min
Main Spindle Motor: 2.2kw(continuous) / 3.7kw(15min/60%ED)
Rapid Feedrate: 35m/min (X, Y, Z, XB, ZB)
Power-driven att. Drive Motor: 1.0kw(continuous) / 1.2kw(5min/30%ED)
Coolant Tank Capacity: 42 Gal
Dimensions (LxWxH): 75" x 45" x 69"
Voltage: AC 200 V (3 Phase)
Frequency: 50/60 Hz
Power: 4.6 KVA
Max. Chucking Diameter: 25/32in
Max. Part Length for Pick-up: 3-5/32in
Max. Parts Projection Length: 1-3/16in
Back 4-Spindle Unit Number of Tools: 4 Tools
Back 4-Spindle Unit Max. Drilling Capability: 5/16in
Back 4-Spindle Unit Max. Tapping Capability: M6xP1.0
Sub Spindle Indexing Angle: C-Axis Control
Sub Spindle Speed: Max. 9,000min
Sub Spindle Speed Control: AC Spindle Drive
Sub Spindle Motor: 0.55kw(continuous) / 1.1kw(5min/30%ED)
Max. Machining Diameter: 25/32in
Max. Headstock Stroke: Stationary GB (7-13/64in) | Revolving GB (6-3/32in)
Number of Tools: 6 Tools (12mm)
4-Spindle Sleeve Holder: Front (2) Tools | Rear (2) Tools [Max. 4 Tools]
Max. Drilling Capability: 25/64in
Max. Tapping Capability: M6xP1.0 (ER16) / M5xP0.8 (ER11)
Main Spindle Indexing Angle: C-Axis Control
Main Spindle Speed: Max. 10,000min
Main Spindle Motor: 2.2kw(continuous) / 3.7kw(15min/60%ED)
Rapid Feedrate: 35m/min (X, Y, Z, XB, ZB)
Power-driven att. Drive Motor: 1.0kw(continuous) / 1.2kw(5min/30%ED)
Coolant Tank Capacity: 42 Gal
Dimensions (LxWxH): 75" x 45" x 69"
Voltage: AC 200 V (3 Phase)
Frequency: 50/60 Hz
Power: 4.6 KVA
Max. Chucking Diameter: 25/32in
Max. Part Length for Pick-up: 3-5/32in
Max. Parts Projection Length: 1-3/16in
Back 4-Spindle Unit Number of Tools: 4 Tools
Back 4-Spindle Unit Max. Drilling Capability: 5/16in
Back 4-Spindle Unit Max. Tapping Capability: M6xP1.0
Sub Spindle Indexing Angle: C-Axis Control
Sub Spindle Speed: Max. 9,000min
Sub Spindle Speed Control: AC Spindle Drive
Sub Spindle Motor: 0.55kw(continuous) / 1.1kw(5min/30%ED)
Get Your Price from Toolquip Inc!
