Stama #MC533, 5-Axis,trunion table, 12000 RPM,Siemens 840D,Reinashaw probe,HP coolant, 25 HP

Specifications:

Model MC 533 (Made in Germany)

CNC control Siemens 840D

Highlights:

Travels, X-Y-Z 640-400-400mm

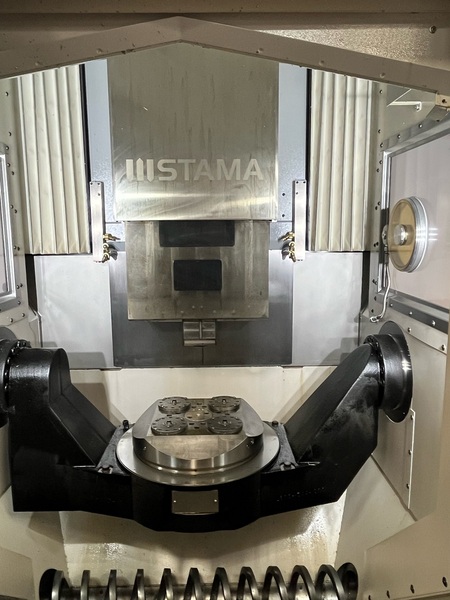

Tilting and Swivel bridge 5 axis simultaneously, 90 rpm max

Table Load Capacity 1,100 lbs

Spindle Motor 25HP

Spindle Speed 12,000 rpm

Spindle taper A-63 (HSK A63 tooling)

Coolant thru the spindle High Pressure Coolant Package (70 bar)

Tool stations 72

Measuring system Siemens absolute 0.001

Machine weight 35,860 lbs.

Extras:

Direct measuring system of X-axis

Direct measuring system of Y-axis

Coolant filtration paper/system

High pressure coolant package

Measuring device TS27R

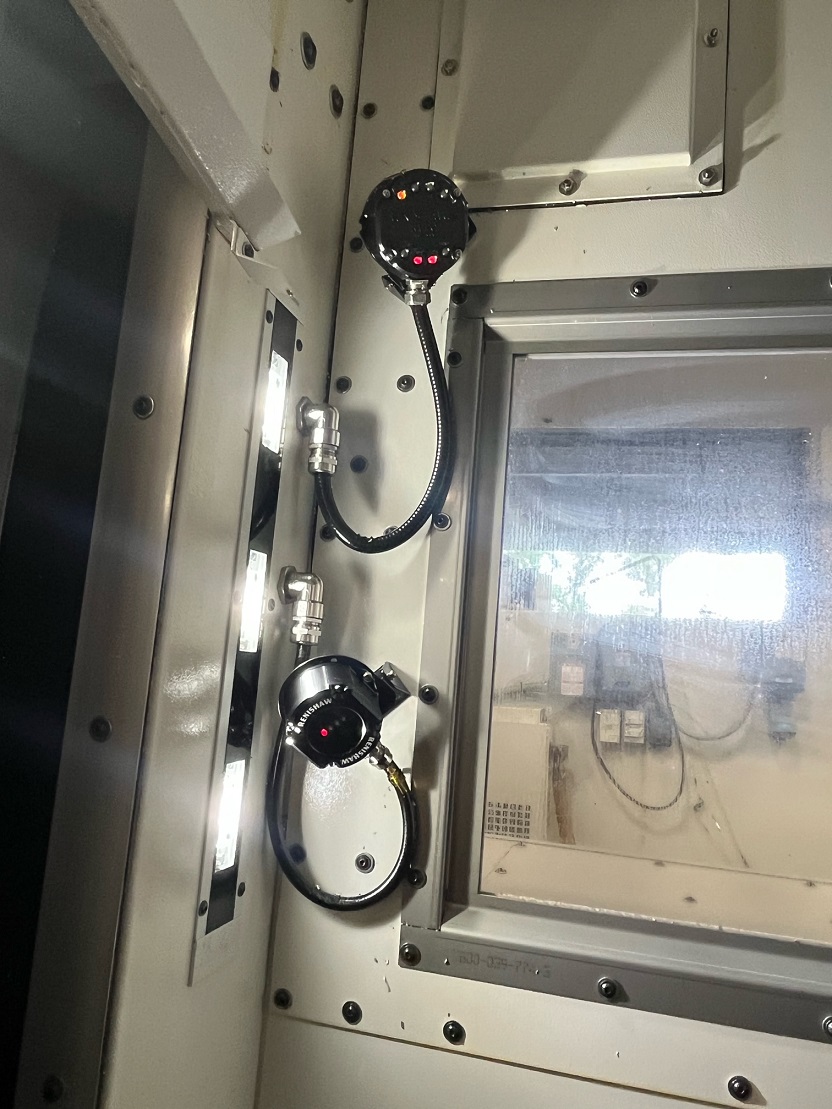

Probe unit preparation

Master cube including mounting elements

Transfer of standard voltage

Deviation of power frequency

Remote diagnosis via Internet

Comments: The machine was purchased out of storage in San Antonio. It was originally

used for the production of sophisticated aviation parts. It is in very good condition with

extremely low hours.

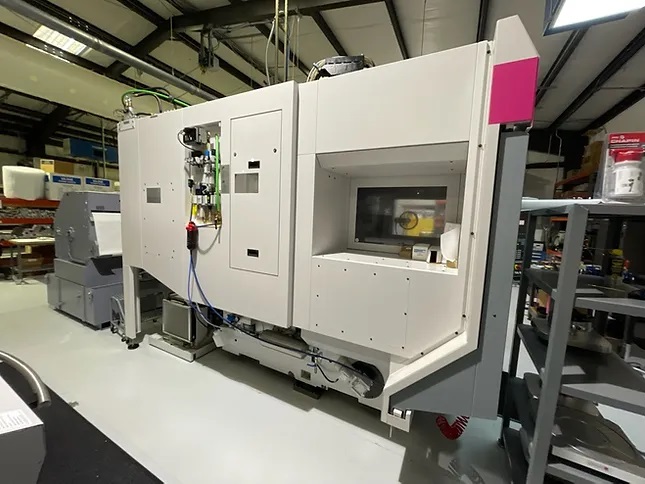

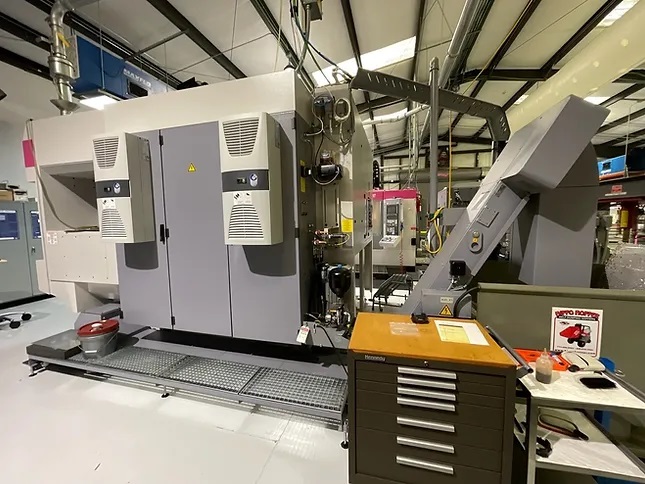

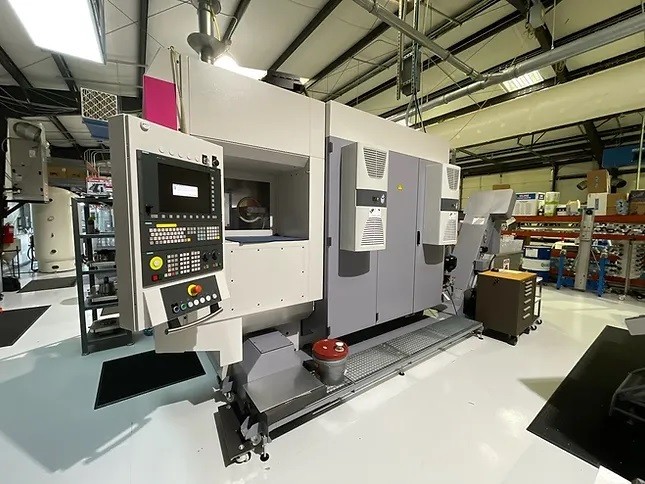

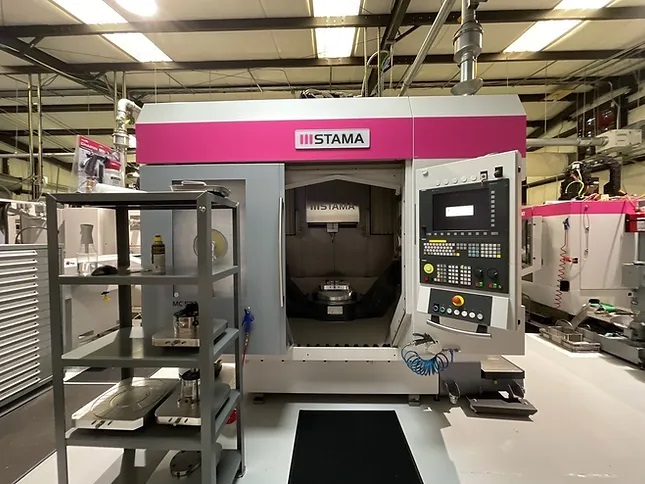

STAMA MC533 FIVE AXIS VERTICAL MACHINING CENTER

(pictures were taken before the machine was put in storage)
