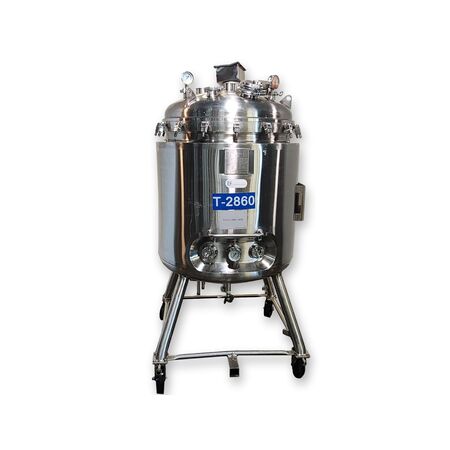

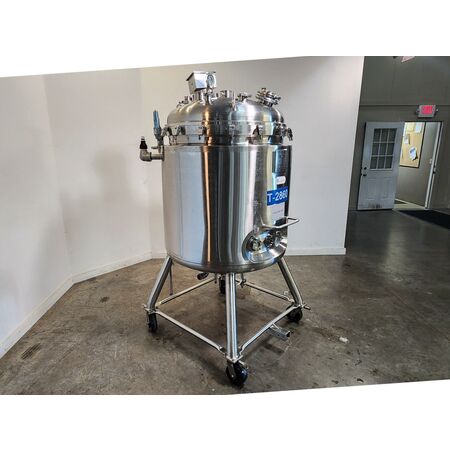

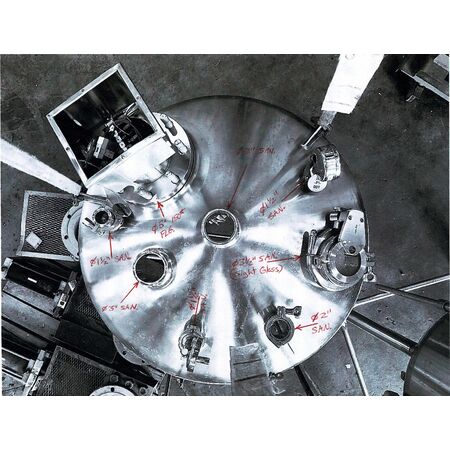

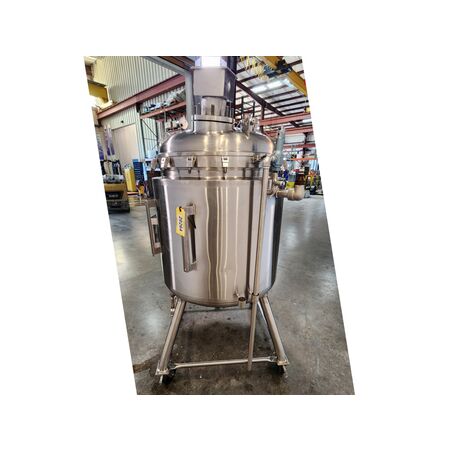

Used 316L Stainless Steel Jacketed Portable Reactor Holding Tank - 500L Capacity National Board Certified by Stainless Technology (NB #130) Tank has a 34" internal diameter and a 33" vertical straight side. Top dished cover is multi-ported and installed with a 24KW imersion heater. Cover is missing the hold down clamp bolts and o-ring gasket. Bottom dish is jacketed with bottom center drain (installed aseptic radial diaphragm valve). VESSEL: Material: 316L stainless steel Wall Thickness: 0.1874" shell; 0.3125"/0.1874" heads MAWP: 50PSI @ 350 F; MAWV: -15PSI @ 350 F
used parr bench top reactor, model 4526, approximate 2,000ml volume. cylinder 4" i.d. x 10.5" deep. rated 1900 psi at 350 degrees c. with model a2600hc12eb heater/tw 1500w 115v 2l. includes model 4848 reactor controller. serial# 4520-2201-150190. year 2022.
SKU: 114268, Condition: Used, Weight + Dimensions :, Diameter: 5 ft., Material: Stainless Steel, Dimensions: 66.50 (H) x 100.00 (W) x 506.00 (L) inches, Additional :, Original Use, - Beginning with a large air contactor, air is pulled into a structure containing potassium hydroxide solution which will chemically bind ...more
one(1) used Glass Lined Baffle. 2 finger. Overall Length: 25.5", 24" of glassed area. OD of pipe is approx. 1.25" to 1.33". Glass looks good, no visable chips. White marks on picture is flash reflection.
