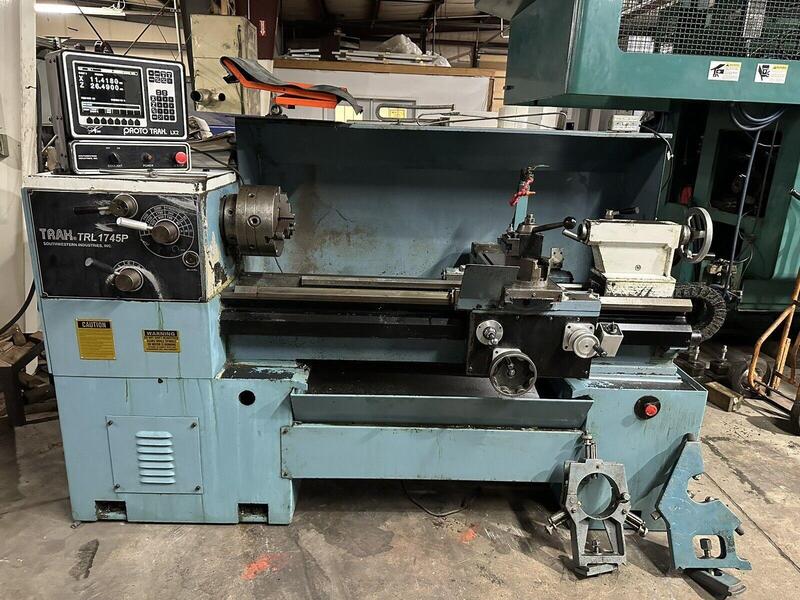

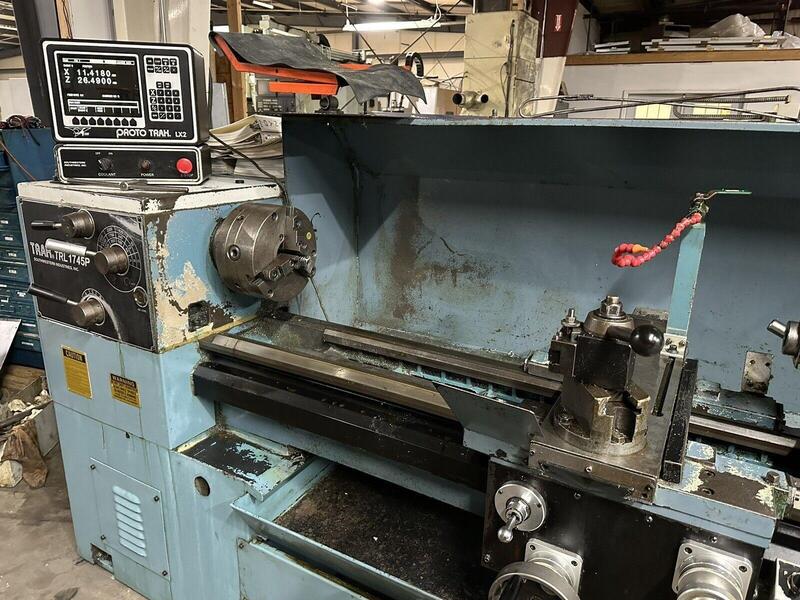

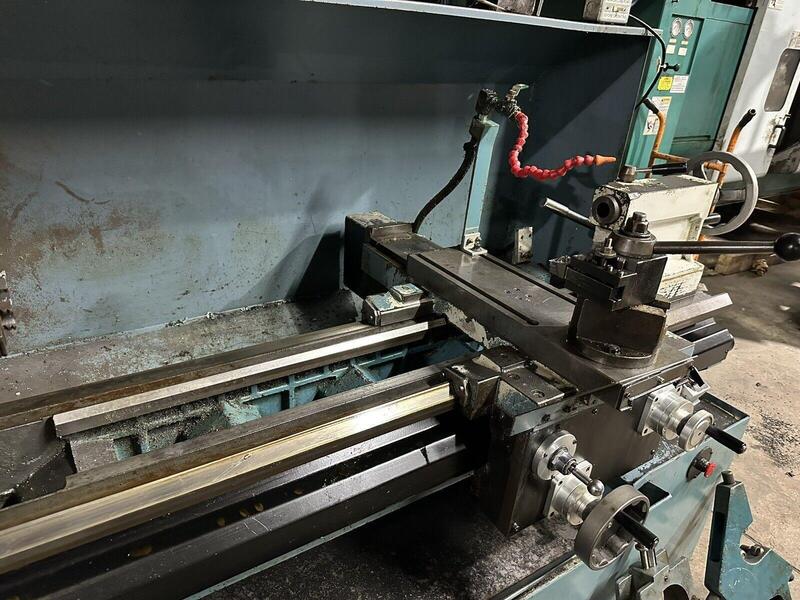

Manufacturer: Southwestern Industries
Model: TRAK-TRL-1745P
Year: 1997
Swing: 17.6
Centers: 45.0
Stock # 85924
1 / 9
Click to zoom in
1 / 9
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Height of Centers | 8.875 inches |
| Distance Between Centers | 45 inches |
| Swing over Bed | 17.6875 inches |
| Swing over Saddle Wings | 16.125 inches |
| Swing Over Cross Slide | 10.47 inches |

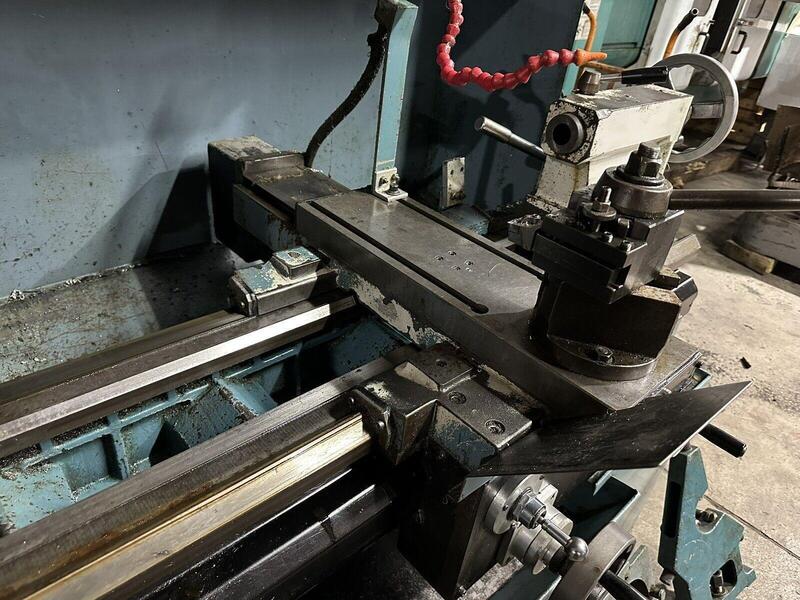

| Cross Slide Travel | 9 |
| Tool Section Max | 1" |
| Coolant | 4 Gallon |
| Gear Box | 2.5 Gallon |
| Bed Width | 12 inches |
| Bed Height | 11.5 inches |
| Spindle Nose | CAMLOCK D1-6 |
| Spindle Through Hole | 2 inches |
| Taper Reduction Sleeve | MT-4 |
| Spindle Diameter/ Front Bearing | 3.15 |
| Number of Spindle Speeds | 12 |
| Spindle Speed Range | 40-2200 Rpm |
| Spindle Taper | 12915 |

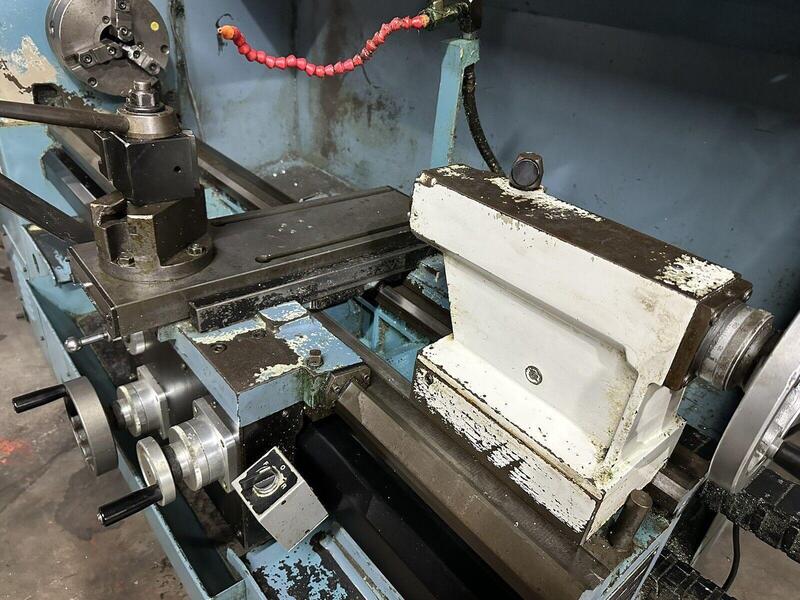

| Quill Travel | 6.25 inches |
| Quill Diameter | 2.3125 inches |
| Quill Taper Hole | MT-4 |
| Main Motor | 7.5 HP |
| Coolant Pump Motor | 1/8 HP |
Equipped With
Equipped With
Equipped With:

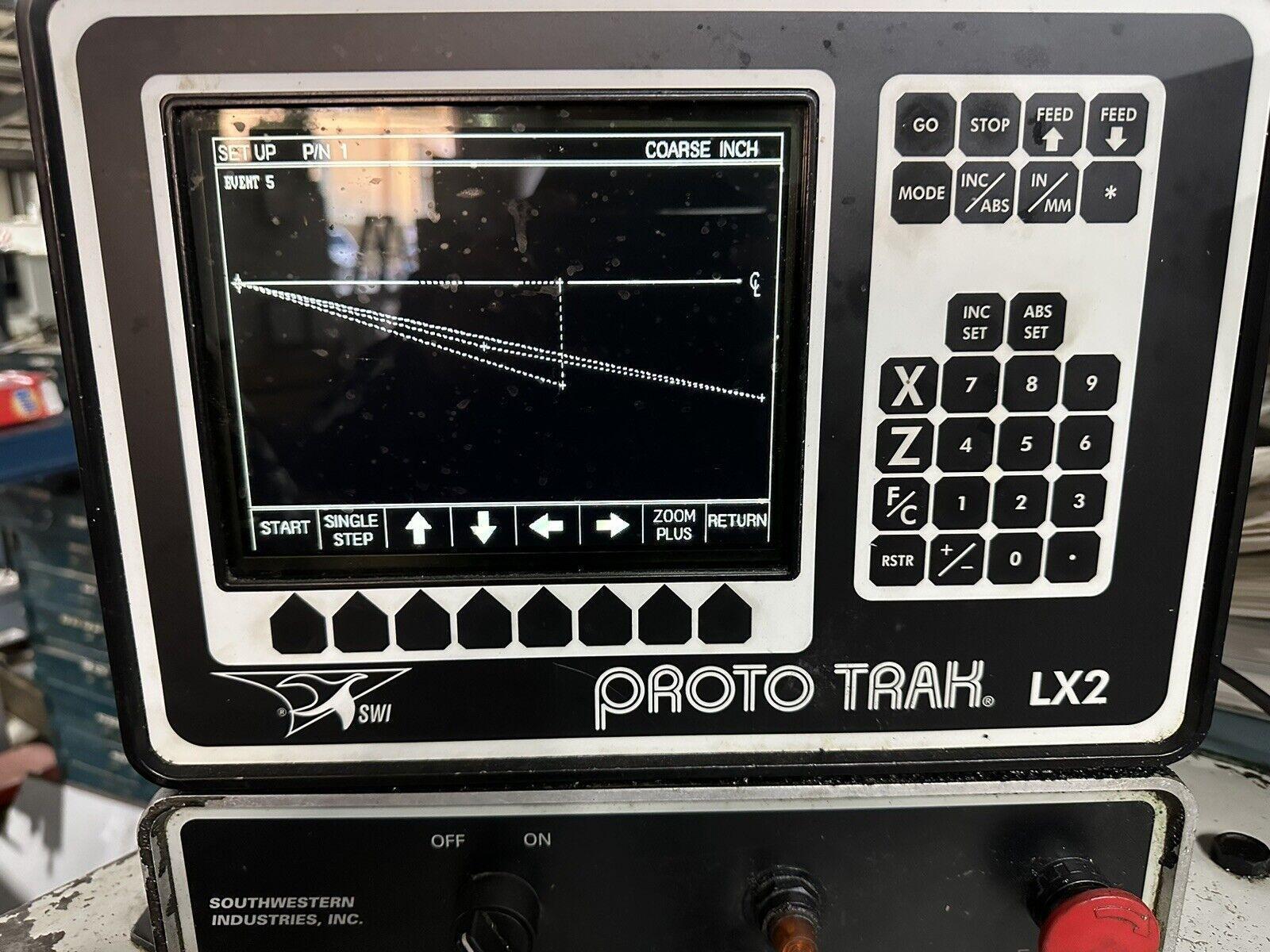

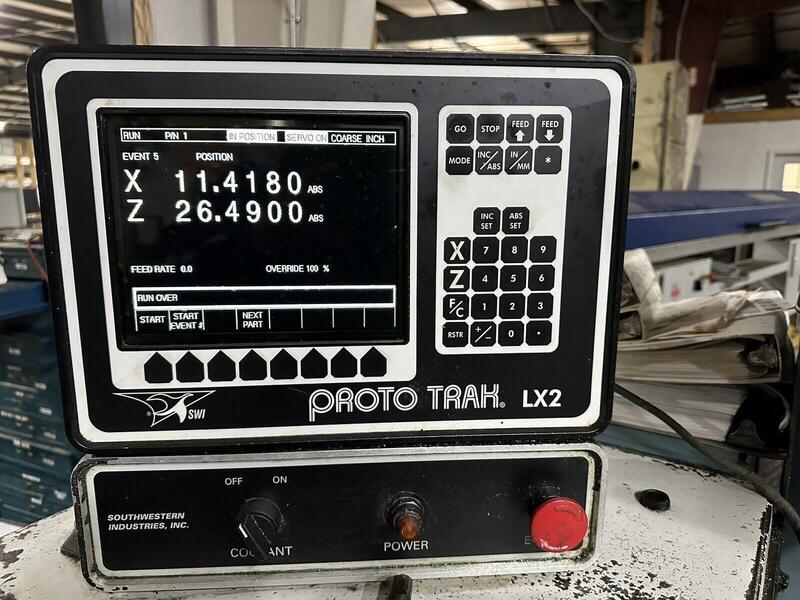

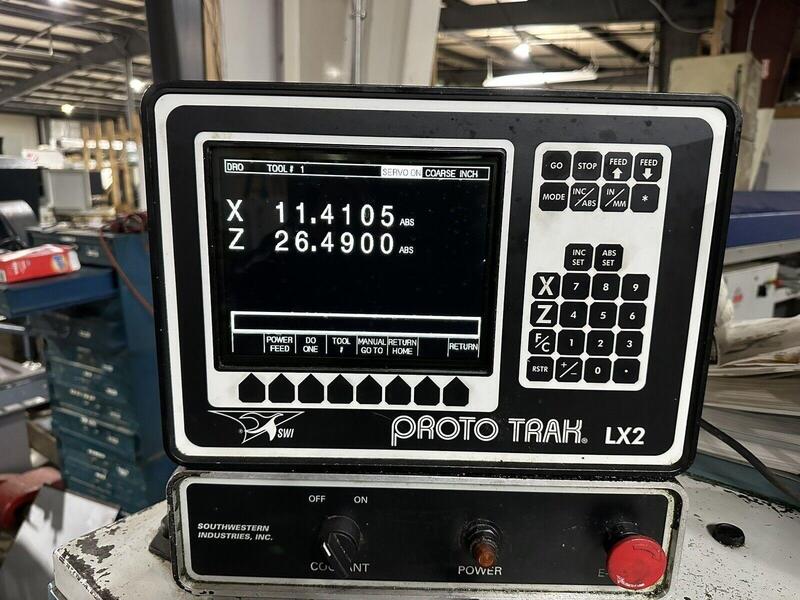

- ProtoTRAK LX2 Control Hardware:
* 2 -axis CNC, 2-axis DRO
* D.C. Servo Motors rated at 280 in-oz continuous torque for X and 560 in-oz for the Z axis.
* Precision ground ballscrews in the carriage and cross-slide to ensure smooth accurate contours without backlash.
* Feedrate override of programmed feedrate and rapid.
* Polycarbonate sealed membrane and gasket sealed control enclosure to lock out contamination.
* RS232 port for interface to computers.
* Modular design simplifies service and maximizes uptime.
* Double floppy drive – for system disk and program storage.
- 3 Jaw Chuck

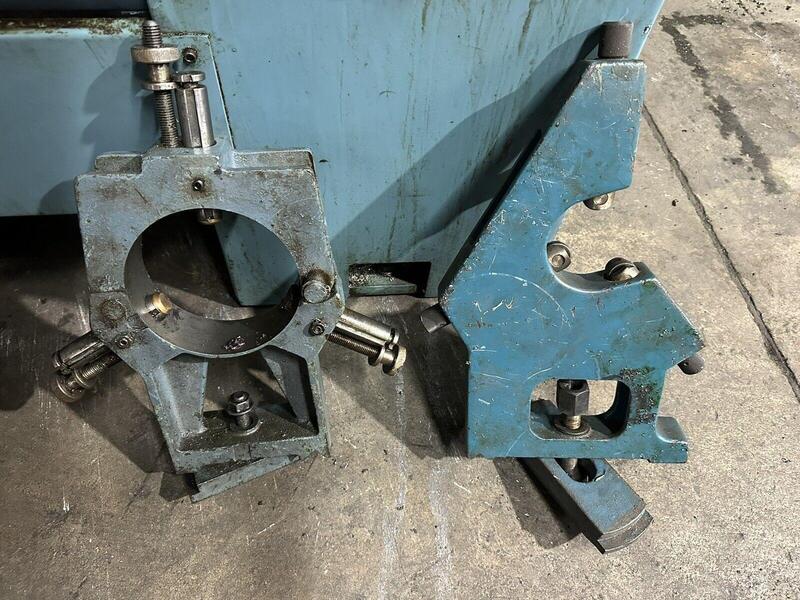

- With 2 Steady Rest
- ProtoTRAK LX2 Control Hardware:
* 2 -axis CNC, 2-axis DRO
* D.C. Servo Motors rated at 280 in-oz continuous torque for X and 560 in-oz for the Z axis.
* Precision ground ballscrews in the carriage and cross-slide to ensure smooth accurate contours without backlash.
* Feedrate override of programmed feedrate and rapid.
* Polycarbonate sealed membrane and gasket sealed control enclosure to lock out contamination.
* RS232 port for interface to computers.
* Modular design simplifies service and maximizes uptime.
* Double floppy drive – for system disk and program storage.
- 3 Jaw Chuck
- With 2 Steady Rest
