SolaHD DIN Rail Power Supply SDN 10-24-100C

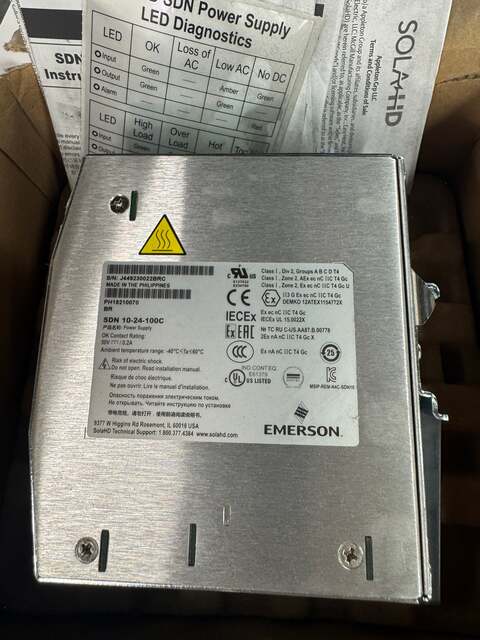

The SolaHD SDN 10-24-100C is a DIN rail mounted AC to DC switching power supply from the SDN C Performance Series, manufactured under the Emerson brand. It delivers 24 VDC regulated output at 10 amps continuous, with a total rated output of 240 watts. The unit accepts a universal input range of 115/230 VAC with active Power Factor Correction and supports international single phase line voltages from 85 to 264 VAC. Part number SDN 10-24-100C carries serial number J449230022BRC and date marking PH18210070 on the nameplate. The SDN C series is designed for harsh industrial environments and carries an extensive list of certifications visible on the nameplate, including UL Listed (cULus), CE, CCC, EAC, KC, and DNV GL marine approval. Hazardous location ratings include Class I Division 2 Groups A B C D T4, Class I Zone 2 AEx ec nC IIC T4 Gc, ATEX II 3 G Ex ec nC IIC T4 Gc (DEMKO 12ATEX1154772X), and IECEx UL 15.0022X. Ambient operating temperature range is 40 C to 60 C. The OK contact relay is rated 50 VDC at 0.2 A. Front panel LED diagnostics indicate input, output, and alarm status, with color coded signaling for loss of AC, low AC, no DC, high load, overload, and over temperature conditions. Adjustable output voltage is accessible via the front face. The unit mounts to standard 35 mm DIN rail and is suitable for industrial machine control, process control, and panel build applications requiring hazardous location compliance.

Stock # 0526-02239
