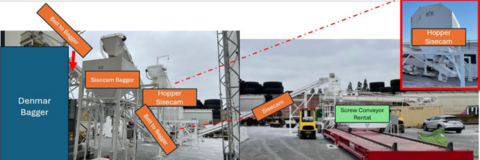

Soda ash transfer & bagging system, Rail Barge Truck Services Inc., complete package, 2021

Soda ash material handling and bagging system. Installed in 2021 and designed for bulk transfer, surge capacity, dust control, and bagged product output. The package features multiple 24" x 38'-8" enclosed conveyors (7.5 HP), a 17-ton surge hopper (8'-6" square x 18'-2" high) with a 60 discharge angle, and several 12" slide gates for flow control. A self-leveling automated bagging system eliminates the need for foundations, supported by a 32' x 55' fabric building for weather protection. The UMA 100 dust collectors maintain compliance with dust and emissions standards. Also included are a 20 HP air compressor and dryer system, push-button controls with integrated HVAC and lighting, a container wagon with hydraulic drive, and a complete set of spares: belts, bearings, belt puller, splicing kit, FormPac components, and vibrators. Ideal for processing soda ash, salt, lime, and other powdered materials.
Basis: FOB
