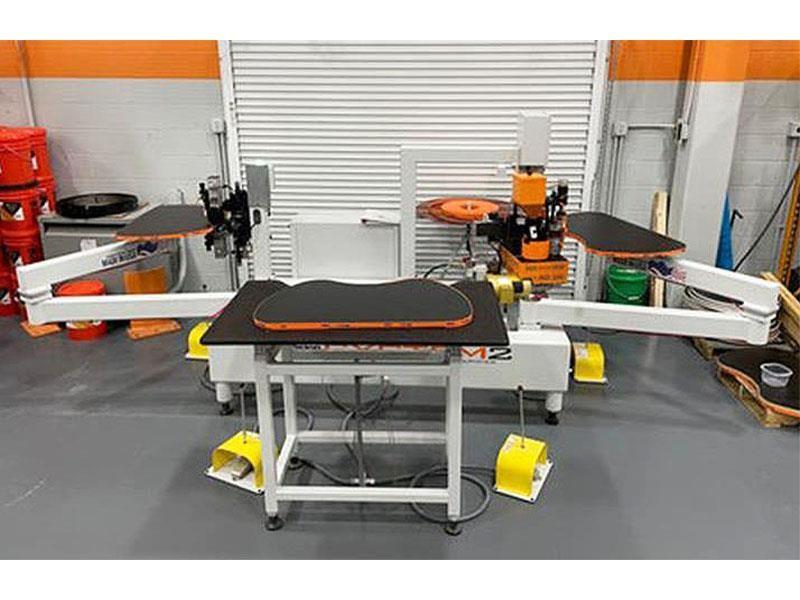

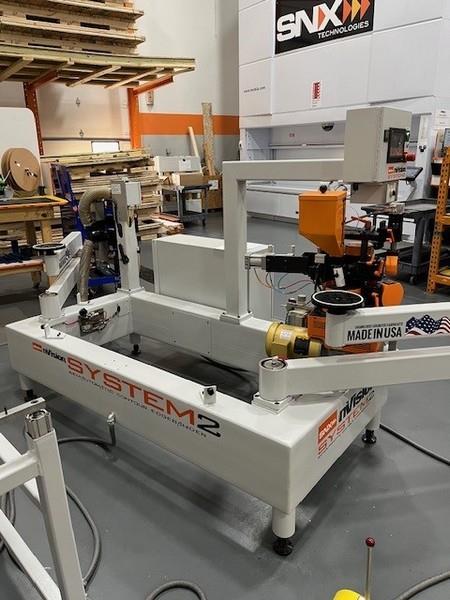

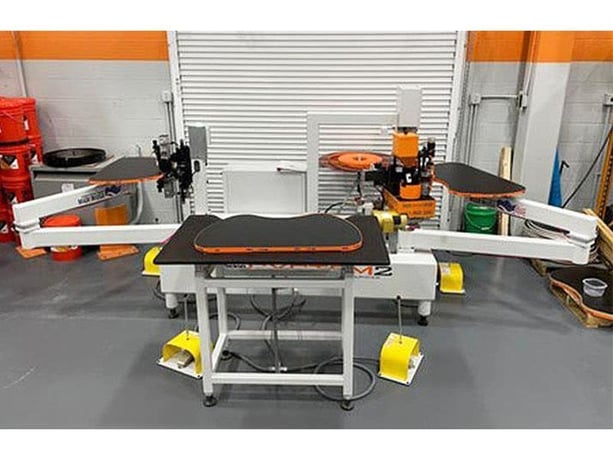

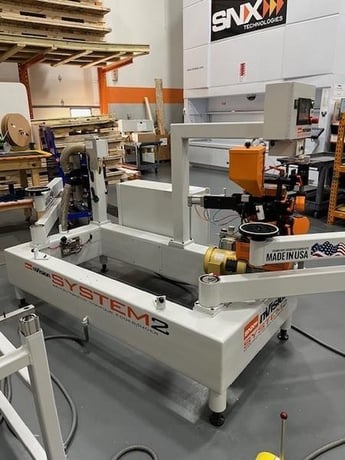

SNX #nVision-System2, Contour Edgebander, Triax 3-Axis Laser, 94" x 94" Work Area, 0.4"-2.36" Thick, 10-60 mm Panel, 2017

SNX nVision System2: Contour Edgebander + Optional Dual Telescoping Arms for simultaneous Contour Banding & Trimming -- Specifications Curved (Contour) Edgebander allows 360 edgebanding to contoured (shaped) panels.Edgebanding is applied automatically as part is advanced past the edgebanding Workstations via turntable.Reduced learning curve/expertise for operation as Operator: Simply loads part to vacuum turntable; then activates the edgebanding cycle. -- Working Capacity"nVision" Contour Bander can band a min. material size of 150 mm (6") diameter.Max. material size: 2,400 x 2,400 mm (94" x 94"); Max. material weight: 04.5 kG (230 Lbs).Material thickness from: 10 - 60 mm (0.4" - 2.36"); banding thickness from 0.5 mm thin tape w/low temp adhesive - 3 mm tape. -- Radii CapacityMin. internal (inside) radius: 80 mm (3.14"); min. external (outside) radius: 30 mm (1'-18") Based on 1 mm thick edge tape. ● Edgebanding thickness: Min.1 mm = R 30 mm.● Edge thickness: Min. 2 mm = R 50 mm.● Edge thickness: Min. 3 mm = R 80 mm.Panel thickness: 10 - 60 mm With edge thickness 1 mm.Panel thickness: 10 - 60 mm With edge thickness 2 mm.Panel thickness: 10 - 45 mm With edge thickness 3 mm.IMPORTANT: ALL minimum & maximum radii are affected by tape thickness, quality of adhesive, and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape, semi, or rigid. -- Equipped with:(1) Thermal regulated Glue Pot heated via: (2) 800-Watt heating elements with electronic temperature controls; holds up to 1 kG (2.2 Lbs) of granules. (2) Pressure rollers to copy the shape of the piece; automatic guillotine for coiled material up to 3 mm (0.11") thickness & 57 mm height (0.125" - 2.25"). -- Features "TRIAX 3-AXIS" Laser System (patented): Tighter butt joints & easy length identification with closed parts without the need for additional length measurement.Laser also detects: Tight radius & automatically slows the speed + resume the set speed when the detected radius has passed.Machine is also equipped with: Foot pedal for manual control/intervention. Motorized turntable for: Automated edgebanding application to large panels.(2) "Heavy-Duty" articulating arms: Support the parts during edgebanding & trimming; arm has a large interchangeable Vacuum Pod to secure panels during edging & trimming.NOTE: Panels can be irregular in shape but must conform to the min. tolerances of inner & outer radii and fit within the work area. -- Complete with: ● Top & Bottom Trimming Unit● Centralized Control Panel with: Simple PLC Touchscreen Interface with individual Controls for all stations to enable manual feeding of panels if desired ● Banding Station ● Edgeband Coil Stand● Standard-Size vacuum pod for articulated arm ● 80 mm Dia. (3") dust extraction outlet ● Foot pedal activation/de-activation control ● Larger feed roller ● QC Glue tank with sensor. -- Options include:(1) A
