Description

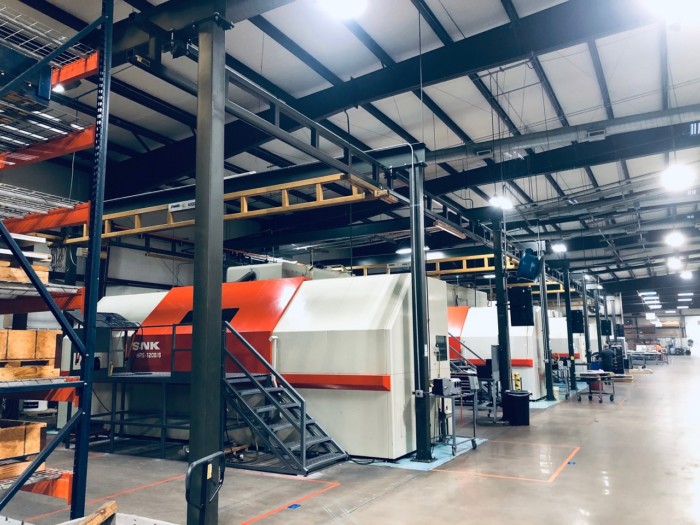

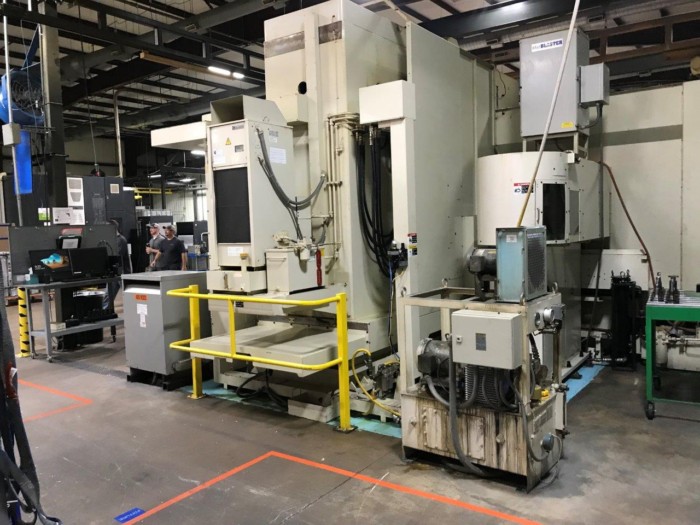

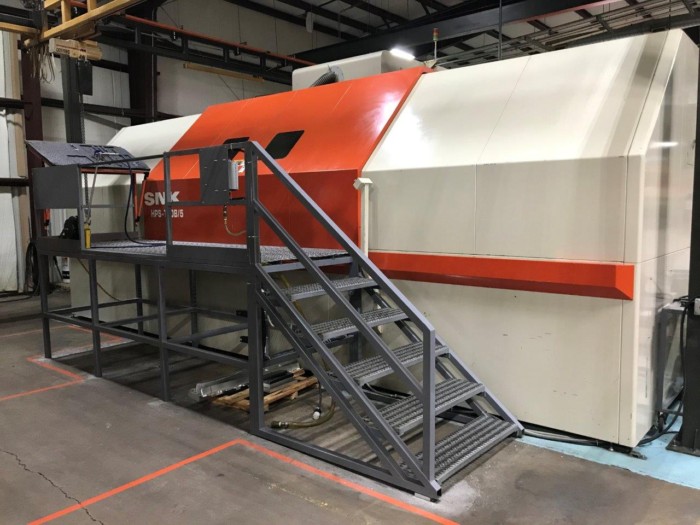

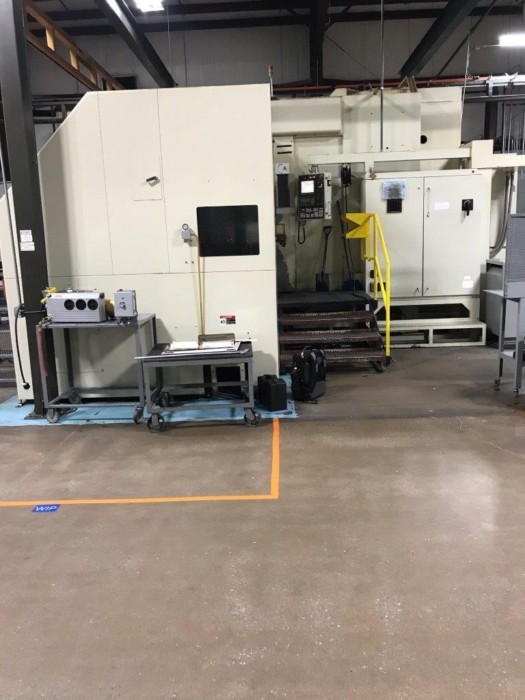

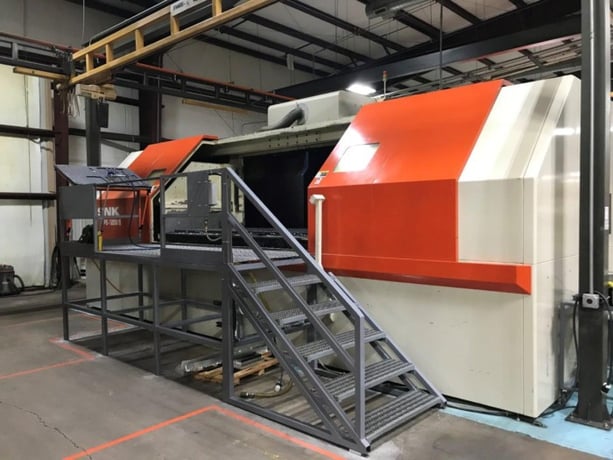

SNK HPS 120B 5 Axis High Speed Profiler
New: 2006 / Installed: 2008
Serial Number: K2688
Stock#20176-IS
Specifications:
Spindle Speeds: 150 to 12,000 RPM
Spindle Taper: 50 Taper
Spindle Motor: 50 / 40 HP
X-Axis Travel: 124" / 3,150mm
Y-Axis Travel: 52" / 1,320mm
Z-Axis Travel: 30" / 762 mm
A-Axis (Spindle Tilt): +/- 90 Deg
C-Axis (Spindle Rotation): +/- 270 Deg
X,Y,Z Axis Feed Rates: 1 to 393 IPM
X, Z Rapid Traverse Rates: 945 IPM
Y Axis Rapid Traverse Rate: 787 IPM
A,C Axis Feed Rates: 0 to 1800 DPM
Table Size: 48" x 120" / 1,220mm x 3,048mm
Table Weight capacity: 11,000 lbs
Equipped With:

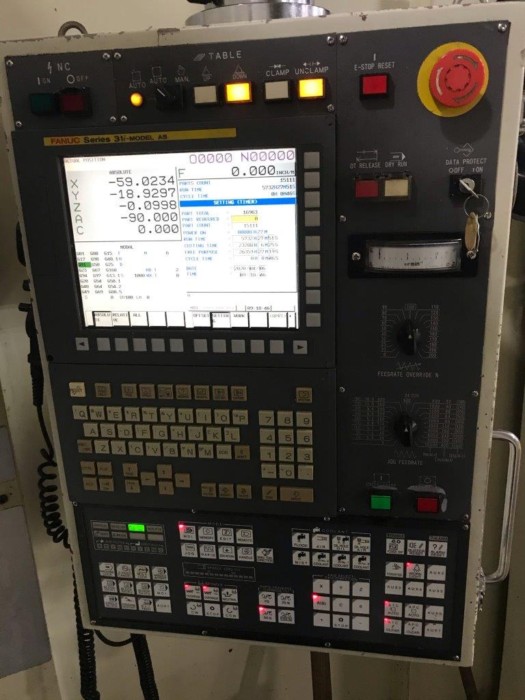

Fanuc 31iA5 CNC Control
40 Tool ATC
Table Positioning (0 deg for loading / 90 deg for machining)
Coolant
New: 2006 / Installed: 2008
Serial Number: K2688
Stock#20176-IS
Specifications:
Spindle Speeds: 150 to 12,000 RPM
Spindle Taper: 50 Taper
Spindle Motor: 50 / 40 HP
X-Axis Travel: 124" / 3,150mm
Y-Axis Travel: 52" / 1,320mm
Z-Axis Travel: 30" / 762 mm
A-Axis (Spindle Tilt): +/- 90 Deg
C-Axis (Spindle Rotation): +/- 270 Deg
X,Y,Z Axis Feed Rates: 1 to 393 IPM
X, Z Rapid Traverse Rates: 945 IPM
Y Axis Rapid Traverse Rate: 787 IPM
A,C Axis Feed Rates: 0 to 1800 DPM
Table Size: 48" x 120" / 1,220mm x 3,048mm
Table Weight capacity: 11,000 lbs
Equipped With:
Fanuc 31iA5 CNC Control
40 Tool ATC
Table Positioning (0 deg for loading / 90 deg for machining)
Coolant
Get Your Price from Industrial Machine Tools Inc!
