For Sale by Prestige Equipment Corp
Surplus Record Dealer Since 1991
Location: Melville, NY
Contact Paul Lashin
Phone Number: 631...> Show Phone Number 631-249-5566
Let the seller know you found their listing on Surplus Record!

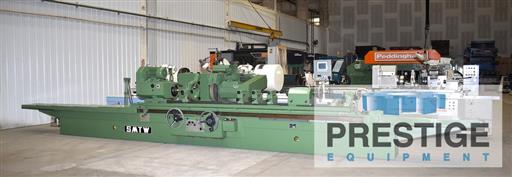

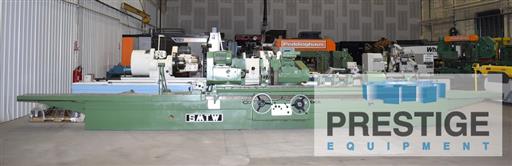

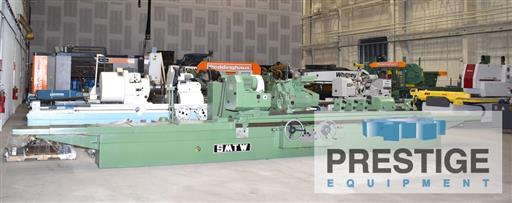

Description
Serial Number: 12
CAPACITY:
Max. Swing: 20"
Max. Distance Between Centers: 120"

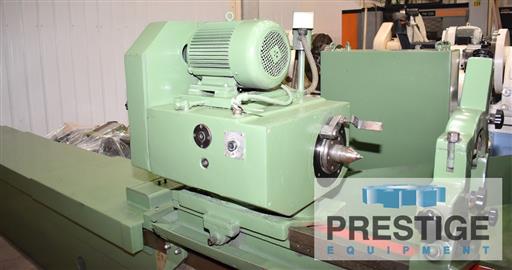

Variable Work Head Speeds: 23-250 RPM

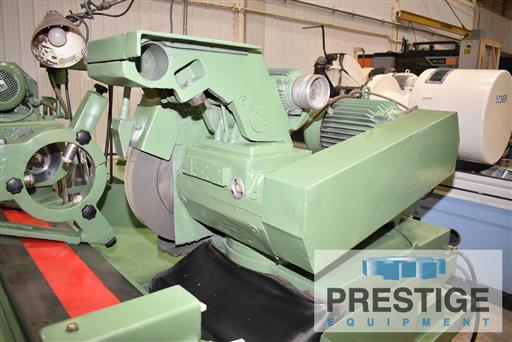

Grinding Wheel Size: 20" x 3" X 12"
Grinding Wheel Speeds: 665/1330 RPM
Grinding Wheel Motor: 7.5 / 10 HP
Grinding Head Swivel: +/- 30 Degrees
Internal Grinding Head Speed: 1,000 - 6,000 RPM
Internal Grinding Head Motor: 2 HP
Table Swivel: -2/+5 Degrees

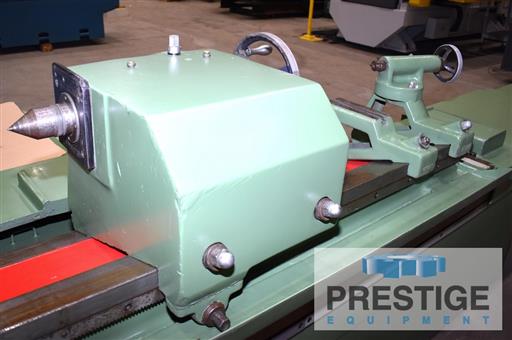

Tailstock Taper: 6 MT
Power Rapid Traverse to Wheel Head: 30 IPM
Approximate Weight: 30,000 lbs.
Dimensions: 416" LR x 96" FB
Equipped With:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System

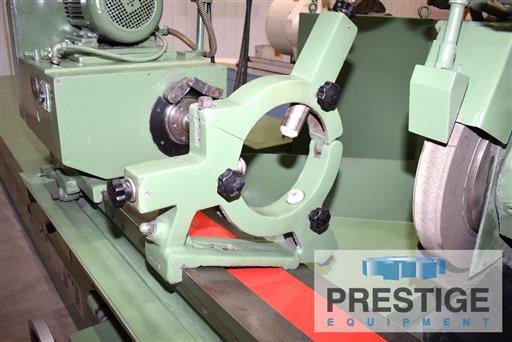

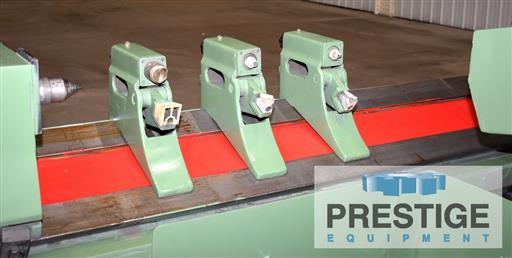

3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling
NOTE:
Inspect In Our Philadelphia PA Warehouse
Features:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System
3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling
CAPACITY:
Max. Swing: 20"
Max. Distance Between Centers: 120"
Variable Work Head Speeds: 23-250 RPM
Grinding Wheel Size: 20" x 3" X 12"
Grinding Wheel Speeds: 665/1330 RPM
Grinding Wheel Motor: 7.5 / 10 HP
Grinding Head Swivel: +/- 30 Degrees
Internal Grinding Head Speed: 1,000 - 6,000 RPM
Internal Grinding Head Motor: 2 HP
Table Swivel: -2/+5 Degrees
Tailstock Taper: 6 MT
Power Rapid Traverse to Wheel Head: 30 IPM
Approximate Weight: 30,000 lbs.
Dimensions: 416" LR x 96" FB
Equipped With:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System
3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling
NOTE:
Inspect In Our Philadelphia PA Warehouse
Features:
Internal Grinding Attachment
Table Taper Swivel
Dresser
Coolant System
3 Point Steady Rest
12" 4-Jaw Chuck
Misc. Tooling
