SKF Deep Groove Ball Bearing 6207-2RS1NR/C3GJN 35 x 72 x 17 mm

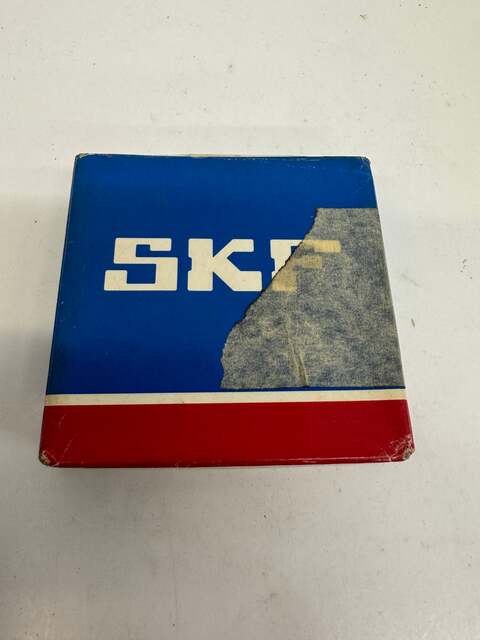

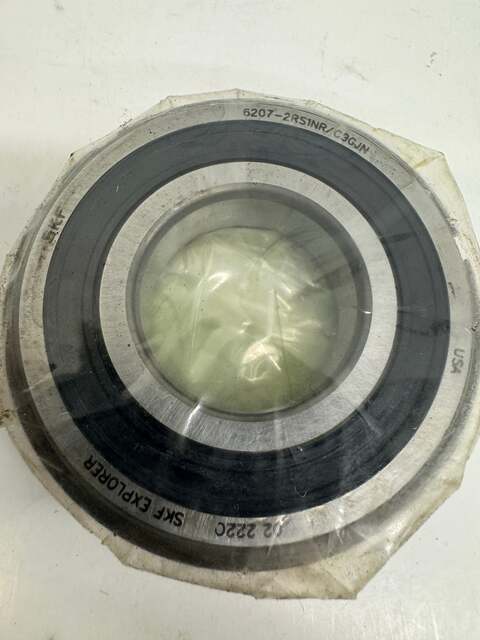

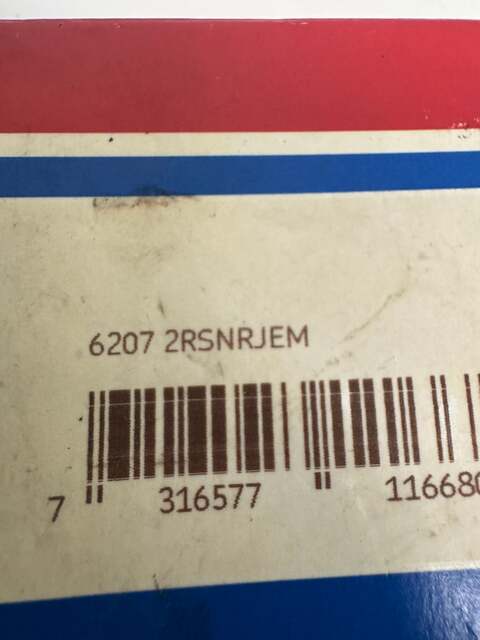

The SKF 6207-2RS1NR/C3GJN is a single-row deep groove ball bearing from SKF's Explorer series, manufactured in the USA and packaged under the JEM designation for the US electric motor market. The part number on the bearing outer ring reads 6207-2RS1NR/C3GJN; the box is marked 6207 2RSNRJEM, both referring to the same component. Published dimensions are 35 mm bore, 72 mm outer diameter, and 17 mm width. The 2RS1 designation indicates double contact seals on both sides using sheet-steel-reinforced acrylonitrile-butadiene rubber (NBR). The NR suffix denotes a snap ring groove in the outer ring with a matching snap ring included, allowing the bearing to be positively located in a housing without a shoulder. The C3 suffix indicates a larger than standard radial internal clearance, suited for applications where thermal expansion is a factor. The GJN grease designation specifies a di-urea high-temperature lubricant rated for a temperature range of approximately negative 40 to 150 degrees Celsius. This combination of features makes the 6207-2RS1NR/C3GJN well suited for electric motors, pumps, gearboxes, and other rotating machinery requiring sealed, snap-ring-retained bearing assemblies. The unit is presented in an original SKF box with visible barcode 316577. The bearing is wrapped in its original protective plastic wrap.

Stock # 0426-01264
