Description

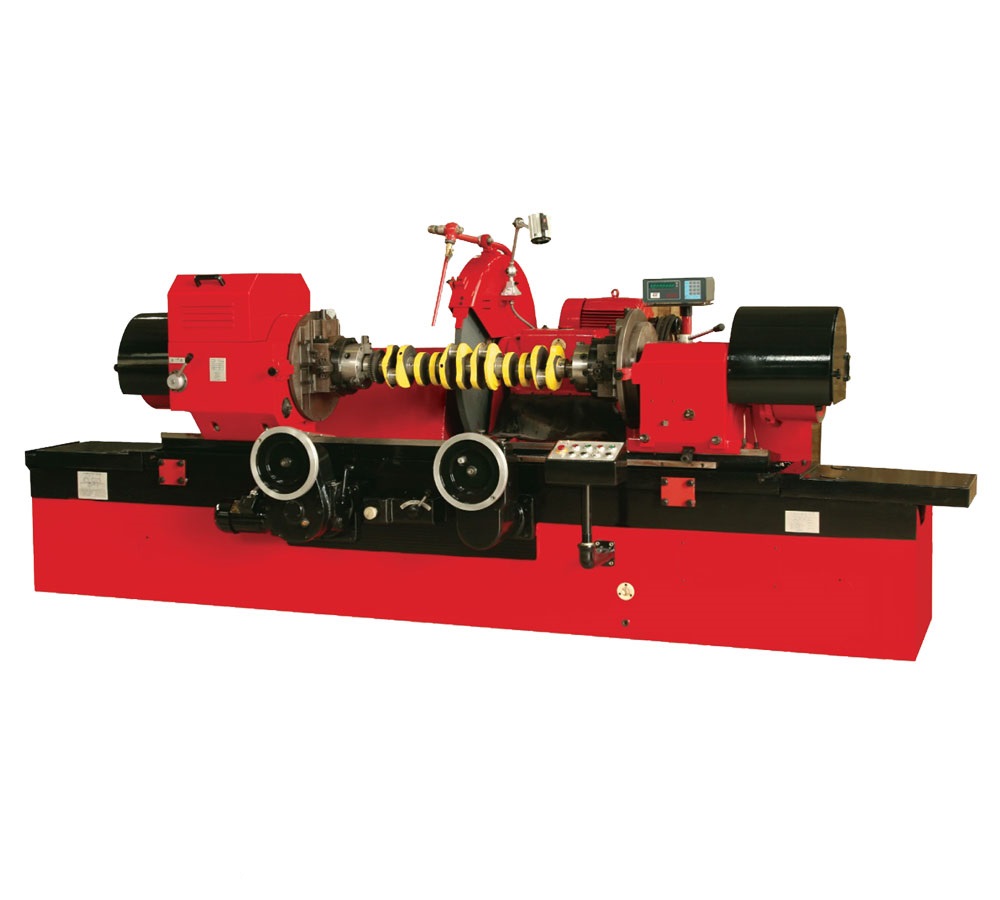

| Manufacturer | SJMC | |
|---|---|---|
| Model | MQ8260C×1600 | MQ8260C×1800 |
| Max. Work swing diameter | 600×1600 | 600×1800 |
| Max. Swing over table, mm | 600 | 600 |
| Processed neck diameter with steady rest, mm | 30*100 | 30*100 |
| Throw of crankshaft, mm | 110 | 110 |
| In 3-jaw chuck, mm | 1400 | 1600 |
| Between centers, mm | 1600 | 1800 |
| Max. work weight, kg | 120 | 120 |
| Center height, mm | 300 | 300 |
| Working speed of rotation of a shaft, rpm | 25/45/95 | 25/45/95 |
| Cross travel, mm | 185 | 185 |
| Fast travel, mm | 100 | 100 |
| Flywheel fast feed, mm | 1 | 1 |
| The price of division of the stone supply dial, mm | 0.005 | 0.005 |
| Grinding wheel rotation speed, rpm | 740/890 | 740/890 |
| Peripheral speed of rotation of the grinding wheel, m/s | 25.6-35 | 25.6-35 |
| Grinding wheel size, mm | 900*32*305 | 900*32*305 |
| Table travel per turn of the flywheel coarse feed, mm | 5.88 | 5.88 |
| Table travel per handwheel turn fine feed, mm | 1.68 | 1.68 |
| Total engine power, kW | 9.82 | 9.82 |

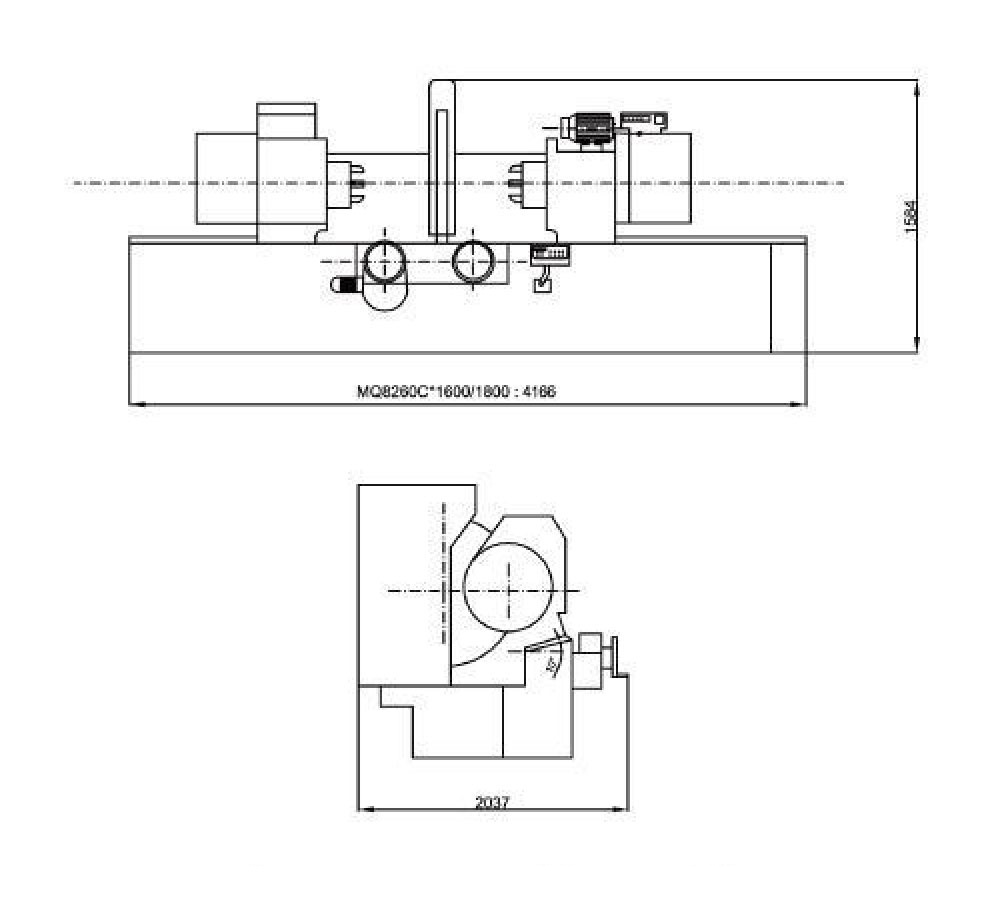

| Machine dimensions (L*W*H), mm | 4166*2037*1584 | 4166*2037*1584 |
| Package dimensions (L*W*H), mm | 4300*2200*2000 | 4300*2200*2000 |
| Weight, kg | 6000 | 6200 |
| Machine accuracy (ellipse), mm | 0.005 | 0.005 |
| Machine accuracy (taper), mm | 0.01 | 0.01 |
| Roughness, um | 0.32 Ra | 0.32 Ra |
| Production time, working days | 120 | 120 |
Get Your Price from MachTrade!
