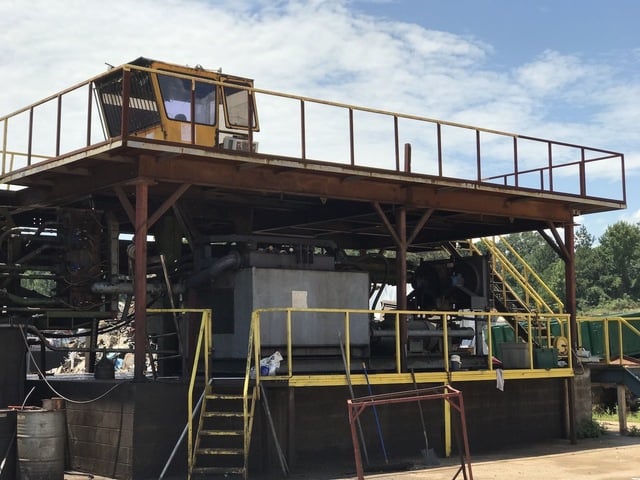

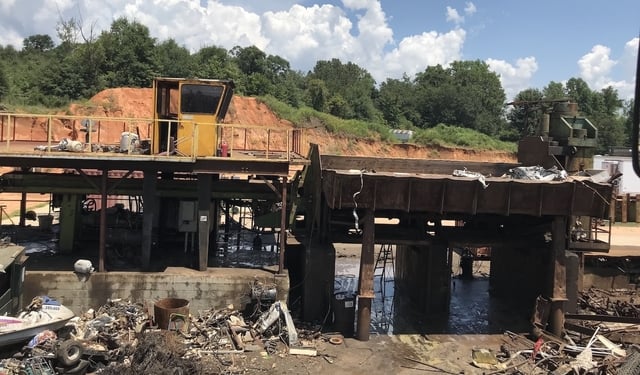

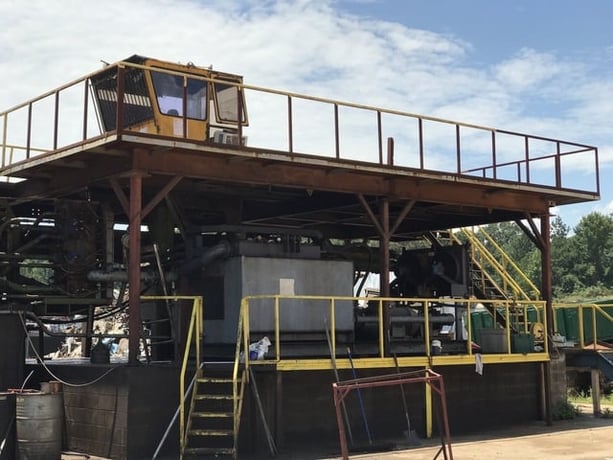

Sierra, 700 ton shear baler, (2) 125 HP electric motors, 1750 RPM, 440-480 V., manual & automatic cycles, used

Model 700T
Stationary
Approximate Specifications Per Factory Literature:
Power:

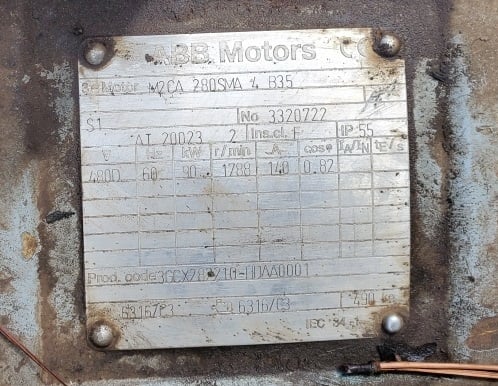

2-90kW Electric Motors (Approx 120HP), 1788 R.P.M.
440-480 Volts, 3 Phase, 60 Cycle (380V 50HZ Upon Request)
Total Maximum Amperage Draw 363 Amps
Soft Start Electric System ( Y – DELTA )
Master Electrical Panel With PLC, UL Listed Located on Operators CabA
Manual and Automatic Cycles
Hydraulic:
2- Rexroth Variable Displacement Pumps
98.7 Gallons Per Minute Each
2- Denision Double Vane Type Pumps
100 Gallons Per Minute Each
Maximum Operating Pressure 4300 P.S.I.
100 % Filtration With 20 Micron Filters
External Hydraulic Filtration 10 Microns
Complete System Relief Protection
Directional Valves Electronically Operated
Hydraulic Oil Cooling (2 Radiators) and Heating
1190 Gallons Hydraulic Tank
Auto-Lube for Shear Head & Pre-Compression
Cylinder Forces:
Shear, 747 Tons
Pre-Compression, 145 Tons
Main Compression, 180 Tons
Folding Box, 6 Cyc. , 240 Tons Each Side ( 6x 80 )
Folding Box Dimensions:
23'0" L. X 7'7" W. X 5'7" D. Open
23'0" X 31" X 20" Closed
Shear Throat Opening 33" X 22"
Bale/Log Size: (Approx.)
31" X 20" X Variable
Bale Density: 75-95 LBS/CU FT Average
Log Density: 25-35 LBS/CU FT Average
Shear Capacity: 9 CUTS Per Minute Empty
5 Cuts Per Minute at 24" Cuts
Approx Weight, 120 Tons
New in 1997
