Siemens HFX3P250 Molded Case Circuit Breaker 600V Untested Surplus

Product Specifications

• Manufacturer: Siemens
• MPN / Model: HFX3P250
• Product Type: Molded Case Circuit Breaker
• Frame Type: HFGA, FG Frame
• Configuration: Bolt On
• Poles: 3
• Amperage: 250A
• Voltage Rating: 600V AC
• Frequency: 50/60 Hz
• Trip Unit: Trip Unit 545 Digital Solid State Electronic, LSI Protection
• Trip Unit Firmware: V1.05
• Rated Continuous Current (In): 250A
• Instantaneous Pickup (Ii): 2,750A
• UL Interrupting Capacity: 100kA at 240V, 65kA at 480V, 20kA at 600V
• IEC Interrupting Capacity (Icu): 100kA at 220/240V, 70kA at 380/415V, 12kA at 690V
• IEC Rated Service Capacity (Ics): 75kA at 220/240V, 70kA at 380/415V, 6kA at 690V
• Conductor Range: CU/AL 1/0 to 350 kcmil (50 to 150 mm squared), 60/75 degrees C
• Terminal Torque Rating: 275 Lb.In. (31 Nm)
• Reverse Feed Rated: Yes
• Lugs Included: No
• Standards: IEC 60947-2, UL Issue No. XR-1682, CAT.A
• Certifications: UL Listed, HACR Type

Product Description

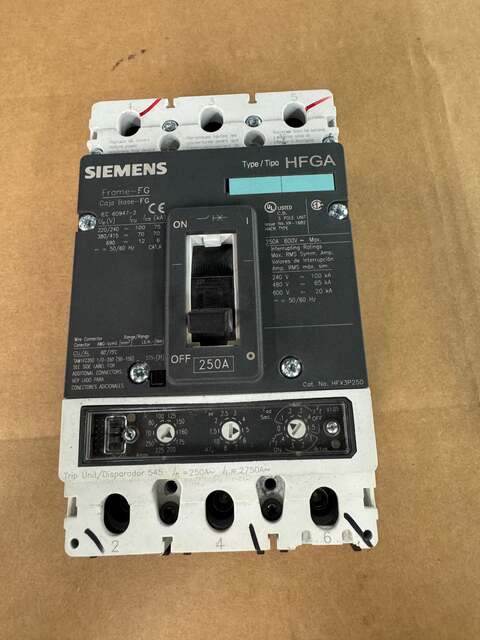

The Siemens HFX3P250 is a three-pole molded case circuit breaker in the FG frame class, rated 250 amperes at 600 volts AC and cataloged under Type HFGA. Part of the Siemens VL Series in a bolt-on configuration, the breaker incorporates a Trip Unit 545 Digital Solid State Electronic trip unit providing LSI protection with Long Time, Short Time, and Instantaneous trip functions. The trip unit is rated In=250A with an instantaneous pickup of 2,750A (Ii) and includes field-adjustable amplitude and time delay settings accessible through dials on the front module panel (firmware version V1.05).

UL interrupting capacity is rated at 100kA symmetrical at 240V, 65kA at 480V, and 20kA at 600V under Issue No. XR-1682. IEC 60947-2 certified values are Icu=100kA and Ics=75kA at 220/240V; Icu=70kA and Ics=70kA at 380/415V; and Icu=12kA and Ics=6kA at 690V. The unit carries UL listing and HACR Type designation, CAT.A classification, rated for 50/60 Hz operation.

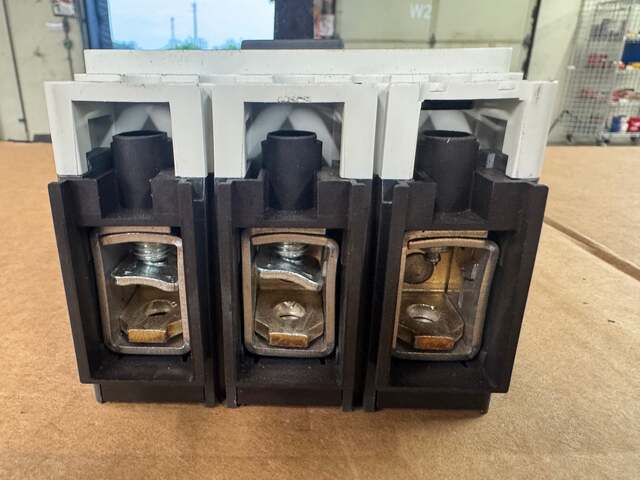

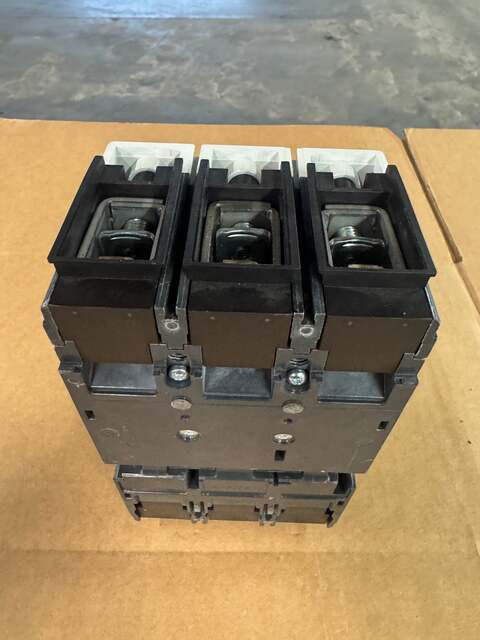

Conductor terminations accept CU/AL wire from 1/0 to 350 kcmil (50 to 150 mm squared) at a rated temperature of 60/75 degrees C, torqued to 275 lb.in. (31 Nm). The HFX3P250 is rated for reverse feed applications and does not include lugs.
