Siemens #6AV6-644-0AA01-2AX0, SIMATIC MP 377 12" Touch Panel HMI, 800 x 600 TFT, 24 VDC, Type 4X/12

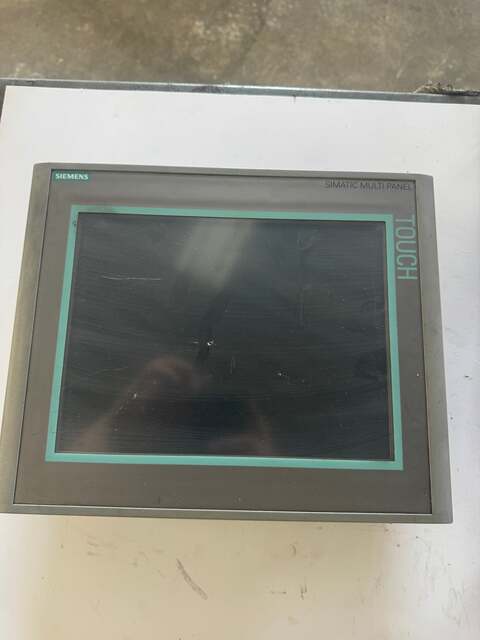

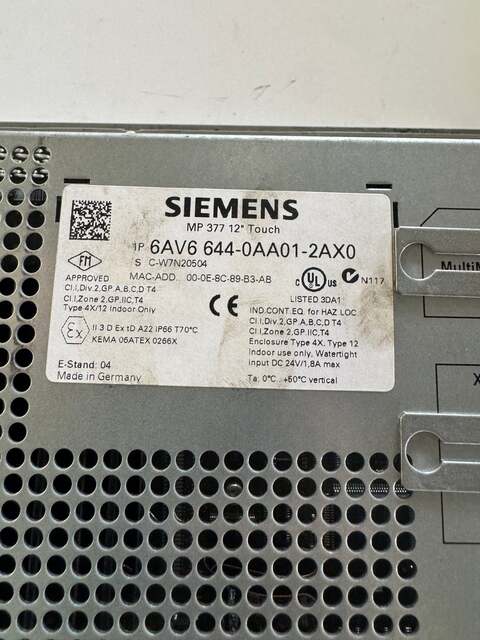

The Siemens SIMATIC MP 377 12" Touch is a multi-panel HMI operator interface unit designed for industrial automation and process visualization applications. Part number 6AV6 644-0AA01-2AX0, serial number C-W7N20504, E-Stand 04, manufactured in Germany. The panel features a 12.1-inch TFT color touchscreen display with 800 x 600 pixel resolution, running Windows CE 5.0. Input power is 24V DC at 1.8A maximum (36W). The unit carries UL listing (LISTED 3DA1), CE marking, and ATEX certification (KEMA 06ATEX 0266X, Ex II 3 D Ex tD A22 IP66 T70 degrees C). It is rated for Class I Div. 2 Groups A, B, C, D T4 and Class I Zone 2 Group IIC T4 hazardous locations. Enclosure rating is Type 4X / Type 12, indoor use only, watertight construction. Interfaces include RS-422, RS-485, and dual RJ45 Ethernet ports. The unit is configurable via Siemens WinCC Flexible 2007 with 12 MB user memory. Operating temperature range is 0 degrees C to 60 degrees C vertical mounting. MAC address 00-0E-8C-89-B3-AB. This product was discontinued by Siemens effective January 2015 and is offered as surplus equipment. Buyer is responsible for confirming software compatibility and hardware revision requirements for their specific application.

Stock # 0426-02081
