Siemens 1FK7063-2AF71-1RH0 Servo Motor - NEW

The Siemens 1FK7063-2AF71-1RH0 is a SIMOTICS S-1FK7 compact synchronous servo motor rated at 2.3 kW with a nominal torque of 7.3 Nm and a stall torque of 11 Nm. Rated current is 5.6 A with a stall current of 8 A at a DC link voltage of 272 V. Rated speed is 3000 RPM with a maximum speed of 7200 RPM. The motor is naturally cooled and carries an IP64 degree of protection with Thermal Class 155 (F) insulation.

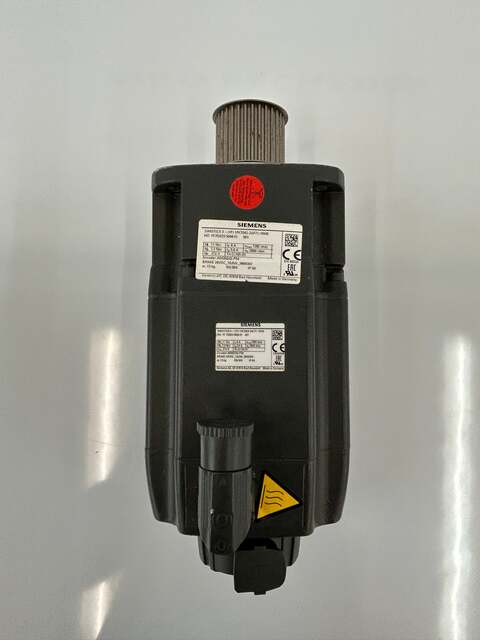

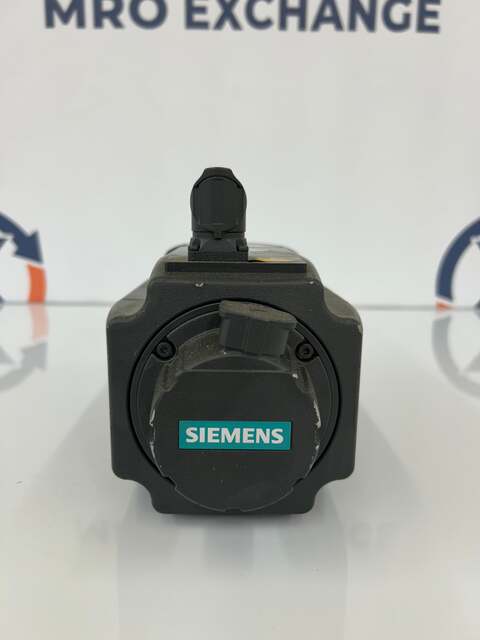

This motor is equipped with an AM20DQI multi turn absolute encoder providing 20 bit single turn resolution combined with 12 bit multi turn tracking, communicated through the DRIVE CLiQ interface for use with Siemens SINAMICS S120 drive systems. A 24 VDC, 18.0 W holding brake is integrated for axis hold functionality. The factory serial designation on the nameplate is YF FD623 506801 001, with serial reference 3606302 and revision marker RN 004.

Construction includes a 63 mm shaft height, a 126 x 126 mm flange (Flange 1, IMB5 mounting orientation suitable for IM V1 and IM V3 positions), and a smooth plain shaft with tolerance N. The power connector is rotatable for installation flexibility. Mass is listed at 13 kg on the nameplate.

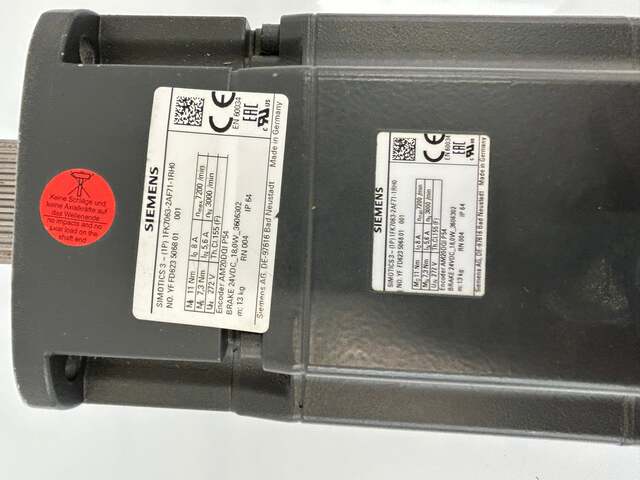

The 1FK7063 platform is used across CNC machining centers, robotics, packaging machinery, and general industrial automation applications requiring closed loop servo control. EN 60034, CE, EAC, and cULus markings are present on the rating plate. Country of manufacture is Germany.

Stock # 0226-041
