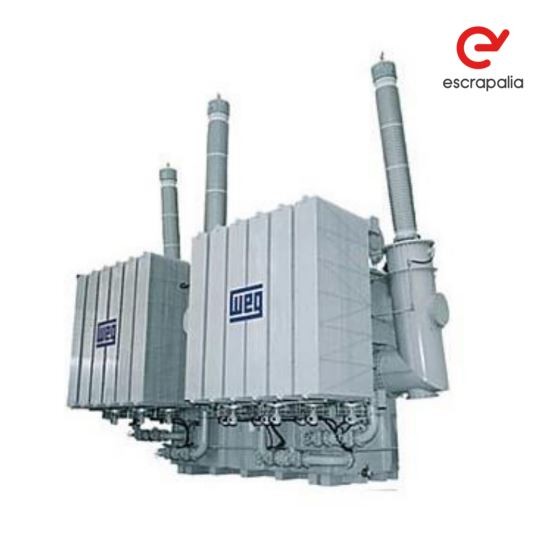

500 KV Weg, shunt reactor with all accessories, 23MVar

Online auction of Transformers and large power reactors:

Transformer 500/34.5 kV – 72/96/120 MVA - 2 units
Transformer 500/34.5 kV – 96/128/160 MV- 2 units
Shunt Reactor con todos los accesorios. 23MVar, 500kV - 6 Units

Details:

• Location: Puerto Brisa, La Guajira (Colombia).
• Condition: new material.
• Method of sale: online auction open to national and international companies.

• Auction opening date: 04/08/25
• Date of visits: from 05/06/25 to 05/08/25
• Auction Closing Date: 05/14/25
• Auction opening date: 04/08/25
• Date of visits: from 05/06/25 to 05/08/25
• Auction Closing Date: 05/14/25

Units: 6 Shunt Reactor with all accessories. 23MVar, 500kV

• Manufacturer: WEG.
• Manufacturing Standard: IEC 60076-6.
• Type of Installation: Exterior.
• Core Construction Type: With air gap.
• Assigned power: 23 MVAr.
• Assigned frequency: 60 Hz.
• Number of Phases: Single-phase.
• Type of Insulation and Cooling: It uses oil and the cooling method is ONAN (Oil Natural Air Natural).
• Type of Reactor: Line/Maneuverable.
• Grounding Method: Neutral reactor.
• Operating Voltages:
• High voltage: 500 kV/√3.
• Neutral: 115 kV.
• Maximum Operating Voltage: 550 kV / √3.
• Referred impedances: 3623.18 Ohm at 75°C and at the assigned voltage.
• Temperature Rise Limits:
• Average windings: 55°C.
• Top of the oil: 50°C.
• Hot Spot: 68°C.
• Dimensions for Transport:
• Height: 4.10 m.
• Width: 3.78 m.
• Length: 4.31 m.
• Mass of a Complete Reactor:
• Oil-free: 46,370 kg.
• With oil: 63,325 kg.
