Sheet Stack, Cincinnati Milacron, 2-roll, 18" dia.x 34" roll face, vert.stack, silent chain, 5HP, 1750DC motor, 18.131:1 ratio, #46357

Manufacturer Cincinnati
Model SHEET STACK
Type sheet stack
Stock # 46357

For Sale by Federal Equipment Company

Platinum Level Dealer
Surplus Record Dealer Since 1965

Description

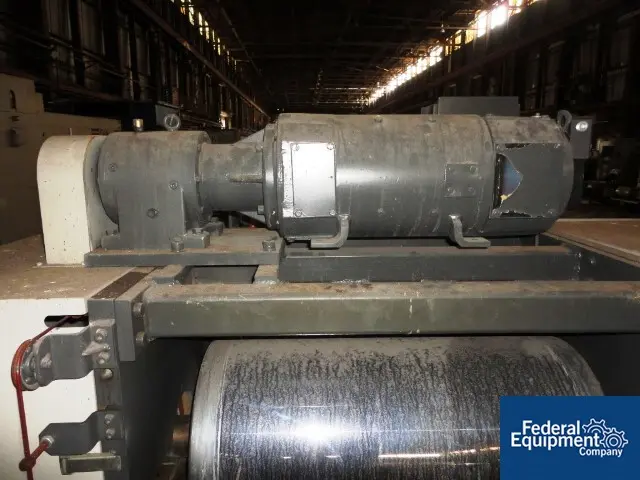

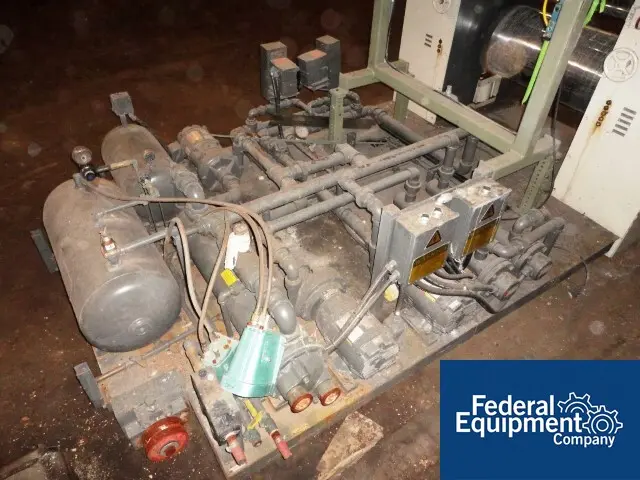

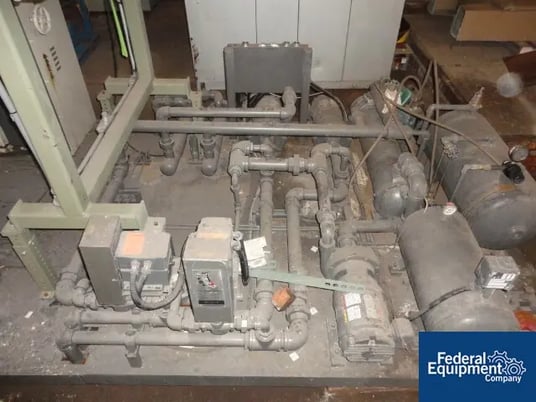

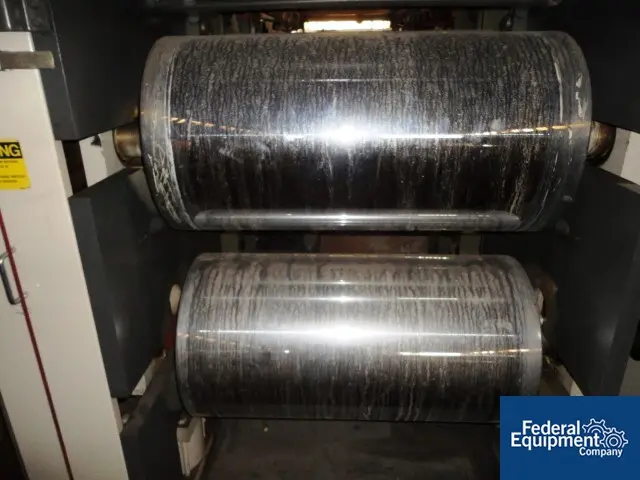

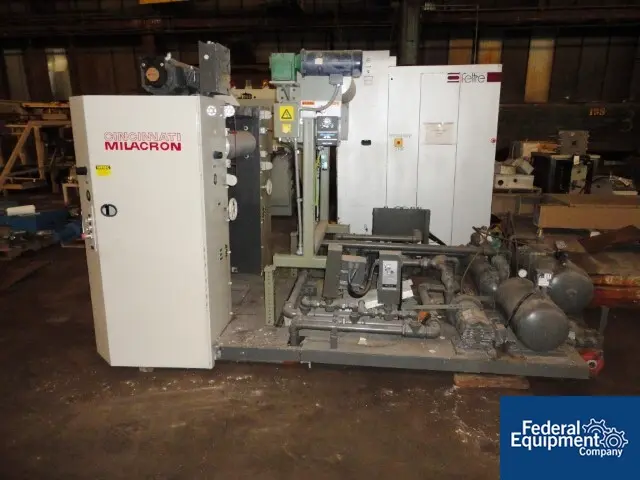

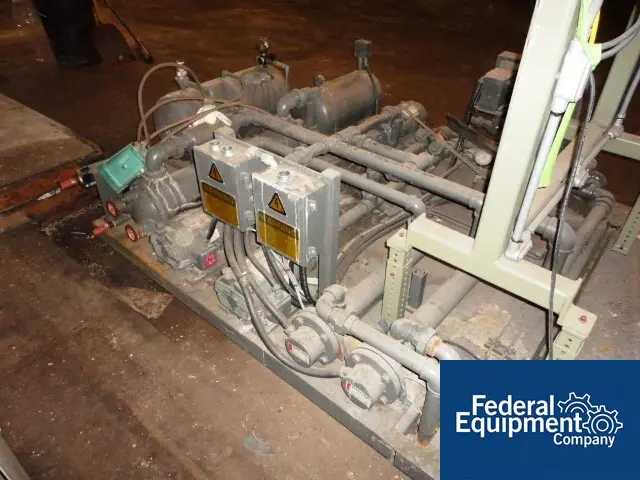

Used 34" Cincinnati Milacron two roll sheet stack, 18" diameter x 34" roll face width rolls, vertical stack orientation, chromed and cored rolls with rotary unions, silent chain driven with 5 hp, 1750 dc motor thru Koellman gearbox with 18.131:1 ratio, scr motor controller, pull roll stand with 4" diameter x 34" wide rubber roll driven by 1 hp dc motor with scr controller with idler roll unitized with temperature control skid, electrically heated with 9 KW Watlow heaters thru shell and tube heat exchanger with pumps and reservoir.
