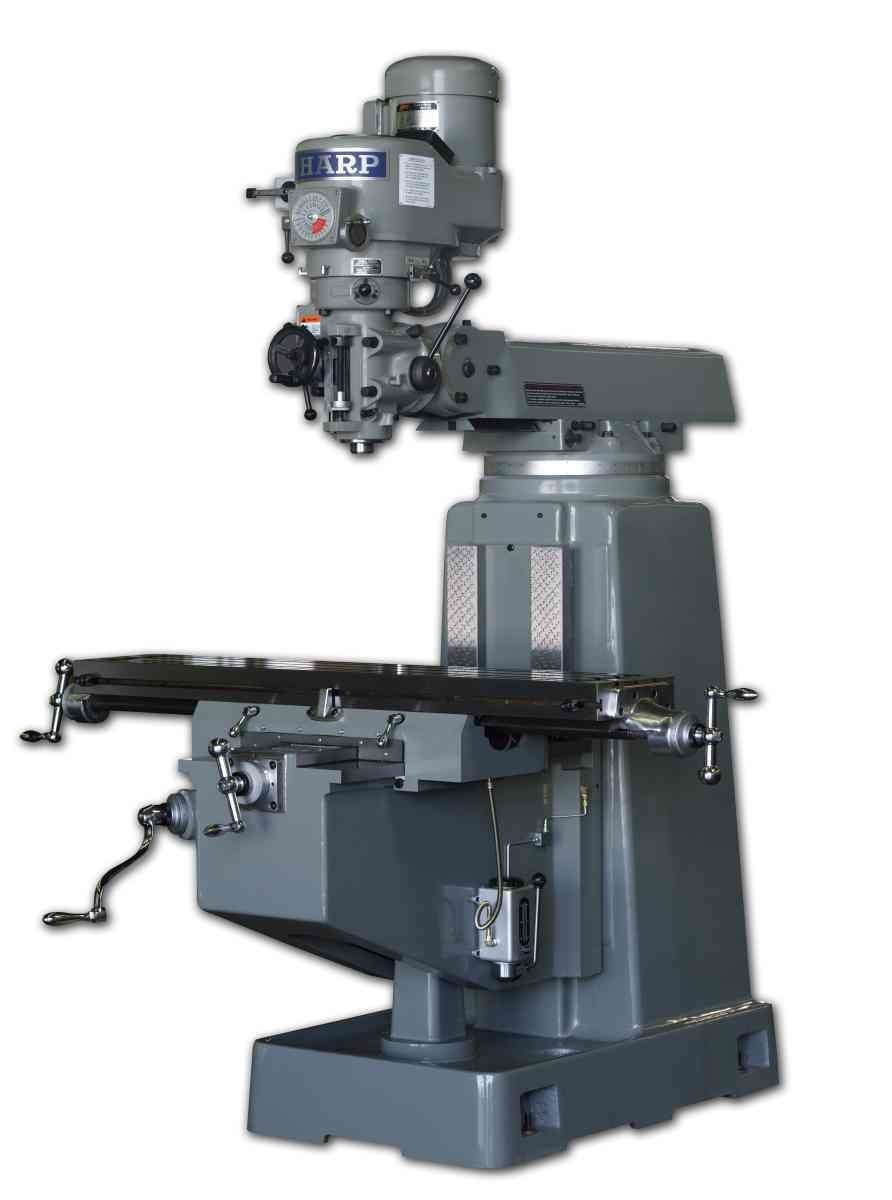

Sharp #TMV, Vertical Knee Mill, 33" x16.3" table, 3 HP, New

33" X 16.3" Traveling Manual Vertical Knee Mill with Hardened & Ground Box ways on Column & Saddle for Maximum Rigidity, 3 HP Motor, R-8 Spindle, Knuckle joint using bolts & circular T-slot design; allowing head to swivel left & right, up & down, Dual fan head cooling System, Double-Nut Backlash Eliminator, Internal Lubricated Vari-Disc Design

STANDARD EQUIPMENT:

• Manual Draw Bar
• Front & Rear Rubber Way Cover
• One Shot Lube System
• Hard Chromed Ways
• Tool Kit: Machine Manual, Half-Nut Wrench, Wrench 17m, 19m, Set of 6 Allen Wrenches, Philip Screwdriver, Flat Head, Screwdriver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin For Indicator, and Can of Paint.

FEATURES:

• Hardened & Ground & Chromed Box ways on Column & Knee for Maximum Rigidity
• 3 HP Motor
• R-8 Spindle
• Knuckle joint using bolts & circular T-slot design; Allowing head to swivel left & right, up & down
• Double Nut Backlash Eliminator
• Internal Lubricated Vari-Disc Design
• Motor shaft end supported by bearing cap

• Working Surface: 10” x 50”
• T-Slots Number and Size: 3 Slots, 5/8”
• Saddle: 26” Wide Saddle
• Travels (X & Y): 33” x 16.3”
• Quill Travel: 5”
• Ram Trave: 18.5”
• Knee Travel 15.3”
• Throat Distance: 9.8” - 28.3”
• Spindle Gageline to Table Top: 5.375”-16.9”
• Spindle Motor: 3 HP
• Wiring Voltage: 220V/440V
• Spindle Nose Taper: R-8
• Spindle Variable Speed Drive: 60-4,500 RPM
• Quill Feed 3 Speed (IPR): 0.0015, 0.003, 0.005
• Accuracy: 0.0002” TIR
• Head Tilt (Rt. To Left): 90°
• Head Tilt (Up And Down): 45°
• Floor Area (W x D x H): 70”x 75” x 91.78”
• Weight: 3,000 Lbs.
• Power Consumptions: 220V 5KVA/25 amps
  440V 5KVA/12.5 amps

Features, Function, & Benefits:

• ISO 9002 Certified: Quality Up To World Industry Standards.
• Meehanite Casting: Highest Grade Of Casting Possible.
• A Pair of High Out-Put Fan: Keeps Head And 3 Hp Motor Cool, To Run Jobs For Extended Periods Without Damaging The Motor, Belts And Bearing.
• Motor Shaft and Vari-Drive Pulleys Dynamically Balanced and Chromed For A Flawless Fit, Ground Ribs On Inside Diameter: For Smooth Speed Changes.
• Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End: To Keep Vari-Drive Pulley Moving Smoothly On The Shaft.
• Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt For Quiet, Accurate Operation At Any Speed For Years And Years.
• One Shot Lubrication System: For Lubrication Of Ways And Lead Screws. (X,Y And Z Axis)
• Hand Scraped Saddle And Knee: For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.
• Oil Groove Are Milled: For Maximum Lubrication On All Wear Areas.
• Table And Saddle Backlash Is Controlled By Double Nut Design: Keeps Lead Screw In Contact With Bronze Nuts A All Times To Keep Backlash At .0008” Within 20”
• Table And Saddle Are Mounted With Thrust Bearings That Are Pre-Loaded: Eliminating End Play For Precisely Controlled Lateral Movement.
• Patented Knuckle Design Uses 6 T-Bolts, 3 Per Side, Securing Them From The Outside: This Method Locks The Head Securely Resulting In Better Accuracy And Performance.
