Description

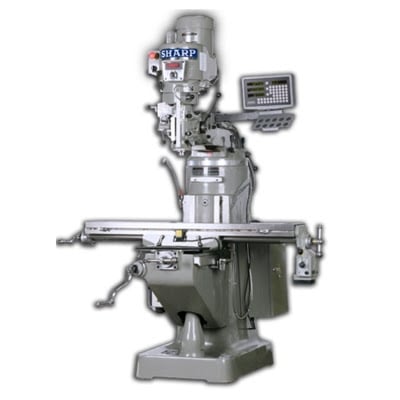

33" X 16.3" Traveling Manual Vertical Knee Mill with 3HP, 4,500 RPM R-8 Spindle Drive, Hardened, Ground and Chromed Box Way Design, Meehanite Casting, Digital Read-Out, Power Drawbar and Power Feed Included.
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
- Working Surface: 10” x 50”
- T-Slots Number and Size: 3 Slots, 5/8”
- Saddle: 26” Wide Saddle
- Travels (X & Y): 33” x 16.3
- Quill Travel: 5”
- Ram Trave: 18.5”
- Knee Travel 15.3”
- Throat Distance: 9.8” - 28.3”
- Spindle Gage Line to Table Top: 5.375” - 16.9”
- Spindle Motor: 3 HP
- Wiring Voltage: 220V/440V
- Spindle Nose Taper: R-8
- Spindle Variable Speed Drive: 60-4,500 RPM
- Quill Feed 3 Speed (IPR): 0.0015, 0.003, 0.005
- Accuracy: 0.0002” TIR
- Head Tilt (Rt. To Left): 90°
- Head Tilt (Up And Down): 45°
- Floor Area (W x D x H): 70”x 75” x 91.78”
- Weight: 3,000 Lbs.
- Power Consumptions: 220V 5KVA/25 Amps, 440V 5KVA/12.5 Amps
INCLUDES: 3HP, 4,500 RPM R-8 Spindle Drive, Hardened, Ground and Chromed Box Way Design, Meehanite Casting, Digital Read-Out, Power Drawbar and Power Feed Included.
***All Price, Location and Specifications Subject to Change without Notice***
