For Sale by PM Machines
Surplus Record Dealer Since 2005
Location: Santa Ana, CA
Contact S. Mataviesko
Phone Number: 714...> Show Phone Number 714-892-9800
Let the seller know you found their listing on Surplus Record!
$19,900 USD
Finance for as low as $404/mth
Description

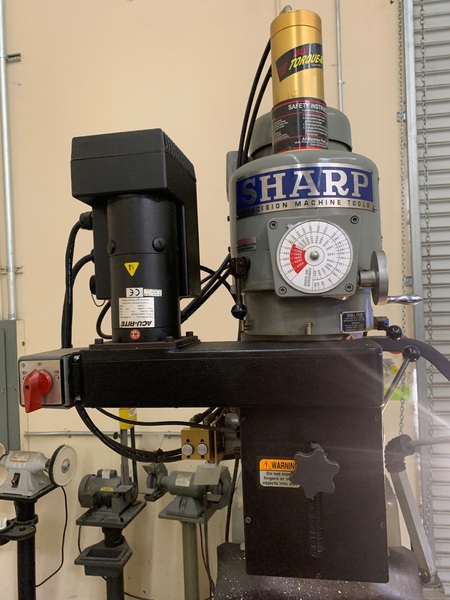

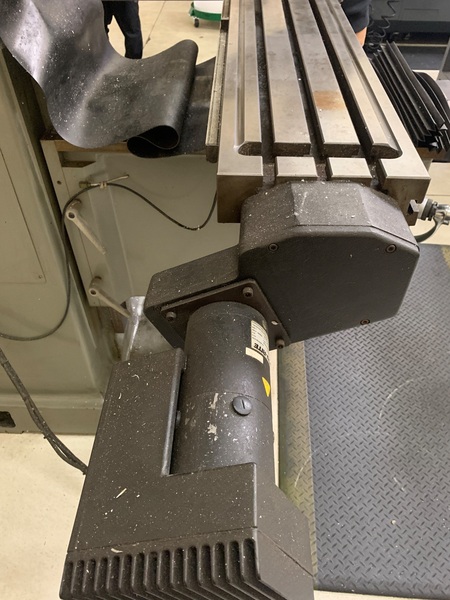

Precision ground ball screws with preloaded ballnut assembly • Digital servo drive system for each axis
• 3 axes digital readout
• Safety hand wheel

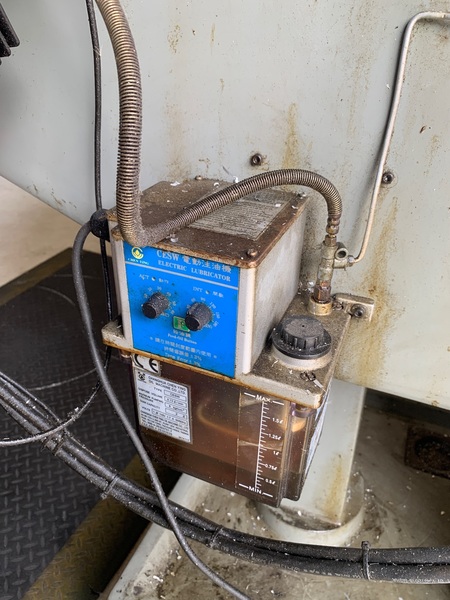

• Automatic lube system
Programming:
Program in/out, position/drill, mill lines, mill arc, blend (corner radius) Holes (bolt circle, rectangular array, rectangular fram, line),
Circle (pocket, fram, ring), rectangle (pocket, frame, slot, facing) Special features:
Custom pockets, repeat, rotate, mirror image.
Run options:
Single step, dry run, graphics only, manual positioning.
Calculator functions:
Geometry, trig.
• 3 axes digital readout
• Safety hand wheel
• Automatic lube system
Programming:
Program in/out, position/drill, mill lines, mill arc, blend (corner radius) Holes (bolt circle, rectangular array, rectangular fram, line),
Circle (pocket, fram, ring), rectangle (pocket, frame, slot, facing) Special features:
Custom pockets, repeat, rotate, mirror image.
Run options:
Single step, dry run, graphics only, manual positioning.
Calculator functions:
Geometry, trig.
Inquire Further with PM Machines!
