Sharp #LMV-50, Vertical Milling Machine, 9" x 50" Table, 37" X, 12" Y, 5" Z, (3) 5/8" T-Slot, 12" Ram, 16" Knee, 3 HP, 60-4500 RPM, R8 Taper, new

Description

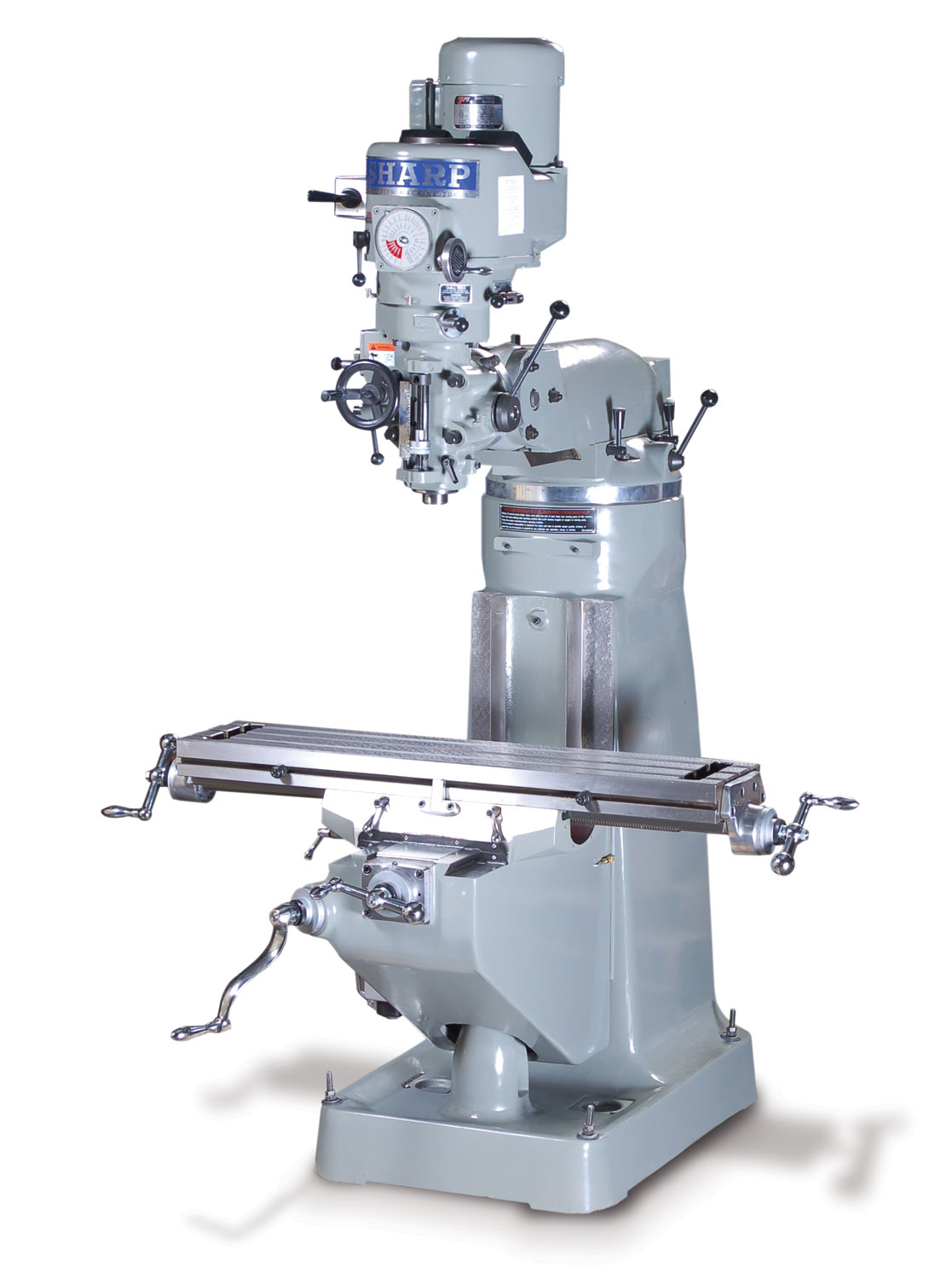

Sharp 9″ x 50″ Vertical Milling Machine

Inventory # 4484

Model: LMV-50

Specifications:

Table:

Working Surface: 9″ x 50″

T-Slots Number And Size: 3 Slots, 5/8″

Capacity:

Travels (X, Y and Z): 37″ x 12″ x 5″

Ram Travel: 12″

Knee Travel: 16″

Spindle To Column (Min. – Max.): 6 3/4″ – 18 1/2″

Spindle Nose To Table (Min. – Max.): 2 1/8″ – 18″

Spindle:

Spindle Nose Taper: R8

Spindle Variable Speed Drive: 60 – 4,500 RPM

Quill Feed 3 Speed (IPR): .0015″, .003″, .006″

Head Swivels: 360°

Head Tilt (Left To Right): 45°

Head Tilt (Up and Down): 45°

Spindle Motor: 3 HP / 220v, 440v / 3ph

Standard Features:

Variable Speed Drive (60 – 4,500 RPM)

R-8 Spindle

Dual Cooling Fans

Meehanite Casting

Chromed Ways

Self-Lubricating Motor Shaft Extends Pulley Life

Abec-7 Super Precision Spindle Bearings

Standard Equipment:

Hard-Chrome Ways and Gibbs

Precision Ground and Flaked Table

Unique Double Nut Backlash System

Double Fan Cooling System

Cutler Hammer On/Off Switch

Front and Rear Way Covers

One Shot Lube Systems (X, Y, Z Axes)

Tool Kit Includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of Six Allen Wrenches, Philip Screw Driver, Flat Head Screw Driver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint

Mechanical Specifications:

Dimensions: 84″ x 78″ x 81″ H

Weight: approx. 2,500 lbs.

Contact us for special pricing and availability

FOB Factory
